In the world of consumer electronics, displays are a crucial component that significantly impacts user experience. Two of the most prevalent display technologies are AMOLED (Active Matrix Organic Light Emitting Diode) and LCD (Liquid Crystal Display). Understanding the differences between these two technologies is essential for making informed decisions when purchasing devices such as smartphones, tablets, and televisions. This article will explore the fundamental distinctions, advantages, and disadvantages of AMOLED and LCD displays.

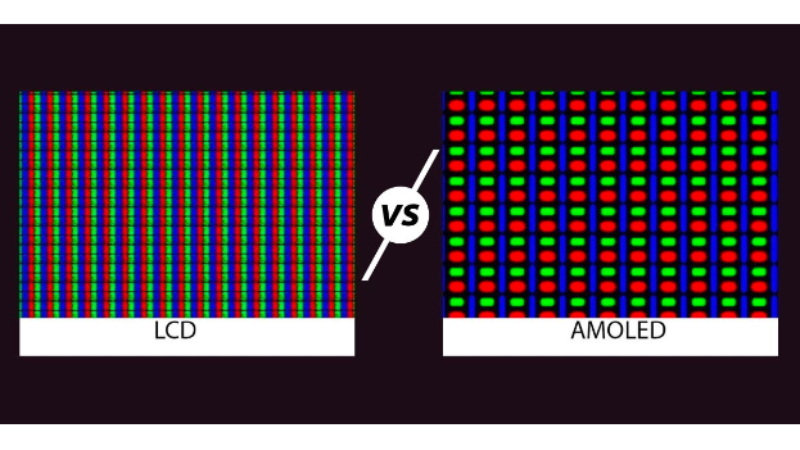

AMOLED displays utilize organic compounds that emit light when an electric current is applied. Each pixel in an AMOLED display consists of three subpixels (red, green, and blue), which can be individually controlled. This allows for precise color reproduction and deeper blacks since individual pixels can be turned off completely. The active matrix component enables faster refresh rates and better performance in dynamic content scenarios, making AMOLED displays ideal for gaming and video playback.
AMOLED technology has evolved significantly over the years. Recent advancements include Phosphorescent OLEDs (PHOLEDs), which have an internal quantum efficiency of almost 100%, reducing energy consumption and extending display life. Additionally, Tandem OLEDs use multiple light-emitting layers stacked on top of each other to enhance light emission and color accuracy, promising even better performance in future devices.
In contrast, LCDs rely on a backlight to illuminate the screen. The liquid crystals in the display do not emit light themselves; instead, they manipulate the light from the backlight to create images. This results in a brighter overall display but limits the ability to achieve true blacks because the backlight is always on to some extent.
LCD technology has also seen advancements with innovations like mini-LED and QLED (Quantum Dot LED) displays. Mini-LED technology enhances brightness and contrast by utilizing smaller LEDs for backlighting, while QLED improves color accuracy and brightness through quantum dot technology.
| Feature | AMOLED | LCD |
|---|---|---|
| Color Reproduction | More vibrant and saturated colors | More subdued colors |
| Black Levels | True blacks (pixels can turn off) | Grayish blacks due to backlight bleed |
| Brightness | Generally lower brightness | Higher brightness levels |
| Viewing Angles | Wider viewing angles with consistent colors | Limited viewing angles; colors may shift |
AMOLED displays are known for their superior color accuracy and contrast ratios, making them ideal for media consumption. Conversely, while LCDs provide excellent brightness levels, they often struggle with black levels due to their reliance on backlighting.
AMOLED displays are more power-efficient when displaying darker images because individual pixels can be turned off completely. This feature is particularly beneficial for devices with dark themes or wallpapers. In contrast, LCDs consume more power since their backlight remains on regardless of what is displayed on the screen.
In practical terms, this means that users who frequently utilize dark mode or enjoy watching videos with darker scenes will benefit from extended battery life on devices with AMOLED screens.
The lifespan of AMOLED displays tends to be shorter than that of LCDs due to the organic materials used in their construction. Over time, these materials can degrade, leading to issues such as color shifting or burn-in effects where static images leave a permanent mark on the screen.
LCDs generally have a longer lifespan and are less prone to burn-in issues, making them a more durable option for users who keep their devices for extended periods. However, advancements in AMOLED technology are being made to mitigate these issues; manufacturers are implementing features like "Auto-Dim" to reduce burn-in risks.
AMOLED technology is typically more expensive than LCD technology due to its complex manufacturing process and the materials used. As a result, devices with AMOLED screens are often found in higher-end models, while LCDs are more common in budget-friendly options.
Despite this cost difference, the demand for AMOLED displays continues to rise as consumers prioritize display quality over price. According to recent market trends, AMOLED shipments are expected to surpass those of TFT LCDs in mobile devices by 2024[6][12].
Both display technologies have their unique applications:
- AMOLED: Commonly found in high-end smartphones (e.g., Samsung Galaxy series), tablets, smartwatches, premium televisions, and virtual reality headsets due to their superior visual quality.
- LCD: Widely used in budget smartphones, laptops, monitors, televisions, and other consumer electronics due to affordability and brightness.
- Vibrant Colors: Produces rich colors with high contrast ratios.
- True Blacks: Achieves deep blacks by turning off individual pixels.
- Energy Efficiency: Consumes less power when displaying darker content.
- Thin Design: Allows for thinner and flexible displays.
- Fast Response Times: Provides smoother motion for fast-moving content.
- Costly: Higher production costs lead to more expensive devices.
- Shorter Lifespan: Organic materials degrade faster than those used in LCDs.
- Burn-in Issues: Static images can leave permanent marks on the screen.
- Lower Brightness: Generally less bright than LCDs under direct sunlight.
- Brightness: Typically brighter than AMOLED displays.
- Cost-effective: More affordable manufacturing leads to lower device prices.
- Longer Lifespan: Less prone to degradation over time.
- No Burn-in Issues: Static images do not affect performance.
- Limited Contrast Ratios: Cannot achieve true blacks due to backlighting.
- Slower Response Times: May experience ghosting effects during fast motion.
- Thicker Design: Requires more space due to backlighting components.
The future of both display technologies looks promising:
- For AMOLED, advancements such as printed OLEDs will enable large-scale production of flexible displays at lower costs. Additionally, improvements in material science may lead to longer-lasting OLED screens with reduced burn-in risks.
- For LCD, ongoing innovations like mini-LED technology will continue enhancing brightness levels and contrast ratios while maintaining affordability.
As consumers become increasingly aware of display quality's importance in their devices, manufacturers will likely continue investing in both technologies to meet evolving demands.
In summary, both AMOLED and LCD displays have their strengths and weaknesses. AMOLED excels in color reproduction, contrast ratios, and power efficiency for darker images but may suffer from shorter lifespans and higher costs. On the other hand, LCDs offer brighter displays with longer lifespans at a lower cost but lack the deep blacks that AMOLED provides.
When choosing between these two technologies, consider your usage patterns: if you prioritize vibrant colors and deep blacks for media consumption or gaming experiences, an AMOLED display may be preferable. However, if you require a bright display for outdoor use or want a more affordable option with longer durability for everyday tasks like browsing or reading articles, an LCD may be the better choice.
AMOLED displays are generally better for gaming due to their faster response times and deeper blacks which enhance contrast during gameplay.
Yes, AMOLED screens can experience burn-in if static images are displayed for prolonged periods; however, this issue can be mitigated by using varied content regularly.
Yes, LCDs typically perform better outdoors due to their higher brightness levels compared to AMOLED displays.
Not necessarily; they consume less battery when displaying darker images since individual pixels can be turned off completely.
AMOLED displays generally have better color accuracy due to their ability to control each pixel individually compared to LCDs which rely on backlighting.
