An IPS LCD display is a specific type of screen technology widely used in monitors, televisions, smartphones, and other electronic devices. IPS stands for In-Plane Switching, a method that enhances the performance of traditional LCD (Liquid Crystal Display) panels by improving color accuracy, viewing angles, and overall image quality. This article explores what IPS LCD technology means, how it works, its advantages and disadvantages, practical applications, and comparisons with other display technologies. The goal is to provide a thorough understanding of IPS LCD displays for both technical and general audiences.
An IPS LCD display is a liquid crystal display that uses In-Plane Switching technology to arrange its liquid crystals parallel to the glass substrates. Unlike traditional LCDs where crystals are twisted vertically, IPS panels have crystals aligned horizontally, allowing them to rotate within the plane of the panel when voltage is applied. This arrangement significantly reduces color distortion and maintains image clarity across wide viewing angles.
The LCD part refers to the liquid crystals that modulate light to form images. Since LCDs do not emit light themselves, they rely on a backlight, often LED-based, to illuminate the screen. IPS is a subtype of LCD panel technology, known for its superior color reproduction and viewing angle performance compared to other LCD types like TN (Twisted Nematic) and VA (Vertical Alignment).
At the core of IPS technology is the unique alignment and movement of liquid crystal molecules. In an IPS panel, these molecules lie flat and parallel to the glass surfaces. When an electric current is applied, the crystals rotate horizontally (in-plane) to allow light to pass through the polarizers and create the desired image. This horizontal rotation reduces the scattering of light, resulting in more consistent color and brightness regardless of the viewer's angle.
The backlight, usually composed of LEDs, shines through the liquid crystals and polarizing filters to produce the visible image. The combination of IPS liquid crystal alignment and LED backlighting delivers vibrant colors and sharp images with minimal distortion at extreme angles.
Since its introduction in the mid-1990s by Hitachi, IPS technology has undergone several improvements. Early IPS panels had slower response times and higher power consumption, but modern variants such as Advanced Super IPS (AS-IPS), Super IPS (S-IPS), and Plane to Line Switching (PLS) have enhanced performance in speed, brightness, and energy efficiency. These improvements have made IPS LCDs competitive for a wide range of applications, from professional color work to high-end gaming.

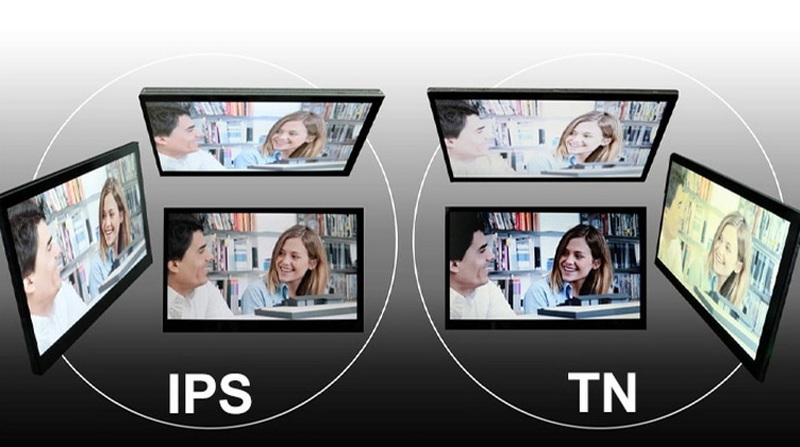

One of the hallmark benefits of IPS LCDs is their expansive viewing angles, often close to 180 degrees horizontally and vertically. This means the display maintains accurate colors and brightness even when viewed from the side, above, or below, unlike TN panels which suffer from color shifting and fading at off-center angles.
IPS displays are capable of producing over 16 million colors with high fidelity. The parallel alignment of liquid crystals ensures that colors remain vivid and true-to-life across the entire screen and from different viewing perspectives. This makes IPS panels the preferred choice for color-critical applications such as graphic design, photography, and video editing.
Thanks to their LED backlighting and efficient light modulation, IPS LCDs offer enhanced brightness and better visibility under direct sunlight compared to some other display types. This makes them suitable for outdoor use or brightly lit rooms.
The in-plane switching mechanism minimizes the color and contrast shifts that can occur in traditional LCDs when the screen is viewed from an angle. This leads to a more stable and pleasant viewing experience, especially important in multi-user or multi-monitor setups.
IPS panels can handle fast-moving images with less blurring compared to older LCD technologies, although they are generally slower than TN panels in response time. Some modern IPS displays have optimized liquid crystal response speeds to reduce motion blur and ghosting, enhancing video playback and gaming experiences.
IPS panels tend to be more stable in terms of color and brightness over time. They are less susceptible to issues like color shifting due to temperature changes or prolonged use, which can affect other LCD types. This durability makes IPS displays reliable for long-term professional use.
Despite their many benefits, IPS LCDs have some drawbacks to consider:
- Higher Power Consumption: IPS panels typically consume about 15% more power than TN LCDs due to their more complex liquid crystal arrangement and backlighting requirements. This can affect battery life in portable devices.
- Cost: Manufacturing IPS panels is more expensive, leading to higher retail prices compared to TN or VA panels. This price premium can be a consideration for budget-conscious consumers.
- Lower Contrast Ratios: IPS displays generally have lower contrast ratios than OLEDs, meaning blacks are not as deep and images may appear less vivid in dark scenes. This can affect viewing experience in low-light environments.
- Slower Response Times: IPS panels often have slower pixel response times than TN panels, which can affect fast-paced gaming performance. However, high-end IPS monitors have improved this aspect significantly, narrowing the gap.
- Potential for Backlight Bleeding: Some IPS panels may exhibit backlight bleeding, where light leaks around the edges of the screen, especially in dark scenes. This is less common with newer manufacturing techniques but still a consideration.
IPS LCD technology is widely used across various industries and devices due to its excellent color accuracy and viewing angles:
- Graphic Design and Photography: Professionals rely on IPS monitors to ensure color precision and consistency when editing images and videos. The wide color gamut and stable colors are critical for accurate work.
- Gaming: While TN panels have traditionally been favored for their speed, IPS displays are increasingly popular among gamers for their superior visuals and wide viewing angles. High-refresh-rate IPS monitors cater to competitive gaming needs, balancing speed and image quality.
- Medical Imaging: Diagnostic tools use IPS displays for their clarity and accurate image reproduction, which are critical for medical analysis. The consistent color and brightness help in detailed examinations.
- Security and Surveillance: Multi-monitor setups benefit from IPS panels' consistent image quality even when viewed from extreme angles, aiding in monitoring multiple feeds simultaneously without distortion.
- Consumer Electronics: Smartphones, tablets, laptops, and televisions often use IPS LCDs to provide users with vibrant colors and wide viewing angles for everyday use. This enhances user experience in media consumption and productivity.
- Automotive Displays: Modern vehicles incorporate IPS LCDs in infotainment systems and dashboards for clear visibility under various lighting conditions and viewing angles.
Feature | IPS LCD | TN LCD | OLED/AMOLED |
---|---|---|---|
Viewing Angles | Wide (~178-180°) | Narrow (~90-120°) | Wide |
Color Accuracy | High, accurate and consistent | Lower, color shifting | Very high, vibrant colors |
Contrast Ratio | Moderate | Moderate | Very high (true blacks) |
Response Time | Moderate (4-8 ms typical) | Fast (1-4 ms) | Very fast (0.1 ms) |
Power Consumption | Higher than TN, less than OLED | Lower | Lower (especially with dark themes) |
Price | Higher | Lower | Higher |
Durability | Robust, less prone to burn-in | Robust | Susceptible to burn-in |
IPS LCDs strike a balance between color accuracy and viewing angles, making them ideal for professional and general use. TN panels offer faster response times but poorer color and angles, while OLED displays provide superior contrast and color but at a higher cost and with potential durability issues.
When selecting an IPS LCD display, consider the following factors to ensure it meets your needs:
- Resolution: Higher resolutions provide sharper images. For professional work, 4K IPS monitors are increasingly common.
- Color Gamut and Calibration: Look for displays that cover wide color gamuts like Adobe RGB or DCI-P3 and support hardware calibration for accurate color reproduction.
- Refresh Rate and Response Time: For gaming, higher refresh rates (120Hz or above) and lower response times improve smoothness and reduce motion blur.
- Panel Coating: Matte coatings reduce glare, while glossy coatings enhance color vibrancy but may reflect ambient light.
- Connectivity: Ensure the display supports the necessary ports (HDMI, DisplayPort, USB-C) for your devices.
- Ergonomics: Adjustable stands and VESA mount compatibility improve comfort during extended use.
IPS LCD displays represent a significant advancement in screen technology by addressing the limitations of earlier LCD panels. Their in-plane switching technology allows for wide viewing angles, accurate color reproduction, and consistent image quality, making them the preferred choice for professionals and consumers alike. Despite some drawbacks such as higher power consumption and cost, IPS LCDs offer a balanced solution suitable for a variety of applications from graphic design to gaming and medical imaging. Understanding the strengths and weaknesses of IPS LCD technology can help users make informed decisions when selecting displays for their needs.
IPS stands for In-Plane Switching, a technology where liquid crystals are aligned parallel to the display glass and rotate within the plane to allow light through, improving viewing angles and color accuracy.
An IPS LCD differs by the way its liquid crystals are aligned and switched, offering wider viewing angles and better color consistency compared to traditional LCDs like TN panels.
Yes, IPS LCDs provide superior color accuracy and consistency, making them ideal for tasks requiring precise color reproduction.
Yes, IPS displays are suitable for gaming, especially modern high-refresh-rate models, though they may have slightly slower response times than TN panels.
They tend to consume more power, cost more to manufacture, have lower contrast ratios than OLEDs, and may have slower response times compared to some other panel types.
