Liquid Crystal Displays (LCDs) are ubiquitous in modern electronic devices, from smartphones and laptops to automotive dashboards and industrial equipment. At the heart of these displays lies the LCD display driver, a critical component that enables the screen to show images, text, and video accurately and efficiently. This article provides an in-depth exploration of what an LCD display driver is, how it works, its types, technological advancements, and practical applications. We will also include illustrative explanations and detailed descriptions to enhance understanding.

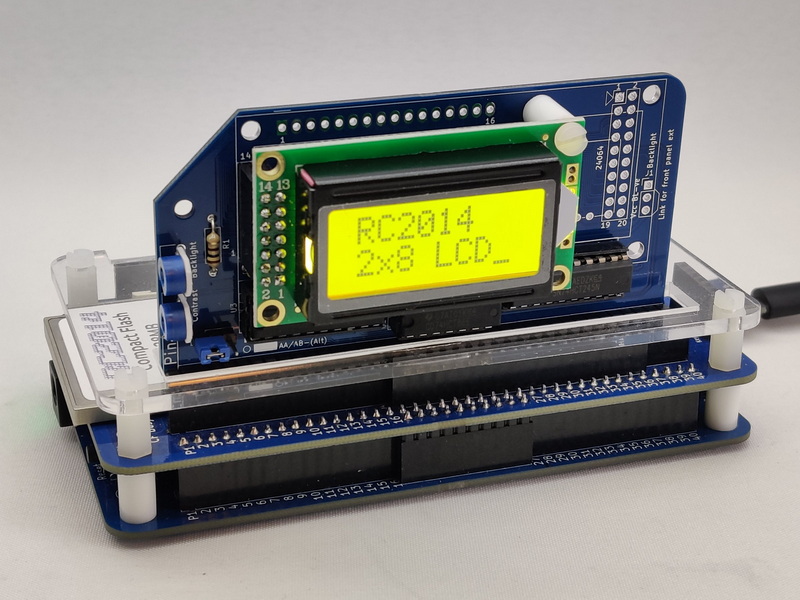

An LCD display driver is an integrated circuit (IC) or electronic component responsible for controlling and powering the LCD panel. It acts as the "brain" of the display, converting digital signals from a microprocessor, microcontroller, or other sources into the precise electrical signals needed to manipulate the liquid crystal pixels on the screen. This conversion allows the display to render characters, graphics, images, and video content.
Unlike a general-purpose microcontroller, an LCD driver is specialized to handle the unique voltage, timing, and control requirements of LCD technology. It typically includes a CPU, memory (RAM and ROM), and input/output interfaces tailored to video and audio signals.
The LCD display driver's role is fundamental because liquid crystals themselves do not emit light; instead, they modulate light passing through them. To achieve this modulation accurately, the driver must carefully control the voltage applied to each pixel, ensuring the correct optical response.
The LCD display driver performs several key functions:
- Signal Reception: It receives video or image data from the host device through interfaces such as HDMI, VGA, LVDS, SPI, or I2C. This data is usually in digital form, representing pixel colors and brightness levels.
- Signal Processing: The driver decodes, processes, and converts the incoming data into the correct format, including scaling images, adjusting colors, and controlling brightness. It may also perform gamma correction to ensure the display reproduces colors faithfully.
- Voltage Control: It generates and applies the appropriate voltages to the LCD pixels to control their optical properties, effectively turning pixels on or off or modulating their intensity. The voltage levels are carefully regulated to avoid damaging the liquid crystals and to maintain image stability.
- Pixel Driving: The driver manages the scanning of rows and columns of pixels (segments and commons) to update the display content dynamically. This involves multiplexing techniques to control thousands or millions of pixels efficiently.
- Memory Management: It stores temporary image data in built-in RAM and may include character generators to translate data into text or symbols. This memory allows the driver to refresh the display independently of the host processor.
- Feedback and Adjustment: Some advanced drivers monitor display performance in real-time and adjust parameters to optimize image quality. This can include temperature compensation and adaptive brightness control.
The driver interfaces with the LCD panel's thin-film transistors (TFTs) or other switching elements, which act like switches controlling each pixel's state. The driver must precisely time and voltage-control these elements to produce a stable and clear image.
LCD drivers vary depending on the display technology and application. Common types include:
- Segment Drivers: Used for simple numeric or alphanumeric displays, controlling individual segments of the LCD. These are common in calculators, digital watches, and basic instrumentation.
- Character Drivers: Include built-in character generators for displaying text. These drivers simplify the process of showing letters and numbers without requiring the host to send pixel-by-pixel data.

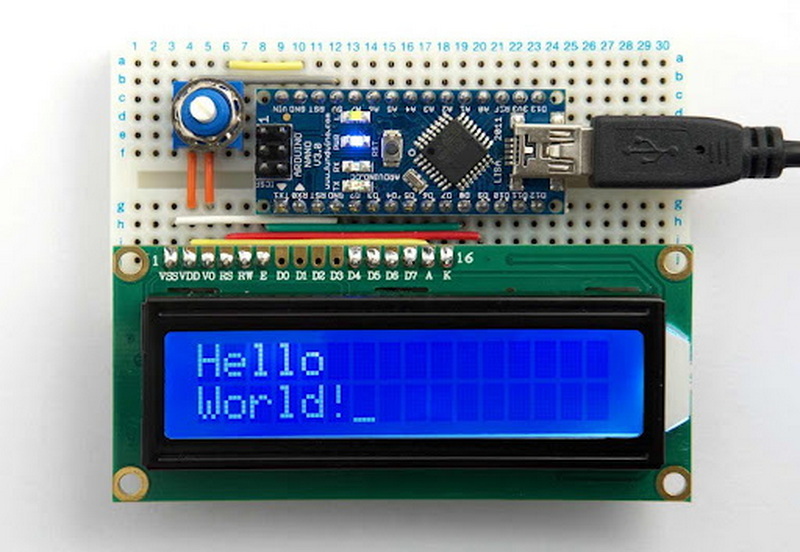

- Graphic Drivers: Capable of controlling dot-matrix displays for complex images and graphics. These are used in devices like handheld gaming consoles and industrial monitors.

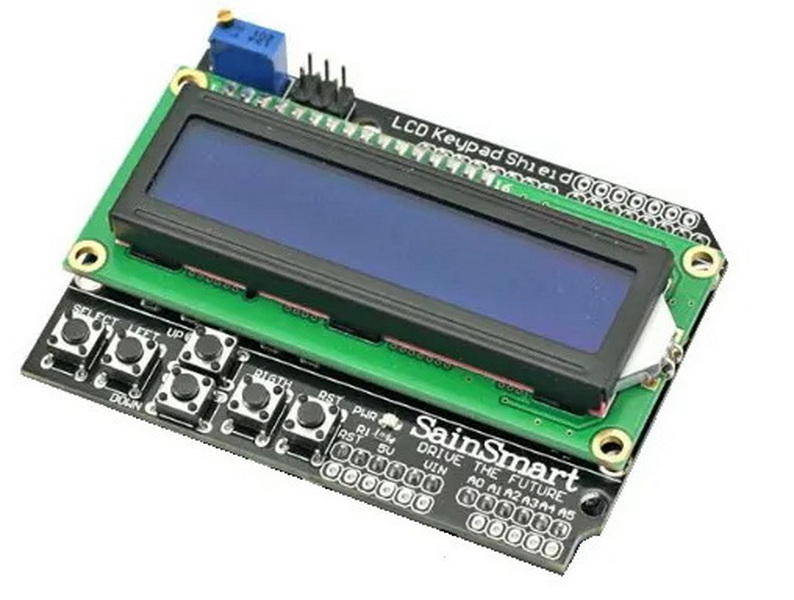

- TFT LCD Drivers: Specialized drivers for thin-film transistor LCDs that provide high resolution, fast response times, and vibrant color reproduction. TFT drivers handle millions of pixels and require complex timing and voltage control.
- STN Drivers: For super-twisted nematic LCDs, offering good contrast and wide viewing angles. These are often found in older or cost-sensitive applications.
- Integrated Controller-Drivers: Combine the functions of an LCD controller and driver in a single chip, simplifying design and reducing component count. These are popular in embedded systems and portable devices.
Each type of driver is optimized for the specific electrical and optical characteristics of the LCD panel it serves, ensuring compatibility and performance.
Recent innovations in LCD driver technology have enhanced display performance and efficiency:
- Higher Output Channels: Support for higher resolutions including 4K and 8K displays. As display sizes and pixel densities increase, drivers must handle more data and more output lines.
- Power Efficiency: Techniques like dynamic refresh rate adjustment and charge recycling reduce power consumption, extending battery life in portable devices. This is critical for smartphones and wearables.
- Enhanced Color Depth and Contrast: Improved gamma correction and local dimming for richer colors and better image quality. Some drivers support HDR (High Dynamic Range) content.
- Faster Response Times: Reduced motion blur and ghosting for smoother video playback. This is important for gaming and video applications.
- Security Features: Encryption and physical security layers to protect against hacking, especially in automotive applications. This ensures data integrity and device safety.
- Integrated Gate Drivers: Embedding gate driver circuits directly on the LCD panel reduces bezel size and improves reliability. This integration also simplifies manufacturing.
- Automotive-Grade Reliability: Drivers designed to withstand extreme temperatures, high brightness, and long operational lifespans. Automotive displays require robust drivers to function reliably under harsh conditions.
These features reflect the increasing demands placed on LCD drivers as displays become more complex and integral to user experience.
An LCD driver typically consists of two main parts:
- Gate Driver: Controls the scanning of rows (gate lines) on the display. It includes shift registers, level shifters, and output buffers. The gate driver sequentially activates each row of pixels, allowing the data driver to set pixel voltages for that row.
- Data Driver: Controls the columns (source lines) and converts digital data into analog voltages to drive each pixel. It includes shift registers, digital-to-analog converters (DACs), latches, and output buffers. The data driver applies the correct voltage to each pixel in the activated row.
Advanced designs incorporate features like chopper offset cancellation to reduce voltage offsets, high slew-rate buffers for fast switching, and charge recycling circuits to save power. The circuitry must be carefully designed to minimize noise and distortion, which can degrade image quality.
The integration of these components into a single IC or multiple ICs depends on the display size, resolution, and application requirements.
LCD drivers are used in a wide variety of devices and industries:
- Consumer Electronics: Smartphones, tablets, laptops, TVs, and monitors rely heavily on LCD drivers to deliver crisp, vibrant images.
- Automotive Displays: Instrument clusters, infotainment systems, heads-up displays, and rear-seat entertainment systems use specialized drivers that meet automotive standards for durability and safety.
- Industrial Equipment: Medical devices, instrumentation panels, control systems, and factory automation equipment use LCDs for user interfaces, often requiring drivers that can operate reliably in harsh environments.
- Wearables: Smartwatches and fitness trackers require low power consumption and compact drivers to maximize battery life and device size constraints.
- Embedded Systems: Appliances, elevators, and other systems with user interfaces use LCD drivers to provide clear, easy-to-read displays.
The versatility of LCD drivers allows them to be tailored to the specific needs of each application, balancing factors like resolution, power consumption, and environmental robustness.
Designing and selecting an LCD driver involves several challenges:
- Discontinuation of Drivers: LCD drivers may be discontinued by manufacturers, requiring firmware updates or last-time buys to maintain product lines. This can affect long-term product support and maintenance.
- Environmental Conditions: Drivers must be selected based on temperature tolerance and robustness for harsh environments. Automotive and industrial applications often demand extended temperature ranges and vibration resistance.
- Power vs. Performance Trade-offs: Balancing power consumption with display brightness, resolution, and refresh rate is critical, especially in battery-powered devices.
- Compatibility: Ensuring the driver matches the LCD panel specifications and the host system interface is essential to avoid damage and ensure optimal performance.
- Electromagnetic Interference (EMI): High-speed switching in drivers can generate EMI, which must be mitigated through careful circuit design and shielding.
- Thermal Management: Drivers generate heat, requiring thermal considerations in compact or enclosed devices.
Addressing these challenges requires close collaboration between display manufacturers, driver IC designers, and system integrators.
An LCD display driver is a specialized integrated circuit essential for converting digital signals into the precise voltages and timings that control liquid crystal pixels. It serves as the brain of the LCD, enabling the display of text, images, and video with clarity and efficiency. Advances in driver technology continue to push the boundaries of resolution, power efficiency, and integration, supporting the growing demands of modern display applications across consumer electronics, automotive, industrial, and wearable devices.
Understanding the functions, types, and design considerations of LCD display drivers is crucial for engineers, developers, and hobbyists working with LCD technology. With the right driver, an LCD panel can deliver vibrant, reliable, and energy-efficient visual performance tailored to its application.
An LCD controller manages the data and commands from the host device, storing image data and interfacing with the processor. The LCD driver converts this data into electrical signals to physically drive the LCD pixels. Sometimes, both functions are integrated into a single chip.
The driver controls voltage levels, timing, and signal integrity, directly influencing image stability, color accuracy, contrast, and response time. A high-quality driver ensures sharp, flicker-free, and vibrant images.
No, drivers are designed to match specific LCD technologies (TFT, STN, segment displays) and panel specifications like resolution, voltage requirements, and interface type. Using an incompatible driver can damage the display or result in poor performance.
In applications like automotive or IoT devices, drivers may include encryption and physical security to prevent hacking and unauthorized access, ensuring safe and reliable operation.
Manufacturers may need to update firmware to support a new driver or make a last-time buy of the old driver. Choosing widely used, standard drivers can minimize this risk.
