In the world of display technology, IPS (In-Plane Switching) LCDs have emerged as a leading choice for consumers and professionals alike. This article delves into the intricacies of IPS LCD technology, exploring its advantages, applications, and how it compares to other display types.
IPS LCD stands for In-Plane Switching Liquid Crystal Display. It is a type of LCD that utilizes a specific arrangement of liquid crystals to enhance the viewing experience. Unlike traditional TN (Twisted Nematic) displays, where liquid crystals twist to allow light to pass through, IPS technology aligns the crystals in a parallel manner. This alignment allows for better color reproduction and wider viewing angles.

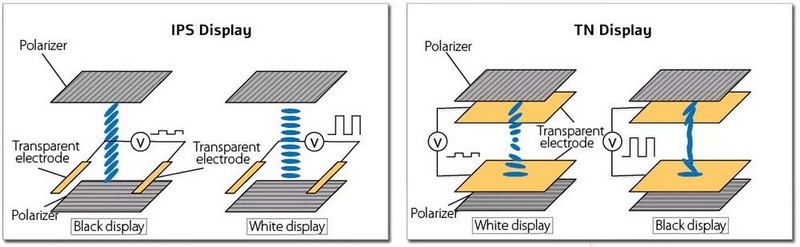

The fundamental operation of an IPS display involves liquid crystal molecules sandwiched between two glass substrates. When an electric field is applied, these molecules rotate in a way that allows light to pass through without distortion. This process results in images that are clearer and more vibrant than those produced by older technologies.
- Liquid Crystals: The core element that manipulates light.
- Glass Substrates: Provide structural support and facilitate the alignment of liquid crystals.
- Backlight: Typically LED-based, it illuminates the display from behind.
IPS displays offer several notable benefits over other types of LCDs:
- Wide Viewing Angles: IPS technology maintains color accuracy and brightness even when viewed from extreme angles, often up to 178 degrees both horizontally and vertically.
- Superior Color Reproduction: IPS panels can produce more accurate colors, making them ideal for graphic design, photography, and video editing.
- Consistent Image Quality: Unlike TN panels, which can suffer from color distortion at angles, IPS displays provide stable image quality across the entire screen.
- Better Outdoor Visibility: Due to their enhanced backlighting and color accuracy, IPS displays perform well under bright conditions.
In addition to the advantages mentioned above, several features make IPS displays stand out:
- Fast and Stable Response Time: IPS displays have a response time that is not only quick but also stable and consistent, making them an improvement over traditional TFT displays.
- Slim Design: Improved liquid crystal molecule arrangement reduces the thickness of the liquid crystal layers, increasing light transmittance and making the entire panel slimmer.
Given their advantages, IPS displays are widely used in various applications:
- Professional Monitors: Used in graphic design and photography for their color accuracy.
- Smartphones and Tablets: Many high-end devices utilize IPS technology for better visuals.
- Televisions: IPS panels are common in TVs where wide viewing angles are essential for group viewing.
- Medical Imaging: In diagnostic imaging systems, clarity and precision are crucial for accurate diagnostics.
- Gaming: Modern gaming monitors increasingly use IPS technology due to its superior color reproduction and viewing angles.
- Digital Signage: Used in advertising displays where visibility from various angles is important.
- Automotive Displays: Dashboard screens benefit from the clarity of IPS technology for displaying essential information clearly.
To understand the strengths of IPS displays better, it's helpful to compare them with other types of LCDs:
Feature | IPS LCD | TN LCD | VA LCD |
---|---|---|---|
Viewing Angles | Excellent (up to 178°) | Poor (limited) | Good |
Color Accuracy | High | Moderate | Good |
Response Time | Moderate | Fast | Moderate |
Cost | Higher | Lower | Moderate |
Despite their many advantages, IPS displays do have some drawbacks:
- Higher Cost: The production cost is generally higher than that of TN panels.
- Slower Response Times: While improving, they typically have slower response times compared to TN panels, which can affect gaming performance.
- Power Consumption: They tend to consume more power than TN displays, which can be a concern for mobile devices.
To further enrich our understanding of *IPS LCD* technology, let's explore additional aspects such as its historical development, technical specifications, recent advancements in display technologies related to *IPS*, and its future prospects in various industries.
The development of *IPS* technology was a response to the limitations observed in *TN (Twisted Nematic)* LCDs prevalent during the late 1980s. These earlier technologies were characterized by poor viewing angles and inadequate color reproduction. The invention of *IPS* began with patents filed in Germany around 1990 that focused on advantageous molecular arrangements within liquid crystals. Japanese electronics giant Hitachi later optimized these designs by refining electrode shapes for improved viewing angles[1][5].
The introduction of *Super IPS* by Hitachi further enhanced performance by allowing larger screens with acceptable visual quality. By 1996, Samsung developed optical patterning techniques leading to multi-domain configurations that remain dominant today[5][19].
An IPS panel consists of several layers that contribute to its functionality:
1. Polarizers: These layers filter light entering or exiting the display.
2. Liquid Crystal Layer: This layer contains liquid crystal molecules aligned parallel when no voltage is applied.
3. Backlight Source: Usually LEDs provide illumination through the liquid crystal layer.
4. Electrode Arrangement: The unique placement allows for better control over light modulation[1][19].
The combination of these components allows *IPS* panels to achieve superior image quality characterized by vibrant colors and consistent brightness across wide viewing angles[3][4].
Recent innovations have seen *IPS* technology integrated into various formats such as OLED (Organic Light Emitting Diode) screens—often referred to as *Nano IPS*. These advancements aim at providing faster response times while retaining the excellent color accuracy associated with traditional *IPS* panels[12][19].
Additionally, developments like Quantum Dot technology enhance color depth beyond standard sRGB coverage—allowing monitors to achieve nearly 100% Adobe RGB coverage suitable for professional applications[10][12].
As demand for high-resolution content grows—especially with the advent of 4K and 8K technologies—*IPS* displays are expected to evolve further. The integration of flexible screens may lead to innovative applications across various sectors including consumer electronics, automotive interfaces, medical imaging devices, and even virtual reality environments[13][20].
IPS LCD technology represents a significant advancement in display quality. Its ability to deliver vibrant colors and maintain image clarity at various angles makes it a preferred choice for professionals and everyday users alike. As technology continues to evolve, we can expect further improvements in IPS displays, solidifying their place in the market.
IPS displays offer wider viewing angles and better color accuracy compared to TN displays. TN panels are faster but suffer from poor color reproduction at off-axis angles.
While they have slower response times compared to TN panels, modern IPS displays are increasingly being designed with higher refresh rates suitable for gaming.
Yes, generally speaking, IPS displays consume more power than TN displays due to their backlighting requirements.
Yes, IPS displays perform well under bright conditions due to their superior color reproduction and backlighting capabilities.
While many high-end monitors use IPS technology due to its advantages in color accuracy and viewing angles, not all do; some may use VA or OLED technologies depending on specific needs.
