Using an I2C LCD display with Arduino is a popular and efficient way to add a text-based interface to your electronics projects. This guide will explain what an I2C LCD display is, how it works with Arduino, how to connect and program it, common troubleshooting tips, and practical examples. By the end, you will have a deep understanding of this technology and be able to integrate it smoothly into your projects.
An I2C LCD display is a Liquid Crystal Display (LCD) module that communicates with microcontrollers like Arduino using the I2C (Inter-Integrated Circuit) protocol. Unlike traditional parallel LCDs that require many wires (up to 12 pins), an I2C LCD reduces this to just four wires:
- VCC (Power, typically 5V)
- GND (Ground)
- SDA (Serial Data Line)
- SCL (Serial Clock Line)
This simplification is achieved by adding an I2C interface module, usually based on the PCF8574 I/O expander chip, mounted on the back of a standard LCD. This module converts the parallel signals of the LCD into serial I2C communication, drastically reducing wiring complexity and freeing up Arduino pins for other uses.
- 16×2 LCD: Displays 16 characters per line, 2 lines total.
- 20×4 LCD: Displays 20 characters per line, 4 lines total.
Both types are widely supported and can be controlled via I2C modules.
I2C is a serial communication protocol that uses two lines, SDA and SCL, to communicate between a master device (Arduino) and one or more slave devices (LCD, sensors, etc.).
- SCL (Serial Clock Line): The clock signal generated by the master to synchronize data transfer.
- SDA (Serial Data Line): The data line over which bits are sent serially.
Each device on the I2C bus has a unique 7-bit address. The Arduino sends commands and data to the LCD by addressing the LCD's I2C module address (commonly 0x27 or 0x3F).
- Reduced Wiring: Only 4 wires needed instead of 12 or more.
- Saves Arduino Pins: Leaves more pins free for other peripherals.
- Simplifies Code: Libraries like LiquidCrystal_I2C make programming easy.
- Supports Multiple Devices: Multiple I2C devices can share the same bus.
- Adjustable Contrast and Backlight: Many modules include potentiometers and backlight control.
- Arduino board (Uno, Mega, Nano, etc.)
- I2C LCD module (16×2 or 20×4)
- Jumper wires (typically 4)
- Breadboard (optional)

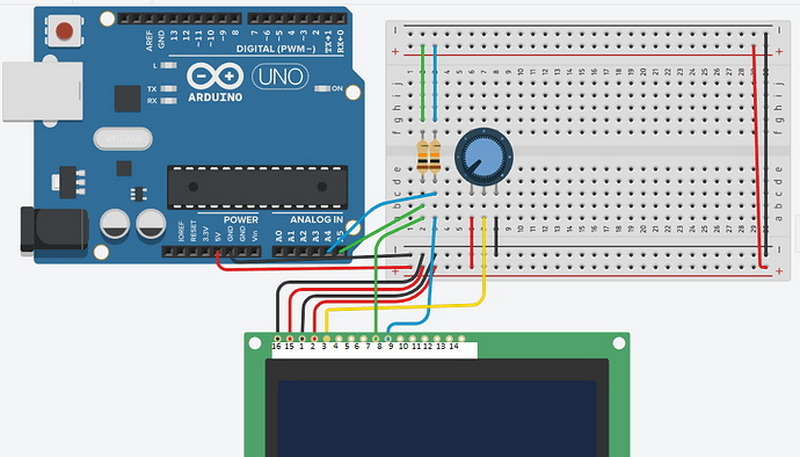

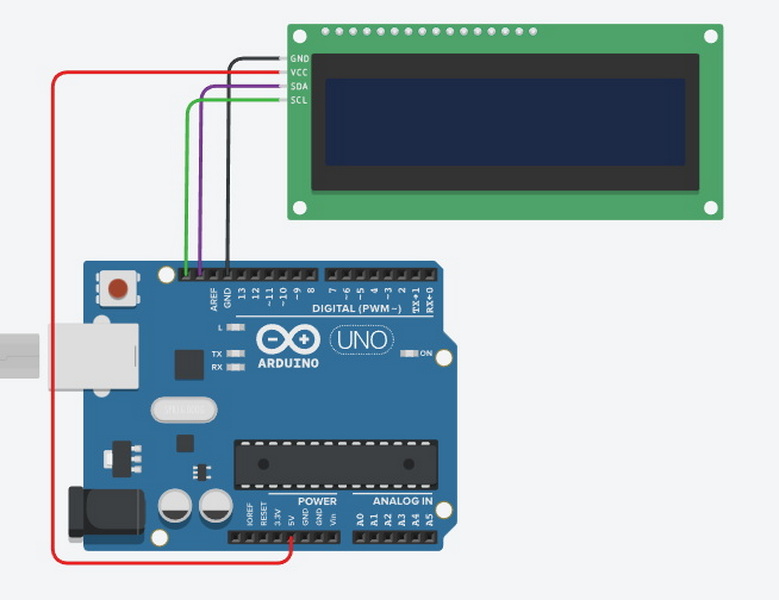

The wiring is straightforward:
| I2C LCD Pin | Arduino Pin | Description |
|---|---|---|
| VCC | 5V | Power supply |
| GND | GND | Ground |
| SDA | A4 (Uno) or 20 (Mega) | Data line |
| SCL | A5 (Uno) or 21 (Mega) | Clock line |
To program the I2C LCD, install the LiquidCrystal_I2C library in the Arduino IDE:
1. Download the library ZIP file.
2. Open Arduino IDE.
3. Go to Sketch > Include Library > Add .ZIP Library.
4. Select the downloaded ZIP and install.
This library provides easy functions to initialize and control the LCD.
Sometimes the default address (0x27) may not work. To find the correct address, use an I2C scanner sketch that scans all possible addresses on the bus and reports which ones respond. This helps ensure you use the right address in your code to communicate with the LCD.
- The I2C LCD module usually has a small potentiometer on the back to adjust contrast.
- Turning it clockwise or counterclockwise will make the characters clearer or invisible.
- Make sure the backlight is turned on in code using the appropriate library function.
- LCD Backlight On but No Characters: Adjust the contrast potentiometer.
- No Display at All: Check wiring, especially SDA and SCL connections.
- Wrong I2C Address: Use I2C scanner to find the correct address.
- Library Not Working: Ensure you installed the correct LiquidCrystal_I2C library.
- Display Shows Garbage: Try initializing the LCD properly and clearing the screen before printing.
Using an I2C LCD with Arduino opens up a wide range of project possibilities. Here are some practical applications:
- Display sensor readings such as temperature, humidity, or distance.
- Create user interfaces for menus and settings.
- Show status messages in robotics projects.
- Use as a debug output for Arduino programs.
- Build clocks, counters, or timers with visual feedback.
Additionally, combining the I2C LCD with other sensors and modules can create interactive and informative projects. For example, a weather station displaying real-time data or a home automation control panel.
- Always double-check your wiring connections to avoid communication errors.
- Use pull-up resistors on SDA and SCL lines if your module does not have them built-in.
- Keep your I2C bus length short to reduce noise and signal degradation.
- Use the correct I2C address to avoid conflicts with other devices.
- Experiment with different LCD sizes and types to suit your project needs.
While I2C LCDs are convenient, they have some limitations:
- Speed: I2C communication is slower compared to parallel communication, but this is rarely an issue for simple text updates.
- Address Conflicts: If you have multiple devices on the bus with the same address, you may need to use multiplexers or choose different modules.
- Character Set: Standard LCDs have a limited built-in character set. For custom graphics, consider OLED displays or TFT screens.
Alternatives to I2C LCDs include SPI-based displays, OLED displays, and touchscreen modules, which offer richer graphics but often require more complex wiring and programming.
To make your LCD interface more user-friendly and visually appealing, consider the following enhancements:
- Custom Characters: Create and upload custom characters to the LCD to display icons or symbols.
- Scrolling Text: Implement scrolling messages for longer text.
- Menus and Navigation: Build simple menu systems controlled by buttons or rotary encoders.
- Backlight Control: Program the backlight to turn off after inactivity to save power in battery-operated projects.
These techniques add interactivity and polish to your projects.
Using an I2C LCD display with Arduino is an excellent way to add clear, easy-to-read text displays to your projects without complicated wiring or excessive pin usage. The I2C protocol simplifies communication, and with libraries like LiquidCrystal_I2C, programming becomes straightforward even for beginners. By following proper wiring, installing the right libraries, and troubleshooting common issues, you can enhance your Arduino projects with dynamic and informative displays. Exploring advanced features like custom characters and menu systems can further elevate your project's interface, making your creations more interactive and professional.
You only need four wires: VCC (5V), GND, SDA, and SCL. This is much fewer than the 12 or more wires required for parallel LCDs.
Most I2C LCD modules use 0x27 or 0x3F as their default I2C address. Use an I2C scanner sketch to confirm.
Yes, as long as each I2C device has a unique address. Some modules allow changing the address via jumpers.
There is usually a small potentiometer on the back of the I2C module. Rotate it to adjust the LCD contrast.
The most common library is LiquidCrystal_I2C, which simplifies initializing and writing text to the LCD.
