Liquid Crystal Displays (LCDs) are everywhere: from smartphones and laptops to televisions and digital watches. But what exactly is an LCD display made of? This comprehensive guide explores the intricate structure, materials, and science behind LCD technology. Whether you're a tech enthusiast or a curious reader, you'll discover how each layer and component contributes to the vibrant images you see on screen.

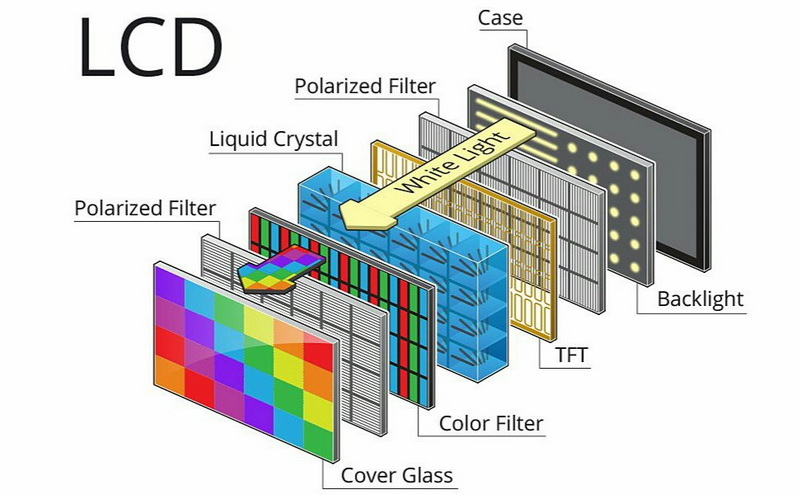

LCDs are complex assemblies made up of multiple layers, each with a specific function. Here's a breakdown of the essential components:
The backlight unit is the foundational light source for the display. Unlike older technologies such as cathode ray tubes, LCDs do not emit light themselves. Instead, they rely on a dedicated backlight, which is typically composed of light-emitting diodes (LEDs) or, in older designs, cold cathode fluorescent lamps (CCFLs). The backlight ensures that the entire display is evenly illuminated, providing the necessary brightness and clarity.
Directly above the backlight, the light guide plate channels light across the entire display, ensuring even distribution. The diffuser, which sits on top of the light guide plate, scatters the light uniformly, eliminating hotspots and dark areas. This combination is crucial for delivering a consistent viewing experience.
Polarizing filters are essential for controlling the passage of light through the display. There are two polarizers in every LCD: one at the front and one at the back of the liquid crystal layer. These filters only allow light vibrating in a specific direction to pass. The manipulation of light polarization is fundamental to how LCDs create visible images.
Two ultra-thin, high-purity glass panels form the structural backbone of the LCD. These glass substrates sandwich the liquid crystal layer and provide a perfectly flat surface for the other components. The inner surfaces of the glass are coated with transparent electrodes and alignment films.
The transparent electrodes, typically made from indium tin oxide (ITO), are patterned onto the glass substrates. These electrodes apply precise voltages to the liquid crystals, enabling the control of each individual pixel.
Alignment layers are thin polymer coatings, usually made from polyimide, that are applied to the inner surfaces of the glass substrates. These layers are mechanically rubbed to guide the initial orientation of the liquid crystal molecules, ensuring consistent performance across the display.
The heart of the LCD is the liquid crystal layer. This layer is filled with organic molecules that exhibit properties between those of conventional liquids and solid crystals. The orientation of these molecules changes in response to electric current, modulating the passage of light and enabling the display to form images.
Each pixel on an LCD is divided into three sub-pixels: red, green, and blue. Color filters, made from finely ground pigments and photoresist materials, are precisely patterned to cover these sub-pixels. By varying the intensity of light passing through each sub-pixel, the display can create the full spectrum of colors.
A thin-film transistor array is integrated into the display to control the voltage applied to each pixel. This technology allows for rapid switching and precise control, which is essential for high-resolution and fast-refresh displays.
The final layer is a protective sheet, often made from glass or durable plastic, that shields the delicate internal components from physical damage and environmental factors.
Understanding what an LCD is made of requires a closer look at the materials involved:
The glass used in LCDs must be exceptionally pure, thin, and free from defects. It serves as the structural foundation for the display and must be able to withstand the manufacturing process without warping or breaking.
Liquid crystals are organic compounds that can flow like a liquid but have some of the ordered structure of a solid. The most common types used in displays are twisted nematic (TN), super twisted nematic (STN), and in-plane switching (IPS) mixtures. These molecules are carefully engineered to respond quickly to electric fields and to maintain stable optical properties over time.
Indium tin oxide (ITO) is the material of choice for transparent electrodes. It combines high electrical conductivity with optical transparency, allowing it to control the liquid crystals without blocking light.
Polarizers are made from stretched polyvinyl alcohol (PVA) films, which are impregnated with iodine or dye molecules. These films are mounted on thin plastic substrates for flexibility and durability.
Color filters are created using photoresist materials and finely ground pigments. The filters must be precisely aligned and patterned to ensure accurate color reproduction.
Modern LCDs use LEDs as their light source, which are more energy-efficient and longer-lasting than older CCFLs. The light guide plate is typically made from acrylic or polycarbonate plastics, which are chosen for their optical clarity and durability.
Polyimide or similar polymer materials are used for alignment films. These films are applied in a thin layer and then mechanically rubbed to create microscopic grooves that guide the orientation of the liquid crystal molecules.

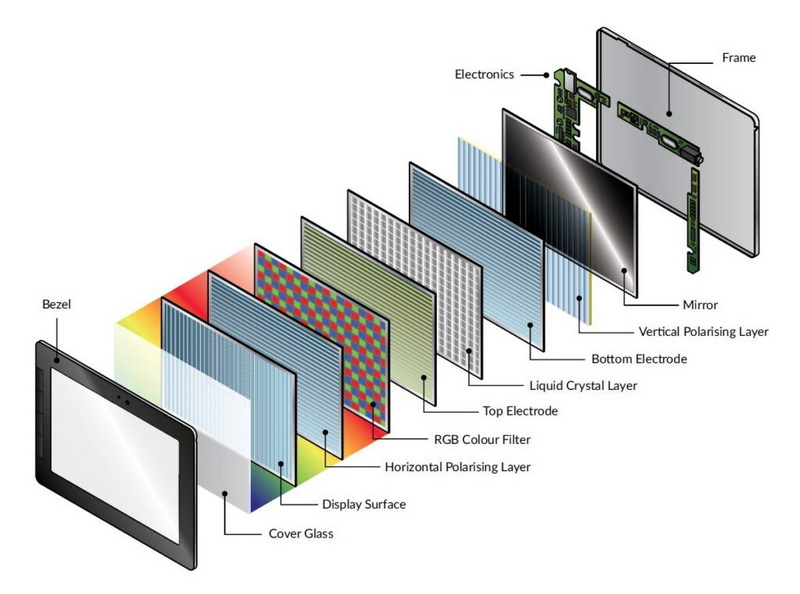

An LCD display operates by manipulating light through its layered structure:
1. The backlight emits white light, which passes through the first polarizer. This ensures that only light with a specific polarization enters the liquid crystal layer.
2. The light then enters the liquid crystal layer, where the orientation of the molecules determines how much the light's polarization is rotated.
3. When a voltage is applied to the transparent electrodes, the alignment of the liquid crystals changes, controlling the amount of light that can pass through.
4. The light then passes through the color filters, which divide each pixel into red, green, and blue sub-pixels.
5. The second polarizer either allows or blocks the rotated light, depending on the alignment of the liquid crystals, forming the visible image.
6. The thin-film transistor array ensures that each pixel is addressed precisely and quickly, allowing for high-resolution and fast-refresh displays.
This intricate dance of light and molecules is what creates the sharp, colorful images we see on LCD screens.
There are several variations in LCD technology, each with unique characteristics:
Type | Description | Common Uses |
---|---|---|
Twisted Nematic (TN) | Fast response, lower cost, limited viewing angles | Monitors, calculators |
In-Plane Switching (IPS) | Superior color and viewing angles, slower response | High-end monitors, smartphones |
Vertical Alignment (VA) | Good contrast, better viewing angles than TN | TVs, professional displays |
Super Twisted Nematic (STN) | Used in older or monochrome displays | Watches, simple devices |
Each type of LCD technology is optimized for specific applications, balancing factors such as cost, viewing angle, color accuracy, and response time.
The creation of an LCD screen is a high-precision process:
1. Glass substrate preparation: Ultra-thin, flawless glass is cut and cleaned to remove any impurities that could affect display quality.
2. Electrode patterning: ITO is deposited onto the glass and then etched using photolithography to form the transparent electrodes.
3. Alignment layer application: Polymer coatings are applied and rubbed to set the initial orientation of the liquid crystal molecules.
4. Cell assembly: Two glass panels are aligned and sealed together, with tiny spacers inserted to maintain a uniform gap for the liquid crystal layer.
5. Liquid crystal injection: The cell is filled with liquid crystal material in a vacuum environment to prevent air bubbles.
6. Color filter and TFT integration: Color filters and thin-film transistor arrays are added to the appropriate layers.
7. Backlight and polarizer attachment: The completed cell is sandwiched between polarizers and mounted to the backlight unit.
8. Final assembly and testing: The display is sealed, rigorously tested for defects, and cut to the desired size.
This process requires cleanroom environments and advanced manufacturing equipment to ensure the high quality and reliability of each display.
LCD technology has evolved significantly since its inception. Modern displays incorporate a range of advanced features:
HDR technology enhances the contrast and color range of LCDs, allowing for more lifelike and vibrant images. This is achieved through improved backlighting, advanced color filters, and sophisticated image processing.
Some LCDs use quantum dot films to boost color accuracy and brightness. Quantum dots are nanometer-sized semiconductor particles that emit pure, saturated colors when illuminated by the backlight, expanding the display's color gamut.
High-end LCDs feature local dimming, where the backlight is divided into zones that can be dimmed or brightened independently. This improves contrast and black levels, making images appear more dynamic.
Many LCDs now include capacitive or resistive touch layers, allowing them to function as interactive displays for smartphones, tablets, and kiosks.
Advancements in materials and manufacturing have enabled the production of ultra-thin and even flexible LCD panels, expanding their use in innovative devices and form factors.
As LCDs have become ubiquitous, their environmental impact has come under scrutiny. The manufacturing process involves the use of rare materials such as indium and potentially hazardous substances like mercury (in older CCFL backlights).
Recycling LCDs is complex due to their multi-layered construction and the presence of hazardous materials. Specialized facilities are required to safely dismantle displays and recover valuable components.
Manufacturers are increasingly adopting sustainable practices, such as using mercury-free LED backlights, reducing energy consumption, and designing displays for easier disassembly and recycling.
Consumers can contribute by properly recycling old electronics through certified e-waste programs, ensuring that valuable materials are recovered and hazardous substances are safely managed.
- Energy Efficiency: Consumes less power than CRTs and plasma displays.
- Slim Profile: Enables ultra-thin and lightweight screens.
- No Burn-In: Unlike some older technologies, LCDs don't suffer from image retention.
- High Resolution: Supports millions of colors and fine detail.
- Versatility: Can be made in a wide range of sizes and shapes for various applications.
- Viewing Angles: Lower-end LCDs may have color and contrast shifts at angles.
- Response Time: Some panels may blur during fast motion.
- Backlight Bleed: Uneven backlighting can affect contrast.
- Color Reproduction: Not as vivid as OLED in some cases.
- Complex Manufacturing: Requires precise, high-cost manufacturing facilities.
LCDs are used in a vast array of devices and industries:
- Consumer Electronics: Smartphones, tablets, laptops, monitors, TVs.
- Industrial Equipment: Control panels, medical devices, instrumentation.
- Automotive Displays: Dashboards, infotainment systems.
- Public Information Displays: Digital signage, kiosks, ticket machines.
- Wearables: Smartwatches, fitness trackers.
- Gaming Devices: Portable consoles and handheld gaming systems.
- Aerospace and Military: Cockpit displays, ruggedized field equipment.
LCD technology's adaptability and reliability have made it the display standard across the globe.
LCD displays are marvels of modern engineering, combining organic chemistry, materials science, and electronics into ultra-thin, energy-efficient screens. Each layer, from the backlight to the polarizers and the liquid crystal layer itself, plays a crucial role in producing the vibrant, high-resolution images we rely on every day. As technology evolves, LCDs continue to incorporate new features and innovations, maintaining their dominance in the display market. Understanding what an LCD display is made of not only deepens our appreciation for this ubiquitous technology but also highlights the remarkable collaboration of science and industry in our digital world.
An LCD display consists of a backlight, polarizing filters, glass substrates, transparent electrodes, alignment layers, a liquid crystal layer, color filters, a thin-film transistor array, and a protective outer layer.
The liquid crystal layer is made of organic compounds, commonly twisted nematic (TN) or related mixtures, designed for stability, fast response, and optimal optical properties.
Each pixel is divided into red, green, and blue sub-pixels, each with its own color filter. By controlling the light passing through each sub-pixel, the display creates millions of colors through additive mixing.
The backlight provides the illumination necessary for the display, as liquid crystals do not emit light themselves. The light passes through the layers and is modulated to form images.
Polarizers only allow light vibrating in a certain direction to pass. The liquid crystal layer rotates the polarization of light, and the second polarizer either blocks or allows this light, controlling pixel brightness.
