The LCD 20x4 with I2C module is a popular display solution in the world of electronics and microcontroller projects. This versatile device combines a large, easy-to-read display with a simplified interface, making it an ideal choice for a wide range of applications. In this comprehensive guide, we'll explore the features, functionality, and applications of the LCD 20x4 with I2C module, as well as provide step-by-step instructions on how to use it in your projects.
An LCD 20x4 display is a liquid crystal display that can show 20 characters across 4 lines. This provides a total of 80 characters, making it suitable for displaying substantial amounts of information. The display typically uses white characters on a blue background, offering excellent readability in various lighting conditions.
I2C (Inter-Integrated Circuit) is a serial communication protocol that allows multiple devices to be connected using just two wires: SDA (Serial Data) and SCL (Serial Clock). This interface significantly simplifies the wiring process compared to traditional parallel interfaces, which require multiple data lines.

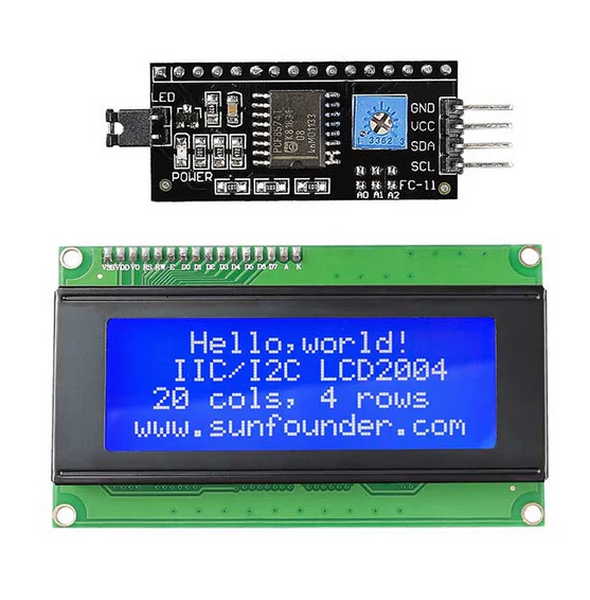

The LCD 20x4 with I2C module consists of two main components:
1. The LCD display itself
2. An I2C adapter board
The LCD display is a 20x4 character display that uses HD44780 controller or compatible. It features:
- 20 columns and 4 rows of characters
- 5x8 pixel character font
- Ability to display letters, numbers, and special characters
- Backlight for improved visibility

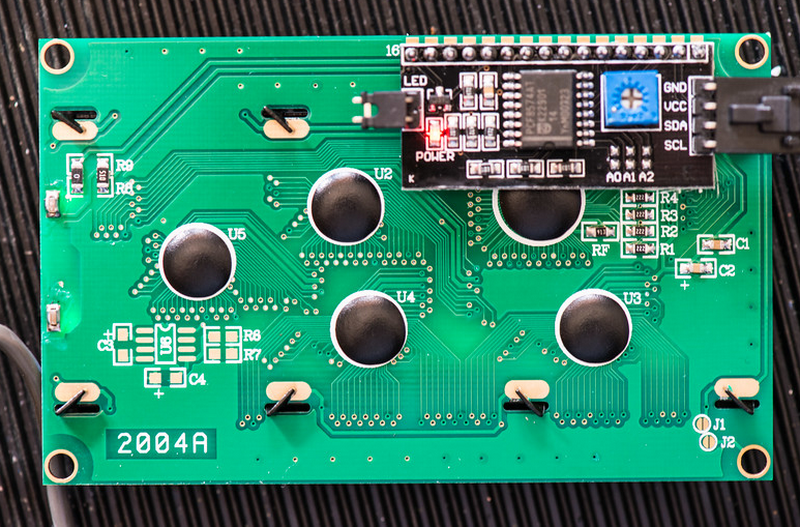

The I2C adapter board is what sets this module apart from standard LCD displays. It includes:
- An I2C to parallel converter chip (usually PCF8574)
- Address selection jumpers
- Contrast adjustment potentiometer
- Backlight control
The LCD 20x4 with I2C module operates by converting I2C signals from the microcontroller into parallel signals that the LCD can understand. Here's a step-by-step breakdown of the process:
1. The microcontroller sends I2C signals (SDA and SCL) to the I2C adapter board.
2. The I2C adapter board receives these signals and converts them to parallel data.
3. The parallel data is then sent to the LCD controller chip (HD44780 or compatible).
4. The LCD controller chip interprets the data and displays the corresponding characters on the screen.
This process happens rapidly, allowing for real-time updates to the display.
One of the main advantages of the LCD 20x4 with I2C module is its simple connection process. Here's how to connect it to a microcontroller like an Arduino:
1. VCC to 5V power supply
2. GND to ground
3. SDA to the SDA pin of your microcontroller (A4 on Arduino Uno)
4. SCL to the SCL pin of your microcontroller (A5 on Arduino Uno)
To use the LCD 20x4 with I2C module in your projects, you'll need to install the appropriate library in your Arduino IDE. The most commonly used library is the LiquidCrystal_I2C library.
The LCD 20x4 with I2C module finds use in a wide variety of projects and applications, including:
1. Home Automation Systems: Displaying temperature, humidity, and other environmental data.
2. Industrial Control Panels: Showing machine status, error codes, and operational parameters.
3. Educational Projects: Teaching students about microcontrollers and display interfaces.
4. DIY Electronics: Creating custom user interfaces for personal projects.
5. IoT Devices: Displaying data from sensors or internet sources.
The LCD 20x4 with I2C module allows you to create and display custom characters. This feature is particularly useful for creating unique icons or symbols specific to your project.
When working with the LCD 20x4 with I2C module, you might encounter some common issues. Here are a few troubleshooting tips:
1. No Display: Check your connections and ensure the I2C address is correct.
2. Garbled Text: Verify that you're using the correct library and that the I2C address matches your module.
3. Low Contrast: Adjust the potentiometer on the back of the module to improve visibility.
4. Backlight Issues: Check the backlight jumper on the I2C adapter board.
The LCD 20x4 with I2C module can significantly enhance your projects by providing a clear, informative display.
For a visual guide on how to use the LCD 20x4 with I2C module, check out this helpful video tutorial:
This video provides a step-by-step guide on connecting and programming the LCD 20x4 with I2C module using an Arduino.
The LCD 20x4 with I2C module is a versatile and user-friendly display solution that can greatly enhance your electronic projects. Its large display area, combined with the simplicity of the I2C interface, makes it an excellent choice for a wide range of applications. By understanding how to connect, program, and troubleshoot this module, you can create more sophisticated and interactive projects.
Whether you're building a home automation system, a custom control panel, or an educational project, the LCD 20x4 with I2C module provides a clear and efficient way to display information. With the ability to create custom characters and implement scrolling text, the possibilities for creative displays are virtually endless.
As you continue to explore the capabilities of the LCD 20x4 with I2C module, you'll discover new ways to integrate it into your projects, enhancing both functionality and user experience. Happy tinkering!
Most LCD 20x4 with I2C modules use either 0x27 or 0x3F as their default address. However, if these don't work, you can use an I2C scanner sketch to find the correct address.
Yes, you can use the LCD 20x4 with I2C module with various microcontrollers that support I2C communication. This includes popular boards like Raspberry Pi, ESP8266, ESP32, and many others. However, you may need to use different libraries or code depending on the platform you're using.
Most LCD 20x4 with I2C modules have a small potentiometer on the back of the I2C adapter board. You can use a small screwdriver to adjust this potentiometer, which will change the contrast of the display. Turn it slowly while observing the screen until you achieve the desired contrast level.
The backlight color of most LCD 20x4 with I2C modules is fixed and cannot be changed without modifying the hardware. Common backlight colors include blue, green, and yellow. If you need a specific color, it's best to purchase a module with that color backlight. Some advanced modules may offer RGB backlights that can be programmatically controlled, but these are less common.
As the name suggests, the LCD 20x4 with I2C module can display 20 characters across 4 lines, for a total of 80 characters at once. However, you can display more characters by implementing scrolling text or by updating the display content dynamically in your code. Each character is typically displayed in a 5x8 pixel grid, allowing for clear and readable text.
