In the modern digital era, the quality of display technology has a direct impact on how we interact with devices—be it smartphones, monitors, televisions, or even smartwatches. Among the various display technologies available, IPS LCD displays have emerged as a gold standard for color accuracy, wide viewing angles, and overall visual performance. But what exactly is an IPS LCD display, and why has it become so popular? This comprehensive article explores the science, advantages, applications, and common questions surrounding IPS LCD displays, providing a clear understanding for tech enthusiasts, professionals, and everyday users alike.
IPS stands for In-Plane Switching, a technology used in Liquid Crystal Displays (LCDs). An IPS LCD display is a type of flat-panel screen in which the liquid crystal molecules are aligned parallel to the glass substrates, allowing them to rotate in-plane when voltage is applied. This unique alignment enables IPS panels to deliver superior color accuracy and much wider viewing angles compared to traditional LCD technologies such as TN (Twisted Nematic) and VA (Vertical Alignment).
IPS technology was developed in the 1990s to address the limitations of earlier LCDs, particularly their poor color reproduction and narrow viewing angles. Today, IPS LCDs are widely used in devices where image quality is critical, such as professional monitors, smartphones, tablets, and televisions.

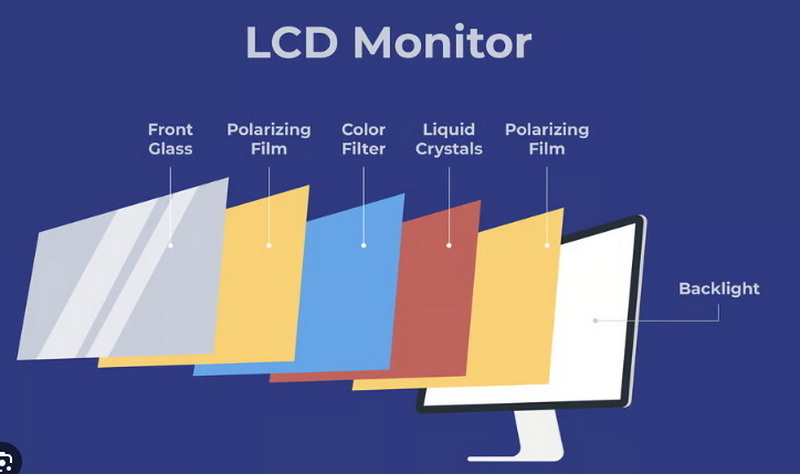

To understand IPS LCDs, it's helpful to break down the structure and operation of a typical LCD panel:
- Basic Structure:
An LCD panel consists of several layers: a backlight, polarizing filters, glass substrates, and a layer of liquid crystals. The liquid crystals control the passage of light from the backlight to produce images.
- IPS Alignment:
In IPS panels, the liquid crystal molecules are arranged horizontally (in-plane) between the glass substrates. When an electric field is applied, these molecules rotate within the plane, modulating the light that passes through and creating the desired image.
- Result:
This in-plane movement minimizes light leakage and maintains consistent color and brightness, even when viewed from wide angles.

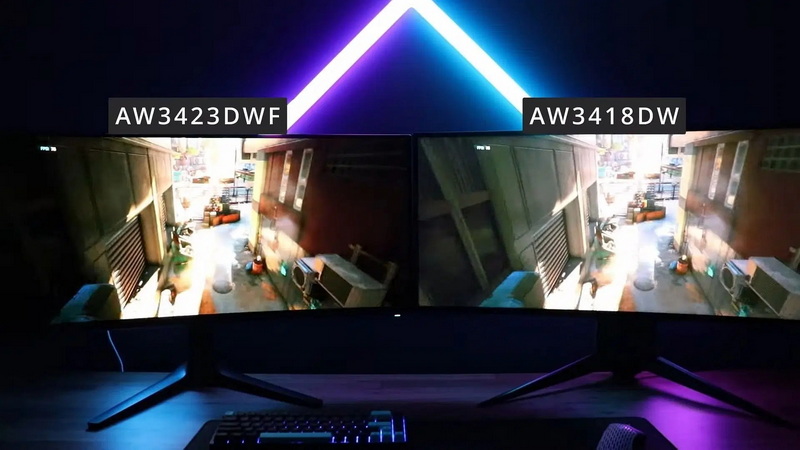

IPS panels are known for their ability to reproduce accurate and consistent colors. This makes them ideal for applications where color fidelity is critical, such as graphic design, photo editing, and professional video production. The color reproduction of IPS panels is often considered more natural and true-to-life compared to other LCD types. This is particularly important for creative professionals who require precise color matching for their work.
One of the standout features of IPS LCDs is their ultra-wide viewing angles—often up to 178 degrees both horizontally and vertically. This means that colors and contrast remain stable, even when the screen is viewed from the side or above. For group settings, such as watching a movie with friends or collaborating on a project, IPS screens ensure that everyone sees the same high-quality image, regardless of their position relative to the display.
IPS technology ensures that images remain sharp and free from color distortion, regardless of the viewer's position. This is especially important for collaborative environments or public displays. The stability of the image also reduces eye strain, making IPS displays a good choice for prolonged use in office or educational settings.
IPS LCDs maintain readability and color integrity even under bright lighting conditions or direct sunlight, thanks to their superior backlighting and color consistency. This makes them suitable for outdoor applications, such as digital signage, outdoor kiosks, and smartphones used in bright environments.
IPS panels generally have a longer operational life compared to TN panels, making them a solid investment for both personal and professional use. The durability and reliability of IPS technology mean that devices equipped with these displays often have a longer usable lifespan, reducing the need for frequent replacements.
Many modern IPS LCDs are designed with touch functionality in mind. The in-plane switching technology allows for more accurate and responsive touch input, which is particularly beneficial for smartphones, tablets, and interactive kiosks. This feature enhances the user experience by providing smooth and precise touch interactions.
Feature | IPS LCD | TN LCD | VA LCD |
---|---|---|---|
Color Accuracy | Excellent | Poor to Average | Good |
Viewing Angle | Up to 178° | Narrow | Moderate |
Response Time | Moderate | Fastest | Moderate |
Contrast Ratio | Good | Poor | Best |
Price | Higher | Lower | Moderate |
Sunlight Visibility | Very Good | Poor | Good |
Lifespan | Long | Shorter | Moderate |
While OLED displays offer perfect blacks and infinite contrast ratios, IPS LCDs provide more natural color accuracy and are less prone to issues like burn-in. IPS panels are also more affordable and widely available, especially in mid-range devices.
IPS LCD technology is used in a wide range of devices, including:
- Professional Monitors: For graphic design, photography, and video editing, where color accuracy is paramount.
- Smartphones and Tablets: For vibrant, accurate colors and wide viewing angles, enhancing multimedia and gaming experiences.
- Televisions: For home theaters and living rooms where multiple viewers are present, ensuring everyone enjoys the same high-quality image.
- Laptops: Especially those aimed at creative professionals and students who need reliable, high-quality displays for work and study.
- Wearables: Such as smartwatches, where clarity and readability are essential, even in bright outdoor conditions.
- Automotive Displays: Increasingly used in car dashboards and infotainment systems for their clarity and durability.
- Medical Equipment: Used in diagnostic monitors and patient displays, where accurate color and detail are critical.
While IPS LCDs offer many advantages, they are not without their drawbacks:
- Higher Cost: IPS panels are generally more expensive to produce than TN or VA panels, which can make devices equipped with them pricier.
- Moderate Response Time: While much improved, some IPS panels may have slightly slower response times than TN panels, which can affect fast-paced gaming. However, recent advancements have significantly reduced this gap.
- IPS Glow: A phenomenon where a faint glow is visible at the corners of the screen, especially in dark environments. This is a technical limitation of the IPS structure and is more noticeable at extreme viewing angles.
- Backlight Bleed: Light may leak around the edges of the panel, particularly in lower-quality displays. This can be distracting when viewing dark content but is usually minimal in high-end IPS panels.
- Power Consumption: IPS panels can consume more power than TN panels due to their more complex structure and brighter backlights, which may impact battery life in portable devices.
Since its introduction, IPS technology has continued to evolve:
- Super-IPS (S-IPS): Improved response times and color reproduction, making displays more suitable for fast-moving content.
- Advanced High Performance IPS (AH-IPS): Enhanced resolution, energy efficiency, and improved color accuracy, making them ideal for high-end smartphones and monitors.
- Nano IPS: Uses nanoparticles for even wider color gamuts and better HDR support, providing a richer and more immersive viewing experience.
- IPS-ADS (Advanced Super Dimension Switch): An evolution of IPS technology that offers even wider viewing angles and improved touch sensitivity, commonly used in touch-enabled devices.
These advancements have made IPS LCDs more versatile and capable, meeting the demands of both consumers and professionals.
- Viewing Angles: If the screen maintains color and contrast when viewed from the side, it is likely an IPS panel.
- Color Quality: Vivid, accurate colors across the entire screen are a hallmark of IPS technology.
- Specifications: Manufacturers often label their products as "IPS" in the product description or technical specifications.
- Price Point: IPS displays are typically priced higher than TN or VA panels due to their superior performance.
To maximize the lifespan and performance of your IPS LCD display, consider the following tips:
- Avoid Prolonged Static Images: While IPS panels are less prone to image retention than OLEDs, it's still wise to avoid leaving static images on the screen for extended periods.
- Adjust Brightness Appropriately: Use the lowest comfortable brightness setting to reduce power consumption and minimize IPS glow and backlight bleed.
- Clean Gently: Use a microfiber cloth and appropriate screen cleaner to avoid scratching the surface or damaging the anti-reflective coating.
- Protect from Impact: IPS panels are durable, but physical impacts can still cause damage. Use protective cases or screen protectors for portable devices.
The demand for high-quality displays continues to grow, driving further innovation in IPS LCD technology. Some trends and future developments include:
- Higher Refresh Rates: Modern IPS panels now offer refresh rates of 120Hz or even 240Hz, catering to gamers and professionals who need smooth motion.
- Mini-LED Backlighting: Combining IPS panels with mini-LED backlights enhances contrast, brightness, and HDR performance, narrowing the gap with OLED displays.
- Flexible and Curved IPS Displays: Research is ongoing into flexible and curved IPS panels, which could lead to new form factors for monitors, TVs, and wearable devices.
- Sustainability: Manufacturers are focusing on reducing power consumption and using eco-friendly materials in IPS panel production, making them more sustainable for the environment.
IPS LCD displays have revolutionized the way we experience digital content, offering unmatched color accuracy, wide viewing angles, and stable image quality. Their adoption in everything from professional monitors to everyday smartphones underscores their versatility and importance in modern technology. While they may come at a higher price point, the benefits they provide—especially for those who value visual fidelity—make them a worthwhile investment.
Whether you are a creative professional, a gamer, or simply someone who appreciates vibrant, lifelike images, IPS LCD displays are an excellent choice. As technology continues to advance, IPS panels are only expected to become more capable, efficient, and accessible. The future of IPS LCD technology looks bright, with ongoing innovations promising even better performance, sustainability, and new applications across a wide range of industries.
The main difference lies in the alignment of liquid crystal molecules. IPS LCDs use in-plane switching, where the crystals are aligned parallel to the glass substrate, allowing for better color accuracy and wider viewing angles compared to traditional TN or VA LCDs.
IPS LCDs are more expensive due to the complexity of their manufacturing process and the advanced technology used to achieve superior color reproduction and wide viewing angles. The higher cost is often justified by the improved visual experience and longer lifespan.
Yes, IPS LCDs are suitable for gaming, especially for games where color accuracy and image quality are important. While TN panels may offer faster response times, many modern IPS panels now feature high refresh rates and low input lag, making them competitive for gaming.
IPS glow is a faint glow that appears at the corners of an IPS display, especially in dark environments. It is a technical limitation of IPS technology. To minimize it, reduce screen brightness, increase ambient lighting, or adjust your viewing angle.
Yes, IPS LCDs perform well outdoors due to their excellent sunlight visibility and color stability. High-quality IPS panels are often used in devices designed for outdoor use, such as smartphones, tablets, and digital signage.
