In the realm of display technology, the Active-Matrix Liquid Crystal Display (AM-LCD), particularly the Amorphous Silicon Thin Film Transistor (a-Si TFT) variant, has emerged as a pivotal technology. This article delves into the intricacies of a-Si TFT active-matrix LCD displays, elucidating their structure, working principles, advantages, and applications.
Liquid Crystal Displays (LCDs) are widely used in various electronic devices, from smartphones to televisions. They function by manipulating light through liquid crystals sandwiched between layers of glass or plastic.
- Definition: A-Si TFT stands for *Amorphous Silicon Thin Film Transistor*. It is a type of transistor made from amorphous silicon that is used in active-matrix displays.

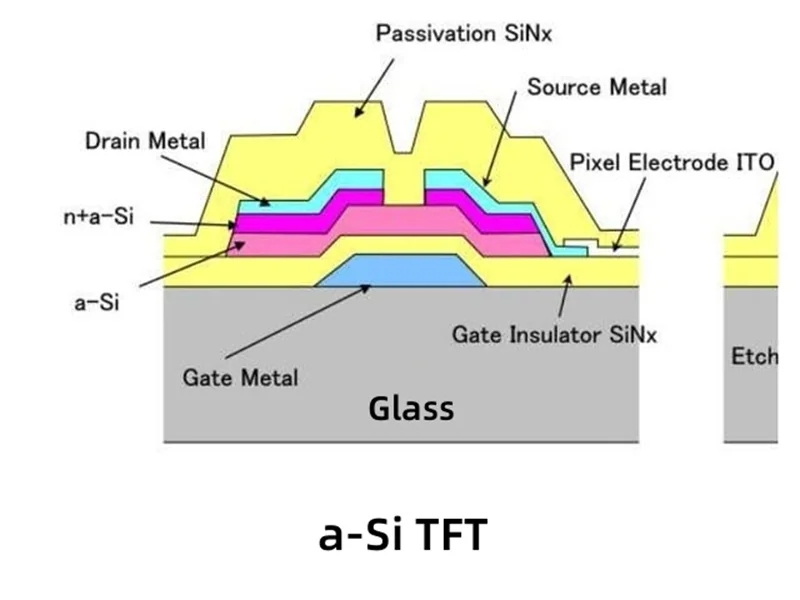

- Structure: The a-Si TFT is composed of several layers:
- A glass substrate
- A gate electrode
- An insulating layer
- The semiconductor layer (amorphous silicon)
- Source and drain electrodes
This structure allows each pixel in the display to be controlled individually.

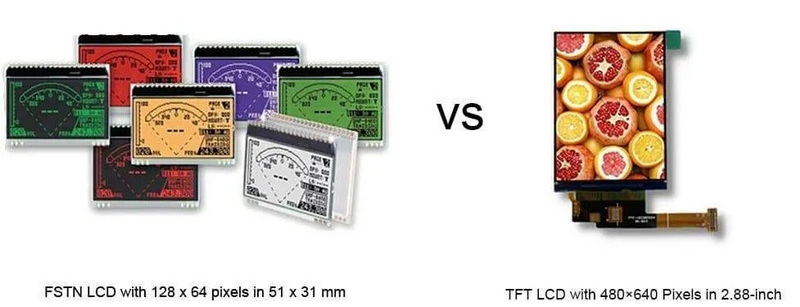

| Feature | Active-Matrix (TFT) | Passive-Matrix |
|---|---|---|
| Pixel Control | Individual control via transistors | Shared control across rows/columns |
| Response Time | Faster response | Slower response |
| Image Quality | Higher quality and resolution | Lower quality |
| Complexity | More complex circuitry | Simpler circuitry |
Active-matrix displays, such as those using a-Si TFT technology, offer significant advantages over passive-matrix displays, including improved image quality and faster response times.
A typical a-Si TFT LCD display consists of:
- Two Glass Substrates: These sandwich the liquid crystal layer.
- Thin Film Transistors: Each pixel is paired with a transistor that controls the voltage applied to it.
- Liquid Crystal Layer: This layer modulates light based on the applied voltage.
- Color Filter Layer: This layer contains red, green, and blue filters that create color images.
The operation of an a-Si TFT LCD can be summarized in several steps:
1. Backlight Illumination: The display relies on a backlight to illuminate the liquid crystals since they do not emit light themselves.
2. Voltage Application: When voltage is applied to the gate electrode of the transistor associated with each pixel, it allows current to flow through the liquid crystal layer.
3. Liquid Crystal Alignment: The liquid crystals change their orientation based on the electric field created by the voltage. This alteration affects how much light can pass through.
4. Color Generation: The combination of red, green, and blue light passing through the color filters creates the desired image on the screen.
- Cost-Effective: A-Si TFT displays are relatively inexpensive to manufacture compared to other technologies like LTPS (Low-Temperature Polycrystalline Silicon).
- Good Image Quality: They provide decent resolution and color reproduction suitable for most applications.
- Energy Efficient: These displays consume less power than many competing technologies.
- Wide Availability: Due to their established manufacturing processes, a-Si TFT displays are widely available and used in many devices.
A-Si TFT LCDs are used in various applications:
- Smartphones
- Tablets
- Laptops
- Televisions
- Monitors
These displays are particularly favored in devices where cost-effectiveness and decent performance are paramount.
Despite their advantages, a-Si TFT displays have some limitations:
- Low Electron Mobility: The electron mobility in a-Si is low (around $$1 \text{ cm}^2/\text{Vs}$$), which limits refresh rates and overall performance compared to newer technologies like LTPS or IGZO (Indium Gallium Zinc Oxide).
- Lower Performance in High-End Applications: For high-resolution displays or fast-refresh applications (like gaming), newer technologies may outperform a-Si TFT.
With advancements in technology, newer materials such as LTPS and IGZO are beginning to replace traditional a-Si TFTs in high-end applications due to their superior performance characteristics:
- Higher Refresh Rates
- Better Color Accuracy
- Improved Energy Efficiency
1. Quantum Dot Technology: This technology enhances color accuracy by using nanocrystals that emit specific wavelengths of light when illuminated. Quantum dot-enhanced LCDs deliver vibrant colors rivaling OLED displays.
2. MicroLED Displays: MicroLED technology uses tiny LEDs that emit their own light, providing better contrast and color accuracy compared to traditional backlit LCDs.
3. Flexible Displays: Innovations in materials have led to flexible LCDs that can be bent or curved without losing image quality, opening new possibilities for wearable tech and foldable devices.
4. High Dynamic Range (HDR): HDR technology enhances contrast ratios and expands color ranges, creating more immersive viewing experiences.
5. Sustainability Initiatives: Manufacturers are focusing on eco-friendly materials and processes to reduce the environmental impact of display production.
While a-Si TFT LCDs have been dominant in various markets, they face competition from other display technologies:
| Technology | Advantages | Disadvantages |
|---|---|---|
| A-Si TFT | Cost-effective, decent image quality | Low electron mobility, limited refresh rates |
| LTPS | Higher electron mobility, better performance | More complex manufacturing process |
| IGZO | Excellent color accuracy and flexibility | Shorter lifespan under certain conditions |
| OLED | Superior contrast ratios and color reproduction | Higher cost and potential burn-in issues |
The a-Si TFT active-matrix LCD display has played a crucial role in the evolution of display technology over the past few decades. While it offers several advantages such as cost-effectiveness and decent image quality, its limitations in refresh rates and performance compared to newer technologies highlight the ongoing evolution within this field. As technology continues to advance, we can expect further improvements and innovations that will enhance our visual experiences across various devices.
Answer: "a-Si" stands for *amorphous silicon*, which is used as a semiconductor material in thin film transistors for LCDs.
Answer: An active-matrix display controls each pixel individually using transistors, resulting in faster response times and better image quality compared to passive-matrix displays that share control across rows and columns.
Answer: Common applications include smartphones, tablets, laptops, televisions, and monitors.
Answer: Limitations include low electron mobility leading to lower refresh rates and performance compared to newer technologies like LTPS or IGZO.
Answer: Yes, technologies like LTPS (Low Temperature Polycrystalline Silicon) and IGZO (Indium Gallium Zinc Oxide) are being developed to offer higher performance characteristics than traditional a-Si TFTs.
