In the world of modern display technologies, LED backlit LCD displays have become ubiquitous, powering everything from televisions and computer monitors to smartphones and digital signage. But what exactly is a LED backlit LCD display, and how does it work? This comprehensive article will explore the technology behind LED backlit LCDs, their advantages, types, and why they have become the preferred choice for high-quality displays today.
A LED backlit LCD display is a type of liquid crystal display (LCD) that uses light-emitting diodes (LEDs) as the backlight source instead of the older cold cathode fluorescent lamps (CCFLs). While the LCD panel itself does not emit light, it modulates the light that passes through it to create images. The LEDs provide the illumination necessary for the liquid crystals to display visuals.

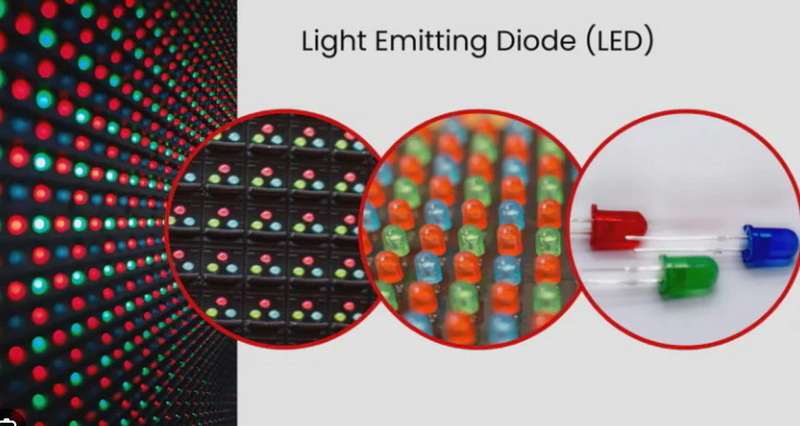

Unlike true LED displays, where each pixel is an LED, LED backlit LCDs use LEDs only for the backlighting, illuminating the liquid crystal layer that controls color and brightness. This distinction is important because many TVs marketed as "LED TVs" are actually LED backlit LCDs.
The working principle of a LED backlit LCD display involves two main components:
The LCD panel consists of millions of pixels, each made up of three sub-pixels with red, green, and blue filters. These pixels contain liquid crystals sandwiched between two glass substrates and polarizing filters. The liquid crystals themselves do not emit light but control the passage of light by changing their orientation when an electric current is applied.
When an electrical voltage is applied to the liquid crystals, they twist or untwist, changing the angle of polarized light passing through. This modulation controls the intensity of light that reaches the viewer.
The LED backlight emits light that passes through a light guide plate (LGP) or diffusion panel to evenly illuminate the LCD panel. The backlight can be composed of white LEDs or RGB LEDs, depending on the design.
The LEDs are typically arranged either along the edges of the display or behind the entire panel (full-array). The light emitted by the LEDs is diffused to create a uniform brightness across the screen.
- The LED backlight emits light that is guided and diffused evenly across the LCD panel.
- The liquid crystals modulate this light by twisting to allow varying amounts of light through.
- The light passes through color filters on each sub-pixel (red, green, blue), which combine to produce the full spectrum of colors.
- The polarizing filters ensure that only light with the correct polarization reaches the viewer, enhancing contrast.
- By controlling the voltage applied to each pixel, the display produces the desired brightness and color, creating the images we see.

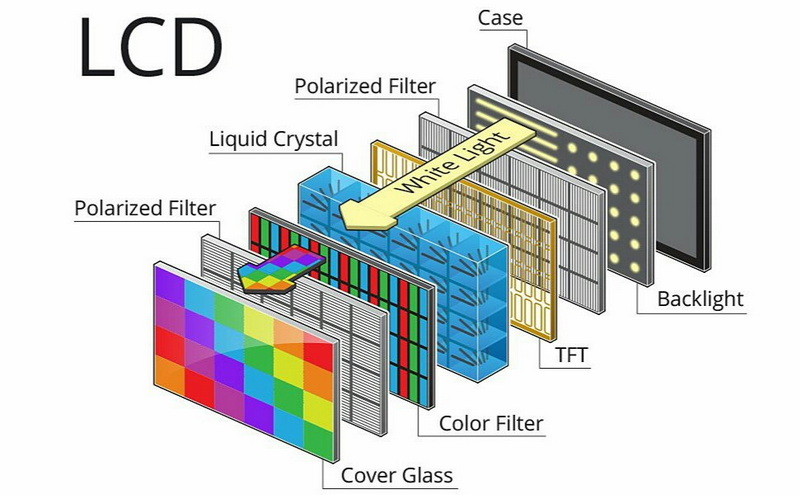

- LED light source at the back or edges
- Light guide plate dispersing light evenly
- Liquid crystal layer modulating light passage
- Color filters on pixels
- Polarizing filters controlling light polarization
There are primarily three types of LED backlighting used in LCD displays:
| Type | Description | Advantages | Disadvantages |
|---|---|---|---|
| Edge-lit LED | LEDs placed along the edges of the screen; light is spread evenly with a diffuser or light guide plate. | Slimmer design, lighter weight, cost-effective | Less uniform brightness, potential for backlight bleeding |
| Full-array LED | LEDs arranged in a grid directly behind the entire screen. | More uniform lighting, better contrast, supports local dimming | Thicker panel, higher cost |
| Local Dimming | Full-array LEDs controlled in zones to dim or brighten specific areas dynamically. | Enhanced contrast, deeper blacks, improved image quality | Can cause halo or blooming effects around bright/dark areas |
This is the most common and cost-effective form of LED backlighting. LEDs are placed along the edges of the display, and a light guide plate spreads the light across the screen. This allows for very thin and lightweight displays, making it ideal for slim TVs and monitors.
However, edge-lit displays may suffer from uneven brightness, especially near the edges, and can exhibit "backlight bleeding," where light leaks around dark areas.
Here, LEDs are distributed evenly behind the entire LCD panel. This arrangement provides more uniform brightness and better control over lighting, which improves contrast and color accuracy.
Full-array displays are thicker and more expensive but offer superior image quality, especially when combined with local dimming.
Local dimming is a feature of full-array LED backlit LCDs where LEDs are grouped into zones that can be dimmed or brightened independently. This dynamic control allows the display to produce deeper blacks and brighter highlights, greatly enhancing contrast and overall picture quality.
However, local dimming can sometimes cause "halo" or "blooming" effects, where bright areas bleed into adjacent dark zones.
Compared to traditional CCFL-backlit LCDs, LED backlit LCD displays offer significant benefits:
- Improved Energy Efficiency: LEDs consume 20-30% less power than CCFLs, reducing electricity bills and environmental impact.
- Slimmer and Lighter Design: LED backlights enable thinner screens (some less than 0.5 inches thick) and lighter devices, enhancing portability and aesthetics.
- Better Color Accuracy and Wider Gamut: Especially with RGB LED or quantum dot enhancement films, LED backlights can produce more vivid and accurate colors.
- Higher Contrast Ratios: Local dimming and precise LED control allow for deeper blacks and brighter whites.
- Longer Lifespan: LEDs last longer than CCFLs, reducing maintenance and replacement costs.
- Instant On/Off: LEDs can turn on/off instantly without warm-up time, improving user experience and saving power.
- Reduced Heat Generation: LEDs produce less heat, enhancing device longevity and comfort.
- Environmental Benefits: LEDs do not contain mercury, unlike CCFLs, making disposal safer and more eco-friendly.
| Feature | CCFL Backlit LCD | LED Backlit LCD |
|---|---|---|
| Backlight Source | Cold Cathode Fluorescent Lamps | Light Emitting Diodes (LEDs) |
| Energy Efficiency | Moderate | Higher (20-30% less power) |
| Thickness | Thicker | Thinner (some < 0.5 inches) |
| Color Gamut | Narrower | Wider (especially with RGB LEDs) |
| Contrast Ratio | Lower | Higher (local dimming possible) |
| Lifespan | Shorter | Longer |
| Environmental Impact | Contains mercury | Mercury-free, safer disposal |
| Heat Generation | Higher | Lower |
| Cost | Generally lower | Slightly higher but decreasing |
This comparison highlights why LED backlit LCDs have largely replaced CCFL-backlit displays in consumer electronics.
The LED backlit LCD technology continues to evolve with innovations such as:
Quantum dots are tiny semiconductor particles that emit very precise wavelengths of light when excited by blue LEDs. By integrating a quantum dot film into the backlight, the display can produce a purer white light, which enhances color accuracy and brightness while improving energy efficiency.
This technology is widely used in premium LED backlit LCD TVs to achieve wider color gamuts and more lifelike images.
Mini-LEDs are thousands of tiny LEDs used for backlighting, enabling more precise local dimming with hundreds or thousands of dimming zones. This results in dramatically improved contrast ratios and HDR performance.
Micro-LED technology goes further by using microscopic LEDs as individual pixels, combining the benefits of LED self-emission with LCD-like control, though this is still emerging and expensive.
Instead of white LEDs, some displays use separate red, green, and blue LEDs for backlighting. This approach creates a more accurate white light source and wider color gamut but is more complex and costly.
Advanced software algorithms dynamically adjust LED brightness zones in real time based on the content displayed. This optimizes contrast and reduces artifacts like blooming, enhancing the viewing experience.
LED backlit LCD displays are widely used across many sectors:
- Consumer Electronics: TVs, computer monitors, laptops, tablets, and smartphones.
- Digital Signage and Advertising: Large format displays with high brightness and color accuracy.
- Automotive Displays: Infotainment systems and instrument clusters.
- Medical and Industrial Monitors: High reliability and precise color reproduction.
- Gaming Monitors: Fast response times and high contrast ratios.
- Professional Photography and Video Editing: Accurate color representation and high dynamic range.
Despite their many advantages, LED backlit LCD displays face some challenges:
This occurs when light leaks around the edges or corners of the screen, especially in edge-lit models. It can cause uneven brightness and reduce black level quality.
Solution: Using full-array backlighting with local dimming and improved manufacturing techniques reduces backlight bleeding.
In local dimming displays, bright objects on dark backgrounds can cause light to bleed into adjacent dark zones, creating halos.
Solution: Increasing the number of dimming zones (as in mini-LEDs) and improving dimming algorithms help minimize this effect.
LCDs traditionally have narrower viewing angles compared to OLEDs, causing color and contrast shifts when viewed off-center.
Solution: Advanced LCD panel technologies like IPS (In-Plane Switching) improve viewing angles significantly.
Some LED backlit LCDs have slower pixel response times, leading to motion blur in fast-moving images.
Solution: Gaming monitors and TVs use faster panels and motion interpolation technologies to reduce blur.
The future of LED backlit LCD displays is bright, with several exciting trends on the horizon:
- Mini-LED and Micro-LED Adoption: More affordable mini-LED backlit displays will become mainstream, offering near-OLED contrast with LCD durability.
- Quantum Dot and NanoCell Enhancements: Further improvements in color accuracy and brightness through nanotechnology.
- Flexible and Transparent Displays: LED backlit LCD technology combined with flexible substrates may enable new form factors.
- AI-Driven Display Calibration: Artificial intelligence will optimize backlight control and color calibration dynamically for each scene.
- Integration with Augmented Reality (AR) and Virtual Reality (VR): High-quality LED backlit LCDs will be critical for immersive AR/VR headsets.
The LED backlit LCD display technology represents a significant advancement over traditional CCFL-backlit LCDs, combining the liquid crystal modulation capabilities with the energy-efficient, bright, and long-lasting illumination of LEDs. This synergy has led to thinner, lighter, more power-efficient displays with superior color accuracy, contrast, and lifespan.
As LED backlighting technology continues to evolve through innovations like quantum dots, mini-LEDs, and dynamic local dimming, LED backlit LCDs remain at the forefront of display technology, powering a vast array of devices that define modern visual experiences.
Answer: LED backlit LCDs use LEDs only for backlighting an LCD panel, while LED displays have pixels made entirely of LEDs that emit light themselves. LED backlit LCDs rely on liquid crystals to modulate the LED light.
Answer: Local dimming controls the brightness of LED zones individually, allowing darker areas to be dimmed and brighter areas illuminated, improving contrast and making blacks appear deeper.
Answer: Yes, LED backlit LCDs consume about 20-30% less power than CCFL-backlit LCDs, making them more energy-efficient and environmentally friendly.
Answer: The three common types are edge-lit LED, full-array LED, and full-array with local dimming. Edge-lit places LEDs on the screen edges; full-array has LEDs behind the entire screen; local dimming adds zone control.
Answer: No, because the backlight is always on, some light leaks through black pixels, so true black is not achievable. However, local dimming helps improve perceived black levels but may cause halo effects.
