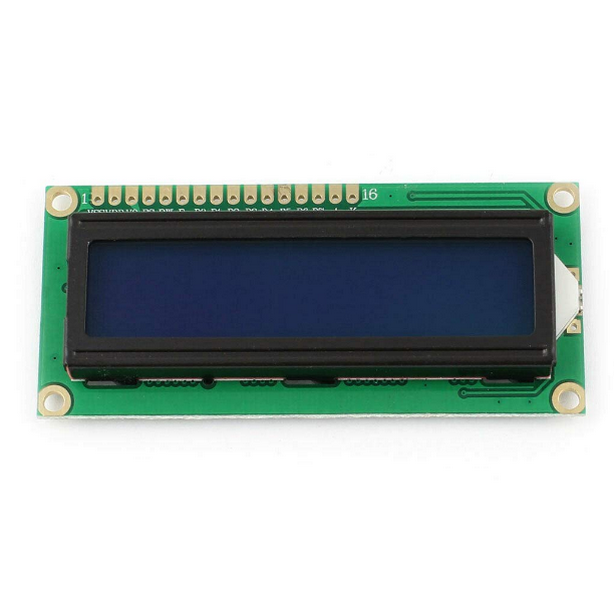

The Hitachi LCD display module is primarily based on the HD44780 controller, a well-known alphanumeric dot matrix liquid crystal display controller developed by Hitachi in the 1980s. This controller allows for the display of characters and symbols using liquid crystals that respond to electrical signals.
- Character Display: The HD44780 supports various configurations, including 16x2 (16 characters per line, 2 lines), 20x4, and others.
- Monochrome Output: These modules typically provide monochrome output, making them ideal for text display rather than complex graphics.
- Compatibility: Many third-party displays are compatible with the HD44780 interface, which has contributed to its popularity.
- Built-in Character Set: The controller includes a built-in character set that supports ASCII characters and Japanese Kana characters.
The operation of a Hitachi LCD module involves several steps and components. Understanding these can help in both utilizing and troubleshooting these displays effectively.
1. Liquid Crystal Layer: The core of the display consists of liquid crystals sandwiched between two layers of glass or plastic.
2. Controller (HD44780): This chip interprets commands sent from a microcontroller (like an Arduino) and controls the liquid crystals accordingly.
3. Electrodes: A matrix of electrodes on one side of the liquid crystal layer applies voltage to control which crystals are activated.
4. Backlight: Many modules include a backlight feature to enhance visibility in low-light conditions.
5. Interface Pins: Typically, there are 16 pins for interfacing with microcontrollers, including power supply pins, data pins, and control pins.
The working mechanism can be summarized in the following steps:
1. Initialization: When powered on, the module initializes itself and prepares to receive commands.
2. Data Input: The microcontroller sends data to the HD44780 controller via data pins. This data can represent characters or commands.
3. Voltage Application: Based on the received data, the controller applies voltage to specific electrodes within the liquid crystal layer.
4. Crystal Alignment: The applied voltage causes the liquid crystals to align in such a way that they either block or allow light to pass through, forming visible characters on the screen.
5. Display Update: As new data is sent from the microcontroller, the display updates accordingly, allowing for dynamic content changes.
Hitachi LCD modules come in various configurations suitable for different applications:
- 16x2 Configuration: Displays 16 characters across 2 lines.
- 20x4 Configuration: Displays 20 characters across 4 lines.
- Custom Sizes: Larger configurations are available for specialized needs.
The versatility of Hitachi LCD modules allows them to be used in numerous applications:
- Consumer Electronics: Used in microwaves, washing machines, and other household appliances for displaying operational information.
- Industrial Equipment: Commonly found in industrial machines for user interfaces that require real-time data display.
- Embedded Systems: Frequently used with microcontrollers in projects involving Arduino or Raspberry Pi for educational purposes or hobbyist projects.
- Medical Devices: Employed in various medical devices for displaying vital signs and other critical information clearly and concisely.
- Automotive Displays: Utilized in dashboards for displaying speed, fuel levels, and other essential metrics in vehicles.
The advantages of using Hitachi LCD modules make them a popular choice among developers and engineers:
- Cost-effective: Generally inexpensive compared to other display technologies such as OLED or TFT displays.
- Easy Integration: The standard interface makes it easy to integrate with various microcontrollers and development boards.
- Low Power Consumption: Suitable for battery-operated devices due to their low power requirements compared to other display technologies.
- Durability: These modules are robust and can withstand harsh environmental conditions when properly housed.
Despite their advantages, there are some challenges associated with using Hitachi LCD modules:
- Limited Graphics Capability: Primarily designed for text display; not suitable for complex graphics or high-resolution images.
- Viewing Angles: Limited viewing angles can affect visibility depending on installation orientation; this can be particularly problematic in certain lighting conditions.
- Response Time: Slower response times compared to modern OLED displays make them less suitable for fast-refresh applications such as video playback.
- Temperature Sensitivity: Performance can degrade at extreme temperatures; thus, careful consideration is needed when deploying in harsh environments.
Programming a Hitachi LCD module typically involves sending commands and data through its interface pins.
When working with Hitachi LCD modules, users may encounter several common issues:
- No Display Output: Ensure that power connections are correct and that contrast is adjusted using a potentiometer connected to Vee pin.
- Garbage Characters on Screen: This usually indicates incorrect wiring or communication issues between the microcontroller and the display. Double-check connections and ensure that code matches pin assignments correctly.
- Flickering Display: This could be caused by poor connections or insufficient power supply; ensure stable power supply voltage is provided.
The Hitachi LCD display module is a robust solution for displaying textual information across various devices and applications. Its reliance on the HD44780 controller ensures compatibility and ease of use in various projects. While it has limitations in terms of graphics capabilities and viewing angles, its cost-effectiveness and low power consumption make it an excellent choice for many users. In addition to its widespread applications in consumer electronics and industrial equipment, its role in educational projects highlights its importance as an accessible tool for learning about electronics and programming.
The primary function is to display alphanumeric characters using liquid crystal technology controlled by an HD44780 controller.
You connect it using specific pins for power (Vcc and GND), control (RS, R/W, E), and data (D0-D7).
No, these modules are primarily designed for text display and have limited graphical capabilities.
Common sizes include 16x2 and 20x4 configurations; however, custom sizes are also available depending on specific needs.
Contrast can be adjusted using a potentiometer connected to the Vee pin on the module.
