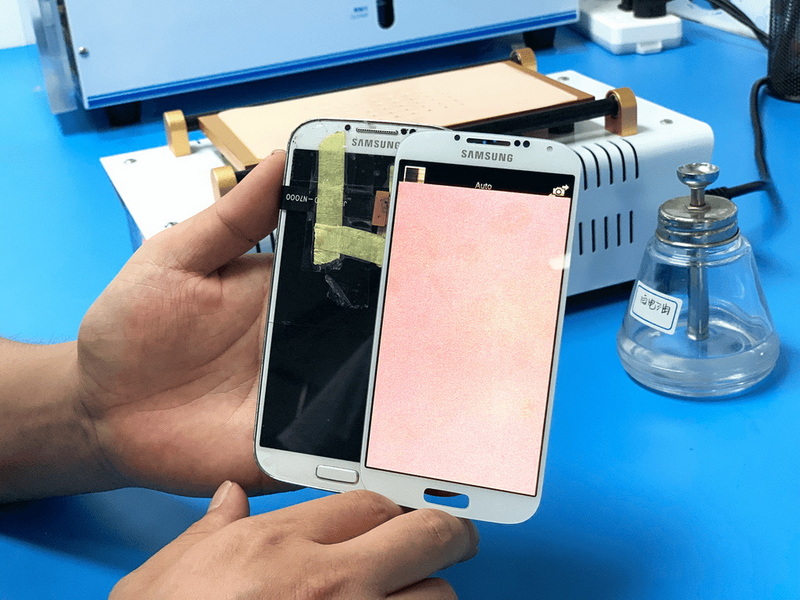

LCD screens are at the core of modern digital life, powering everything from laptops and monitors to smartphones and tablets. But what happens when the LCD display cable—the vital link connecting the screen to the device's mainboard—breaks or malfunctions? This comprehensive guide explores the symptoms, causes, repair options, and preventative measures, providing both technical insights and practical advice for users and technicians.
The LCD display cable, often referred to as the LVDS (Low-Voltage Differential Signaling) cable or flex cable, is responsible for transmitting both power and data signals from the motherboard to the LCD screen. This cable enables the screen to display images, videos, and user interfaces by carrying electrical signals that control the liquid crystals and backlighting.
- Location: Typically, the cable runs through the hinge in laptops or along the device's frame in monitors and smartphones.
- Function: Transmits image data and power for the backlight.
- Types: Ribbon cables, flex cables, and FPC (Flexible Printed Circuit) cables are common in various devices.
The cable's flexibility is both its strength and its weakness. While it allows for movement and slim device designs, it is also susceptible to wear and tear, especially in devices that are opened and closed frequently.
When the LCD display cable is damaged, a range of display issues can occur. Recognizing these symptoms is the first step in diagnosis and repair.
A faulty cable may not deliver enough power to the backlight, resulting in a screen that is unusually dim or completely dark, even though the device is powered on. Sometimes, if you shine a flashlight on the screen, you may faintly see the desktop or icons, indicating the backlight is not functioning properly due to a cable issue.
Intermittent or poor data transmission can cause the display to flicker, show blurry images, or appear unstable. This symptom often worsens when the device is moved or the screen is adjusted.
If the cable is completely severed or disconnected, the LCD may show only the backlight (a faint white or gray glow) or remain entirely black, with no image rendered. In some cases, the device may appear to be off, but the power indicator lights are still on.
Permanent vertical or horizontal lines, colored stripes, or random artifacts may appear on the screen, often due to a partially broken or loose cable. These lines can be static or may change when the screen is moved.
A classic sign of cable wear, especially in laptops, is a display that functions only when the lid is opened or closed to a specific angle. This is due to the cable being bent or pinched inside the hinge, causing intermittent connections.
The display may suddenly go black or lose the image, often returning after moving the screen or device. This can be particularly frustrating, as the issue seems to resolve itself temporarily, only to return unexpectedly.
Sometimes, a broken cable can cause ghosting effects, where previous images linger on the screen, or cause unusual color shifts and distortions. This happens when certain data lines within the cable are damaged, disrupting the flow of information to the display.
Understanding the causes helps prevent future failures.
- Repeated Bending: Opening and closing a laptop lid repeatedly stresses the cable, causing internal wires to break over time.
- Physical Damage: Dropping or mishandling the device can crush or tear the cable.
- Manufacturing Defects: Poor-quality cables or connectors can fail prematurely.
- Improper Repairs: Incorrect reassembly after repairs can pinch or misroute the cable, leading to damage.
- Aging and Wear: Over time, even normal use can degrade the cable's insulation and internal wires, especially in devices that are several years old.
- Environmental Factors: Exposure to dust, moisture, or extreme temperatures can accelerate cable deterioration.

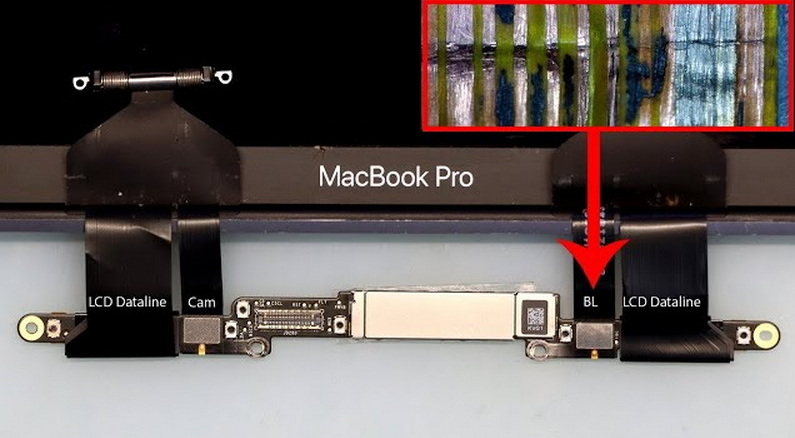

Imagine a laptop hinge with the LCD cable running through it. Over time, the constant movement causes stress points where the cable may fray or break. Close-up, a ribbon cable may show visible wear, with tiny wires exposed or insulation peeling away. On the screen, you might see vertical colored lines, flickering, or a completely black display, all pointing to a loose or broken flex cable. In smartphones, a black screen with the notification lights still on can also indicate a flex cable issue.
- Does the screen flicker, go black, or show lines?
- Does moving the screen or device affect the display?
- Do you see any ghosting, color distortion, or partial images?
- Connect your device to an external display. If the external screen works, the issue is likely with the LCD cable or display, not the graphics card.
- Open the device (if safe and possible) and check for visible damage, loose connectors, or missing locking clips.
- Look for signs of wear, such as frayed wires or bent pins.
- Disconnect and reconnect the cable to ensure a secure fit. Sometimes, a loose connection is the only problem.
- If the cable is damaged, replacement is necessary.
- Many laptops and devices have built-in diagnostics to test the display and related hardware. These tools can help confirm whether the issue is with the cable or another component.
Sometimes, simply unplugging and re-plugging the cable resolves the issue if it was loose. Make sure the device is powered off and unplugged before attempting this.
If the cable is visibly damaged or re-seating doesn't help, replacement is necessary. This involves:
- Powering off and disconnecting the device.
- Removing the bezel or back cover.
- Carefully unplugging the old cable and routing the new one through the hinge or frame.
- Reassembling the device and testing the display.

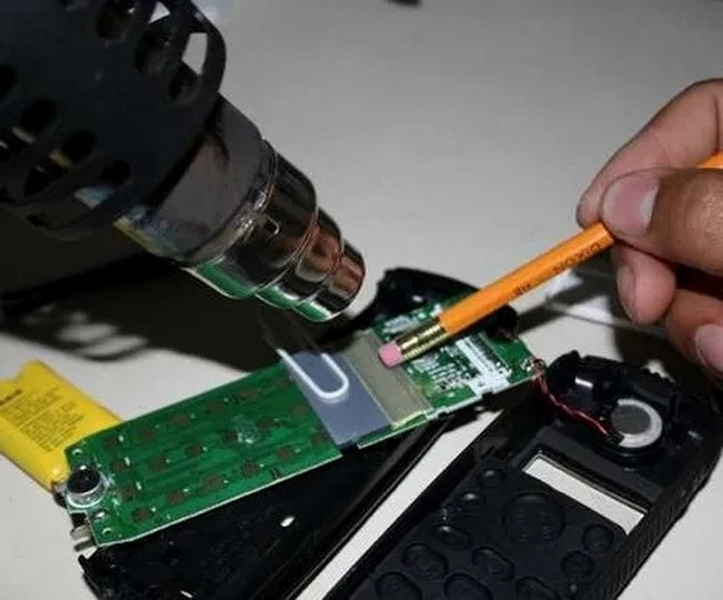

For devices with soldered cables (e.g., smartphones, tablets), microsoldering may be required. Seek professional help if you lack experience with small electronics.
In some cases, adjusting the angle of the screen or applying gentle pressure near the hinge may temporarily restore the display. However, this is not a permanent fix and can worsen the damage over time.
- Open and close laptops gently and avoid overextending the hinge.
- Use protective cases for portable devices.
- Avoid placing heavy objects on top of closed laptops or screens.
- Keep devices away from moisture and extreme temperatures.
- Avoid unnecessary disassembly or rough handling.
- Clean the device regularly to prevent dust accumulation, which can cause overheating and additional stress on internal components.
Replace the LCD Cable if:
- The display works intermittently or only at certain angles.
- There are lines or flickering without visible screen cracks.
- The device responds to external displays normally.
Replace the Screen if:
- There are visible cracks or physical damage.
- The touch function is unresponsive, but the cable is intact.
- The display shows persistent abnormalities not resolved by cable replacement.
If you decide to repair the cable yourself, gather the necessary tools: small screwdrivers, plastic prying tools, and an anti-static wrist strap. Carefully follow a service manual or reputable guide for your specific device model. Take photos during disassembly to help with reassembly.
For professional repairs, expect the technician to diagnose the issue, source a compatible replacement cable, and test the device thoroughly after installation. The repair cost is usually much less than replacing the entire screen or device.
- Handle with Care: Always open and close your laptop gently. Avoid twisting or forcing the screen.
- Regular Maintenance: Dust and debris can accumulate in the hinge area. Clean it periodically to prevent buildup.
- Monitor Usage Patterns: If you frequently use your device in one location, consider using an external monitor to reduce wear on the laptop lid and cable.
- Protective Accessories: Use a padded laptop bag or case when transporting your device.
A broken LCD display cable can manifest as a dim, flickering, or completely black screen, often leading users to believe their display is irreparably damaged. However, understanding the symptoms and causes allows for accurate diagnosis and potentially simple repairs. Regular gentle handling and prompt attention to display issues can prevent costly repairs and extend your device's lifespan. If you encounter persistent display problems, don't hesitate to consult a professional technician. By taking care of your device and being aware of the warning signs, you can avoid many common LCD cable issues and enjoy a longer, trouble-free experience with your electronics.
A faulty cable itself typically does not cause permanent damage to the device's main components. However, if left unaddressed, it can lead to further issues, such as short circuits or stress on connectors, potentially damaging the motherboard or screen.
Observe the symptoms:
- If the screen is black but the device is running (you hear sounds or see lights), it's likely the cable.
- If there are visible cracks or the touch function fails, the screen itself may be damaged.
- Testing with an external monitor can help isolate the issue.
If you have experience with electronics and follow safety precautions (unplugging power, using anti-static tools), it is generally safe. However, some devices are more challenging to open, and improper handling can cause additional damage. For smartphones and tablets, professional repair is recommended.
For many laptops and monitors, replacing the LCD cable is a straightforward process if you follow a service manual or reliable guide. For devices with soldered or glued cables, such as smartphones, specialized skills and tools are required.
A failing backlight often results in a screen that is uniformly dim, but images may still be faintly visible under bright light. If the screen is completely black or only works at certain angles, the cable is more likely the culprit.
In some cases, adjusting the angle of the screen or applying gentle pressure near the hinge may temporarily restore the display. However, this is not a permanent fix and can worsen the damage over time.
Handle your device gently, avoid excessive opening and closing of laptop lids, keep devices in protective cases, and avoid placing heavy objects on them.
