LCD displays are everywhere in modern life, powering our laptops, monitors, televisions, tablets, and smartphones. Their crisp visuals and vibrant colors make them a favorite for work, entertainment, and creative projects. However, one common visual issue that can disrupt the user experience is LCD light bleed, also known as backlight bleed. This comprehensive guide explores in detail what happens if LCD light bleed occurs on your display, its causes, effects, how to detect and address it, and answers to the most frequently asked questions. By the end, you will have a thorough understanding of this phenomenon and practical advice for dealing with it.

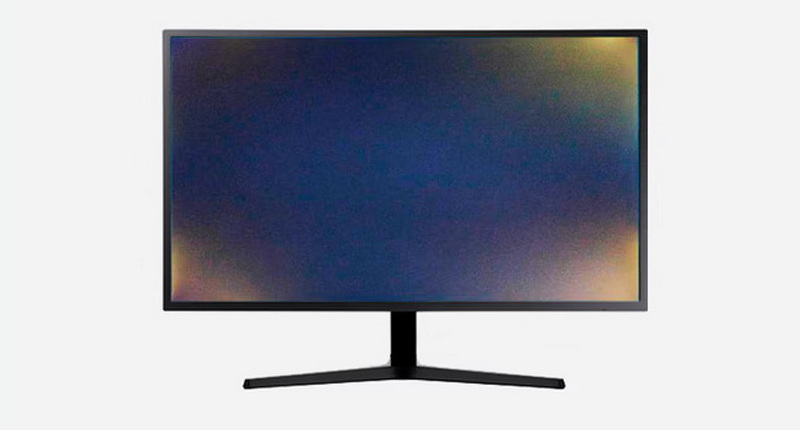

LCD light bleed refers to the unwanted leakage of backlight around the edges or corners of an LCD screen. This results in areas of the display appearing brighter than intended, especially when viewing dark or black backgrounds. Instead of a uniform black, you may notice patches or halos of light, which can be distracting and reduce image quality.
The root cause of light bleed lies in the construction of LCD panels. These displays rely on a backlight, typically made up of LEDs, that shines through several layers, including a diffuser and the liquid crystal panel itself. Ideally, the backlight should only pass through the areas where the liquid crystals allow it, forming the intended image. However, if the layers inside the display are not perfectly aligned or sealed, or if the frame applies uneven pressure, light can escape through unintended areas, causing visible bleed.

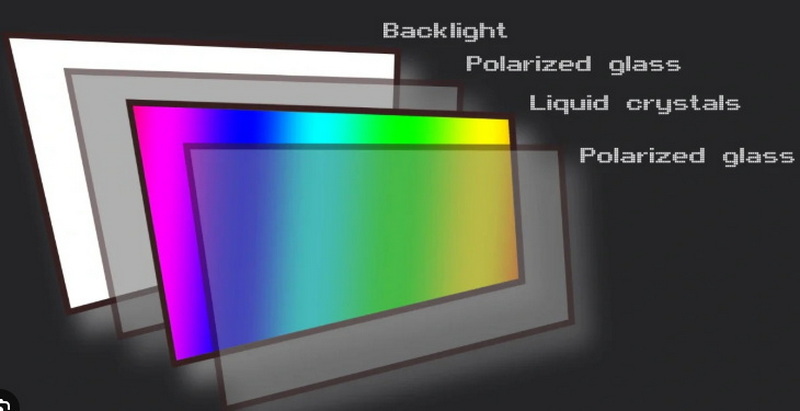

To better understand light bleed, let's briefly examine how LCD displays function:
- Backlight: This is the light source, usually a series of LEDs, that illuminates the entire screen from behind.
- Diffuser and Polarizer: These layers help spread the light evenly and control its direction.
- Liquid Crystal Layer: The liquid crystals twist to allow varying amounts of light through, creating the image you see.
- Color Filters: These add color to the light passing through.
- Glass and Bezel: The outermost layers protect the panel and hold everything in place.
If any of these layers are misaligned, or if the bezel presses too tightly or too loosely, light can leak out, leading to light bleed.
No manufacturing process is perfect. Even small misalignments or gaps between the layers of an LCD can allow light to escape. High-end displays often have stricter quality control, but even they are not immune.
Pressure applied to the screen, whether during assembly, shipping, or everyday use, can cause the panel layers to separate slightly. This creates tiny gaps for light to leak through, especially at the edges and corners.
Over time, the materials inside an LCD can degrade, shift, or warp, especially if exposed to heat, humidity, or frequent movement. This can make light bleed more pronounced as the display ages.
Displays from brands with less rigorous quality control are more likely to suffer from excessive light bleed. Cheaper materials and rushed assembly can also contribute to the problem.
Certain display designs are more prone to light bleed. Ultra-thin bezels, for example, provide less structural support, increasing the risk of misalignment. Some panel types, like IPS, are also more susceptible due to their construction.
- Reduced Contrast: Light bleed makes blacks appear gray or washed out, reducing the overall contrast of the display.
- Color Distortion: Colors, especially dark tones, lose their depth and accuracy.
- Distraction: Bright spots or halos can draw your attention away from the content, breaking immersion during movies or games.
- Loss of Detail: In scenes with subtle gradients or shadows, light bleed can obscure fine details.
- Watching Movies: During dark scenes, you may notice glowing patches at the edges or corners, which can be especially distracting in a dim room.
- Gaming: Light bleed can affect your ability to see enemies or objects in dark areas, impacting gameplay.
- Professional Work: For photographers, designers, or video editors, accurate color and contrast are critical. Light bleed can make it difficult to judge your work accurately.
| Type | Description |
|---|---|
| Edge Bleeding | Light leaks along the edges or corners, forming a halo effect. |
| Clouding | Uneven patches of light, often resembling clouds or irregular shapes. |
| Flashlighting | Bright spots at the corners, as if a flashlight is shining onto the screen. |
| General Unevenness | Overall inconsistent brightness across the display. |
Each type of light bleed can have a different visual impact, but all reduce the uniformity and quality of the display.
Testing for light bleed is simple and can be done at home:
1. Display a Pure Black Image: Set your screen background to solid black or play a black video in full-screen mode.
2. Dim the Room: Perform the test in a dark room to make light bleed more visible.
3. Inspect the Screen: Look closely at the edges and corners for any bright spots, halos, or uneven patches of light.
4. Compare with Normal Use: If the bleed is only visible during this test and not during everyday use, it may not be a significant issue.
- Test at different brightness levels, as higher brightness can make light bleed more pronounced.
- View the screen from different angles to see if the bleed changes.
- Take photos to document the bleed, especially if you plan to request a replacement or warranty service.
- Gentle Pressure: Carefully applying gentle, even pressure to the bezel near the bleed source may help realign the panel layers. However, this method carries risks and should be done with caution.
- Bezel Adjustment: Loosening or reseating the bezel can sometimes relieve pressure points that cause bleed.
- Brightness Adjustment: Lowering the screen brightness can make light bleed less noticeable, especially in dark environments.
- Ambient Lighting: Adding bias lighting behind your screen can help mask the effects of light bleed and reduce eye strain.
- Professional Repair: A technician may be able to realign the panel layers or replace faulty components, but this is rare and often not cost-effective.
- Replacement: If your display is under warranty and the bleed is severe, request a replacement from the manufacturer.
- Switching Panel Types: Consider upgrading to an OLED or Mini-LED display, which are less prone to light bleed due to their different lighting technologies.
- Minor Bleed: If the bleed is only visible during specific tests and does not impact your daily use, it is generally considered acceptable.
- Severe Bleed: If the bleed is noticeable during movies, games, or professional work, it can be a significant problem and may warrant repair or replacement.
- Professional Use: For tasks that demand high color accuracy and uniformity, even minor light bleed can be unacceptable.
Most manufacturers allow for a certain amount of light bleed as normal and may not consider it a defect unless it exceeds their specified thresholds. Always check the warranty and return policy before purchasing a display.
- Buy Quality Products: Choose displays from reputable brands with strong quality control.
- Inspect Upon Arrival: Test your display for light bleed as soon as you receive it, so you can return or exchange it if necessary.
- Handle With Care: Avoid pressing on the screen or dropping the device.
- Maintain Proper Environment: Keep your display in a stable environment, avoiding extreme temperatures or humidity, which can worsen light bleed over time.
- Regularly clean your screen and bezel to prevent dust buildup, which can affect the fit of the bezel.
- Use a screen protector or case for portable devices to minimize physical stress.
LCD light bleed is a common phenomenon that can affect any LCD display, from high-end monitors to budget televisions. While some degree of light bleed is normal and often goes unnoticed during everyday use, excessive bleed can significantly impact your viewing experience, especially in dark environments or for professional tasks that require precise color and contrast. Understanding the causes, how to test for light bleed, and the available solutions empowers you to make informed decisions about your display—whether that means seeking a replacement, attempting a fix, or simply adjusting your environment to minimize its impact. As display technology continues to evolve, issues like light bleed are gradually becoming less common, but awareness and proactive care remain your best tools for ensuring the best possible viewing experience.
Backlight bleed is caused by light escaping around the edges or corners due to panel misalignment or poor sealing. IPS glow, on the other hand, is an inherent characteristic of IPS panels, visible as a faint glow when viewed from certain angles. IPS glow can often be minimized by adjusting viewing angles or ambient lighting, while backlight bleed is usually a physical issue with the panel.
Most manufacturers consider minor backlight bleed normal and may not cover it under warranty unless it is excessive and affects usability. Always check the warranty policy and test your display upon arrival.
Yes, backlight bleed can worsen as the display ages, especially if exposed to physical stress, temperature changes, or poor handling. Components may shift or degrade, increasing light leakage.
OLED and Mini-LED displays are less prone to light bleed because they use different lighting technologies. OLED panels have self-emissive pixels, eliminating the need for a backlight, while Mini-LEDs offer more precise local dimming.
If the bleed is severe and impacts your experience, especially in professional or media use, you should consider returning or replacing the display. For minor bleed, it may be best to keep the display, as replacements can sometimes be worse.
