● What Does TFT LCD Display Mean?
● The Structure of a TFT LCD Display
>> 4. Liquid Crystal Modulation
>> 6. Final Polarization and Image Formation
● Key Features and Advantages of TFT LCD Displays
● Common Applications of TFT LCD Displays
● How to Use and Interface with TFT LCDs
>> Basic Steps
● Troubleshooting Common Issues
● Comparison: TFT LCD vs Other Display Technologies
● Recent Innovations in TFT LCD Technology
● Environmental Impact and Recycling of TFT LCDs
>> Environmental Considerations
● Future Trends in TFT LCD Displays
>> 1. What is the difference between TFT and regular LCD?
>> 2. Can TFT LCD displays show video?
>> 3. Are all TFT LCDs touchscreens?
>> 4. What is the typical lifespan of a TFT LCD display?
>> 5. Are TFT LCD displays sunlight readable?
In the digital age, screens are everywhere. From smartphones and tablets to televisions and car dashboards, displays are the primary interface between humans and technology. Among the most widely used display technologies is the TFT LCD display. But what does "TFT LCD display" mean, and why is it so prevalent in modern electronics? This comprehensive guide will answer these questions and much more, providing a detailed exploration of the technology, its structure, advantages, applications, and frequently asked questions.

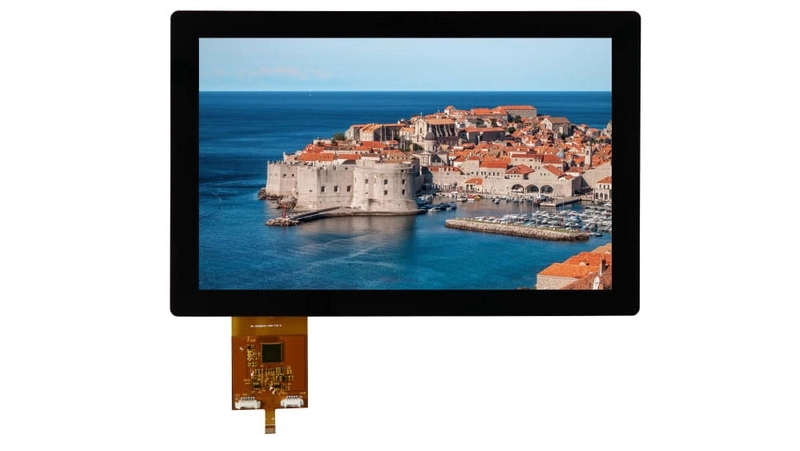

TFT LCD stands for Thin-Film Transistor Liquid Crystal Display. This term refers to a type of flat-panel display that uses thin-film transistor technology to control the behavior of liquid crystals, which in turn modulate light to create images. The TFT acts as a switch for each individual pixel, allowing precise control over color and brightness, resulting in sharp, vibrant visuals.
- TFT: Thin-Film Transistor, a special transistor made by depositing thin films of semiconductor material onto a glass substrate.
- LCD: Liquid Crystal Display, a technology that uses liquid crystals sandwiched between glass layers to control light passage and image formation.
TFT LCD displays are also known as "active matrix" displays, in contrast to older "passive matrix" LCDs. In active matrix displays, each pixel is controlled by its own transistor, enabling faster response times, higher resolutions, and better image quality.

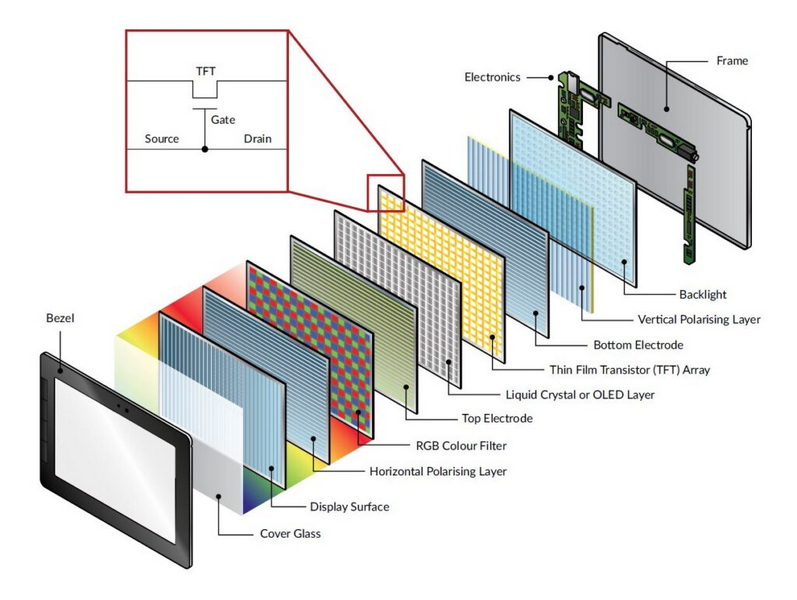

A TFT LCD display is a complex, multilayered device. Understanding its structure helps explain how it achieves such high-quality images.
- Backlight: Provides the illumination necessary for the display to be visible.
- Polarizer: Ensures light is properly aligned for manipulation by the liquid crystals.
- Glass Substrate with TFTs: Houses the thin-film transistors and pixel electrodes.
- Liquid Crystal Layer: Contains rod-shaped molecules that can twist or align when voltage is applied.
- Color Filter: Divides each pixel into red, green, and blue sub-pixels.
- Top Glass Substrate: Protects the internal layers and supports the color filter.
- Second Polarizer: Controls the final light output to the viewer.
Each of these layers plays a vital role in the overall performance of the display. The backlight, usually made of LEDs, provides the necessary brightness. The polarizers and liquid crystal layer work together to control the passage of light, while the color filters ensure accurate color reproduction.
The operation of a TFT LCD display is a marvel of modern engineering. Here's a step-by-step breakdown:
The display starts with a uniform white backlight, usually made from LEDs.
Light from the backlight passes through a polarizer, aligning its waves in a single direction.
Each pixel on the screen is paired with a thin-film transistor. When a voltage is applied to a transistor, it changes the orientation of the liquid crystals in that pixel.
The liquid crystals twist or align based on the applied voltage, altering the polarization of the light passing through them.
The modulated light passes through red, green, or blue color filters, creating the full spectrum of colors seen on the display.
A second polarizer ensures only the desired light reaches the viewer, forming the final image.
This process happens rapidly and simultaneously across all pixels on the screen, allowing for smooth video playback and crisp, clear images.
TFT LCD displays are popular for several reasons:
- High Resolution: Support for millions of colors and sharp, detailed images.
- Fast Response Time: Suitable for video and gaming, with minimal motion blur.
- Wide Range of Sizes: Available from tiny wearable screens to large televisions.
- Versatility: Used in everything from smartphones to industrial equipment.
- Energy Efficiency: Consumes less power than older CRT displays.
- Long Lifespan: Durable and reliable for years of use.
- Touchscreen Capability: Can be paired with resistive or capacitive touch panels for interactive applications.
Another important advantage is the ability to produce thin, lightweight screens, making TFT LCDs ideal for portable devices. The technology also allows for flexible design options, enabling manufacturers to create curved or uniquely shaped displays for specialized applications.
TFT LCDs are found in a wide variety of devices, including:
- Smartphones and tablets
- Laptops and computer monitors
- Televisions
- Digital cameras
- Car dashboards and infotainment systems
- Industrial control panels
- Medical equipment
- Portable gaming devices
- Digital photo frames
In automotive applications, TFT LCDs are increasingly used for digital instrument clusters and infotainment systems, providing drivers with real-time information and entertainment options. In the medical field, their high resolution and clarity make them ideal for diagnostic equipment and patient monitoring systems.
There are several variations of TFT LCD technology, each with its own strengths:
- TN (Twisted Nematic) TFT: Fast response times, affordable, but limited viewing angles.
- IPS (In-Plane Switching) TFT: Superior color reproduction and wide viewing angles, popular in high-end monitors and smartphones.
- VA (Vertical Alignment) TFT: Better contrast than TN, with decent viewing angles.
- Transflective TFT: Combines transmissive and reflective properties for better sunlight readability.
Each type is suited to different applications. TN panels are common in budget monitors and gaming displays due to their quick response, while IPS panels are preferred for professional graphics work and premium devices. VA panels offer a balance between the two, with higher contrast ratios and deeper blacks.
TFT LCDs can be integrated into projects using microcontrollers like Arduino or Raspberry Pi. Here's a general overview:
- TFT LCD module (with or without touchscreen)
- Microcontroller (Arduino, Raspberry Pi, etc.)
- Power supply
- Connecting wires or shield
- Optional: SD card for image storage
1. Connect the display to the microcontroller using the appropriate interface (SPI, parallel, HDMI, etc.).
2. Install necessary libraries for display control.
3. Write code to initialize the display, draw graphics, or display images/text.
4. Load images from SD card or memory, if needed.
TFT LCDs are often used in DIY electronics projects, allowing hobbyists to create custom interfaces, digital dashboards, or even portable gaming consoles. The flexibility and availability of open-source libraries make it easy to get started, even for beginners.
Despite their reliability, TFT LCDs can face issues:
- Blank Screen: Check power supply, connections, and drivers.
- Poor Image Quality: Ensure correct resolution settings and check for physical damage.
- Touchscreen Not Responding: Clean the screen, recalibrate, or replace the touch controller.
- Flickering: Check power supply and update drivers.
- Color Calibration: Use display settings or calibration tools.
Regular maintenance and proper handling can prevent many common problems. If a display becomes unresponsive, resetting the device or updating the firmware often resolves the issue.
| Feature | TFT LCD | OLED | Passive-Matrix LCD |
|---|---|---|---|
| Image Quality | High | Very High | Moderate |
| Response Time | Fast | Very Fast | Slow |
| Power Consumption | Moderate | Low (dark images) | Low |
| Viewing Angle | Good (IPS best) | Excellent | Poor |
| Lifespan | Long | Shorter | Long |
| Cost | Moderate | High | Low |
| Sunlight Readable | With transflective | Good | Poor |
TFT LCDs are often chosen for their balance of performance, cost, and availability. OLED displays, while offering deeper blacks and higher contrast, are more expensive and have a shorter lifespan due to organic material degradation. Passive-matrix LCDs, on the other hand, are less expensive but suffer from slower response times and poorer image quality.
The TFT LCD industry is constantly evolving. Recent innovations include:
- Ultra-thin and flexible displays: Advances in materials and manufacturing have led to thinner, lighter, and even bendable TFT LCDs, opening up new possibilities for wearable technology and foldable devices.
- Higher resolutions: 4K and even 8K TFT LCDs are now available, providing incredibly sharp images for professional and entertainment applications.
- Improved color accuracy: New color filter materials and backlighting techniques have enhanced color reproduction, making TFT LCDs suitable for color-critical tasks like photo editing and medical imaging.
- Energy-efficient backlighting: The development of mini-LED and micro-LED backlights has improved brightness and energy efficiency, extending battery life in portable devices.
- Integrated touch and haptic feedback: Modern TFT LCDs can include touch sensitivity and even haptic feedback, creating more interactive and immersive user experiences.
As with all electronic devices, TFT LCDs have an environmental impact. The manufacturing process involves the use of chemicals and rare materials, and improper disposal can contribute to electronic waste.
- Energy consumption: While more efficient than CRTs, TFT LCDs still require significant energy to operate, especially in large displays.
- Material use: The production of TFT LCDs involves glass, plastics, and metals, some of which are not easily recyclable.
- Disposal: Old or broken displays should be recycled through certified e-waste programs to recover valuable materials and prevent environmental contamination.
Manufacturers are working to reduce the environmental footprint of TFT LCDs by developing more sustainable materials, improving energy efficiency, and supporting recycling initiatives.
The future of TFT LCD technology is bright, with several trends shaping the industry:
- Integration with AI and IoT: Smart displays that can adapt content and settings based on user behavior and environmental conditions.
- Higher refresh rates: As demand for smoother video and gaming experiences grows, TFT LCDs with refresh rates of 120Hz and above are becoming more common.
- Transparent and augmented reality displays: Research is underway to create transparent TFT LCDs for applications like smart windows and augmented reality devices.
- Wider color gamuts: Advances in quantum dot and phosphor technologies are expanding the range of colors that TFT LCDs can display.
- Sustainability: Continued focus on reducing energy consumption and increasing the recyclability of displays.
These innovations will ensure that TFT LCDs remain a vital part of the display landscape for years to come.
TFT LCD displays have revolutionized the way we interact with electronic devices, offering sharp images, vibrant colors, and fast response times. Their unique structure—combining thin-film transistors with liquid crystal technology—enables precise control over each pixel, resulting in superior image quality. From mobile phones to industrial equipment, TFT LCDs are the backbone of modern display technology.
Whether you are an engineer, hobbyist, or consumer, understanding how TFT LCDs work and their advantages can help you make informed decisions when choosing display solutions for your projects or products. As technology continues to advance, TFT LCDs will evolve to meet the demands of new applications, ensuring their continued relevance in our increasingly digital world.
A regular LCD can use either passive or active matrix technology. TFT LCD is an active matrix type, where each pixel is controlled by its own thin-film transistor, resulting in better image quality, faster response, and higher resolution.
Yes, most TFT LCD displays can show video, provided their interface and controller support the required data rates. They are commonly used in televisions, monitors, and portable media devices.
No, not all TFT LCDs are touchscreens. However, touch panels (resistive or capacitive) can be added to most TFT LCDs for interactive applications.
TFT LCDs have a long lifespan, often exceeding 50,000 hours of use, depending on the quality of the backlight and usage conditions.
Standard TFT LCDs are difficult to read in direct sunlight. However, transflective TFTs or those with high-brightness backlights are designed for better sunlight readability.
