Introduction to OLED Technology

OLED stands for Organic Light-Emitting Diode. It is a cutting-edge display technology that uses organic compounds which emit light when an electric current is applied. Unlike traditional LED or LCD screens, which rely on backlighting to illuminate pixels, OLED displays are self-emissive, meaning each pixel produces its own light individually. This fundamental difference allows OLED screens to deliver superior image quality, including true blacks and vibrant colors. As a result, OLED technology has become the preferred choice for premium smartphones, televisions, and other display devices.

How Does an OLED Screen Work?

Structure of an OLED

An OLED screen consists of multiple layers carefully engineered to produce light efficiently:

- Substrate: This is the foundational layer, typically made of glass or flexible plastic, providing structural support to the display.

- Anode and Cathode: These are electrodes that inject positive (holes) and negative (electrons) charges into the organic layers.

- Organic Layers: The heart of the OLED, consisting of two main layers:

- Conductive Layer: Made of organic plastic molecules that transport holes from the anode.

- Emissive Layer: Contains organic molecules that emit light when electrons and holes recombine.

- Seal Layer: A protective coating that shields the organic materials from oxygen and moisture, which can degrade the display.

When an electric current is applied, electrons move from the cathode and holes move from the anode into the organic layers. When these charges meet in the emissive layer, they recombine and release energy in the form of photons—this process is called electroluminescence. The color of light emitted depends on the specific organic molecules used in the emissive layer.

Emissive vs Backlit Displays

The key difference between OLED and traditional LCD (Liquid Crystal Display) technology lies in how the light is produced:

- OLED: Each pixel emits its own light independently. This means pixels can be completely turned off to display true black.

- LCD: Uses a backlight panel that shines uniformly behind the screen. Liquid crystals modulate this light to create images, but the backlight cannot be turned off on a per-pixel basis. This results in less accurate blacks and lower contrast.

This self-emissive property of OLEDs is the foundation for many of their advantages, such as higher contrast ratios and better energy efficiency when displaying darker images.

Advantages of OLED Screens

Superior Image Quality

One of the most celebrated features of OLED screens is their exceptional image quality:

- True Blacks: Because each pixel can be turned off completely, OLED displays can show true black colors. This capability leads to an infinite contrast ratio, which dramatically enhances picture depth and realism.

- Vibrant Colors: OLEDs produce highly saturated and accurate colors. The organic materials emit pure light, resulting in a wider color gamut and more vivid images.

- Wide Viewing Angles: OLED screens maintain consistent color and brightness even when viewed from extreme angles, unlike many LCDs that suffer from color washout or brightness loss.

- Fast Response Time: OLED pixels switch on and off much faster than LCD pixels, making OLEDs excellent for fast-moving content like gaming or sports broadcasts, reducing motion blur.

Design Flexibility

OLED technology enables innovative design possibilities:

- Thin and Lightweight: Without the need for a bulky backlight, OLED panels can be made extremely thin and light, allowing manufacturers to create sleek and lightweight devices.

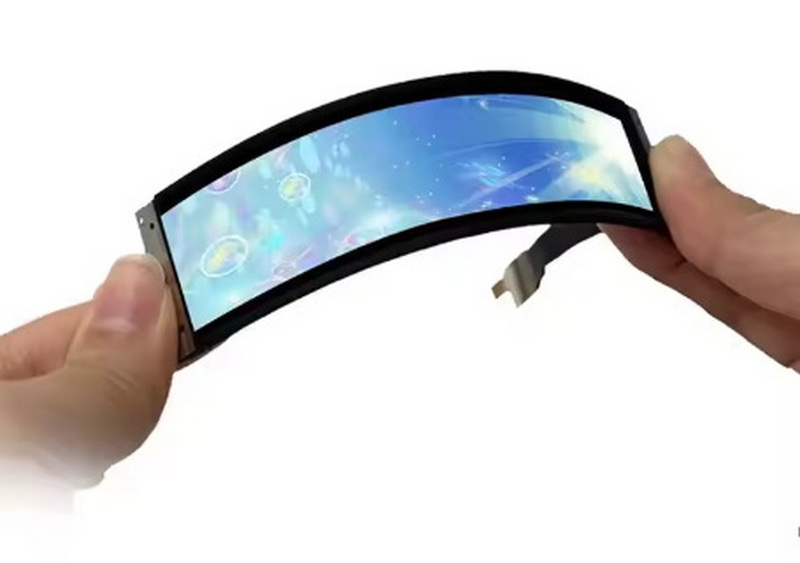

- Flexible and Foldable Displays: Because OLEDs can be fabricated on flexible plastic substrates, they can be bent, curved, or folded without damaging the display. This capability has led to the development of foldable smartphones and rollable TVs.

- Transparent Displays: OLEDs can be made transparent, opening possibilities for futuristic applications like heads-up displays in cars or augmented reality devices.

Energy Efficiency

OLED displays are more energy-efficient than LCDs in many scenarios:

- When displaying darker images or black backgrounds, OLED pixels are off, consuming virtually no power.

- OLEDs generate less heat than traditional LED-backlit LCDs, contributing to overall device efficiency and longevity.

Disadvantages of OLED Screens

Despite their many advantages, OLED screens have some drawbacks that are important to consider:

Shorter Lifespan

The organic materials used in OLEDs degrade over time, especially the blue-emitting compounds, which have a shorter lifespan compared to red and green. This degradation can lead to color shifts and reduced brightness after prolonged use.

Burn-in Risk

OLED displays are susceptible to burn-in or image retention, where static images displayed for long periods leave a "ghost" imprint on the screen. This issue is particularly relevant for UI elements like status bars or navigation buttons that remain fixed.

Higher Cost

Manufacturing OLED panels is more complex and costly than producing LCDs. This higher production cost translates into more expensive devices, although prices have been gradually decreasing as the technology matures.

Sensitivity to Moisture

OLED materials are sensitive to water and oxygen, which can cause rapid degradation. To combat this, manufacturers use advanced encapsulation techniques to protect the organic layers, but this adds complexity and cost.

Applications of OLED Screens

Consumer Electronics

OLED technology has become a staple in many consumer electronics due to its superior display qualities:

- Smartphones: Many flagship smartphones from brands like Apple, Samsung, and Google use OLED screens to deliver stunning visuals and support flexible designs for curved or foldable phones.

- Televisions: OLED TVs from companies such as LG and Sony are praised for their exceptional picture quality, deep blacks, and wide viewing angles, making them favorites among home theater enthusiasts.

- Wearables: Smartwatches and fitness trackers benefit from OLED's thinness, flexibility, and power efficiency, enabling sleek designs and longer battery life.

Lighting and Specialty Uses

Beyond displays, OLED technology is also used in lighting applications:

- Architectural Lighting: OLED panels provide soft, diffuse light that reduces glare and creates pleasant ambient environments.

- Automotive Lighting: OLEDs are used in car taillights and interior lighting due to their thin form factor and design flexibility.

- Transparent and Flexible Displays: Emerging uses include heads-up displays, augmented reality devices, and innovative signage.

The Future of OLED Technology

OLED technology continues to evolve rapidly. Researchers and manufacturers are working to:

- Improve the lifespan of blue OLED materials to extend overall panel life.

- Develop microLED and QD-OLED hybrid displays that combine the best features of OLED and other technologies.

- Enhance manufacturing processes to reduce costs and increase yield.

- Expand flexible and transparent OLED applications in consumer electronics and beyond.

With these advancements, OLED is expected to maintain its position as a leading display technology in the coming years.

Conclusion

OLED screens represent a significant leap forward in display technology, offering unmatched image quality with true blacks, vibrant colors, and wide viewing angles. Their thin, lightweight, and flexible design enables innovative device form factors, from foldable smartphones to ultra-slim televisions. While challenges such as shorter lifespan and burn-in risk remain, ongoing research and development continue to address these issues. As OLED technology matures and becomes more affordable, it is poised to become even more prevalent in consumer electronics and lighting applications, shaping the future of visual experiences.

Frequently Asked Questions (FAQs)

1. What does OLED stand for?

OLED stands for Organic Light-Emitting Diode, a display technology where organic materials emit light when electrically stimulated.

2. How is an OLED screen different from an LCD screen?

OLED screens emit light from each pixel individually without a backlight, allowing for true blacks and higher contrast, whereas LCDs use a backlight shining through liquid crystals.

3. What are the main advantages of OLED displays?

They provide superior image quality with true blacks, vibrant colors, wide viewing angles, thin and flexible designs, and lower power consumption for dark images.

4. What are the disadvantages of OLED screens?

Shorter lifespan, especially for blue OLEDs, risk of burn-in, higher cost, and sensitivity to water and moisture.

5. Where are OLED screens commonly used?

In high-end smartphones, premium televisions, wearable devices, and innovative lighting panels.
