Liquid Crystal Displays (LCDs) are everywhere—from smartphones and laptops to televisions and digital watches. Their slim profile, vibrant colors, and energy efficiency have made them the dominant display technology in modern electronics. But what exactly does an LCD display contain? How do its internal layers work together to produce the sharp and colorful images we see every day?
This comprehensive guide explores the internal structure of LCDs, detailing every layer and component, and explaining the science behind their operation. Along the way, you'll find illustrative diagrams and explanations to help visualize these concepts. By the end, you'll have a deep understanding of what makes LCDs tick.

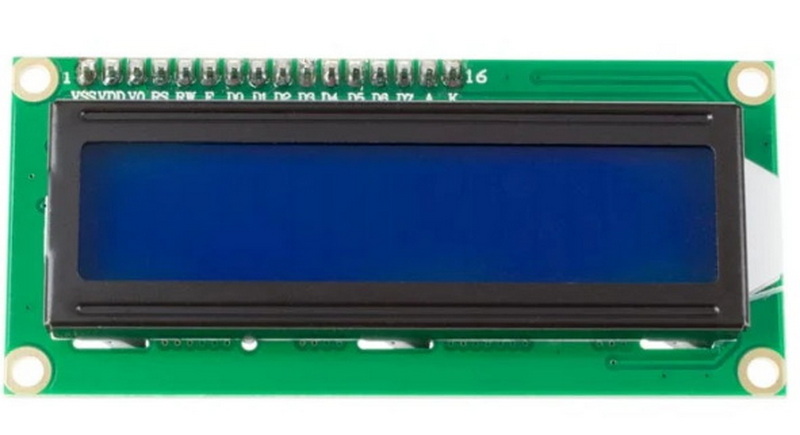

A Liquid Crystal Display (LCD) is a flat-panel display technology that uses the light-modulating properties of liquid crystals combined with polarizers to present images, text, or video. Unlike older display technologies like CRTs, LCDs do not emit light directly. Instead, they manipulate light from a backlight source to create visible images.
LCDs are found in a vast array of devices, including:
- Televisions
- Computer monitors
- Smartphones and tablets
- Digital cameras
- Watches and calculators
- Instrument panels and signage
An LCD display is a complex assembly of multiple layers, each serving a specific function. The essential components include:
- Backlight: Provides the light source for the display.
- Polarizing Filters: Control the direction of light waves.
- Glass Substrates: Sandwich the liquid crystal layer and provide structure.
- Electrodes: Apply an electric field to manipulate the liquid crystals.
- Liquid Crystal Layer: The core layer that modulates light.
- Color Filters: Add color to the images.
- Thin Film Transistor (TFT) Matrix: Controls individual pixels in active matrix displays.
- Diffusers and Reflectors: Ensure even distribution of light.
At its core, an LCD works by controlling the passage of light through liquid crystals using electric fields. Here's a simplified step-by-step overview:
1. Backlight emits light that passes through a series of diffusers and reflectors to ensure even illumination.
2. Polarizing filter allows only light with a specific orientation to pass through.
3. Liquid crystal layer changes the orientation of its molecules in response to an electric field, twisting or untwisting to modulate light.
4. Second polarizer determines how much light passes through based on the orientation of the liquid crystals.
5. Color filters split each pixel into red, green, and blue sub-pixels, creating full-color images.
6. TFT matrix (in most modern displays) controls the voltage applied to each pixel, enabling precise image formation.
Let's take a closer look at each layer and its function. The following description illustrates the typical structure of a modern LCD panel:
The backlight is the primary light source for the display. Modern LCDs use LEDs for backlighting due to their efficiency and longevity. The light passes through diffusers and reflectors for uniform brightness. The backlight is positioned behind all other layers, and its evenness is crucial for a high-quality image.
The light guide plate channels light evenly across the display, while diffuser films spread the light to avoid hot spots and ensure even illumination. These layers are essential for producing a consistent brightness across the entire screen, regardless of the backlight arrangement.
This is the first polarizing filter in the stack. It ensures that only light vibrating in a certain direction passes through. Polarizers are typically made from stretched polyvinyl alcohol (PVA) films with iodine doping, which align the molecules to create the desired polarization effect.

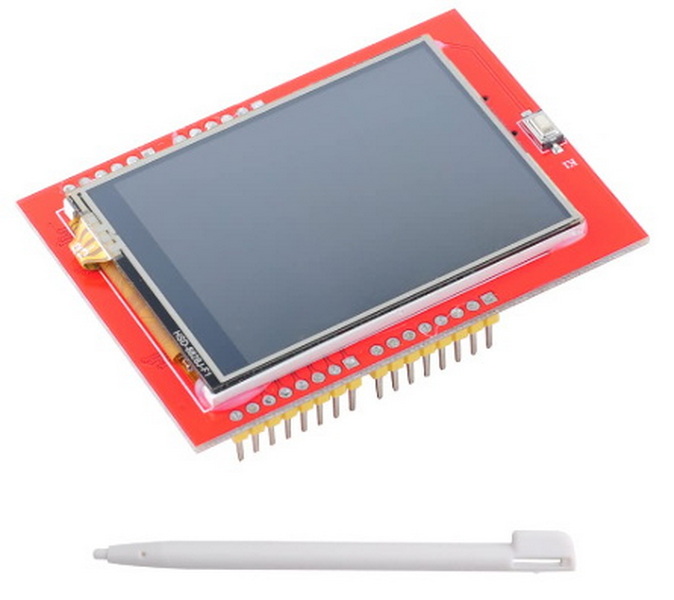

The bottom glass layer contains the Thin Film Transistor (TFT) matrix. Each pixel is controlled by its own transistor, enabling precise voltage application. The TFTs act as switches, turning each pixel on or off or modulating its brightness.
Sandwiched between two glass substrates, this layer contains millions of liquid crystal molecules that twist or align based on applied voltage, modulating light passage. The most common arrangement is the twisted nematic (TN) structure, where the molecules twist by 90 degrees in their natural state and untwist when voltage is applied.
The top glass substrate contains color filters for red, green, and blue sub-pixels. Each pixel is divided into three sub-pixels, each with its own color filter. The precise patterning of these filters is crucial for accurate color reproduction.
The second polarizing filter is oriented perpendicular to the first. Only light twisted by the liquid crystals can pass through. This arrangement is what allows the display to modulate light and create images.
The outermost layer protects the internal components from damage and smudges. In touch-enabled displays, this layer may also include a capacitive or resistive touch sensor.
LCDs come in several variants, each with unique characteristics:
| Technology | Description | Typical Use Cases |
|---|---|---|
| Twisted Nematic (TN) | Uses a 90-degree twist in liquid crystals; fast response, narrow viewing angle | Budget monitors, calculators |
| In-Plane Switching (IPS) | Liquid crystals align parallel to the glass; wide viewing angles, better color | Smartphones, high-end monitors, TVs |
| Vertical Alignment (VA) | Crystals align vertically; high contrast, good blacks | TVs, some monitors |
| Super-Twisted Nematic (STN) | Greater twist for improved contrast and viewing angle | Older displays, some industrial devices |
Each technology offers a trade-off between response time, color accuracy, viewing angle, and cost. For example, IPS panels are preferred for professional graphics work due to their superior color fidelity, while TN panels are popular in gaming monitors for their fast response times.
Each pixel on an LCD screen is made up of three sub-pixels: red, green, and blue. By varying the voltage applied to each sub-pixel, the display can produce a full spectrum of colors. Here's how it works:
- TFT matrix controls the voltage to each sub-pixel.
- Liquid crystals modulate the amount of light passing through.
- Color filters ensure only red, green, or blue light emerges from each sub-pixel.
- The combination of light intensities from all three sub-pixels creates the final color perceived by the human eye.
The human eye blends the light from these sub-pixels, allowing the display to render millions of colors. High-resolution displays pack more pixels into the same area, resulting in sharper images and smoother gradients.
Since liquid crystals do not emit light, LCDs rely on a backlight. The two most common types are:
- LED Backlight: Used in most modern LCDs, offering high efficiency and thin profiles.
- CCFL Backlight: Older technology, bulkier and less efficient.
The backlight shines through the entire stack of layers. Diffusers and light guides ensure even illumination, while reflectors prevent light loss and improve brightness.
Some advanced LCDs use local dimming, where the backlight is divided into zones that can be dimmed independently. This improves contrast by making dark areas of the image truly black, rather than gray.
Polarizers are essential in controlling the passage of light. Here's how they work:
- First polarizer: Only allows light with a specific orientation to pass.
- Liquid crystal layer: Twists or aligns light waves depending on the voltage.
- Second polarizer: Oriented at 90 degrees to the first; blocks or passes light based on its polarization.
Electrodes (usually made of indium tin oxide) apply the electric field that manipulates the liquid crystals. In active matrix displays, each pixel has its own transistor for precise control.
The careful alignment and quality of these polarizers and electrodes directly affect the display's brightness, contrast, and color accuracy.
The creation of an LCD display is a highly sophisticated process involving cleanrooms and precision machinery. Here is an overview of the main steps:
1. Substrate Preparation: Glass substrates are cleaned and coated with thin layers of transparent conductive materials.
2. TFT and Color Filter Fabrication: The TFT matrix and color filters are patterned onto separate glass substrates using photolithography.
3. Alignment Layer Application: A thin alignment layer is applied to guide the orientation of the liquid crystals.
4. Cell Assembly: The two substrates are aligned and sealed together, leaving a narrow gap for the liquid crystals.
5. Liquid Crystal Injection: Liquid crystals are injected into the gap and the cell is sealed.
6. Polarizer Attachment: Polarizing films are laminated onto the outer surfaces.
7. Backlight and Module Assembly: The LCD cell is combined with the backlight, driver circuits, and protective casing.
This process requires extreme precision, as even microscopic defects can affect display quality.
- Slim and Lightweight: LCDs are much thinner than CRTs, making them ideal for portable and wall-mounted devices.
- Energy Efficient: They consume less power, especially with LED backlighting.
- Sharp Images: High pixel density provides clear, detailed images.
- No Geometric Distortion: The flat panel design eliminates the distortion seen in curved CRT screens.
- Limited Viewing Angles: Especially in TN panels, colors can shift when viewed from the side.
- Backlight Bleed: Some light may leak around the edges, reducing contrast.
- Response Time: Slower than OLEDs, which can lead to motion blur in fast-moving images.
- Black Levels: LCDs cannot achieve true black because the backlight is always on to some extent.
LCDs are generally reliable and long-lasting, but proper care can extend their lifespan:
- Avoid Physical Pressure: Pressing on the screen can damage the liquid crystal layer.
- Keep Away from Moisture: Water can short-circuit the delicate electronics.
- Clean Gently: Use a soft, lint-free cloth and avoid harsh chemicals.
- Optimal Brightness: Running the backlight at maximum brightness constantly can reduce lifespan.
Most modern LCDs can last tens of thousands of hours before noticeable degradation occurs, especially those with LED backlights.
LCD displays are marvels of modern engineering, combining multiple layers and advanced materials to create the vibrant screens we use every day. From the backlight and polarizers to the intricate liquid crystal layer and color filters, each component is essential for producing sharp, colorful images. Understanding what an LCD display contains not only deepens your appreciation for the technology but also empowers you to make informed choices when buying or troubleshooting electronic devices.
LCD technology continues to evolve, with innovations like quantum dot enhancement and mini-LED backlighting pushing the boundaries of image quality. As you interact with your favorite devices, take a moment to appreciate the complexity and ingenuity behind every LCD screen.
An LCD display contains a backlight, rear polarizer, TFT glass substrate, liquid crystal layer, color filter substrate, front polarizer, and protective glass. Each layer plays a crucial role in modulating light and forming images.
Liquid crystals change their orientation when an electric field is applied, twisting or untwisting to control the amount of light passing through each pixel. This modulation creates the images seen on the screen.
Color filters divide each pixel into red, green, and blue sub-pixels. By controlling the light passing through each, the display can produce a full spectrum of colors.
LCDs do not emit light themselves. The backlight provides the necessary illumination, which is then modulated by the liquid crystals and filters to create visible images.
- TN (Twisted Nematic): Fast response, narrow viewing angle, lower cost.
- IPS (In-Plane Switching): Wide viewing angles, better color reproduction.
- VA (Vertical Alignment): High contrast, good black levels.
