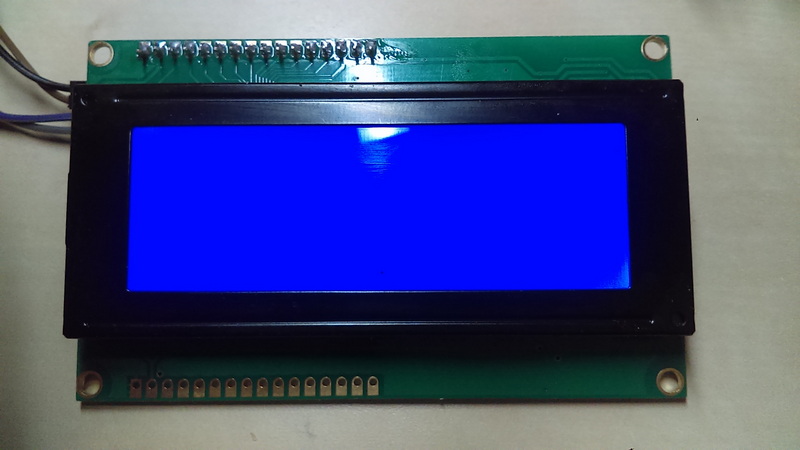

The 20x4 LCD display is a versatile, widely used module in electronics and embedded systems. Featuring 20 characters per line across 4 lines, it provides a total of 80 characters for displaying information clearly and efficiently. This article explores the various types of content you can display on a 20x4 LCD, its technical capabilities, practical applications, and creative uses, supported by images and videos to illustrate its potential.
The 20x4 LCD display is a liquid crystal display module commonly used in projects requiring more extensive textual output than smaller displays like 16x2 LCDs. It is favored for its clarity, low power consumption, and ability to display multiple lines of information simultaneously.
- Display Size: 20 characters per line, 4 lines total (80 characters).
- Display Type: Character LCD, often with LED backlight.
- Interface: Usually 4-bit or 8-bit parallel interface; I2C versions are also popular.
- Controller: Typically HD44780 or compatible.
The 20x4 LCD is ideal for projects that require more detailed information to be displayed at once, such as multiple sensor readings, menus, or status messages. Its widespread availability and ease of use make it a favorite among hobbyists and professionals alike.
The primary use of a 20x4 LCD display is to show text. This includes:
- Status messages: System states, error messages, or operational feedback.
- Sensor data: Temperature, humidity, pressure, or other sensor outputs.
- Menu options: Interactive menus for user interfaces.
- Configuration settings: Displaying adjustable parameters in embedded systems.
- Date and time: Real-time clocks or timers.
Example of a simple status display:
Temperature: 25.3 C
Humidity: 40%
System: Active
Mode: Auto
This kind of display is especially useful in embedded systems where users need to monitor system parameters at a glance.
The 20x4 LCD display excels at showing numeric data clearly, such as:
- Counters or timers.
- Voltage or current readings.
- Speed or distance measurements.
- Scores or statistics in games.
For example, a timer display might look like:
Timer: 00:15:23
Lap 1: 00:05:12
Lap 2: 00:05:45
Lap 3: 00:04:26
This multi-line capability allows you to show detailed data without scrolling, improving usability.
Though primarily a character display, the 20x4 LCD allows for custom character creation by programming its CGRAM (Character Generator RAM). This enables:
- Simple icons or logos.
- Bar graphs or progress indicators.
- Arrows or symbols for navigation.
For example, you can create a battery icon to show charge level or a Wi-Fi symbol to indicate connectivity status.
With four lines available, the display can show simultaneous data streams, such as:
- Multiple sensor readings.
- Status updates alongside user prompts.
- Step-by-step instructions or logs.
- System diagnostics or error codes.
For example, a weather station might display:
Temp: 22.5 C Humidity: 55%
Pressure: 1013 hPa
Wind: 5 km/h Direction: N
This layout provides a comprehensive snapshot of environmental data in a compact format.
The 20x4 LCD operates by controlling pixels through a controller chip like the HD44780. It receives data through parallel or I2C interfaces and renders characters accordingly.
| Pin | Name | Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | Power Supply (4.7V - 5.3V) |
| 3 | VO | Contrast adjustment |
| 4 | RS | Register Select (Command/Data) |
| 5 | RW | Read/Write |
| 6 | E | Enable signal |
| 7-14 | D0-D7 | Data pins |
| 15 | A | Backlight Anode |
| 16 | K | Backlight Cathode |

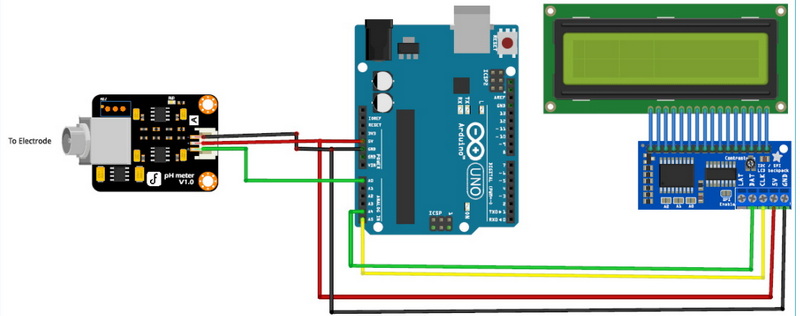

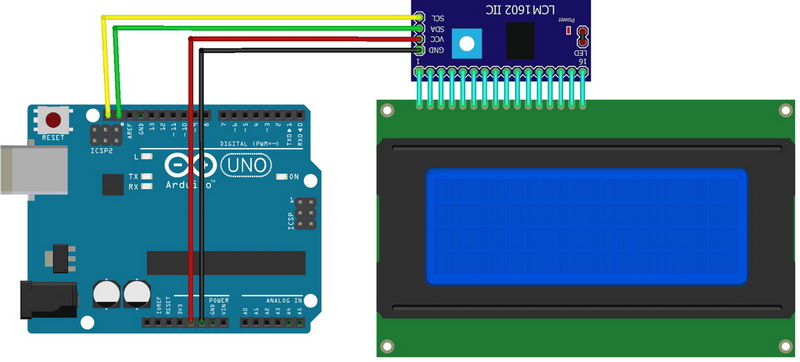

The I2C version simplifies wiring to just four pins:
- GND
- VCC (5V)
- SDA (Data)
- SCL (Clock)
This makes integration with microcontrollers like Arduino easier and reduces the number of required GPIO pins.
In industrial settings, the 20x4 LCD display is used in control panels to display operational data, warnings, and system status clearly. For example, a conveyor belt control system might display speed, load, and error messages simultaneously.
Many household appliances use 20x4 LCDs to show settings, timers, and modes. Microwaves, washing machines, and air conditioners often feature these displays for user interaction.
Smart home devices use 20x4 LCDs to display sensor data like temperature and humidity or system states such as alarm status or lighting modes.
The 20x4 LCD is ideal for teaching embedded systems, microcontroller interfacing, and display programming. Its simplicity and versatility make it a perfect learning tool.
Portable medical devices use 20x4 LCDs to show vital signs and diagnostic information clearly and reliably.
By programming custom characters, you can create logos or simple images. Some software tools convert bitmap images into LCD character codes for easier implementation.
The 20x4 LCD can be used to create interactive menus, allowing users to navigate options and settings easily. This is particularly useful in devices requiring user input without complex graphical interfaces.
Combined with sensors and microcontrollers, the display can provide live updates on environmental or system parameters, such as weather stations, fitness trackers, or robotics.
- Contrast issues: Adjust the potentiometer connected to VO pin to improve visibility.
- No display: Check wiring and ensure correct power supply voltage.
- Garbled characters: Verify correct initialization and communication mode (4-bit vs. 8-bit).
- Backlight not working: Confirm LED connections and resistor values; some modules require external resistors.
- Flickering display: Ensure stable power supply and proper grounding.
The 20x4 LCD display is a powerful and flexible component for displaying a wide range of information in embedded systems and DIY electronics. From simple text and sensor data to custom graphics and interactive menus, it enhances user interfaces with clarity and efficiency. Its compatibility with popular microcontrollers and ease of use make it an indispensable tool for hobbyists and professionals alike.
Whether you are building a weather station, home automation system, or industrial control panel, the 20x4 LCD display offers a reliable and clear way to communicate information to users.
A 20x4 LCD can display 80 characters at once—20 characters per line across 4 lines.
While primarily a character display, you can create custom characters to simulate simple graphics and icons.
You can connect it via parallel interface using multiple data pins or use an I2C adapter for simpler wiring with just four pins.
Most 20x4 LCDs come with an LED backlight for better visibility in low-light conditions.
Yes, it is commonly used to show real-time readings such as temperature, humidity, and other sensor outputs.
