A Liquid Crystal Display (LCD) is a flat-panel display technology that has become ubiquitous in modern electronics, found in devices ranging from televisions and computer monitors to smartphones and tablets. LCDs utilize the light-modulating properties of liquid crystals combined with polarizers to produce images. Unlike traditional cathode-ray tube (CRT) displays, which are bulky and consume more power, LCDs are thinner, lighter, and more energy-efficient.

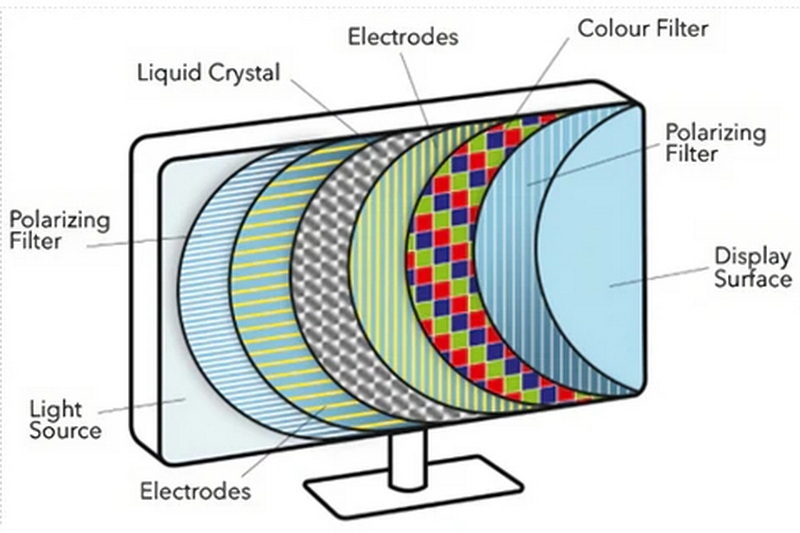

The fundamental principle behind LCD technology involves the manipulation of light. An LCD screen consists of several layers:
1. Backlight: This is the light source for the display, typically made up of LEDs or fluorescent lamps. The backlight illuminates the liquid crystals.
2. Liquid Crystal Layer: Sandwiched between two glass panels, this layer contains liquid crystals that can change their orientation when an electric current is applied. This change in orientation affects how light passes through the crystals.
3. Polarizing Filters: Two polarizers are placed on either side of the liquid crystal layer. The first polarizer allows light to pass through, while the second polarizer is oriented perpendicular to the first and blocks light unless it has been rotated by the liquid crystals.
4. Color Filters: Each pixel in an LCD screen is divided into three sub-pixels (red, green, and blue). By controlling the intensity of light passing through each sub-pixel, a full spectrum of colors can be produced.
When an electric field is applied to the liquid crystals, they untwist and allow light to pass through to the second polarizer, creating a visible image on the screen.
- Energy Efficiency: LCDs consume significantly less power compared to older technologies like CRTs, making them ideal for portable devices.
- Thin and Lightweight: The slim design of LCDs allows for sleek devices that are easy to transport.
- High Resolution: LCD technology supports high resolutions, providing sharp images and vibrant colors.
- No Burn-In Issues: Unlike some other display technologies, such as plasma screens, LCDs do not suffer from burn-in effects.
- Versatility: LCDs can be used in a variety of applications, from small handheld devices to large television screens.
- Limited Viewing Angles: Some older models may have limited viewing angles, resulting in color distortion when viewed from the side.
- Response Time: While modern LCDs have improved response times, they may still lag behind technologies like OLED in fast-paced applications.
- Contrast Ratio: LCDs typically have lower contrast ratios compared to OLED displays, which can affect image quality in low-light conditions.
- Color Reproduction: Although advancements have been made, some LCDs may struggle with accurate color reproduction compared to other display types.
LCD technology is used across a wide range of applications due to its versatility:
- Consumer Electronics: Televisions, computer monitors, smartphones, tablets, and gaming consoles are among the most common applications of LCD technology.
- Digital Signage: Used in advertising displays and information kiosks, where high visibility and clarity are essential.
- Medical Equipment: Found in diagnostic devices like ultrasound machines and patient monitors, where precise imaging is crucial for patient care.
- Automotive Displays: Used in dashboard screens and infotainment systems that provide drivers with essential information while on the road.
- Industrial Applications: Employed in control panels and instrumentation displays that require reliable performance under various conditions.
The history of LCD technology dates back to the 1960s when researchers began exploring the properties of liquid crystals. Key milestones include:
- 1968: The first thin-film transistor (TFT) LCD was developed by Dr. James Fergason.
- 1970s: Advancements in materials led to better performance and image quality; this decade saw significant research into different types of liquid crystal configurations.
- 1990s: Widespread adoption of LCD technology in consumer electronics began as manufacturing processes improved. This decade marked a shift from CRT displays to flat-panel technologies due to their advantages in size and energy consumption.
- 2000s-Present: Continued advancements have led to improvements in resolution (such as Full HD and 4K), response times, color accuracy, and overall performance. Technologies such as LED backlighting have further enhanced image quality while maintaining energy efficiency.
There are several types of LCD displays based on their construction and application:
1. Twisted Nematic (TN): Commonly used in budget monitors due to their low cost and fast response times but with limited viewing angles. They are often favored by gamers for their quick refresh rates but may not provide the best color accuracy.
2. In-Plane Switching (IPS): Known for better color accuracy and wider viewing angles; ideal for professional applications such as graphic design or photography where color fidelity is paramount. IPS panels tend to be more expensive than TN panels but offer superior performance overall.
3. Vertical Alignment (VA): Offers better contrast ratios but slower response times compared to TN panels. VA panels are often used in televisions where deep blacks are desired for cinematic experiences but may not be suitable for fast-paced gaming due to their slower refresh rates.
4. Super-Twisted Nematic (STN): Used primarily in portable devices where power consumption is critical. STN displays are less common today due to advancements in TFT technology but were once widely used in calculators and early mobile phones.
5. Field Sequential Color (FSC): A technique used for monochrome displays that can produce color images by rapidly switching between color filters. This method has largely fallen out of favor with advancements in other technologies but was innovative during its time.
As technology continues to evolve, several trends are shaping the future of LCD displays:
- Higher Resolutions: With the advent of 8K resolution displays on the horizon, manufacturers are pushing for even sharper images with greater detail.
- Flexible Displays: Innovations in materials science have led to developments in flexible LCD screens that can bend without breaking, opening new possibilities for device design.
- Improved Color Accuracy: Ongoing research aims at enhancing color reproduction capabilities through better materials and manufacturing techniques.
- Integration with Other Technologies: As smart devices become more prevalent, integrating LCD technology with touch capabilities or augmented reality features is becoming increasingly common.
LCD technology has revolutionized how we interact with visual media by providing high-quality displays that are energy-efficient and versatile across various applications. Despite some limitations compared to newer technologies like OLED, its widespread use continues due to its affordability and reliability. The continuous advancements within this field promise exciting developments that will further enhance our viewing experiences across multiple platforms.
An LCD screen is made up of several layers including a backlight source, liquid crystal layer, polarizing filters, and color filters.
An LCD screen produces color by controlling the intensity of light passing through red, green, and blue sub-pixels within each pixel.
LCDs offer energy efficiency, a slim design, high resolution, no burn-in issues compared to CRT or plasma displays.
Older models may have limited viewing angles due to the way liquid crystals align within the panel, causing color distortion when viewed from off angles.
LCD screens can last over 70,000 hours depending on usage conditions and quality of components used in manufacturing.
