Laptop LCD (Liquid Crystal Display) screens are the most common type of display technology used in laptops today. Understanding how these screens work involves exploring the components, the role of liquid crystals, the backlighting system, pixel formation, and the electrical control that creates the images you see. This article will provide a detailed explanation of the inner workings of a laptop LCD display, enriched with clear descriptions and visual explanations to help you grasp the concepts fully.

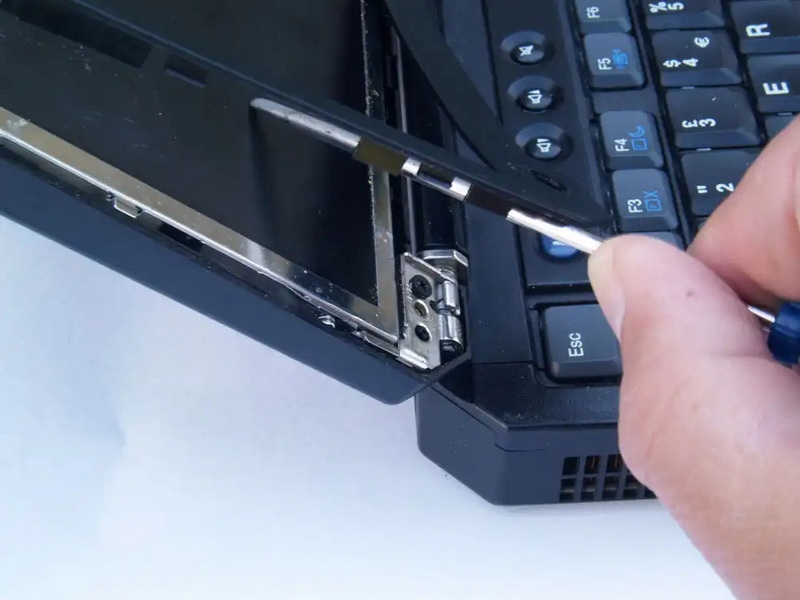

A laptop LCD screen is a complex assembly of several layers and components working together to produce vibrant images. The key components include:
- Backlight: The source of light for the display, usually made of LEDs in modern laptops.
- Polarizing Filters: Two layers of polarizing glass placed perpendicular to each other.
- Liquid Crystal Layer: A thin layer of liquid crystal molecules sandwiched between the polarizers.
- Color Filters: Red, green, and blue filters that combine to form the colors of each pixel.
- Thin-Film Transistors (TFTs): Tiny transistors that control the orientation of the liquid crystals for each pixel.
The backlight shines white light through the layers, and the liquid crystals manipulate this light to create the images on the screen.
Liquid crystals are unique materials that have properties between liquids and solid crystals. In an LCD, these crystals can be electrically controlled to change their orientation. This orientation affects how light passes through them.
- When no voltage is applied, the liquid crystals twist the light so it can pass through the second polarizing filter.
- When voltage is applied, the crystals untwist, blocking the light from passing through.
By varying the voltage, the amount of light passing through each pixel can be precisely controlled, creating different shades and colors.
This ability to control light transmission is the fundamental principle behind LCD technology. The liquid crystals' molecular alignment changes in response to electrical signals, which in turn modulate the polarization of light passing through them. This modulation allows the screen to selectively block or allow light, forming the images you see.
The two polarizing filters are placed at 90 degrees to each other. Without the liquid crystals, light polarized by the first filter would be blocked by the second. The liquid crystals rotate the plane of polarization of the light depending on their orientation, controlled by the electrical voltage.
Each pixel on the screen is composed of three subpixels, each covered by red, green, or blue color filters. By adjusting the light passing through each subpixel, millions of colors can be produced by combining different intensities of red, green, and blue light.
The color filters are crucial because the backlight emits white light, which contains all colors. By selectively filtering this white light through red, green, and blue filters, the LCD can produce the full spectrum of colors visible to the human eye. The intensity of each subpixel is controlled by the liquid crystals' orientation, which determines how much light is allowed through.
LCDs do not emit light by themselves. Instead, they rely on a backlight to illuminate the screen. The backlight is usually a white LED panel behind the liquid crystal layer.
- The light from the backlight is diffused evenly across the screen using diffusers and reflectors to ensure uniform brightness.
- This light passes through the polarizers, liquid crystals, and color filters to form the visible image.
Older LCDs used CCFL (Cold Cathode Fluorescent Lamp) backlights, but modern laptops almost exclusively use LED backlights due to their efficiency, brightness, and thinner design.
The backlight system is a critical part of the display because it directly affects brightness, color accuracy, and power consumption. LED backlights offer advantages such as longer lifespan, lower energy use, and the ability to produce slimmer laptop designs.
Each pixel consists of three subpixels (red, green, blue), controlled by thin-film transistors (TFTs) in an active matrix arrangement. These transistors switch the voltage on and off for each pixel rapidly.
- The voltage applied to the liquid crystals changes their orientation and thus the amount of light passing through each subpixel.
- By combining the light intensities of the RGB subpixels, the pixel displays a specific color.
- Millions of pixels work together to create the detailed images on your laptop screen.
The active matrix TFT technology allows for fast refresh rates and precise control, making images sharp and vibrant.
The TFTs are fabricated directly onto the glass substrate of the LCD panel. Each transistor acts as a tiny switch that controls the voltage applied to the liquid crystal of its corresponding pixel. This precise control is what enables high-resolution displays with smooth video playback and minimal motion blur.
The laptop's graphics card sends signals to the LCD controller, which activates the appropriate transistors to apply voltage to the liquid crystals in each pixel.
- The backlight shines through the liquid crystal layer.
- The liquid crystals twist or untwist to allow varying light amounts.
- Light passes through the RGB filters to produce the desired color.
- The combined light from millions of pixels creates the full image.
This process happens thousands of times per second, allowing for smooth motion and video playback.
The synchronization of the graphics card, LCD controller, and the TFT array ensures that the correct image is displayed at all times. This coordination is essential for gaming, video streaming, and everyday computing tasks that require dynamic and responsive visuals.
While the basic principles of LCD technology remain consistent, modern laptop screens often incorporate advanced features to improve image quality and user experience.
- IPS (In-Plane Switching): This technology improves viewing angles and color reproduction by aligning liquid crystals parallel to the glass substrates.
- High Refresh Rate Displays: Some laptops feature screens with refresh rates higher than the standard 60Hz, providing smoother motion for gaming and video.
- HDR (High Dynamic Range): HDR-capable LCDs can display a wider range of brightness and colors, resulting in more vivid and lifelike images.
- Touchscreen Integration: Many laptops now combine LCD technology with touch-sensitive layers to enable direct interaction with the display.
These enhancements rely on the fundamental LCD technology but push the boundaries of what laptop screens can deliver in terms of clarity, color accuracy, and responsiveness.
Laptop LCD screens can encounter various issues such as:
- Dim or flickering display due to backlight or inverter failure.
- Dead or stuck pixels appearing as bright or black dots.
- Horizontal or vertical lines caused by damaged cables or connectors.
- Cracked or broken LCD panels from physical damage.
- Color distortions or blurry images due to faulty liquid crystals or electronics.
Most problems can be diagnosed and sometimes repaired by checking connections, updating drivers, or replacing the screen if necessary.
Understanding the internal workings of an LCD can help users troubleshoot these problems more effectively. For example, flickering often points to backlight or inverter issues, while color problems may indicate liquid crystal or cable faults.
Laptop LCD displays rely on the precise control of liquid crystals to manipulate light from a backlight source, passing it through polarizing filters and color filters to create the images we see. The combination of active matrix TFT technology and RGB subpixels allows for sharp, colorful, and vibrant displays. Understanding the components and operation of LCDs can help users appreciate the technology and troubleshoot common issues effectively.
Modern advancements like IPS panels, high refresh rates, and HDR support continue to enhance the visual experience, making laptop LCDs versatile and powerful tools for work, entertainment, and creativity.
Liquid crystals change their orientation when voltage is applied, controlling the amount of light passing through polarized filters. This modulation of light creates different colors and shades on the screen.
The backlight provides the necessary light source that passes through the liquid crystal layer and color filters to produce visible images since liquid crystals do not emit light themselves.
No, replacement screens must match the original in size, resolution, connector type, and backlight technology (LED or CCFL) to ensure compatibility and proper function.
Common causes include backlight failure, inverter issues, loose cables, or software/driver problems affecting brightness control.
Active matrix TFT LCDs have a transistor at each pixel for precise voltage control and faster refresh rates, resulting in better image quality compared to passive matrix LCDs that use a simpler grid with slower response times.
