LCD (Liquid Crystal Display) modules are widely used in electronics projects to display information such as sensor readings, status messages, menus, and graphics. Learning how to write code for LCD displays is an essential skill for hobbyists, students, and professionals working with microcontrollers like Arduino, Raspberry Pi, and others. This article provides a detailed, step-by-step guide on how to write code for both character and graphic LCDs, covering hardware setup, wiring, programming basics, advanced features, and troubleshooting tips.
LCDs come in two primary varieties:
- Character LCDs: These display fixed characters arranged in rows and columns, such as 16 columns by 2 rows (16x2) or 20x4. They are ideal for displaying text messages and simple data.
- Graphic LCDs: These allow pixel-level control, enabling the display of images, custom fonts, and complex graphics. Examples include 128x64 or 144x32 pixel LCDs.
Character LCDs are simpler to use and program, making them perfect for beginners. Graphic LCDs offer more flexibility but require more advanced programming techniques.

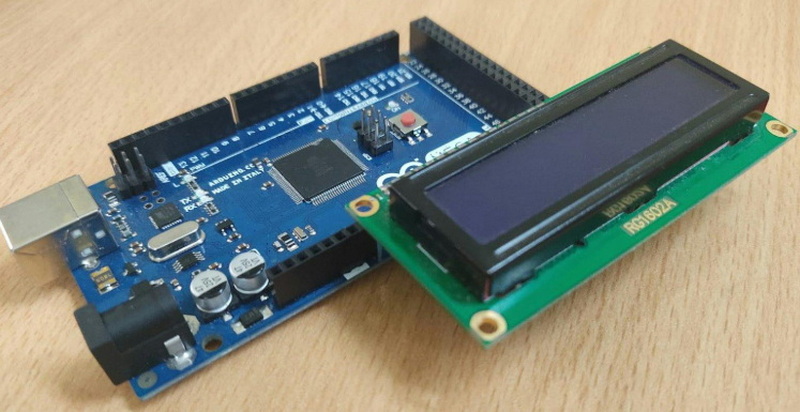

A typical 16x2 character LCD module has 16 pins. The essential pins for Arduino interfacing are:
- RS (Register Select): Selects between command register (instructions) and data register (characters).
- Enable (EN): Enables writing data to the LCD.
- Data pins (D4-D7): Four data lines used in 4-bit mode for communication.
- VSS, VDD, V0: Ground, power supply (+5V), and contrast adjustment pin.
- Backlight pins (A and K): LED backlight positive and negative terminals.
A potentiometer connected to the contrast pin (V0) allows adjusting the display contrast for optimal visibility.
Example wiring summary:
LCD Pin | Function | Arduino Pin |
---|---|---|
RS | Register Select | Digital Pin 12 |
EN | Enable | Digital Pin 11 |
D4 | Data 4 | Digital Pin 5 |
D5 | Data 5 | Digital Pin 4 |
D6 | Data 6 | Digital Pin 3 |
D7 | Data 7 | Digital Pin 2 |
VSS | Ground | GND |
VDD | +5V Power | 5V |
V0 | Contrast control | Middle pin of potentiometer, other ends to 5V and GND |
A | Backlight + | 5V via current limiting resistor |
K | Backlight - | GND |
Graphic LCDs have more pins and may communicate via parallel, SPI, or I2C interfaces. Wiring depends on the controller chip (e.g., ST7920, KS0108). It's essential to consult the datasheet for correct pin assignments. Graphic LCDs often require more microcontroller pins and more complex initialization sequences.
Arduino's built-in LiquidCrystal library provides an easy interface to character LCDs.
Specify the Arduino pins connected to RS, EN, D4, D5, D6, and D7.
In the `setup()` function, initialize the LCD size (columns and rows).
In the `loop()` function, you can update the display, clear it, or move the cursor.
You can control the cursor visibility and behavior:
- `lcd.cursor()` shows the cursor.
- `lcd.noCursor()` hides the cursor.
- `lcd.blink()` enables blinking cursor.
- `lcd.noBlink()` disables blinking.
These functions help in creating interactive menus or input fields.
For messages longer than the screen width, scrolling text improves readability:
cpp:
lcd.print("Scrolling Text Example");
delay(1000);
for (int i = 0; i < 16; i++) {
lcd.scrollDisplayLeft();
delay(300);
}
Scrolling can be used to display notifications or continuously update data.
You can create up to 8 custom characters (each 5x8 pixels) by defining byte arrays and loading them into the LCD's CGRAM (Character Generator RAM).
Programming graphic LCDs is more complex due to pixel-level control.
1. Create or edit an image in a graphics editor (e.g., GIMP or Photoshop).
2. Convert the image to a monochrome bitmap and then to a byte array using conversion tools.
3. Send commands and data to the LCD controller to initialize and update the display.
4. Use functions to draw pixels, lines, rectangles, or display the image buffer.
Most graphic LCDs require specific libraries tailored to their controllers. For example, the U8g2 library supports many graphic LCDs and OLEDs with Arduino.
- Initialize the display with the library's `begin()` function.
- Clear the screen buffer.
- Draw pixels or graphics using provided functions.
- Send the buffer to the display with `display()` or similar commands.
Graphic LCDs excel in applications requiring logos, graphs, or complex menus.
When working with LCDs, you might encounter some common problems:
- No text on LCD: Check wiring, especially the contrast potentiometer. If the contrast is too low or high, the screen will appear blank.
- Garbled or random characters: Verify that the data pins are connected correctly and that the code matches the wiring. Make sure the LCD is initialized properly.
- Backlight not working: Confirm the backlight pins are connected correctly, and that the current-limiting resistor is in place.
- Text not fitting or cutoff: Use scrolling or split the text across multiple lines.
- I2C LCD not detected: Use an I2C scanner sketch to find the correct address. Ensure pull-up resistors are present on SDA and SCL lines.
- Always clear the display before writing new content to avoid overlapping text.
- Use `lcd.setCursor(col, row)` to position text precisely.
- Buffer text in variables and update only when needed to reduce flicker.
- Use delays judiciously to avoid freezing the microcontroller or making the interface unresponsive.
- For animations or dynamic data, update only the parts of the screen that change.
- Consider using I2C LCD modules with built-in controllers to reduce wiring complexity.
LCDs become more powerful when combined with sensors and user inputs:
- Display temperature or humidity readings from sensors like DHT11 or DS18B20.
- Show real-time clock data using RTC modules.
- Create interactive menus navigated by buttons or rotary encoders.
- Provide status updates for motors, relays, or other actuators.
- Character LCDs are easier to use and program with Arduino's LiquidCrystal library.
- Proper wiring and contrast adjustment are critical for a visible display.
- Advanced features include cursor control, scrolling text, and custom characters.
- Graphic LCDs offer pixel-level control but require more complex code and libraries.
- Troubleshooting common problems involves checking wiring, power, and code correctness.
- Combining LCDs with sensors and inputs creates interactive and useful projects.
Writing code for LCD displays is a rewarding skill that opens up many possibilities in embedded systems and electronics projects. Starting with simple text displays on character LCDs, you can gradually explore advanced features like custom characters and scrolling text. For more sophisticated applications, graphic LCDs allow detailed images and graphics but require more complex programming.
With proper hardware setup, understanding of the LCD controller, and use of libraries, you can create engaging user interfaces that enhance your projects. Whether you want to display sensor data, create menus, or show animations, mastering LCD coding is an invaluable step in your maker journey.
Connect the LCD's RS, EN, and data pins (D4-D7) to Arduino digital pins, power the LCD with 5V and ground, and use a potentiometer on the contrast pin. Use the LiquidCrystal library to control it.
Yes, the Arduino LiquidCrystal library simplifies communication with character LCDs. For graphic LCDs, you may need specific libraries depending on the controller.
Define an 8-byte array representing the pixel pattern and use `lcd.createChar()` to store it in the LCD's memory, then display it with `lcd.write()`.
Use `lcd.scrollDisplayLeft()` or `lcd.scrollDisplayRight()` in a loop with delays to move the text across the screen.
Check wiring, ensure the contrast potentiometer is adjusted, confirm the correct pins are specified in your code, and verify the LCD is powered properly.
