Old LCD displays, whether from laptops, monitors, or TVs, often end up discarded despite their potential for reuse. With some technical know-how and creativity, you can repurpose these screens for various practical and fun projects. This article will guide you through the process of reusing old LCD displays, including technical steps, creative ideas, and safety tips, supported by detailed explanations and practical advice to help you along the way.
LCD (Liquid Crystal Display) screens are widely used in electronic devices due to their thin profile and energy efficiency. When an LCD device stops working, the screen itself might still be functional or salvageable for other uses. Key components of an LCD display include:
- The LCD panel: This is the core component responsible for displaying images. It consists of liquid crystals sandwiched between layers of glass and polarizers.
- The backlight: Provides the necessary illumination for the LCD panel. Older models often use CCFL (Cold Cathode Fluorescent Lamp) backlights, while newer ones use LED backlights.
- The driver/controller board: This interprets input signals (such as HDMI or VGA) and controls the LCD panel to display images.
Understanding these parts helps in deciding how to reuse the screen effectively and safely.
The first step is to carefully dismantle the device to extract the LCD panel. For laptops, this involves removing the bezel (the plastic frame around the screen) and disconnecting the LVDS cable and inverter cables safely. The LVDS cable transmits video data from the motherboard to the LCD panel, while the inverter powers the backlight in CCFL screens.
Dismantling requires patience and proper tools, such as small screwdrivers and plastic pry tools, to avoid damage. It is important to keep track of screws and connectors for reassembly or future use.
Once the LCD panel is removed, look for the model number printed on the back of the panel. This number is essential for finding the right controller board and cables. You can search online databases or specialized websites to get detailed specifications such as:
- Resolution: For example, 1920x1080 (Full HD) or 1366x768 (HD).
- Signal interface type: LVDS (Low Voltage Differential Signaling) or eDP (Embedded DisplayPort).
- Backlight type and voltage: LED backlight usually requires 12V DC, whereas CCFL backlights need an inverter to supply high voltage AC.
Having accurate specifications ensures that you purchase compatible components, reducing the risk of incompatibility and damage.
Old LCD panels require a controller board to convert common video inputs (HDMI, VGA, DVI) into signals the LCD understands. There are two main options:
- Model-specific controller boards: These are designed for a particular LCD panel model, making them easier to use but sometimes more expensive.
- Universal controller boards: These support multiple panels but require more technical knowledge to configure jumpers and firmware settings.
Controller boards usually come with connectors for the LVDS cable and backlight power. Some also include remote controls and on-screen menus to adjust brightness, contrast, and input sources.
Power requirements vary depending on the screen and backlight type:
- The controller board typically needs 12V DC power with current depending on screen size (e.g., 1-4A).
- The backlight may require a separate voltage (e.g., 12V for LED backlight, higher voltage for CCFL with inverter).
Using a regulated power supply or repurposed power adapters from old devices is common. It is important to verify voltage and current requirements to avoid damaging the screen or controller board.
After connecting the LCD panel to the controller board and powering it up, you should see the display turn on. If the screen remains blank or flickers, check all connections and verify that the power supply is adequate. Adjust jumpers or firmware settings on the controller board to match the resolution and backlight voltage.
Testing with different input sources (HDMI, VGA) helps ensure the controller board is functioning correctly. Once the display works, you can proceed to build a protective enclosure or mount the screen for your project.
Repurposing old LCD displays opens up a world of creative possibilities. Here are some inspiring ideas:
Transform your old laptop screen into a portable monitor by mounting it in a custom case made from materials like acrylic or PVC pipe. Add a controller board with HDMI input to connect it to laptops, Raspberry Pi, or gaming consoles. Portable monitors are handy for multitasking, presentations, or gaming on the go.
Use an old LCD screen with a Raspberry Pi to create a smart home dashboard displaying weather, news, calendar events, and security camera feeds. This setup can be wall-mounted in your kitchen or living room for easy access to important information.
Pair a CRT or LCD monitor with a Raspberry Pi or other stick PC to build a retro gaming console. Older LCDs can be adapted to accept analog inputs for classic consoles, or used with HDMI adapters to play games from emulators.
Disassemble an LCD to use its backlight as a pure white light source for photography or videography. This involves modifying the power supply and bypassing the LCD data board. LED backlights are especially efficient and provide even lighting, ideal for close-up shots or product photography.
- Use the bezel as a photo frame or planter base.
- Create a see-through display by removing the anti-glare layer and adding backlighting.
- Build a smart mirror by combining the LCD with a two-way mirror and Raspberry Pi, displaying time, weather, and notifications while functioning as a regular mirror.
Working with old LCD displays requires caution to avoid injury or damage:
- Always disconnect power before disassembling. Never work on a powered device.
- Be cautious of high voltage components, especially in CCFL backlights. These can store dangerous voltages even when unplugged.
- Use proper tools to avoid damaging delicate connectors. Plastic pry tools and anti-static wrist straps are recommended.
- Handle glass panels carefully to avoid injury. Broken glass can cause cuts.
- Avoid touching circuit boards with bare hands. Oils and static electricity can damage components.
Following these safety guidelines ensures a smooth and safe experience while working on your projects.

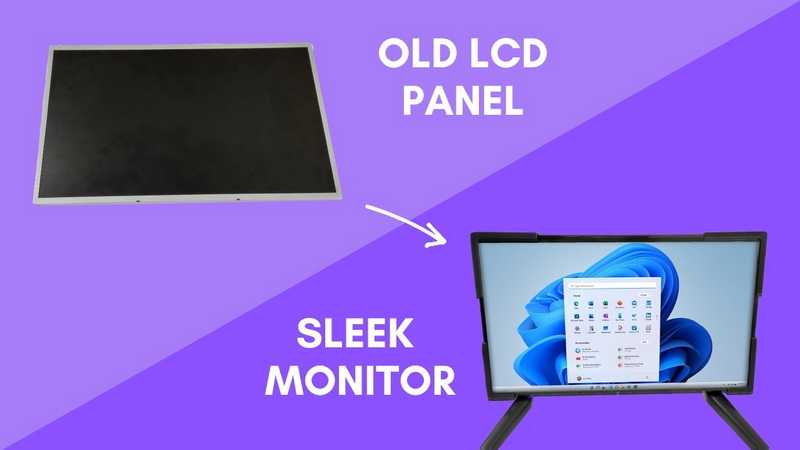

To illustrate the process, here is a detailed example of converting an old laptop LCD into a standalone monitor:
1. Remove the LCD panel from the laptop carefully by unscrewing the bezel and disconnecting cables.
2. Identify the model number on the back of the panel and research its specifications.
3. Order a compatible LVDS controller board with HDMI/VGA inputs from an electronics supplier.
4. Connect the LVDS cable from the panel to the controller board, ensuring secure connections.
5. Attach the power supply to the controller board and backlight inverter if needed, verifying voltage and current ratings.
6. Power on the setup and adjust settings to match the panel's resolution using the controller board's on-screen menu.
7. Build a case using acrylic, wood, or repurposed materials to protect and mount the screen.
8. Enjoy your new monitor for gaming, secondary display, or portable use.
This project not only saves money but also reduces electronic waste by giving new life to an old screen.
When working with old LCD displays, you might encounter some common problems:
- No display or black screen: Check all cable connections, ensure the controller board is compatible with your panel, and verify power supply voltage and current.
- Flickering or unstable image: This can be caused by insufficient power or loose connections. Try a different power supply or re-seat cables.
- Backlight not turning on: For CCFL backlights, the inverter might be faulty or disconnected. For LED backlights, check the power supply and LED driver connections.
- Incorrect resolution or distorted image: Adjust the controller board settings or update firmware if possible to match the panel's native resolution.
- Screen shows lines or artifacts: This could indicate a damaged LVDS cable or panel. Inspect cables for damage and replace if necessary.
Patience and careful checking usually resolve these issues.
Reusing old LCD displays is a rewarding way to reduce electronic waste, save money, and create useful or artistic projects. Whether you want a portable monitor, a smart dashboard, or a unique light panel, old LCD screens offer versatile possibilities. With some technical knowledge, creativity, and safety precautions, you can breathe new life into these screens and contribute to sustainability. By following the steps outlined in this guide, you can confidently embark on your own LCD repurposing projects and enjoy the satisfaction of turning old technology into something new and valuable.
Check the model number on the back of the LCD panel and search online databases or marketplaces for a matching LVDS controller board. Make sure the board supports your screen's resolution, signal interface, and backlight type. Contact sellers for advice if unsure.
It's possible if the power source meets the voltage and current requirements for both devices. Most LVDS controller boards require 12V DC with sufficient amperage, while Raspberry Pi needs 5V. Using a power supply with multiple outputs or a DC-DC converter can help manage this safely.
If the panel is cracked, the display functionality might be lost, but you can still salvage the backlight for use as a light panel or decorative lighting. Alternatively, repurpose the bezel or other parts for creative projects such as photo frames or planters.
Yes. Backlights, especially CCFL types, involve high voltages and can be dangerous. Always disconnect power before working on screens, avoid touching capacitors, and handle glass carefully. Use proper tools and take precautions to avoid electric shock or injury.
Absolutely. Many retro gamers use old LCD or CRT monitors connected to Raspberry Pi or classic consoles. Some projects add analog video inputs to old LCDs to support vintage gaming systems, while others use HDMI adapters for modern compatibility.
