Using an LCD display module is a fundamental skill in electronics and microcontroller projects, especially with platforms like Arduino and ESP32. This comprehensive guide explains how to use an LCD display module, covering the basics, wiring, programming, and troubleshooting, along with detailed explanations and practical tips to enhance your understanding.
An LCD (Liquid Crystal Display) module is an electronic display device that uses liquid crystals to produce visible images or characters. Commonly used in devices like calculators, clocks, and embedded systems, LCD modules are popular for displaying text and simple graphics. The most common type used in DIY electronics is the 16x2 LCD, which can display 16 characters per line across 2 lines.
LCDs work by controlling the orientation of liquid crystal molecules using an electric field. This affects the polarization of light passing through polarizing filters, allowing the display to show characters or images. The display itself does not emit light, so it requires a backlight to be visible in low-light conditions.
The liquid crystals align to block or allow light to pass through when voltage is applied, creating the visible patterns that form letters or symbols. This technology is energy-efficient and provides a clear, readable display for many applications.
LCD modules come in various types, each suited for different applications:
- Character LCDs: These display fixed characters arranged in a grid, such as 16x2 or 20x4 characters. They are ideal for showing alphanumeric information like sensor readings or menu options.

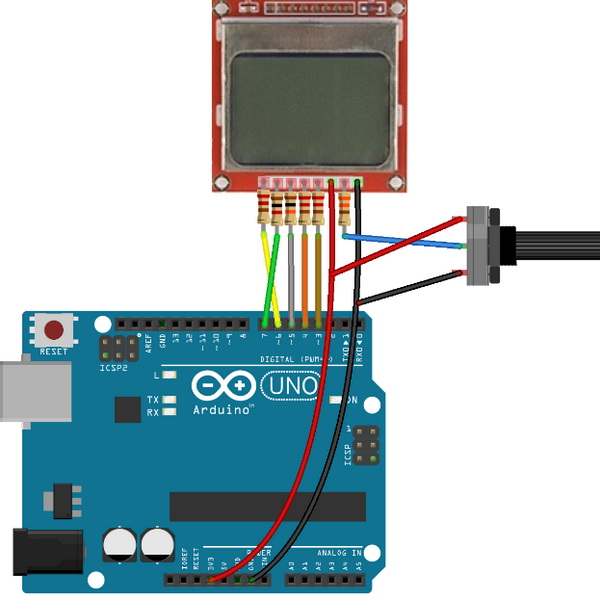

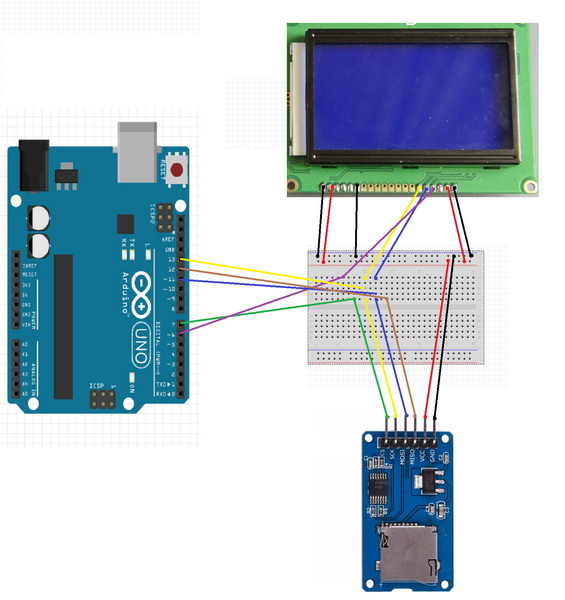

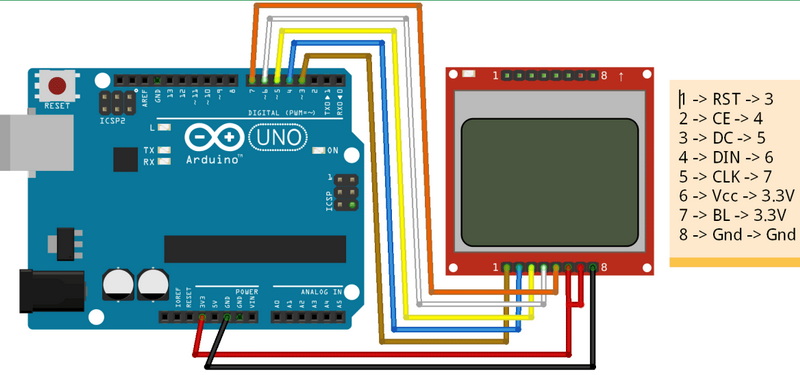

- Graphic LCDs: Capable of displaying images, graphs, and custom shapes, these are more versatile but require more complex programming.
- I2C LCD Modules: These use the I2C communication protocol to reduce wiring complexity, requiring only two data lines plus power and ground.
- Serial LCD Modules: These use serial communication protocols like UART, simplifying wiring and allowing easier integration with microcontrollers.
Each type has its advantages, but the 16x2 character LCD remains the most popular for beginners due to its simplicity and availability.
Understanding the pinout and function of each pin is crucial for proper wiring and operation. The typical 16x2 LCD module has 16 pins:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | Ground (GND) | Connects to 0V |
| 2 | VCC | Power supply (usually 5V) |
| 3 | VO (Contrast) | Contrast adjustment via potentiometer |
| 4 | RS (Register Select) | Selects command or data register |
| 5 | RW (Read/Write) | Selects read or write mode (usually grounded for write) |
| 6 | Enable (EN) | Enables writing to registers |
| 7-14 | D0-D7 | Data pins for 8-bit communication |
| 15 | LED+ (Backlight +) | Power for backlight LED |
| 16 | LED- (Backlight -) | Ground for backlight LED |
Most users operate the LCD in 4-bit mode, using only pins D4 to D7 for data to save microcontroller pins. This mode reduces the number of required data lines from eight to four, simplifying wiring without sacrificing functionality.
- Arduino Uno or compatible board
- 16x2 LCD module
- 10k potentiometer (for contrast adjustment)
- Jumper wires
- Breadboard (optional)
1. Connect GND on the LCD to Arduino GND.
2. Connect VCC on the LCD to Arduino 5V.
3. Connect the middle pin of the potentiometer to the VO pin on the LCD; connect the other two potentiometer pins to 5V and GND to adjust contrast.
4. Connect RS to Arduino digital pin 12.
5. Connect RW to GND (write mode).
6. Connect Enable (EN) to Arduino digital pin 11.
7. Connect D4, D5, D6, D7 to Arduino digital pins 5, 4, 3, and 2 respectively.
8. Connect LED+ to 5V and LED- to GND for backlight.
The wiring can be done on a breadboard or directly with jumper wires. Proper and secure connections are essential to avoid intermittent issues.
- Use a breadboard for prototyping to avoid soldering.
- Keep wires short to reduce noise and interference.
- Double-check connections against the pinout before powering the circuit.
- Use a multimeter to verify voltage levels if the display does not turn on.
Arduino provides a built-in library called `LiquidCrystal` that simplifies controlling the LCD.
To get started, initialize the LCD and display a simple message:
- Initialize the LCD with the pins connected.
- Set the size of the display (columns and rows).
- Print text on the screen.
- Update the display dynamically with data such as elapsed time.
- `lcd.begin(cols, rows)`: Initialize the LCD size.
- `lcd.print(text)`: Print text on the current cursor position.
- `lcd.setCursor(col, row)`: Move cursor to specified position.
- `lcd.clear()`: Clear the display.
- `lcd.blink()`: Enable blinking cursor.
- `lcd.noBlink()`: Disable blinking cursor.
- `lcd.cursor()`: Display underscore cursor.
- `lcd.noCursor()`: Hide cursor.
The example above uses 4-bit mode, which requires fewer pins and is standard for most Arduino LCD projects. This mode sends data in two 4-bit chunks, reducing the number of data pins needed.
You can display sensor readings or time by updating the LCD content inside the `loop()` function. For example, showing the number of seconds since the program started helps create interactive and informative displays.
The LCD allows you to create up to eight custom characters. These can be useful for symbols, icons, or graphics not included in the standard character set. Use the `createChar()` function to define pixel patterns for each custom character.
I2C LCD modules simplify wiring by using only two data pins (SDA and SCL) for communication, plus power and ground. This reduces the number of Arduino pins required and makes wiring cleaner.
- Connect VCC to 5V.
- Connect GND to ground.
- Connect SDA to Arduino SDA (A4 on Uno).
- Connect SCL to Arduino SCL (A5 on Uno).
You need the `LiquidCrystal_I2C` library, which provides similar functions to the standard `LiquidCrystal` library but communicates over I2C.
- Reduced wiring complexity.
- Easier to expand with multiple devices on the same bus.
- Saves Arduino pins for other uses.
- Slightly more complex initialization.
- Some I2C modules may have different addresses, requiring scanning or configuration.
Many LCD modules allow controlling the backlight programmatically. Turning off the backlight can save power in battery-operated projects.
You can shift the entire display left or right to create scrolling text effects. This is useful for displaying long messages on small screens.
The cursor can be shown or hidden, and set to blink or stay steady. This helps users identify where the next character will appear.
With I2C or serial LCDs, you can connect multiple displays to the same microcontroller by assigning different addresses or using separate serial ports.
For enthusiasts interested in the technology behind LCDs, building a basic LCD screen involves assembling glass substrates coated with transparent electrodes, polarizing filters, and injecting liquid crystal material between them. This process requires precise alignment, sealing, and adding a backlight.
While this is fascinating from a scientific and manufacturing perspective, it is generally impractical for DIY projects due to the complexity and precision required. Instead, purchasing ready-made LCD modules is recommended.
When working with LCD modules, you may encounter some common problems:
- Blank Screen: Check power supply voltage and contrast adjustment. If the contrast is set incorrectly, the screen may appear blank.
- No Characters Displayed: Verify wiring, especially RS, EN, and data pins. Ensure the RW pin is grounded for write mode.
- Garbled Characters: Check baud rate (for serial LCDs) or wiring. Ensure the code matches the wiring configuration.
- Flickering Display: Ensure stable power supply; add capacitors if needed. Loose wires can cause flickering.
- Content Not Updating: Check code logic and reset the module if necessary. Make sure `lcd.clear()` is used appropriately.
- Special Characters Not Showing: Use correct encoding or library functions. Custom characters require proper definition.
- Use a multimeter to check voltage at LCD pins.
- Test the LCD with example sketches to isolate hardware or software issues.
- Swap cables and components to rule out faulty parts.
- Consult datasheets for specific LCD module details.
LCD display modules are widely used in:
- Home Automation: Displaying temperature, humidity, or system status.
- Robotics: Showing sensor data or system messages.
- Wearable Devices: Providing user feedback.
- Industrial Controls: Displaying machine parameters.
- Educational Projects: Teaching programming and electronics concepts.
Integrating an LCD can greatly enhance the usability and interactivity of your projects.
Using an LCD display module is a versatile and essential skill for electronics enthusiasts and developers. Whether you use a traditional 16x2 parallel LCD or an I2C variant, understanding the pinout, wiring, and programming is crucial. Arduino's LiquidCrystal libraries make it easy to control these displays, allowing you to show messages, sensor data, and interactive feedback.
With proper wiring, coding, and troubleshooting, you can integrate LCDs into a wide range of projects, enhancing their usability and user interface. Experimenting with custom characters, display shifting, and backlight control opens up even more possibilities for creative applications.
Mastering LCD modules not only improves your electronics skills but also adds a professional touch to your DIY projects, making them more user-friendly and visually appealing.
Connect the LCD pins RS, EN, D4, D5, D6, and D7 to Arduino digital pins (e.g., 12, 11, 5, 4, 3, 2). Ground RW pin. Use a potentiometer to adjust contrast on VO pin. Use the LiquidCrystal library to program.
The potentiometer connected to the VO pin adjusts the contrast of the LCD screen, making characters more or less visible.
Yes, but visibility will be poor in low light. The backlight (LED) improves readability by illuminating the display.
Use the `createChar()` function in the LiquidCrystal library to define custom 5x8 pixel characters and then display them.
Check power connections, contrast adjustment, wiring correctness, and ensure your code initializes the LCD correctly with `lcd.begin()`.
