Liquid Crystal Displays (LCDs) are essential components for displaying textual information in various electronic projects. Interfacing an LCD with an Arduino Nano is a common practice, enabling users to visualize data, sensor readings, or custom messages. This article provides a comprehensive guide on how to connect and program an LCD with an Arduino Nano, covering both direct connection methods and the use of I2C adapters for simplified wiring.
To get started, you will need the following components:
- Arduino Nano or Nano compatible board
- LCD module (16x2 or 20x4)
- Solderless breadboard
- Jumper wires
- 10kΩ potentiometer (for adjusting contrast, except with I2C)
- I2C adapter (optional, for simplified wiring)
- 220-ohm resistor
Character LCDs are commonly used to display alphanumeric characters and symbols. They come in various sizes, such as 16x2 (16 columns and 2 rows) and 20x4 (20 columns and 4 rows). These LCDs use a parallel interface, requiring multiple data and control pins for operation. They are widely available, cost-effective, and easy to interface with microcontrollers like the Arduino Nano.
I2C LCDs incorporate an I2C adapter that reduces the number of required pins, simplifying the wiring process. Instead of using multiple data pins, I2C LCDs communicate via the I2C protocol, using only two data pins (SDA and SCL) along with power and ground. This method is especially useful when you want to save Arduino pins for other sensors or modules.

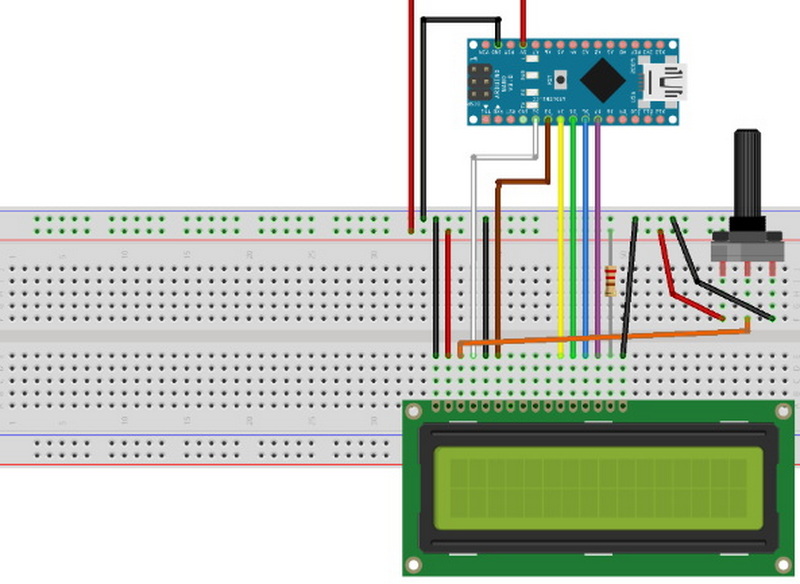

Connecting the LCD directly to the Arduino Nano involves multiple wires for data and control signals. The RS (Register Select), Enable, and data pins D4 to D7 are connected to specific digital pins on the Arduino Nano. The potentiometer connected to the VO pin on the LCD allows you to adjust the display contrast for optimal readability. Additionally, a resistor is used to protect the LCD backlight from excessive current.
Programming the LCD requires including the LiquidCrystal library, which provides functions to control the display easily. You initialize the LCD with the pins connected, set the display size, and then print messages or variables to the screen. The ability to set the cursor position allows you to update specific parts of the display dynamically, such as showing sensor readings or counters.
The direct connection method offers a straightforward way to learn how LCDs work and gives you full control over the pins and signals. However, it requires more wiring, which can become cumbersome and prone to connection errors, especially in complex projects. Also, it uses more Arduino pins, limiting the number of other peripherals you can connect.
Using an I2C adapter simplifies the wiring process significantly. The LCD module with the I2C interface only needs four connections: power (VCC), ground (GND), and two data lines (SDA and SCL). On the Arduino Nano, SDA and SCL are mapped to analog pins A4 and A5, respectively. This minimal wiring reduces clutter and makes your project more compact and manageable.
The LiquidCrystal_I2C library is used to control I2C LCDs. It abstracts the I2C communication details, allowing you to use simple commands to initialize the display, turn on the backlight, and print text. This library also supports setting the cursor position and clearing the display. The I2C address of the LCD module can vary, so you might need to scan for the correct address before programming.
The I2C interface frees up digital pins on the Arduino Nano, which is especially valuable in projects with multiple sensors or modules. It reduces wiring complexity and improves reliability by minimizing the number of connections. This makes the I2C LCD a popular choice for both beginners and advanced users.
If your LCD does not display any characters, the first step is to double-check all wiring connections. Loose or incorrect wiring is the most common cause of display failure. For direct connections, adjusting the potentiometer can help if the screen is blank due to contrast issues. For I2C LCDs, verifying the correct I2C address using a scanner sketch is essential. Also, ensure the backlight is powered; otherwise, the display might appear off even if it is working.
If the LCD shows strange or garbled characters, it may be due to incorrect initialization or incompatible libraries. Make sure you are using the correct LCD dimensions in your code and that the library matches your hardware type. Sometimes, power supply issues or interference can cause display glitches, so ensure your Arduino and LCD have stable power.
Flickering can occur if the power supply is insufficient or if there is noise on the data lines. Using a dedicated power source or adding decoupling capacitors can stabilize the display. Also, ensure that your code does not repeatedly clear and rewrite the entire display unnecessarily, as this can cause flickering.
Many LCD modules support custom characters, allowing you to create icons or symbols beyond the standard ASCII set. You can define up to eight custom characters by specifying their pixel patterns. This feature is useful for creating graphical elements like battery indicators, arrows, or smiley faces, enhancing the user interface of your project.
When working on battery-powered projects, managing the LCD's power consumption is crucial. You can turn off the backlight when it is not needed or use commands to put the LCD into sleep mode. Choosing an LCD with a LED backlight that supports dimming can also help conserve energy.
If you need to display more information, consider using larger LCDs such as 20x4 or graphical LCDs. While graphical LCDs require more complex programming, they offer the ability to display images, charts, and more detailed interfaces. You can also chain multiple LCDs or combine LCDs with other displays like OLEDs for richer user experiences.
The Arduino Nano's compact size and multiple I/O pins make it ideal for integrating the LCD with various sensors and modules. For example, you can display real-time sensor data such as temperature, humidity, distance, or light intensity. Combining the LCD with input devices like buttons, rotary encoders, or touch sensors allows you to create interactive menus and control systems.
For smoother performance, avoid updating the entire LCD screen too frequently. Instead, update only the parts of the display that change, such as numeric values or status indicators. This reduces flicker and improves readability. Also, structuring your code with functions dedicated to display updates can make your program more organized and easier to maintain.
- Temperature and Humidity Monitor: Use a DHT11 or DHT22 sensor to read environmental data and display it on the LCD. Add thresholds to trigger alerts or change display colors if supported.
- Digital Clock: Interface a real-time clock module like DS1307 or DS3231 and display the current time and date on the LCD. Include features like alarms or timers.
- Menu System: Create an interactive menu using buttons or rotary encoders to navigate options displayed on the LCD. This can be used for settings adjustment or device control.
- Distance Measurement Display: Connect an ultrasonic sensor to measure distance and show the readings on the LCD in real time.
- Game or Animation: Program simple animations or games such as a scrolling text banner or a basic snake game using custom characters on the LCD.
Interfacing an Arduino Nano with an LCD display is a straightforward and rewarding project that significantly enhances the interactivity and usability of your electronics. Whether you use the traditional parallel connection or the more streamlined I2C interface, understanding the wiring, programming, and troubleshooting steps is key to success. By exploring advanced features like custom characters and integrating with various sensors, you can develop sophisticated projects that communicate effectively with users. With practice and creativity, the Arduino Nano and LCD combination opens up endless possibilities for innovative and functional designs.
The I2C address can vary depending on the manufacturer and model of your LCD module. Common addresses include 0x27 and 0x3F. If you are unsure, you can use an I2C scanner sketch to detect the address. This sketch scans all possible addresses and reports the ones in use, allowing you to identify your LCD's address easily.
This issue is often caused by incorrect wiring or insufficient power. Check all connections carefully, especially the power, ground, and data pins. For direct connections, adjust the potentiometer to set the correct contrast. For I2C LCDs, verify the I2C address and ensure the backlight is connected and powered. Also, confirm that the correct libraries are included in your code.
In the Arduino IDE, go to Sketch > Include Library > Manage Libraries. Search for “LiquidCrystal_I2C” and install the library by Frank de Brabander or a similar trusted version. Alternatively, you can download the library as a ZIP file and add it via Sketch > Include Library > Add .ZIP Library.
Yes, a 20x4 LCD can be used with the Arduino Nano. The wiring is similar to a 16x2 LCD, but you need to initialize the LCD with the correct dimensions in your code. For example, use `lcd.begin(20, 4)` to set up the display properly.
I2C LCDs require fewer pins (only two data lines plus power and ground), which simplifies wiring and frees up Arduino pins for other uses. This makes your project cleaner and more manageable, especially when multiple sensors or modules are involved. Additionally, I2C communication can be more reliable over longer distances compared to parallel wiring.
