Views: 222 Author: Tina Publish Time: 2025-01-13 Origin: Site
Content Menu
● Understanding the Basics of LCD Displays
● Installing the LiquidCrystal Library
● Common Functions of LiquidCrystal Library
● Advanced Usage: Displaying Variables and Sensor Data
>> Examples of Projects Using LCD Displays:
● Troubleshooting Common Issues
● Expanding Your Knowledge with Advanced Features
● Integrating Other Components with Your LCD
● Frequently Asked Questions (FAQ)
>> 1. What type of LCD should I use with Arduino?
>> 2. Can I use an I2C interface with my LCD?
>> 3. How do I adjust brightness on my LCD?
>> 4. Can I display graphics on an LCD?
>> 5. What if my text doesn't display correctly?
Using an LCD (Liquid Crystal Display) with an Arduino is a popular project among electronics enthusiasts. This guide will walk you through the entire process, from understanding the components to writing the code and troubleshooting common issues. By the end, you will have a solid grasp of how to integrate an LCD into your Arduino projects.

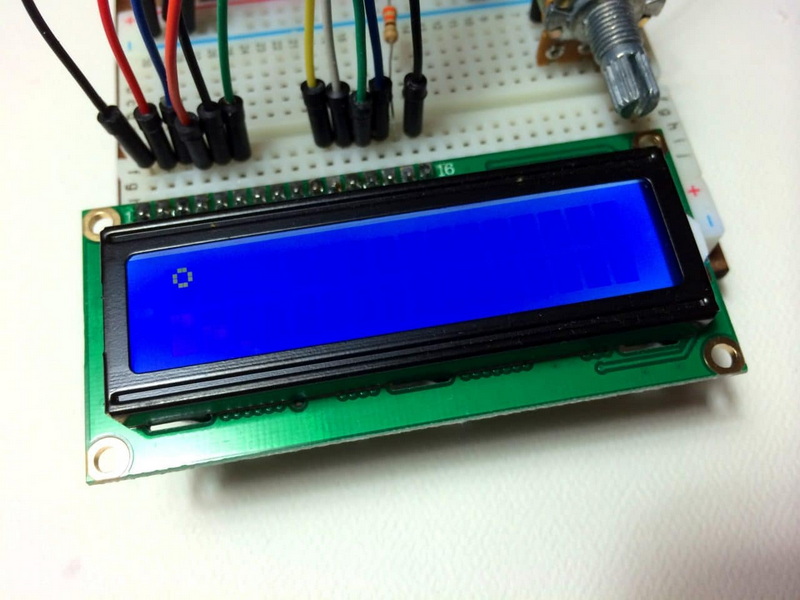

LCDs are widely used in various electronic devices due to their low power consumption and ability to display text and graphics. The most common type used with Arduino is the 16x2 LCD, which can display 16 characters per line and has 2 lines.
- Arduino Board (e.g., Arduino Uno)
- 16x2 LCD Module
- Potentiometer (10k ohm for contrast adjustment)
- Breadboard
- Jumper Wires
- 220-ohm Resistor (for backlight)
Before diving into programming, it's crucial to set up the hardware correctly. Below is a wiring diagram that shows how to connect the LCD to the Arduino.
| LCD Pin | Arduino Pin |
|---|---|
| VSS | GND |
| VCC | 5V |
| VO | Middle Pin of Potentiometer |
| RS | Digital Pin 12 |
| RW | GND |
| E | Digital Pin 11 |
| D4 | Digital Pin 5 |
| D5 | Digital Pin 4 |
| D6 | Digital Pin 3 |
| D7 | Digital Pin 2 |
| A | 5V (through a 220-ohm resistor) |
| K | GND |
To control the LCD, you need to use the LiquidCrystal library that comes pre-installed with the Arduino IDE. This library simplifies the process of sending commands and data to the LCD.
1. Open your Arduino IDE.
2. Go to `Sketch > Include Library > LiquidCrystal`.
Here's a simple code snippet that initializes the LCD and prints "Hello, World!" on it.
- The `LiquidCrystal` object is created by specifying which pins are connected to which pins on the LCD.
- The `lcd.begin(16, 2)` function initializes a 16x2 LCD.
- The `lcd.print()` function is used to display text on the screen.
The contrast of your LCD can be adjusted using a potentiometer connected to the VO pin. Turning it will change how clearly you can see the displayed text.
The LiquidCrystal library provides several functions for controlling your LCD:
- `lcd.clear()`: Clears the display.
- `lcd.setCursor(column, row)`: Sets the cursor position.
- `lcd.blink()`: Turns on blinking cursor.
- `lcd.noBlink()`: Turns off blinking cursor.
- `lcd.display()`: Turns on display.
- `lcd.noDisplay()`: Turns off display.
You can also display variables or sensor data on your LCD. This allows for dynamic interaction in your projects. For instance, if you're using sensors like temperature or humidity sensors, you can show real-time readings directly on your LCD.
1. Digital Thermometer: Combine an LM35 temperature sensor with an LCD to display temperature readings in real-time.
2. Real-Time Clock: Use a DS3231 RTC module along with an LCD to create a digital clock that displays time accurately.
3. Sensor Monitoring System: Display multiple sensor readings (like humidity and temperature) simultaneously on an LCD for environmental monitoring.
4. Interactive Menu System: Create a menu system where users can navigate options using buttons or rotary encoders, displaying choices on the LCD.
5. Game Interface: Develop simple games where players can see their scores or game status displayed on an LCD screen.
1. No Display: Check all connections; ensure that power is supplied correctly.
2. Faint Display: Adjust contrast using potentiometer.
3. Garbage Characters: Ensure correct wiring and initialization in code.
4. Backlight Not Working: Verify connections for backlight pins; check if a resistor is needed.
5. Slow Response: Ensure that you are not overloading your Arduino with too many tasks simultaneously.
Once you're comfortable with basic operations, consider exploring advanced features such as:
- Custom Characters: You can create custom symbols or characters using the `createChar()` function in the LiquidCrystal library, allowing you to represent unique icons or indicators on your display.
- Scrolling Text: Implement scrolling text features for notifications or alerts that exceed one line of display capacity.
- Multiple Displays: Connect multiple displays for more complex interfaces, such as dashboards for monitoring various parameters simultaneously.
Integrating other components can enhance your project significantly:
- Keypads: Use a keypad along with your LCD for user input, allowing users to make selections or enter data directly through buttons.
- Sensors: Incorporate various sensors (e.g., temperature, humidity, motion) and display their readings dynamically on your LCD screen for real-time monitoring.
- Wi-Fi Modules: Connect Wi-Fi modules like ESP8266 or ESP32 to send data over the internet and show status updates or alerts on your LCD from remote locations.
Using an Arduino with an LCD display opens up numerous possibilities for projects involving user interfaces or data visualization. With just a few components and some basic programming knowledge, you can create interactive displays that enhance your projects significantly. The flexibility of combining various sensors and modules allows for endless creativity in designing functional and engaging systems.
The most common type is the 16x2 character LCD which is easy to use and widely supported by libraries.
Yes! An I2C interface allows you to connect your LCD using only two wires (SDA and SCL), simplifying wiring significantly.
Brightness can be adjusted using a potentiometer connected to the VO pin on your LCD.
Standard character LCDs are limited to text; however, graphic displays like OLED or TFT can show images and graphics.
Check your wiring connections and ensure that you have initialized your library correctly in your code.
