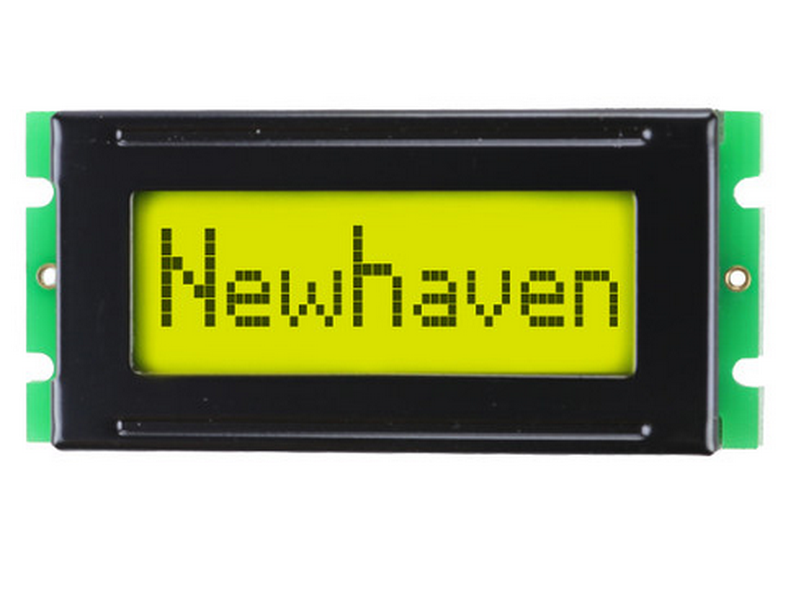

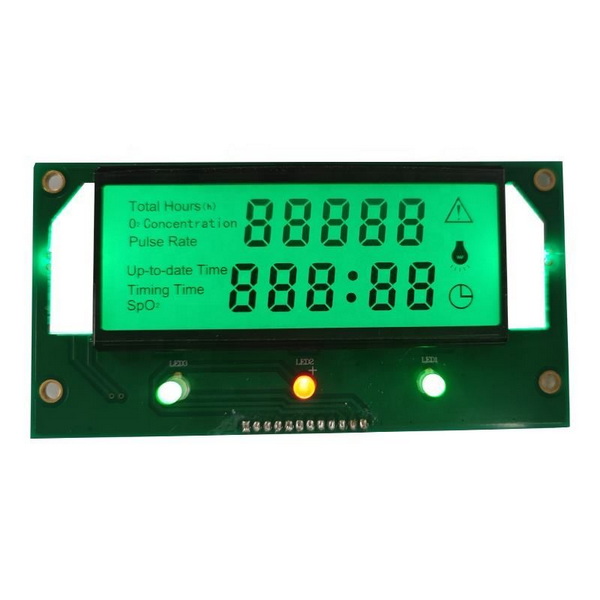

An LCD dot matrix module consists of a grid of pixels that can be individually controlled to display characters, symbols, or graphics. These modules are typically used in applications such as digital clocks, scoreboards, and simple user interfaces. The basic operation involves controlling the liquid crystals in the display using electrical signals.
- Liquid Crystal Display (LCD): The main visual component that displays the information.
- Driver IC: This integrated circuit controls the pixels based on input signals.
- Microcontroller: Often used to send commands and data to the driver IC.
- Power Supply: Provides the necessary voltage and current for operation.
A blank screen is one of the most common issues faced when working with LCD dot matrix modules.
Possible Causes:
- Incorrect power supply voltage.
- Poor connections or solder joints.
- Faulty driver IC.
Troubleshooting Steps:
- Check Power Supply: Ensure that the module is receiving the correct voltage (typically 5V). Use a multimeter to verify.
- Inspect Connections: Examine all wiring and solder joints for any loose connections or shorts. Re-solder any questionable joints.
- Test the Driver IC: If possible, replace the driver IC to see if it resolves the issue.
A flickering display can be distracting and may indicate a problem with how data is being sent to the module.
Possible Causes:
- Rapid clearing and redrawing of the display.
- Insufficient power supply.
Troubleshooting Steps:
- Reduce Clearing Frequency: Modify your code to avoid clearing the display unless necessary. Instead of constantly refreshing the display, only update it when changes occur.
- Check Power Supply Stability: Ensure that your power supply can handle the current requirements of the display without fluctuations.
If the wrong characters or symbols appear on your LCD, it could be due to software or wiring issues.
Possible Causes:
- Incorrect pin assignments in code.
- Misconfigured library settings.
Troubleshooting Steps:
- Verify Pin Connections: Double-check that your wiring matches the pin assignments in your code. Ensure that you are using the correct pins for data and control signals.
- Update Libraries: Make sure you are using the latest version of any libraries associated with your LCD module. Outdated libraries may have bugs or compatibility issues.
Sometimes only a portion of the display will work, which can be frustrating when trying to present information clearly.
Possible Causes:
- Damaged segments within the display.
- Connection issues between segments and driver IC.
Troubleshooting Steps:
- Inspect for Damage: Physically inspect the display for any visible damage or defects. If certain segments are not lighting up, it may indicate a fault within those specific areas.
- Check Connections: Ensure that all connections between the display and driver IC are secure and properly aligned. Use a magnifying glass to inspect solder joints closely.
Ghosting occurs when previous images linger on the screen, causing confusion in displayed information.
Possible Causes:
- Insufficient refresh rate.
- Incorrect multiplexing setup.
Troubleshooting Steps:
- Increase Refresh Rate: If your application allows it, increase the frequency at which you refresh the display content to reduce ghosting effects.
- Review Multiplexing Code: Ensure that your multiplexing code is correctly implemented. Improper timing can lead to ghosting as well as flickering.
- Use Proper Tools: Utilize tools like multimeters and oscilloscopes to diagnose electrical issues effectively.
- Consult Documentation: Always refer to datasheets and manuals for specific details about your LCD module's specifications and requirements.
- Join Community Forums: Engage with online communities such as Arduino forums or Stack Overflow where enthusiasts share similar issues and solutions related to LCD dot matrix modules.
Troubleshooting an LCD dot matrix module requires a systematic approach to identify and rectify issues effectively. By understanding common problems such as no display, flickering, incorrect characters, partial failures, and ghosting effects, users can implement practical solutions to enhance their projects' performance. Regular maintenance checks on connections and power supplies can also prevent many issues from arising in the first place.
Most LCD dot matrix modules operate at 5V. Always check your specific module's datasheet for exact requirements.
You can clear an LCD display by using a command like `lcd.clear()` in your code, but use it sparingly to avoid flickering.
Random characters often indicate incorrect wiring or mismatched pin assignments in your code; double-check both.
Yes, but ensure that they are compatible with your specific hardware setup; using outdated libraries can lead to issues.
Increase your refresh rate and ensure proper multiplexing techniques are implemented in your code to minimize ghosting effects.
