Setting up an LCD display with an Arduino is a fundamental project that many beginners undertake when learning about microcontrollers. This guide will walk you through the process of connecting and programming a 16x2 LCD display using the Arduino IDE. We will cover everything from the necessary components to the coding required to display text on the screen.
Before you start, ensure you have the following components:
- Arduino Board (e.g., Arduino Uno)
- 16x2 LCD Display (compatible with HD44780 driver)
- Breadboard
- 10k Ohm Potentiometer (for contrast adjustment)
- 220 Ohm Resistor (for backlight)
- Jumper Wires
- USB Cable (to connect Arduino to your computer)
The 16x2 LCD display has 16 pins, each serving a specific function. Here's a brief overview of the pin configuration:
| Pin Number | Function |
|---|---|
| 1 | Ground (VSS) |
| 2 | Power (+5V) |
| 3 | Contrast (Vo) |
| 4 | Register Select (RS) |
| 5 | Read/Write (R/W) |
| 6 | Enable (E) |
| 7-14 | Data Pins (D0-D7) |
| 15 | Backlight Anode (+) |
| 16 | Backlight Cathode (-) |

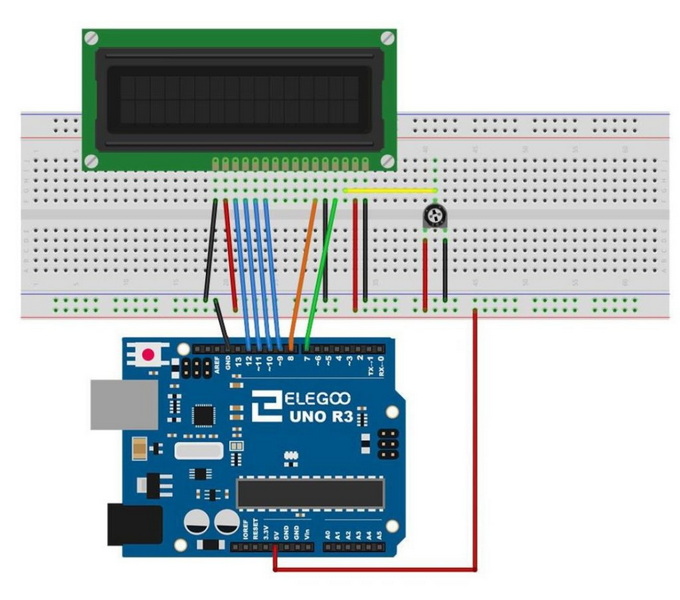

To connect the LCD to your Arduino, follow these steps:
1. Connect Power and Ground:
- Connect pin 1 of the LCD to GND on the Arduino.
- Connect pin 2 of the LCD to +5V on the Arduino.
2. Contrast Adjustment:
- Connect pin 3 of the LCD to the middle pin of a potentiometer.
- Connect one end of the potentiometer to GND and the other end to +5V.
3. Control Pins:
- Connect pin 4 (RS) to digital pin 12 on the Arduino.
- Connect pin 5 (R/W) to GND.
- Connect pin 6 (E) to digital pin 11 on the Arduino.
4. Data Pins:
- Connect pins D4-D7 (pins 11, 12, 13, and 14 on the LCD) to digital pins 5, 4, 3, and 2 on the Arduino respectively.
5. Backlight:
- Connect pin 15 of the LCD to +5V through a 220 Ohm resistor.
- Connect pin 16 of the LCD to GND.
Once you have completed your wiring, it's time to program your Arduino. You will use the `LiquidCrystal` library that comes pre-installed with the Arduino IDE.
1. Include the Library:
At the top of your sketch, include the LiquidCrystal library.
2. Initialize LiquidCrystal Object:
Create an instance of `LiquidCrystal` with your defined pins.
3. Setup Function:
In your `setup()` function, initialize your LCD and set its dimensions.
4. Loop Function:
The `loop()` function can remain empty for this example.
Connect your Arduino board to your computer using a USB cable. Open the Arduino IDE, select your board type and port from the Tools menu, then upload your sketch.

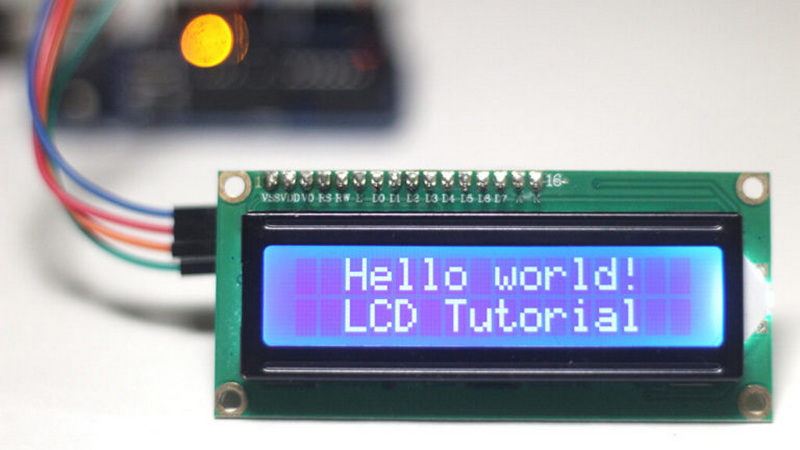

After uploading your code, you should see "Hello World!" displayed on your LCD screen. If nothing appears or if it is unreadable:
- Check all connections again.
- Adjust the potentiometer for contrast.
- Ensure that you have selected the correct board and port in your IDE.
Once you have successfully displayed text on your LCD, you can explore more advanced features such as:
- Scrolling text across the display.
- Creating custom characters.
- Using I2C adapters for simpler wiring.
While working with an LCD display and Arduino, you may encounter several common issues. Here are some troubleshooting tips:
- No Display or Blocks: If you see only blocks or nothing at all, check if you've connected everything correctly and adjust your contrast potentiometer.
- Flickering Text: This could be due to incorrect initialization in your code or poor connections. Make sure you're not resetting your display too often in your loop function.
- Incorrect Characters Displayed: This might happen if you've wired pins incorrectly or if there are issues with your code logic. Double-check both aspects.
For those looking for simplicity in wiring, using an I2C module can significantly reduce complexity by allowing communication over just two wires along with power and ground connections.
- Fewer wires mean less clutter in your project.
- It frees up more digital pins on your Arduino for other uses.

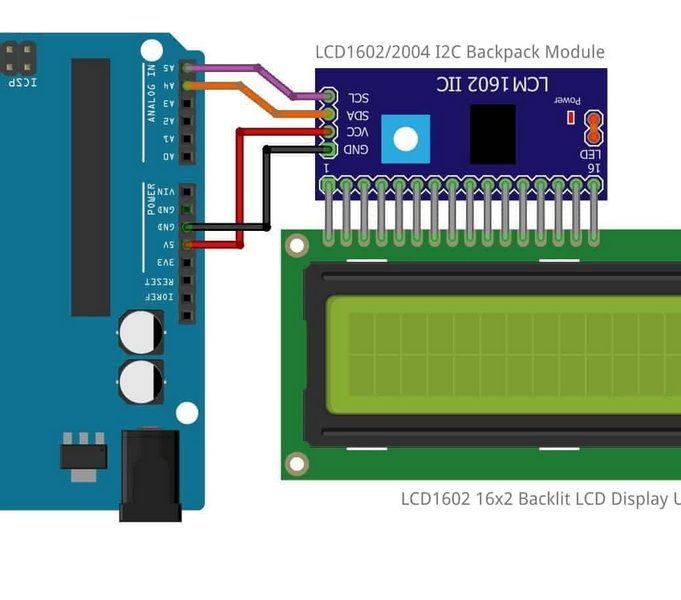

1. Connect VCC from I2C module to +5V on Arduino.
2. Connect GND from I2C module to GND on Arduino.
3. Connect SDA from I2C module to A4 on Arduino.
4. Connect SCL from I2C module to A5 on Arduino.
This setup allows for easy communication between multiple devices using only two data lines.
Setting up an LCD display with an Arduino is not only rewarding but also serves as a foundation for more complex projects involving user interfaces and data displays. With this guide, you should be able to connect and program an LCD display successfully. The ability to visualize data through an LCD opens up numerous possibilities in electronics projects, making it easier for users to interact with their creations.
An I2C adapter allows you to connect an LCD using only two wires for data communication instead of multiple data pins. This simplifies wiring significantly.
You can adjust brightness by changing resistor values in series with the backlight or using PWM signals if supported by your setup.
The primary library needed is `LiquidCrystal`, which is included in most installations of Arduino IDE.
Yes! You can use other sizes like a 20x4 or even graphical displays; just ensure you adjust your code accordingly.
Common issues include incorrect wiring, insufficient power supply, or needing adjustments on contrast via potentiometer.
