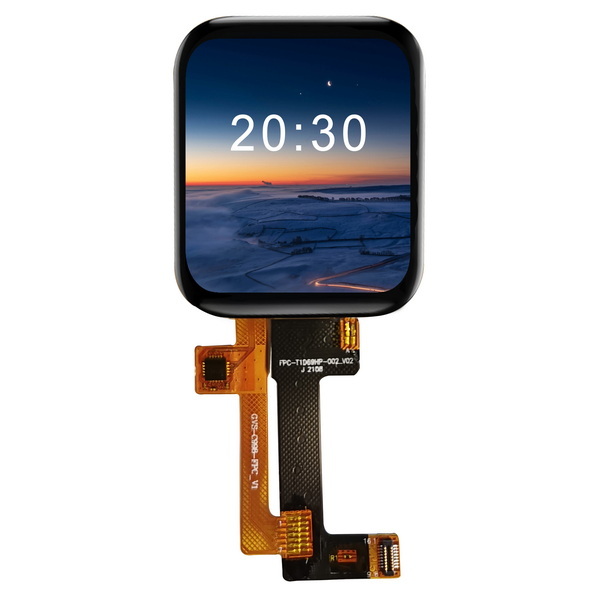

An LCD (Liquid Crystal Display) module watch utilizes a liquid crystal display to show time and other functionalities. Unlike traditional analog watches, these digital watches provide a modern, sleek interface that can display various information, including time, date, and even custom graphics.
- LCD Display: The screen that shows the time and other information.
- Microcontroller: The brain of the watch that processes inputs and controls the display.
- Battery: Provides power to the watch.
- Buttons: Used for setting the time and navigating through features.
- Wiring: Connects all components together.
Setting up your LCD module watch involves several steps. Here's a detailed breakdown:
Before you start, ensure you have all necessary components:
- An LCD module (e.g., 16x2 or TFT)
- A microcontroller (like Arduino)
- Jumper wires
- A breadboard (optional)
- A power source (battery or USB)
Connecting your components correctly is crucial for functionality. Here's how to connect a typical 16x2 LCD to an Arduino:
- LCD Pins:
- VSS (Ground) to GND on Arduino
- VDD (Power) to 5V on Arduino
- VO (Contrast) connected to a potentiometer
- RS (Register Select) to pin 12 on Arduino
- RW (Read/Write) to GND
- E (Enable) to pin 11 on Arduino
- D0-D7 (Data Pins) connected to pins 5-10 on Arduino
To control the LCD from your microcontroller, you'll need specific libraries.
Connect your Arduino to your computer via USB and upload your code using the Arduino IDE. Ensure that you have selected the correct board and port in the IDE settings.
Once your code is uploaded successfully, power your watch using a battery or USB connection. If everything is set up correctly, you should see "Hello World!" displayed on your LCD.
Once you've set up your basic watch functionality, you can customize it further:
Implement button controls that allow users to set hours and minutes. You can use two buttons: one for incrementing hours and another for minutes.
Consider adding features like alarm settings or temperature displays using additional sensors. For example:
- Alarm Functionality: You can set an alarm by comparing current time with a predefined alarm time.
- Temperature Sensor: Integrate a temperature sensor like DHT11 or DS18B20 for real-time temperature readings.
If you encounter issues during setup or operation:
- Display Not Working: Check all connections; ensure power is supplied correctly.
- Incorrect Display Output: Verify that you are using the correct pins in your code.
- Code Errors: Double-check for syntax errors in your code.
- Unresponsive Buttons: Ensure that buttons are connected properly and check for any short circuits.
For those looking to take their project further, consider these advanced features:
Integrate Bluetooth modules like HC-05 or HC-06 for wireless control over settings. This allows users to change settings via a smartphone app.
For more advanced displays like TFT screens, you can create custom graphics or animations. Libraries like TFT_eSPI allow you to draw shapes or images on the screen.
Setting up an LCD module watch can be an enjoyable project that combines electronics with programming. By following these steps, you can create a functional digital watch that not only tells time but can also be customized with additional features such as alarms and temperature readings. With further exploration into Bluetooth connectivity and custom graphics, you can turn this project into a sophisticated device that showcases both technical skills and creativity.
To change the time, press and hold a designated button until the hour starts blinking. Use other buttons to adjust hours and minutes.
You need an LCD display, microcontroller (like Arduino), buttons for input, a power source (battery), and connecting wires.
Yes! You can integrate additional sensors and modify your code accordingly to include alarms or temperature displays.
Check all connections for proper wiring and ensure that power is supplied correctly to the LCD.
Yes! While this guide focuses on standard models like the 16x2, you can use TFT or other types as long as you adjust connections and code accordingly.
