Introduction

Monochrome LCD displays are widely used in various electronic devices such as 3D printers, calculators, and simple gadgets due to their low power consumption and clear display. Over time, these displays can degrade or malfunction, requiring replacement to restore device functionality. This detailed guide will walk you through the process of replacing a monochrome LCD display, covering tools, step-by-step instructions, troubleshooting tips, and maintenance advice. The guide also includes visual aids and video references to help you perform the replacement confidently.

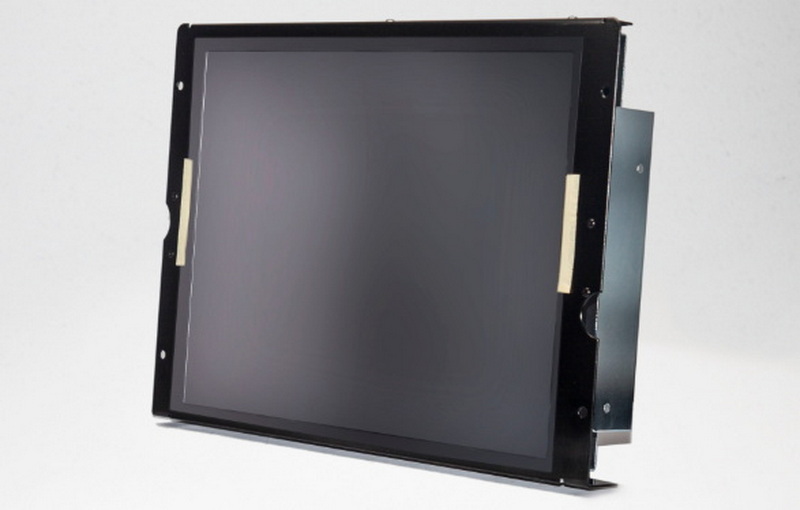

Understanding Monochrome LCD Displays

Monochrome LCDs display images in a single color, typically black and white or shades of gray. They are simpler than color LCDs and consume less power, making them ideal for devices where color is unnecessary. Common issues with these displays include flickering, incomplete display, dead pixels, and total failure.

Tools and Materials Needed for Replacement

Before starting the replacement process, gather the following tools and materials:

- Replacement monochrome LCD screen compatible with your device model

- Hex keys (commonly M2, M2.5, and M3 sizes)

- Screwdrivers suitable for your device screws

- Double-sided adhesive tape or Mara tape (for securing the new screen)

- Clean gloves (to avoid contaminating the screen with fingerprints)

- Cleaning cloth for glass or screen surface

- Multimeter (for troubleshooting power supply issues)

- Optional: Soft cloth or microfiber for gentle cleaning and pixel fixing

Step-by-Step Guide to Replace a Monochrome LCD Display

1. Prepare Your Workspace and Device

- Unplug your device to avoid electrical hazards.

- Work on a clean, static-free surface.

- Wear gloves to prevent oils from your skin contaminating the screen or lens.

2. Remove the Outer Cover or Shell

- Use the appropriate hex keys or screwdrivers to remove screws securing the device's outer shell.

- Carefully lift off the cover to expose the internal components and the LCD screen.

3. Disconnect the LCD Screen Cable

- Locate the flexible printed circuit (FPC) cable connecting the LCD to the motherboard.

- Gently remove any tape or metal covers securing the cable.

- Carefully unplug the cable from the motherboard to avoid damage.

4. Remove the Old LCD Screen

- Unscrew any screws holding the LCD screen in place.

- If the screen is glued or taped, gently peel off the adhesive without damaging the frame.

- Lift the old screen out of its slot.

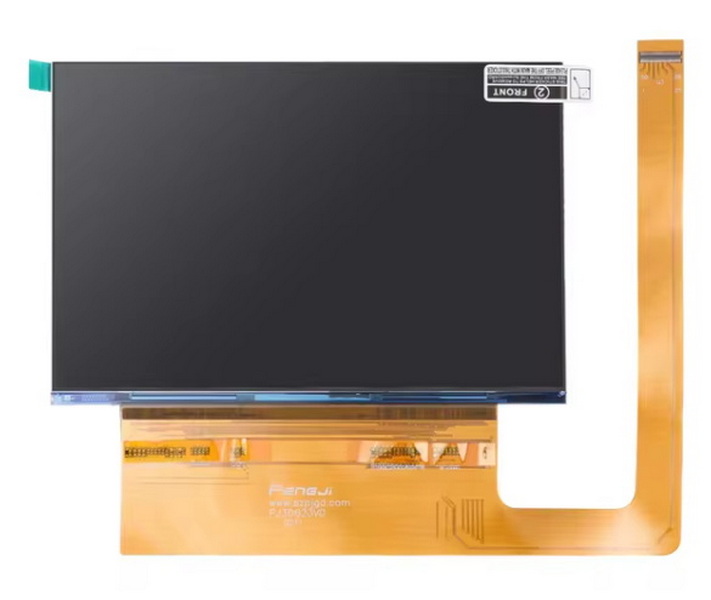

5. Prepare and Install the New LCD Screen

- Remove any protective films from the new screen, especially on the display surface and back.

- Apply new double-sided tape or Mara tape to the edges of the screen slot.

- Align the new LCD screen carefully with the slot, ensuring the cable passes through any designated slots or openings.

- Press firmly but gently to secure the screen onto the adhesive.

6. Reconnect the LCD Cable and Secure Components

- Reconnect the FPC cable to the motherboard, ensuring correct orientation.

- Replace any metal covers or tape to secure the cable.

- Reinstall any screws or fixtures that hold the screen and internal parts.

7. Reassemble the Device

- Replace the outer shell or cover.

- Tighten all screws securely but avoid overtightening.

- Double-check that no cables are pinched or obstructing moving parts.

8. Power On and Test

- Plug in and power on the device.

- Navigate to the device's diagnostic or tools menu to test the screen exposure and display functionality.

- If the screen displays correctly without flickering or distortion, the replacement is successful.

Troubleshooting Tips Before Replacing the Screen

Before deciding to replace the LCD screen, verify these common issues:

- Check Power Supply: Use a multimeter to ensure the LCD receives the correct voltage (usually 3.3V or 5V).

- Inspect Connections: Loose or damaged cables can cause flickering or no display.

- Adjust Contrast: Sometimes poor visibility is due to incorrect contrast settings.

- Test with Simple Code (for microcontroller-based devices): Upload a test program to verify if the display is functioning.

- Dead Pixels: Try software pixel-fixing tools or gentle physical methods like massaging the screen with a microfiber cloth.

If these steps do not resolve the problem, replacement is likely necessary.

Maintenance Tips to Extend LCD Lifespan

- Avoid exposing the screen to extreme temperatures or humidity.

- Clean the screen regularly with a soft, dry cloth.

- Use gloves when handling the screen to prevent oil contamination.

- Avoid applying excessive pressure on the screen surface.

- Store the device in a dry, dust-free environment when not in use.

Conclusion

Replacing a monochrome LCD display is a manageable task if approached methodically with the right tools and precautions. Whether you are dealing with a 3D printer like the Anycubic Photon Mono X or an ELEGOO Saturn, the key steps involve careful disassembly, cable management, adhesive application, and reassembly. Always test the new screen thoroughly after installation to ensure proper functionality. Regular maintenance can prolong the life of your LCD display and reduce the need for replacements.

Frequently Asked Questions (FAQs)

1. How do I know if my monochrome LCD needs replacement?

Signs include persistent flickering, dead pixels, incomplete display, or a blank screen despite troubleshooting power and connections[3][4].

2. Can I replace the LCD screen myself without professional help?

Yes, with proper tools, patience, and following detailed guides or videos, most users can replace the screen themselves safely[1][2][7].

3. What precautions should I take during replacement?

Wear gloves to avoid fingerprints, handle cables gently, use the correct tools, and avoid peeling protective polarizer films on the screen[2][3].

4. Do I need to update firmware after replacing the LCD?

For some devices like ELEGOO Saturn, updating firmware to match the new screen model is necessary for proper operation[2].

5. How can I fix dead pixels without replacing the screen?

Try software pixel-fixing tools or gently massage the affected area with a microfiber cloth. These methods can sometimes revive stuck pixels[3].
