Repairing an LCD TV display can seem daunting, but with the right knowledge and tools, many common issues can be resolved without professional help. This guide will walk you through the steps to diagnose and repair various problems with your LCD TV display.
Before diving into repairs, it's essential to understand how an LCD TV works. An LCD (Liquid Crystal Display) uses liquid crystals sandwiched between two layers of glass or plastic. The backlight shines through these layers, creating the images you see on the screen. Common components include:

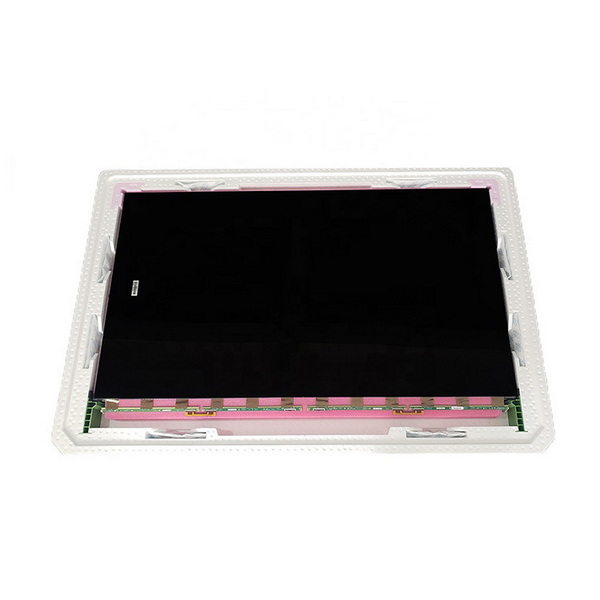

- LCD Panel: The main component that displays images.
- T-Con Board (Timing Control): Controls the timing of signals sent to the LCD panel.
- Power Supply Board: Provides power to the TV and its components.
- Main Board: The brain of the TV that processes signals.
1. No Picture/Black Screen
2. Vertical or Horizontal Lines
3. Flickering Screen
4. Ghosting or Image Retention
5. Color Distortion
- Screwdrivers (Phillips and flathead)
- Multimeter (for electrical testing)
- Soldering iron (if needed for circuit board repairs)
- Replacement parts (if necessary)
- Soft cloth (to protect the screen)
Before starting any repair, ensure your safety:
- Unplug the TV from the power source.
- Allow it to sit for a few minutes to discharge any residual electricity.
No Picture/Black Screen:
- Check Power Supply: Ensure that the power supply board is functioning. Use a multimeter to check for correct voltage outputs.
- Backlight Test: Shine a flashlight on the screen while it's powered on. If you see faint images, the backlight may be faulty.
Vertical or Horizontal Lines:
- Inspect the T-Con board and connections. Loose or damaged cables can cause lines on the display.
- If lines persist after checking connections, consider replacing the T-Con board.
Flickering Screen:
- Check for bad capacitors on the power supply board. Swollen or leaking capacitors may need replacing.
Ghosting/Image Retention:
- This issue often resolves itself by turning off the TV for a few hours or using a screensaver that cycles through different images.
Color Distortion:
- Adjust picture settings in your TV menu first. If issues persist, check connections to the main board and T-Con board.
To access internal components, follow these steps:
1. Remove Back Panel:
- Lay the TV face down on a soft surface.
- Use a screwdriver to remove screws from the back panel.
- Carefully pry off the back cover.
2. Inspect Internal Components:
- Visually inspect for burnt components or loose connections.
- Use a multimeter to test voltages at various points.
3. Replace Faulty Parts:
- If you identify faulty components (e.g., capacitors, T-Con board), order replacements online.
- Follow specific guides for your TV model when replacing parts.
Once repairs are complete:
1. Place the back cover back onto the TV.
2. Secure it with screws.
3. Plug in your TV and test it.
If your LCD TV shows no picture but has sound, follow these steps:
1. Power Cycle Your TV:
- Unplug it from the wall socket.
- Hold down the power button for about 15 seconds to drain residual power.
- Wait for at least 30 minutes before plugging it back in.
2. Check Connections:
- Ensure all cables are securely connected, especially HDMI and power cables.
- Try using different HDMI ports or cables if possible.
3. Inspect Backlight Functionality:
- If you suspect a backlight failure, shine a flashlight on the screen while it's on; if you see images faintly, this confirms a backlight issue.
4. Test Power Supply Board:
- Use a multimeter to check if voltage outputs are within specifications as detailed in your service manual.
For lines appearing on your screen:
1. Check Input Source:
- Switch between different input sources (e.g., HDMI, AV) to determine if lines persist across all inputs.
2. Inspect Cables:
- Loose or damaged cables can cause display issues; replace any faulty cables.
3. T-Con Board Inspection:
- If lines persist regardless of input source, open up your TV and inspect connections on the T-Con board for damage or disconnection.
4. Replacement:
- If all else fails and you confirm that T-Con is faulty, consider replacing it with an identical model part sourced online.
To address flickering:
1. Adjust Picture Settings:
- Navigate through your TV's settings menu and adjust brightness and contrast levels; sometimes flickering can be caused by incorrect settings.
2. Inspect Power Supply Capacitors:
- Open your TV and visually inspect capacitors on the power supply board; replace any that appear swollen or leaking.
3. Software Update:
- Ensure your television firmware is up-to-date as outdated software can cause performance issues including flickering displays.
- Always keep track of screws and small parts during disassembly; use containers to avoid losing them.
- Document each step with photos if necessary, especially when dealing with complex wiring setups to ensure correct reassembly later.
- Utilize online resources such as video tutorials specific to your model for visual guidance during repairs[1][6].
Repairing an LCD TV display can save you money and extend the life of your television. While some issues may require professional help, many common problems can be resolved at home with basic tools and knowledge. Always prioritize safety when working with electronics, and don't hesitate to consult detailed guides or videos specific to your model for assistance.
Check if it's receiving power by ensuring all connections are secure and testing with a multimeter.
If there are lines on your screen or no image at all despite a functioning backlight, it may be time to replace your T-Con board.
If repair costs are significantly lower than replacement costs, it's often worth repairing.

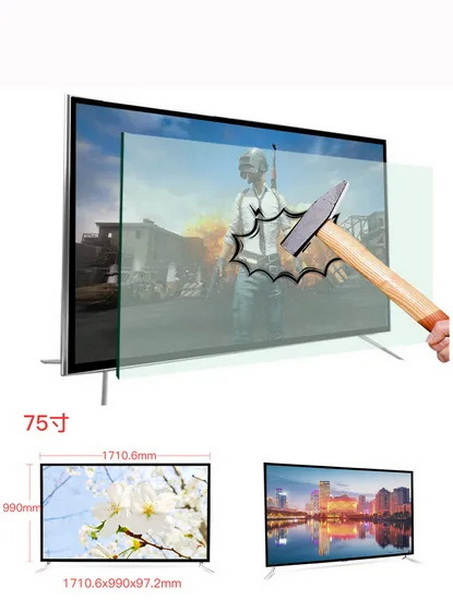

Typically, cracked screens are not cost-effective to repair; replacing the entire panel is usually necessary.
Avoid displaying static images for extended periods and use screensavers that change frequently.
