LCD (Liquid Crystal Display) screens are widely utilized in various devices, including televisions, computer monitors, smartphones, and tablets. While these displays provide excellent visual quality, they can encounter issues such as dead pixels, flickering, or complete failure. This comprehensive guide will provide you with step-by-step instructions on how to repair an LCD display, troubleshoot common problems, and understand when it might be necessary to seek professional help.
Before diving into the repair process, it is essential to understand the common issues that can occur with LCD displays:
- Dead Pixels: These are individual pixels that do not illuminate or change color. They appear as small black or colored dots on the screen.
- Flickering: This can be caused by loose connections, incompatible refresh rates, or driver issues.
- Backlight Problems: If the screen appears dim or completely black while the device is powered on, it may be due to backlight failure.
- Color Distortion: Inaccurate colors can result from improper calibration or damaged components.
- Image Retention: Also known as burn-in, this occurs when static images remain visible on the screen even after they should have disappeared.
To successfully repair an LCD display, you will need the following tools:
- Small Phillips and flathead screwdrivers
- A heat gun or hair dryer
- Pencil eraser
- Soft cloth or microfiber cloth
- Isopropyl alcohol (for cleaning)
- Replacement parts (if necessary)
Before starting any repair work, ensure that the device is turned off and unplugged. This will prevent any electrical shock or damage to the device.
Carefully disassemble the device to access the LCD panel. The method of disassembly may vary depending on the device type. For example:
1. For a Laptop:
- Remove screws from the back panel using a Phillips screwdriver.
- Gently pry open the casing using a plastic spudger or flathead screwdriver.
2. For a TV:
- Remove screws from the back cover.
- Carefully detach any connectors or cables attached to the panel.
Once you have access to the LCD panel, inspect it for visible damage such as cracks or loose connections.
If you notice dead pixels:
- Try using pixel-fixing software that cycles through colors rapidly to stimulate the stuck pixel.
- Alternatively, gently massage the affected area with a soft cloth wrapped around your finger to apply pressure.
To address flickering:
- Check all connections to ensure they are secure.
- Adjust the refresh rate in your display settings to match your monitor's specifications.
If the backlight is faulty:
1. Use a heat gun or hair dryer to gently warm up the area around the backlight inverter.
2. Carefully check for any burnt-out bulbs or damaged components.
3. Replace any faulty components as needed.
If colors appear distorted:
1. Access your device's color settings and adjust them accordingly.
2. Use calibration tools if available.
After completing repairs:
1. Carefully reassemble your device by reversing the disassembly steps.
2. Power on your device and test the display to ensure all issues have been resolved.
In addition to basic repairs, some advanced techniques can help resolve more complex issues:
- Replacing Capacitors: If your LCD monitor is flickering or not turning on at all, it might be due to faulty capacitors on the power supply board. Open up your monitor and inspect for bulging capacitors; replacing them can often restore functionality.
- Reconnecting Ribbon Cables: Sometimes, issues arise from loose ribbon cables connecting different components of the display. Carefully reseating these cables can resolve many problems without further intervention.
- Using Specialized Tools: For certain types of displays (like those with zebra connectors), specialized tools may help re-establish connections without damaging components.
While many LCD issues can be resolved with DIY methods, there are cases where professional assistance is necessary:

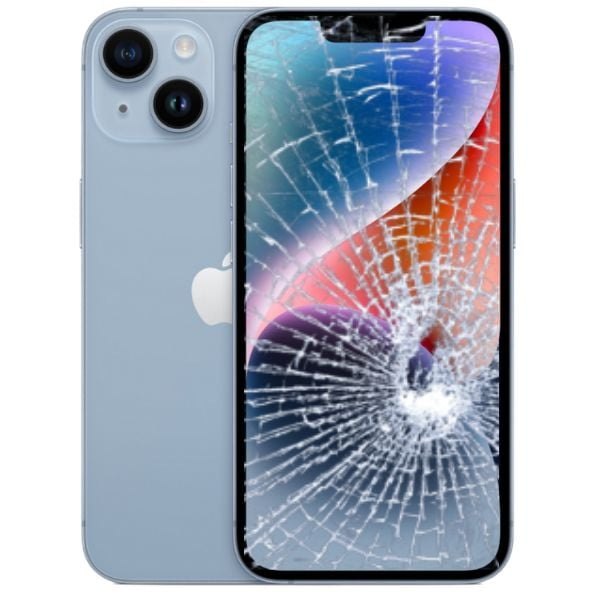

- If there is significant physical damage (e.g., cracked screens).
- If internal components need replacement that you are not comfortable handling (e.g., mainboard issues).
- If software-related problems persist despite troubleshooting efforts.
To prolong the life of your LCD display and minimize potential problems, consider these preventive measures:
- Regular Cleaning: Dust and grime can affect performance and visibility. Use a microfiber cloth and appropriate cleaning solutions designed for electronics.
- Avoid Extreme Temperatures: Keep devices away from direct sunlight or extreme cold as temperature fluctuations can damage internal components.
- Use Surge Protectors: Protect your devices from power surges that could damage sensitive electronic components.
Repairing an LCD display can be a straightforward task if you follow proper procedures and use appropriate tools. By understanding common issues and their solutions, you can save time and money by attempting repairs yourself before seeking professional help. Always prioritize safety during repairs and assess whether you feel comfortable tackling more complex problems.
Dead pixels are pixels that do not light up or change color. They can sometimes be fixed using pixel-fixing software or by gently massaging them with a soft cloth.
If there are multiple dead pixels, significant physical damage, or persistent flickering despite troubleshooting, it may be time for a replacement.
Yes, many common issues can be fixed with basic tools and knowledge. However, for extensive damage or complex repairs, professional help is recommended.
Basic tools include screwdrivers (Phillips and flathead), a heat gun or hair dryer, an eraser for cleaning connections, and possibly replacement parts.
To prevent damage, handle devices carefully, avoid exposing screens to extreme temperatures or moisture, and use protective cases when possible.
