Removing an ADT touch panel from your wall may seem like a daunting task, but with the right tools and knowledge, it can be a straightforward process. Whether you're upgrading your security system, moving to a new home, or simply want to remove an outdated panel, this comprehensive guide will walk you through the steps to safely and effectively remove your ADT touch panel from the wall.

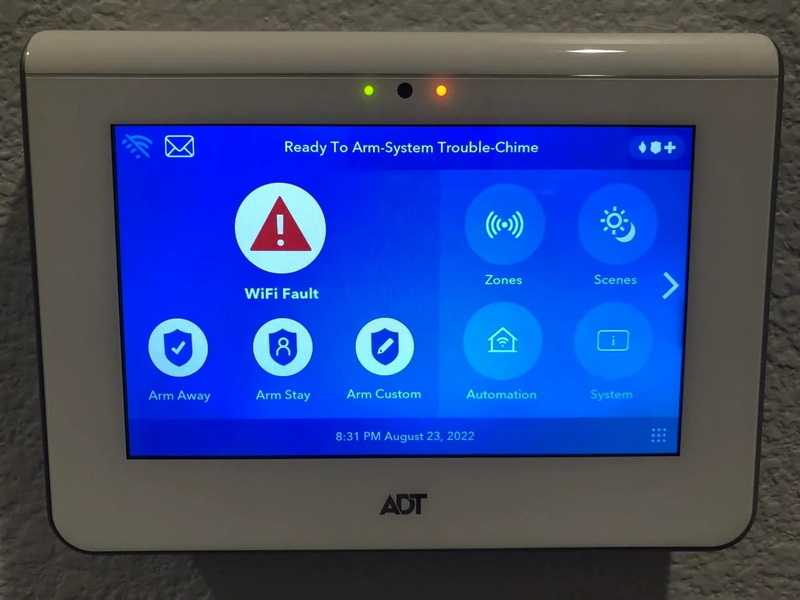

Before we dive into the removal process, it's essential to understand the basic components of your ADT touch panel. Most ADT touch panels consist of two main parts:
1. The front panel: This is the visible part with the touchscreen interface.
2. The back plate: This is mounted to the wall and holds the wiring.
Knowing this will help you approach the removal process more confidently.
To remove your ADT touch panel, you'll need the following tools:
- Phillips head screwdriver
- Small flathead screwdriver
- Putty knife or plastic pry tool (optional)
Having these tools on hand will make the process much smoother.
Before you begin, it's crucial to power down your ADT security system[9]. This can typically be done through the panel itself:
1. Access the Tools menu on your Command panel
2. Select Advanced
3. Choose System Shutdown
This step ensures your safety and prevents any accidental alarms during the removal process.
The front panel is usually attached to the back plate with clips or screws. Here's how to remove it:
1. Look for small slots or holes at the bottom of the panel[3].
2. Insert a small flathead screwdriver into these slots[1].
3. Gently pry the panel away from the wall, starting from the bottom.
If you encounter resistance, don't force it. There may be additional screws or clips holding it in place.
Once you've removed the front panel, you'll see the wiring connecting it to the back plate:
1. Carefully unplug any power cords or Ethernet cables[6].
2. If there are any screw terminals holding wires, loosen these with your screwdriver.
3. Take a photo of the wiring configuration for future reference.
The back plate is usually secured to the wall with screws:
1. Remove any visible screws holding the back plate to the wall[2].
2. If there are no visible screws, the plate may be mounted on keyhole slots[2].
3. Lift the plate up and off the wall if it's on keyhole mounts.
Be careful when removing the back plate, as there may be additional wiring behind it.
After removing the back plate, you may find wires coming out of the wall:
1. If you're completely removing the system, cap off any exposed wires with wire nuts.
2. If you're replacing the system, leave the wires accessible for the new installation.
Always consult with a professional electrician if you're unsure about handling electrical wiring.
Some ADT panels may be partially secured with adhesive. If you encounter this:
1. Use a putty knife or plastic pry tool to gently separate the panel from the wall.
2. Apply heat with a hairdryer to soften the adhesive if necessary.
3. Be patient and work slowly to avoid damaging the wall.
Older ADT models may have different removal procedures. For instance, the ADT Command 7" Touchscreen might require:
1. Removing a screw at the bottom of the unit[7].
2. Sliding the unit upwards to disengage it from the mount.
Always refer to your specific model's manual if available.
Once you've successfully removed your ADT touch panel, you have a few options:
1. Return the equipment: If you're ending your ADT service, you may need to return the equipment. ADT typically provides instructions and packaging for this[6].
2. Patch the wall: Fill any holes left by screws and paint over the area to restore your wall's appearance.
3. Prepare for a new system: If you're upgrading, ensure the area is clean and ready for the new installation.
While removing an ADT touch panel is often a DIY-friendly task, there are situations where professional help might be necessary:
- If you're uncomfortable working with electrical components
- When dealing with a complex, hardwired system
- If you encounter any unexpected issues during removal
In these cases, don't hesitate to contact a professional security system installer or electrician.
Removing an ADT touch panel from your wall is a manageable task with the right approach and tools. By following this guide, you can safely remove your panel without damaging your wall or the device itself. Remember to always prioritize safety, especially when dealing with electrical components, and don't hesitate to seek professional help if you're unsure about any step of the process.
Here are some common questions related to removing ADT touch panels:
No, as long as you've properly powered down the system before beginning the removal process, it should not trigger an alarm. Always ensure you've followed the correct shutdown procedure for your specific model.
It depends on the new system you're installing. In many cases, existing wiring can be repurposed, but it's best to consult with your new security system provider to ensure compatibility.
If you're canceling your ADT service, yes, you should inform them before removing the equipment. They may provide specific instructions for returning the hardware.
ADT typically requires you to return their equipment. If you own the panel outright, check with local electronic waste disposal facilities for proper recycling options.
While the process is generally straightforward, if you're not comfortable working with electronics or tools, it's best to seek assistance from a friend with more experience or hire a professional to ensure safe removal.
