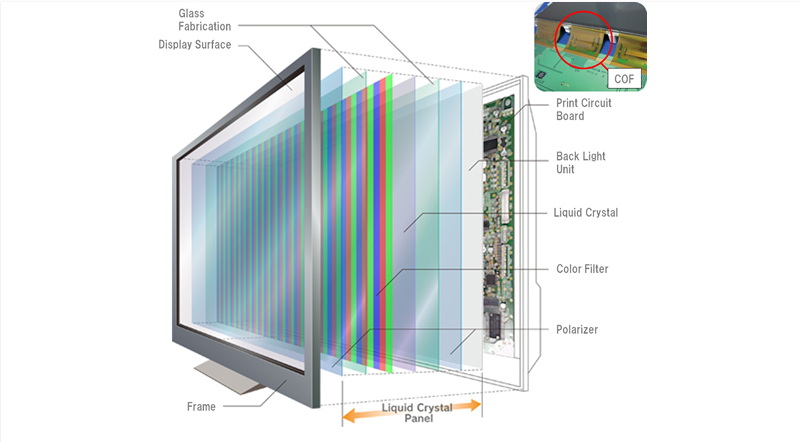

Liquid Crystal Displays (LCDs) are widely used in various applications, from consumer electronics to industrial video walls. Properly supporting an LCD display on its back is crucial to ensure its longevity, optimal performance, and safety. This article provides an in-depth guide on how to support an LCD display correctly, including best practices, mounting techniques, and common pitfalls to avoid. It also includes visual aids and videos to enhance understanding.
LCD displays are delicate devices that require careful handling and support. Improper support can lead to:
- Screen warping or bending, causing permanent damage
- Pressure points that may crack the glass or damage internal components
- Electrical connection failures due to misalignment or stress on connectors
- Reduced lifespan and performance degradation
Supporting the LCD display properly on its back ensures mechanical stability, prevents damage, and maintains display quality over time[2][4][7].
The surface or bracket supporting the LCD must be solid, flat, and level to distribute the display's weight evenly. Uneven surfaces can cause stress points and warping[4].
When mounting, ensure the display is free from any twisting or bending forces. The display should sit flat against the support structure without any gaps or pressure points[2].
- Use insulating gaskets or soft materials (0.5 to 1 mm thick) between the display and mounting bezel to absorb shocks and prevent direct pressure on the screen surface[2].
- Maintain a small gap (0.2 to 0.3 mm) between the bezel and the LCD surface to avoid pressure on the edges[2].
- Leave a gap (>0.3 mm) between the product housing and the LCD cover lens to prevent stress on the display[2].
Modular brackets designed for LCDs allow precise alignment and support. Adjustable screws on the back of the display can be used to fine-tune flatness and verticality, ensuring even pressure distribution[4].
Use manufacturer-recommended screws (e.g., M6×14 mm or M6×30 mm) and mounting hooks to attach the display securely to the brackets. Avoid overtightening screws to prevent stress on the display frame[4].
Always keep the display vertical when moving or installing to avoid bending or twisting forces. Never lay the display face up or face down, and avoid stacking displays[4].
Slim or thin LCD displays benefit from additional back support brackets to prevent flexing and mechanical damage[2].
- Ensure the base or wall is strong enough to bear the display's weight.
- Use a level to mark the mounting points accurately.
- Assemble the base plates and secure them with appropriate screws[4].
- Mount brackets from bottom to top and center to sides.
- Secure brackets with screws but leave some looseness for adjustment.
- Attach fixing boxes to brackets, ensuring correct orientation[4].
- Use a plumb bob to align drawbars vertically.
- Secure drawbars to the wall and brackets to prevent lateral movement[4].
- Align mounting holes on the display with hooks.
- Secure hooks with screws, then add adjustment screws for fine-tuning[4].
- Carefully hold the display and attach hooks to bracket slots.
- Repeat for all displays if mounting multiple units.
- Adjust flatness and gaps using the screws on the back to achieve perfect alignment and spacing (ideal gap ~0.6 mm)[4].
- Avoid Conductive Powders: Do not use graphite or conductive powders on connectors or PCB pads; pressure contact is the proper method for electrical connection[1].
- Ribbon Cable Handling: When re-attaching LCD ribbons, ensure there is enough slack and avoid tight bends to prevent damage[6].
- Grounding and Noise Immunity: Proper grounding of the display housing and touch controller is essential to avoid interference and erratic touch behavior[2].
- Protective Housing: Use protective housings to shield the display from physical impacts and environmental damage[7].
Properly supporting an LCD display on its back is essential for maintaining its structural integrity, performance, and longevity. By using solid mounting surfaces, modular brackets, cushioning materials, and precise adjustment screws, you can ensure the display is securely and evenly supported. Avoiding twisting, bending, and excessive pressure prevents damage to the delicate LCD panel and its internal components. Following these best practices, along with careful handling and grounding, will result in a reliable and high-quality display installation.
A gap of 0.2 to 0.3 mm is recommended between the bezel and the LCD surface to prevent pressure on the edges and allow for thermal expansion[2].
Typically, M6 screws (e.g., M6×14 mm for hooks and M6×30 mm for adjustment) are used, but always follow the manufacturer's specifications[4].
Ribbon cables should have enough slack to avoid tight bends and mechanical stress. Use careful cutting and reattachment techniques to maintain connection integrity[6].
Proper grounding minimizes electrical noise and prevents erratic touch behavior by ensuring all conductive parts share the same ground potential[2].
No, displays should always be kept vertical during transport and installation. Laying them flat or stacking can cause damage to the screen and internal components[4].
