Introduction to Programming Electric Bike LCD Displays

Programming an electric bike's LCD display is essential for optimizing performance and ensuring that the bike operates according to your preferences. This process involves adjusting various settings such as wheel size, motor type, battery voltage, and more. In this article, we will explore how to program different types of electric bike LCD displays, including the S830, SW900, KT-LCD3, and E-BikeKit displays.

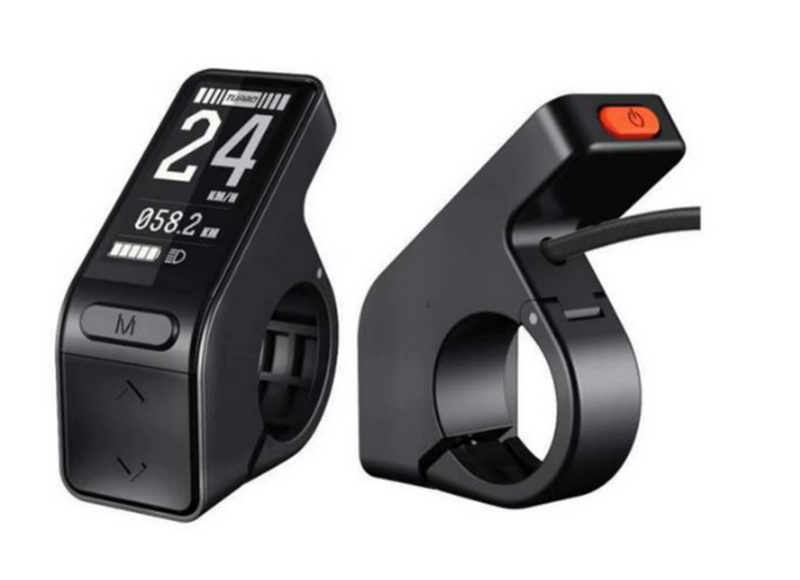

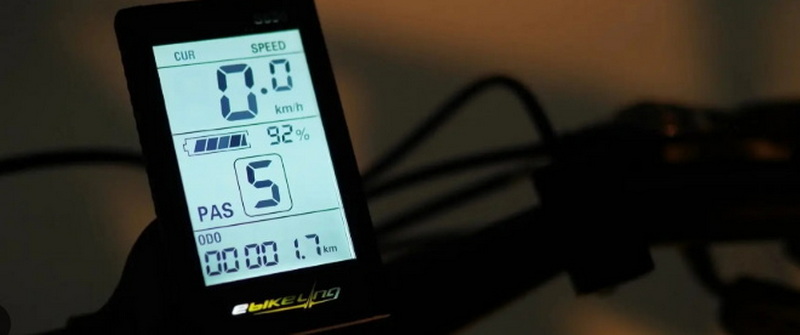

Importance of LCD Displays on Electric Bikes

LCD displays are crucial components of electric bikes as they provide vital information about the bike's status, such as speed, battery level, distance traveled, and assist mode. Properly configuring these displays ensures accurate readings and enhances the overall riding experience. Moreover, LCD displays can be customized to show additional information like cadence, temperature, and even GPS data, depending on the model and its capabilities.

Tools Required for Programming

To program an electric bike LCD display, you typically need the display itself, a power source (usually the bike's battery), and the control buttons on the display. Some displays may require additional tools or software, but most can be programmed using the onboard controls. It's also important to have the user manual handy, as it provides specific instructions tailored to your display model.

Programming the S830 and SW900 LCD Displays

The S830 and SW900 displays are commonly used in electric bike conversion kits. Here's how to program them:

1. Turn On the Display: Press and hold the M button for 4-5 seconds to turn on the display.

2. Enter Settings Mode: Press and hold the Up and Down arrows for 4-5 seconds to access the settings panel.

3. Adjust Parameters:

- P01 Background Luminance: Adjust the display brightness (1 is darkest, 3 is brightest).

- P02 Unit of Distance: Switch between kilometers and miles.

- P03 Voltage Grades: Select the correct voltage for your battery (24V, 36V, 48V, etc.).

- P04 Sleep Time: Set the display to turn off after a certain time to save energy.

- P05 PAS Grades: Choose between 3-grade or 5-grade pedal assist modes.

- P06 Wheel Size: Enter the wheel size in inches.

- P07 Speed Measuring Magnet: Adjust for accurate speed readings.

- P08 Speed Limit: Set a speed limit if desired.

These displays are versatile and can be adjusted to fit various riding styles and conditions. For instance, setting the correct wheel size ensures accurate distance and speed readings, which is crucial for tracking your rides and maintaining the bike's efficiency.

Programming the KT-LCD3 Display

The KT-LCD3 is another popular display used in electric bikes, known for its versatility and range of functions.

1. Turn On the Display: Press the middle function button for 3 seconds to activate the display.

2. Access Settings: Use the middle button to scroll through displays and access settings.

3. Adjust Parameters:

- Adjust settings for voltage, wheel size, and other parameters as needed.

The KT-LCD3 offers advanced features such as customizable display layouts and additional data fields, making it a favorite among enthusiasts who want detailed insights into their ride performance.

Programming the E-BikeKit Display

E-BikeKit displays are used in various electric bike kits and require specific settings for optimal performance.

1. Turn On the Display: Use the red power button to turn on the display.

2. Set Motor Type: Press and hold the Up arrow and Set button for 3 seconds to select the motor type.

3. Set Wheel Size: Press and hold the Up and Down arrows for 3 seconds to adjust the wheel size.

4. Set Battery Voltage: Press and hold the Up, Down, and Power buttons for 3 seconds to select the correct voltage.

These displays are designed to be user-friendly, allowing riders to easily adjust settings without needing extensive technical knowledge.

Wiring an LCD Display

While programming is crucial, ensuring proper wiring is also essential for the display to function correctly.

1. Tools Required: LCD display, controller, wires, soldering iron, heat shrink tubing, screwdrivers, wire strippers, and electrical tape.

2. Connect Wires: Connect the wires from the display to the controller, ensuring correct polarity and secure connections.

3. Mount the Display: Secure the display in a visible location on the handlebars.

Proper wiring not only ensures that the display works correctly but also prevents electrical issues that could lead to safety hazards or damage to the bike's components.

Troubleshooting Common Issues

Sometimes, despite proper programming and wiring, issues may arise with the LCD display. Here are some common problems and solutions:

- Display Not Turning On: Check the power connection and ensure the battery is fully charged.

- Incorrect Readings: Verify that wheel size and voltage settings are correct.

- Display Brightness Issues: Adjust the background luminance setting.

Troubleshooting these issues can save time and frustration, ensuring that you can enjoy your ride without interruptions.

Customizing Your Electric Bike Experience

Beyond programming the LCD display, there are many ways to customize your electric bike experience. This includes upgrading components like motors, batteries, and brakes to enhance performance and safety. Additionally, accessories such as lights, fenders, and cargo racks can be added to make the bike more practical for daily use.

Customization allows riders to tailor their bikes to specific needs, whether it's commuting, off-road adventures, or casual rides around town. By combining these modifications with a well-programmed LCD display, you can create a personalized riding experience that suits your lifestyle and preferences.

Conclusion

Programming an electric bike's LCD display is a straightforward process that enhances the riding experience by ensuring accurate readings and optimal performance. By following the steps outlined for different display models, you can customize your bike to suit your preferences. Remember to consult the user manual for specific instructions tailored to your display model. Additionally, exploring customization options can further enhance your electric bike experience, making it more enjoyable and practical for various uses.

Frequently Asked Questions

1. How Do I Access the Settings Menu on My Electric Bike LCD Display?

To access the settings menu, typically press and hold specific buttons (e.g., Up and Down arrows) for a few seconds. The exact method may vary depending on the display model.

2. What Are the Common Parameters to Adjust in an Electric Bike LCD Display?

Common parameters include display brightness, unit of distance (km/miles), battery voltage, wheel size, and speed limit.

3. How Do I Ensure Accurate Speed Readings on My Electric Bike?

To ensure accurate speed readings, adjust the speed measuring magnet setting according to your motor type (e.g., direct drive or geared).

4. Can I Program My Electric Bike LCD Display Without the User Manual?

While it's possible to program without a manual, having one is recommended for specific instructions tailored to your display model. Many online resources and videos can also guide you through the process.

5. What Tools Are Required for Wiring an Electric Bike LCD Display?

Tools needed include the LCD display, controller, wires, soldering iron, heat shrink tubing, screwdrivers, wire strippers, and electrical tape.
