● Introduction to Programming a 16x2 LCD Display
● Pin Configuration of a 16x2 LCD Display
● Connecting the LCD to Arduino
>> 1. What is the difference between 4-bit and 8-bit mode for LCD displays?
>> 2. How do I adjust the contrast of the LCD display?
>> 3. Can I use a 16x2 LCD display without a potentiometer?
>> 4. How do I create custom characters on a 16x2 LCD display?
>> 5. What is the purpose of the LiquidCrystal library in Arduino?
Programming a 16x2 LCD display is a fundamental skill for anyone interested in electronics and microcontrollers, particularly when working with Arduino. These displays are widely used due to their affordability and ease of integration into various projects. In this article, we will explore how to connect and program a 16x2 LCD display using an Arduino board.
A 16x2 LCD display is a type of liquid crystal display that can show 16 characters in each of its two rows, providing a total of 32 characters of information. It is commonly used to display alphanumeric information in various electronic devices. The display is controlled by a microcontroller, which sends commands and data to the display to manage what is shown on the screen.
A standard 16x2 LCD display has 16 pins, typically organized into two rows of eight pins each. These pins are used for power supply, data communication, and control signals. The pinout includes:
- VCC and GND: Power supply pins. VCC connects to the positive voltage supply (usually 5V), and GND connects to the ground.
- VEE: Contrast pin, often connected to a potentiometer. This pin adjusts the contrast of the display, allowing you to optimize the visibility of the characters.
- RS: Register Select pin, used to switch between command and data registers. When RS is low, the LCD receives commands; when RS is high, it receives data.
- R/W: Read/Write pin, selects reading or writing mode. In most applications, this pin is connected to GND to ensure the LCD is always in write mode.
- E: Enable pin, enables writing to the registers. This pin must be pulsed high to execute commands or write data.
- D0-D7: Data pins, used for sending data or commands. These pins can be used in either 4-bit or 8-bit mode.
- A and K: Backlight pins for LED backlighting. These pins are used to connect an LED backlight, which enhances visibility in low-light conditions.

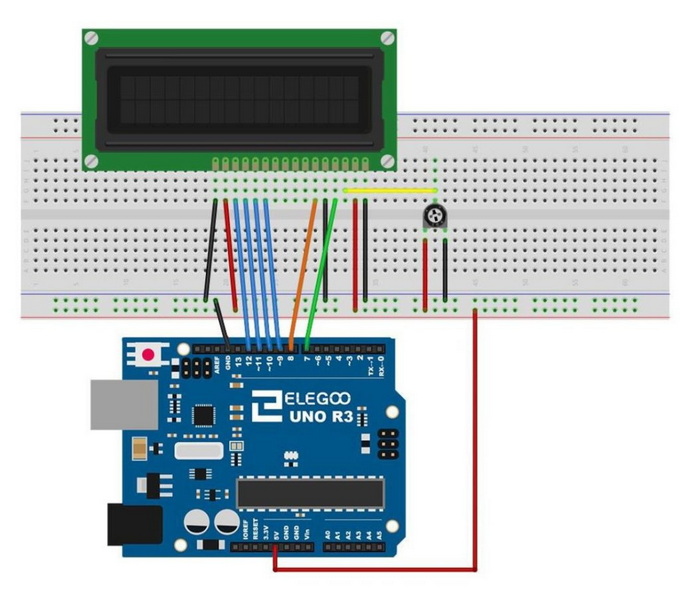

To connect the LCD to an Arduino, you typically need a breadboard, jumper wires, and a potentiometer for adjusting the contrast. Here is a simplified overview of the connections:
1. VCC to Arduino's 5V.
2. GND to Arduino's GND.
3. VEE to the middle pin of a potentiometer (other ends to VCC and GND).
4. RS to any digital pin (e.g., 12).
5. R/W to GND (since we're only writing).
6. E to any digital pin (e.g., 11).
7. D4-D7 to digital pins (e.g., 5, 4, 3, 2).
8. A and K for backlight (optional).
For a detailed wiring diagram, you can refer to tutorials available online.
Programming the LCD involves using the LiquidCrystal library, which comes pre-installed with the Arduino IDE. Here's a brief overview of key functions:
- `lcd.begin(16, 2)`: Initializes the LCD with 16 columns and 2 rows.
- `lcd.print("Message")`: Prints a message on the LCD.
- `lcd.setCursor(x, y)`: Sets the cursor position before printing.
- `lcd.clear()`: Clears the LCD screen.
These functions make it easy to control and interact with the LCD display.
1. Displaying Sensor Data: Use the LCD to display data from sensors like temperature or humidity sensors. This is particularly useful in environmental monitoring projects.
2. Interactive Menus: Create interactive menus where users can select options using buttons. This is useful for projects that require user input.
3. Custom Characters: Design and display custom characters or symbols on the LCD. This can be used to create unique icons or logos for your projects.
For projects where pin conservation is crucial, I2C LCD modules can be used. These modules require only two pins (SCL and SDA) for communication, making them ideal for projects with limited pin availability. I2C modules use a different library, typically the `LiquidCrystal_I2C` library, which simplifies the connection process by reducing the number of wires needed.
Common issues include:
- No Display: Check connections and contrast. Ensure that the VEE pin is properly connected to a potentiometer and that the contrast is adjusted correctly.
- Incorrect Characters: Ensure correct ASCII values are sent. If characters appear garbled, check that the RS pin is correctly set for data mode.
- Scrolling Text: You can create scrolling text effects by using the `lcd.scrollDisplayLeft()` or `lcd.scrollDisplayRight()` functions. This is useful for displaying long messages.
- Blinking Cursor: Use the `lcd.blink()` function to create a blinking cursor, which can be useful for indicating where input is expected.
Programming a 16x2 LCD display with Arduino is straightforward and offers a lot of creative possibilities for displaying information in various projects. By understanding the pinout, connection process, and basic programming functions, you can easily integrate LCD displays into your Arduino projects.
In 4-bit mode, only four data pins (D4-D7) are used, while in 8-bit mode, all eight data pins (D0-D7) are used. The 4-bit mode is preferred for most applications due to fewer required connections without a noticeable performance difference.
The contrast is adjusted using a potentiometer connected to the VEE pin. Turning the potentiometer changes the voltage at VEE, which affects the display's contrast.
Yes, you can use a fixed resistor or even connect VEE directly to GND for maximum contrast, but this may not provide optimal viewing conditions.
Custom characters can be created using the `createChar()` function in the LiquidCrystal library. You define the character's pixel pattern and assign it a unique character code.
The LiquidCrystal library simplifies the process of controlling LCD displays by providing functions like `begin()`, `print()`, and `setCursor()`, making it easier to interact with the display.
