Organic Light-Emitting Diode (OLED) screens have revolutionized the world of displays, powering everything from smartphones and TVs to futuristic wearables and automotive dashboards. While commercial OLED manufacturing is a high-tech, industrial process, it's possible to create simple OLED displays in a home lab or maker space with the right knowledge, materials, and patience.
This in-depth guide will walk you through the science, materials, step-by-step fabrication, and practical tips for making your own OLED screen. You'll gain a thorough understanding of the process, discover advanced techniques, and learn how to troubleshoot common issues. At the end, you'll find a conclusion and answers to the most common questions about DIY OLED displays.
An OLED is a display technology that uses organic compounds to emit light when an electric current passes through them. Unlike traditional LCDs, OLEDs do not require a backlight, allowing for thinner, lighter, and even flexible screens. The core structure of an OLED display includes:
- A substrate (glass or plastic)
- Anode and cathode (conductive layers)
- Organic layers (emissive and conductive)
- Encapsulation layer for protection
When voltage is applied, electrons and holes are injected from the electrodes into the organic layers. They recombine in the emissive layer, releasing energy as visible light. The color of the emitted light depends on the organic compounds used. This mechanism allows OLEDs to produce deep blacks, vibrant colors, and high contrast ratios, making them highly desirable for modern displays.
There are several types of OLED displays, including:
- Passive Matrix OLED (PMOLED): Suitable for small displays, simple to fabricate.
- Active Matrix OLED (AMOLED): Used in smartphones and TVs, requiring more complex circuitry.

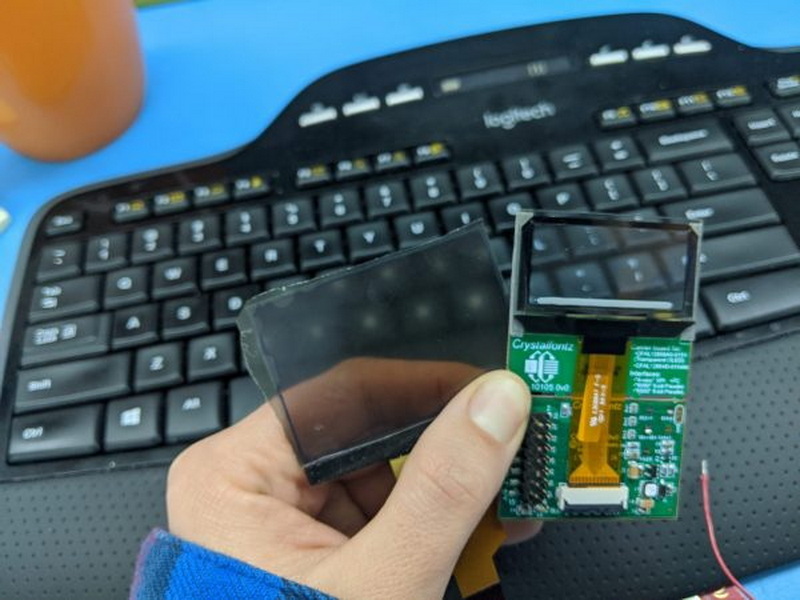

- Transparent OLED: Allows light to pass through, enabling see-through displays.
- Flexible OLED: Built on plastic substrates for bendable or foldable screens.
Understanding these types helps you choose the right approach for your DIY project.
Before you start, gather the following materials and tools:
- Substrate: Glass (ITO-coated) or flexible plastic
- Anode: Indium Tin Oxide (ITO) layer
- Cathode: Aluminum or silver
- Organic Compounds: Alq3 (Tris(8-hydroxyquinolinato)aluminum) or similar
- Encapsulation: Thin glass cover or thin-film encapsulation materials
- Adhesives: UV-curable glue
- Cleaning Agents: Isopropyl alcohol, O2 plasma cleaner (optional)
- Vacuum Chamber: For thermal evaporation of organic layers
- Spin Coater or Centrifuge: For even layer application
- Photolithography Equipment: For patterning electrodes
- Soldering Iron: For attaching electrical connections
- 3D Printer (optional): For making custom parts or masks
- Microscope: For inspection
- Glove Box (optional): For working in an oxygen/moisture-free environment
Safety Note: Many chemicals and processes involved in OLED fabrication can be hazardous. Always use appropriate personal protective equipment (PPE), work in a well-ventilated area, and follow safety guidelines for each material and tool.
- Choose your substrate: For most DIY projects, ITO-coated glass is preferred for its transparency and conductivity. Flexible plastic substrates are used for flexible OLEDs but require more careful handling.
- Clean the substrate: Use isopropyl alcohol and, if available, O2 plasma cleaning to remove any contaminants. This ensures good adhesion and uniformity of subsequent layers. Cleanliness is critical; even microscopic dust can cause defects in the OLED.
- Photolithography: Use a resin 3D printer or photolithography to create masks for the electrode pattern. This defines the areas where current will flow and light will be emitted.
- Etching: Pattern the ITO layer to define the anode regions. This step is essential for creating pixel structures in more complex displays.
- Vacuum Thermal Evaporation: Place the substrate in a vacuum chamber. Heat the organic material (like Alq3) until it vaporizes and deposits as a thin film on the substrate. This method produces highly uniform, high-quality films.
- Spin Coating Alternative: For small-scale projects, dissolve the organic compound in a suitable solvent and spin-coat or centrifuge it onto the glass for an even layer. This method is more accessible for hobbyists but may result in less uniform films.
- Thermal Evaporation: In the vacuum chamber, deposit a thin layer of aluminum or silver as the cathode over the organic layer. The thickness of this layer is critical for optimal performance.
- Masking: Use a mask to ensure the cathode covers only the required areas, avoiding electrical shorts and ensuring proper pixel definition.
- Protect the OLED: Seal the device immediately to prevent exposure to oxygen and moisture, which degrade the organic layers and drastically reduce the lifespan of the OLED.
- Encapsulation Methods: Use thin-film encapsulation or a glass cover with UV-curable adhesive. For flexible OLEDs, use barrier films designed for flexibility and moisture resistance.
- Cutting: If you started with a large substrate, cut it into individual panels using a glass cutter or laser cutter.
- Electrical Connections: Attach wires or connectors to the anode and cathode for power supply. Soldering must be done carefully to avoid damaging the delicate layers.
- Power Up: Apply a low voltage and observe the emission. If it doesn't light up, check for shorts, layer uniformity, or contamination.
- Debugging: Use a microscope to inspect for pinholes, defects, or incomplete coverage. If problems persist, re-examine each fabrication step for possible errors.

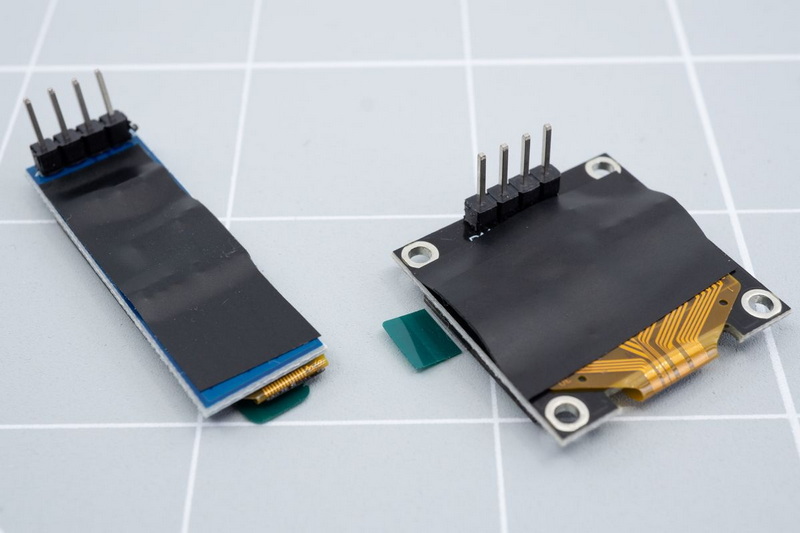

- Use plastic substrates instead of glass to create bendable displays.
- Additional barrier layers are needed to maintain durability and prevent moisture ingress, as flexible substrates are more permeable than glass.
- Flexible OLEDs open possibilities for wearable technology, rollable screens, and innovative product designs.
- For large-scale or patterned displays, inkjet printing can deposit organic materials directly onto the substrate, reducing waste and cost.
- This technique enables high-resolution patterning and is being adopted in commercial OLED manufacturing for its scalability and efficiency.
- For longer-lasting displays, consider advanced encapsulation techniques like thin-film encapsulation or getter materials to absorb residual moisture.
- Hermetic sealing is essential for outdoor or high-humidity environments, as even small amounts of moisture can quickly degrade OLED performance.
- By stacking different organic compounds or using patterned deposition, you can create multi-color or full-color OLED displays.
- Each color requires a specific organic emitter, and precise patterning is needed for high-resolution displays.
- Automating steps like spin coating, evaporation, and encapsulation can improve reproducibility and yield.
- Process control is vital for scaling up from single-pixel prototypes to larger, more complex displays.
- Material Sensitivity: OLED materials degrade rapidly when exposed to oxygen or moisture. Always work in a controlled environment and encapsulate immediately after fabrication.
- Uniformity: Achieving uniform thin films is critical for consistent brightness and color. Use spin coating or precise thermal evaporation to ensure even coverage.
- High Costs: Equipment like vacuum chambers and ITO glass can be expensive for hobbyists. Look for used lab equipment, collaborate with makerspaces, or consider simplified fabrication methods for educational purposes.
- Scaling Up: Producing larger panels requires precise alignment and uniform deposition, which is challenging without industrial tools. Start with small-scale prototypes to master the process before attempting larger displays.
- Defect Management: Dust, pinholes, and layer imperfections can cause dark spots or short circuits. Maintain a clean workspace and inspect each layer under magnification.
OLED technology's versatility allows for a wide range of applications beyond just consumer electronics.
- Wearable Devices: Custom displays for smartwatches, fitness trackers, or health monitors.
- Prototyping: Rapid development of new display concepts, unique form factors, or user interfaces for research and development.
- Art Installations: Flexible or transparent displays for creative projects, interactive art, or museum exhibits.
- Educational Tools: Demonstrating advanced materials science, physics, and electronics principles in classrooms or workshops.
- Custom Instrumentation: Creating specialized readouts for scientific equipment, laboratory devices, or hobbyist electronics.
- Smart Home Devices: Integrating displays into home automation systems, custom controllers, or IoT devices.
Making your own OLED screen is a challenging but rewarding project that bridges chemistry, physics, and electronics. While industrial OLED fabrication is complex and requires specialized equipment, simplified DIY versions are possible for small-scale, educational, or experimental purposes. By understanding the materials, mastering each fabrication step, and addressing the unique challenges of OLED technology, you can create functional organic displays tailored to your needs.
Whether you're a maker, educator, or enthusiast, building an OLED screen from scratch offers deep insight into one of today's most exciting display technologies—and opens up new creative possibilities for your projects. The process not only enhances your technical skills but also fosters innovation and creativity in the rapidly evolving world of display technology.
You'll need a transparent conductive substrate (often ITO-coated glass), organic emissive materials (like Alq3), metals for electrodes (aluminum or silver), and encapsulation materials to protect the device from moisture and oxygen.
OLED materials degrade quickly when exposed to oxygen or moisture, leading to reduced performance or failure. Encapsulation seals the device, extending its lifespan and reliability.
Yes, but it's more challenging. Use plastic substrates and ensure all layers remain flexible. Additional barrier layers are required to maintain durability and prevent moisture ingress.
The biggest challenges are material sensitivity to oxygen/moisture, achieving uniform thin films, high equipment costs, and scaling up to larger panels.
Inkjet printing allows for direct, patterned deposition of organic materials, reducing waste and cost, and enabling high-resolution, large-area displays.
