LCD (Liquid Crystal Display) technology is widely used in various devices, from smartphones to televisions, due to its high image quality, fast response times, and low power consumption. Making an LCD display work involves understanding its basic components, connection methods, and programming techniques. This article will guide you through the process of setting up and using LCD displays with microcontrollers like Arduino.

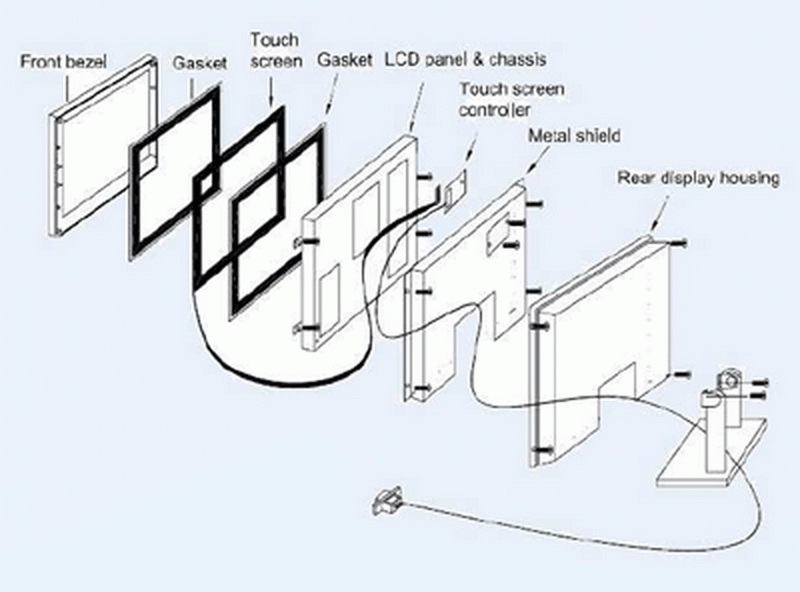

An LCD display consists of several key components:
- Display Panel: This is the visible part of the LCD where images are displayed.
- Controller: Manages the data and commands sent to the display.
- Backlight: Provides light to enhance visibility, especially in low-light conditions.
- Data and Control Pins: These include pins for data input, control signals, and power supply.
Understanding these components is crucial for effective setup and troubleshooting.
Connecting an LCD display to an Arduino board is a common practice for beginners and experienced users alike. Here's a step-by-step guide:
For beginners, a 16x2 LCD display is recommended due to its simplicity and widespread availability. It can display two rows of sixteen characters each. This size is ideal for displaying simple messages or data from sensors.
You will need:
- 16x2 LCD Display
- Arduino Uno or Similar Board
- Breadboard
- Jumper Wires
- 10k Ohm Potentiometer (for contrast adjustment)
- 220 Ohm Resistor (for backlight)
1. Power Supply: Connect LCD pins 1 (VSS) and 16 (K) to Arduino GND, and pins 2 (VDD) and 15 (A) to Arduino 5V.
2. Contrast Adjustment: Connect pin 3 (VO) to the middle pin of the potentiometer. The other two pins of the potentiometer go to 5V and GND.
3. Data and Control Pins: Connect pin 4 (RS) to Arduino digital pin 12, pin 5 (RW) to GND, pin 6 (E) to digital pin 11, and pins 7-14 (DB0-DB7) to digital pins 2-9.
To simplify the programming process, use the LiquidCrystal library in Arduino IDE. This library allows you to easily control the LCD display by sending commands and data. You can initialize the LCD, set the cursor position, and print text using simple functions.
TFT (Thin-Film Transistor) LCDs offer higher resolution and color capabilities compared to character LCDs. They are ideal for displaying images and complex graphics.
1. SPI Interface: Connect TFT LCD pins to Arduino's SPI pins (MOSI, MISO, SCK, CS).
2. Voltage Level Adjustment: Use voltage dividers for data lines if necessary, as most TFT LCDs operate at 3.3V.
To display images on a TFT LCD, you need to convert the image into a format compatible with the LCD. Here's how:
1. Convert the Image: Use software like LCD Image Converter to convert the image into a hexadecimal data array.
2. Store on SD Card: Save the data array in a text file and store it on an SD card.
3. Connect SD Card to Arduino: Use an SD card breakout board connected to Arduino's SPI pins.
4. Program Arduino: Use a library like Adafruit's TFT library to read the image data from the SD card and display it on the TFT LCD.
Displaying images on TFT LCDs opens up possibilities for creating interactive and visually appealing projects.
LCD displays can be used in a variety of advanced applications, including:
You can use an LCD display to show real-time weather data, such as temperature, humidity, and pressure, collected from sensors.
LCDs can be used to display navigation information, sensor readings, or even simple graphics for robots.
LCD displays can be integrated into home automation systems to show status updates, control menus, or even live video feeds.
LCDs are great for educational projects, allowing students to visualize data from experiments or simulations.
- White Screen: Check voltage levels and ensure proper connections. Use voltage dividers if necessary.
- No Display: Verify that the backlight is working and adjust the contrast.
- Incorrect Data: Ensure that data pins are not reversed.
Troubleshooting is an essential skill when working with LCD displays, as small mistakes can lead to significant issues.
Making an LCD display work involves understanding its components, connecting it correctly to a microcontroller like Arduino, and programming it using appropriate libraries. Whether you're using a character LCD or a TFT LCD, following these steps will help you achieve your goals. With the ability to display text, images, and even interactive menus, LCD displays are versatile tools for a wide range of projects.
Answer: Character LCDs are simpler and display text, while TFT LCDs offer higher resolution and color capabilities, making them suitable for images and graphics.
Answer: Use a potentiometer connected between 5V and GND, with the middle pin connected to the LCD's contrast pin (VO).
Answer: Yes, but you may need to use voltage dividers for the data lines to avoid damaging the LCD.
Answer: Convert the image into a hexadecimal data array, store it on an SD card, and use a library like Adafruit's TFT library to display it.
Answer: The LiquidCrystal library is commonly used for controlling character LCDs with Arduino.
