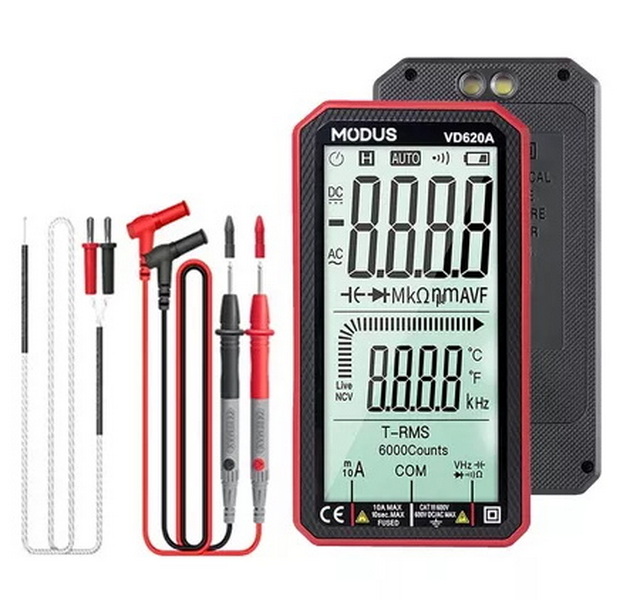

Multimeters are indispensable tools for electricians, engineers, and DIY enthusiasts, providing crucial measurements for electrical circuits. However, over time, the LCD displays of these devices can develop issues such as black spots, dim screens, or missing segments, making it difficult to read measurements. Fortunately, many of these problems can be repaired with basic tools and techniques. This article will guide you through the process of fixing common issues with multimeter LCD displays, including cleaning, replacing components, and troubleshooting.
1. Black Spots: These often occur due to aging, moisture exposure, or physical damage.
2. Missing Segments: This issue can arise from faulty connections or damaged LCD components.
3. Dim Screen: This might be caused by a failing backlight or dirty contacts.
- Screwdriver Set: For opening the multimeter casing.
- Isopropyl Alcohol (IPA): For cleaning contacts and surfaces.
- Cotton Swabs or Cloth: For applying IPA and cleaning.
- Utility Knife or Blade: To remove layers from the LCD.
- Replacement Materials: Such as polarizing film or reflective sheets (if necessary).
1. Turn Off the Device: Ensure that the multimeter is powered off and remove any batteries.
2. Open the Casing: Use a screwdriver to remove screws from the back of the multimeter. Carefully lift off the casing.
- Check for Moisture Damage: Look for signs of moisture or corrosion on the contacts and inside the display.

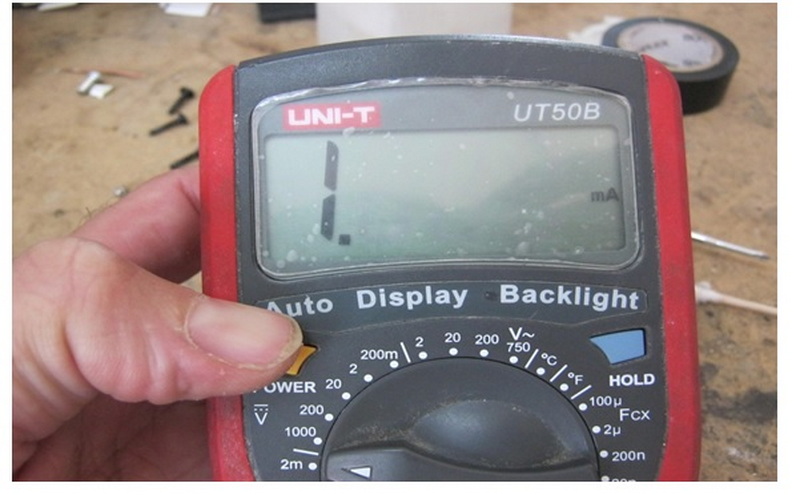

- Identify Black Spots: Note where black spots are located. These may indicate areas where the liquid crystal has failed or where light cannot pass through effectively.
1. Use Isopropyl Alcohol: Dampen a cotton swab with IPA and gently clean both sides of the elastomer contacts that connect to the LCD.
2. Dry Thoroughly: Allow everything to dry completely before reassembly.
1. Carefully Peel Off Layers: If your LCD has a polarizing filter that is damaged, use a utility knife to carefully peel it off. This step requires precision; take your time to avoid damaging underlying layers.
2. Replace with New Film: If you have replacement polarizing film, cut it to size and apply it carefully over the LCD.
1. Reattach the LCD Assembly: Once cleaned and repaired, place the LCD back into its housing.
2. Close Up the Casing: Securely screw back all parts of the multimeter casing.
3. Test Functionality: Reinsert batteries and turn on your multimeter to check if repairs were successful.
- Cause: Faulty connections or damaged LCD components.

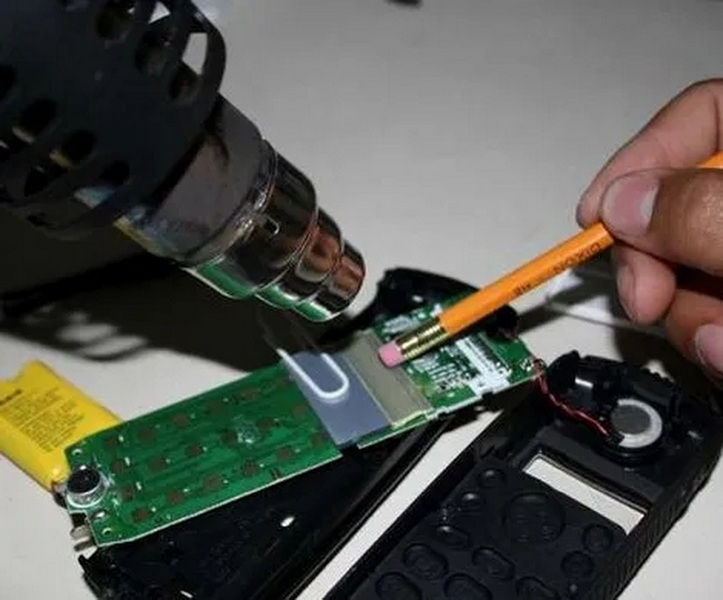

- Solution: Check and clean the conducting polymer strip connecting the LCD to the circuit board. Ensure it makes solid contact with both the LCD and the circuit board.
- Cause: Failing backlight or dirty contacts.
- Solution: Clean the contacts with IPA and check the backlight for any signs of damage. Replace the backlight if necessary.
To extend the life of your multimeter's LCD display, it's essential to handle it with care. Avoid exposing it to moisture, extreme temperatures, or physical impacts. Regular cleaning of the display and contacts can also prevent issues from arising.
For more complex issues, such as a completely non-functional LCD, you may need to replace the entire display module. This typically involves soldering new components onto the circuit board, which requires more advanced electronics skills. Before attempting such repairs, ensure you have the necessary tools and experience.
When working with electronic devices, safety is paramount. Always ensure the device is powered off and disconnected from any power source before starting repairs. Use protective gear like gloves and safety glasses to prevent injury. Static electricity can also damage sensitive components, so consider using an anti-static wrist strap.
The environmental impact of electronic waste is significant, and repairing devices can help reduce this burden. By extending the life of your multimeter, you contribute to sustainable practices and reduce the need for new, resource-intensive devices.
Repairing your multimeter can be cost-effective compared to purchasing a new one. While replacement parts may be needed, they are often less expensive than buying a new multimeter. Additionally, the skills you develop during the repair process can be applied to other electronic devices, further increasing the value of your efforts.
The process of repairing a multimeter LCD display offers valuable learning opportunities. You can gain insights into how electronic devices are constructed and how they function, which can enhance your understanding of electronics and troubleshooting techniques.
Repairing a multimeter LCD display can be a cost-effective and educational experience. By following the steps outlined above and using the right tools, you can extend the life of your multimeter and save money on replacement costs. Always ensure safety when working with electronic devices, and consider seeking professional help if you're unsure about any part of the process.
- Black spots on an LCD display typically occur due to aging, moisture exposure, or physical damage.
- Yes, many common issues can be repaired with basic tools and techniques. However, if you're unsure, it's best to consult a professional.
- If cleaning and replacing components doesn't fix the issue, or if there's significant physical damage, the LCD might be beyond repair.
- Yes, it is safe if you follow proper precautions and ensure the device is powered off and disconnected from any power source.
- Replacement parts can often be found online or through electronics suppliers. Check the manufacturer's website for specific recommendations.
