LCD (Liquid Crystal Display) screens are widely used in various devices, including smartphones, laptops, televisions, and monitors. Despite their popularity, these screens can encounter several issues that may require repair. This comprehensive guide will walk you through common problems with LCD displays, how to diagnose them, and the steps to fix them. With detailed instructions and visual aids, you can learn how to troubleshoot and repair your LCD display effectively.
Before diving into the repair process, it's essential to understand the common issues that can occur with LCD displays:
- Dead Pixels: These are pixels that do not change color and appear as black dots on the screen.
- Backlight Issues: If the screen is dim or completely black while the device is functioning, the backlight may be faulty.
- Image Persistence (Burn-in): This occurs when a static image remains on the screen for too long, causing a ghost image to appear.
- Color Distortion: Colors may appear inaccurate or washed out due to loose connections or hardware issues.
- Flickering or Flashing Screen: This can be caused by a faulty connection or power supply issues.
To fix an LCD display, you will need some basic tools and materials:
- Screwdrivers (Phillips and flathead)
- Soldering iron
- Hot air gun or hair dryer
- Pencil eraser
- Cleaning cloths
- Isopropyl alcohol
- Replacement parts (if needed)
Before starting any repair, identify the specific issue with your LCD display. Here are some diagnostic tips:
1. Check for Dead Pixels: Use pixel-fixing software or gently massage the affected area with a soft cloth.
2. Inspect Backlight Functionality: Adjust brightness settings and check if the backlight is functioning.
3. Look for Color Distortion: Ensure all connections are secure and adjust color settings as necessary.
4. Test for Flickering: Check power connections and cables for damage.
Once you've diagnosed the problem, disassemble your device carefully:
1. Power Off the Device: Ensure that it is unplugged and turned off to avoid electric shock.
2. Remove Screws: Use a screwdriver to remove screws holding the front panel or back cover in place.
3. Gently Pry Open: Carefully use a plastic tool to pry open the casing without damaging it.
With the device open, inspect internal components:
1. Check Connections: Look for loose cables connecting the LCD screen to the motherboard.
2. Inspect for Damage: Examine components like the inverter and power supply for signs of damage.
If loose connections are identified:
1. Re-seat Cables: Disconnect and reconnect cables securely.
2. Use Heat for Zebra Connectors: If using zebra connectors, apply low heat with a hot air gun while pressing down gently with a pencil eraser to re-establish connections.

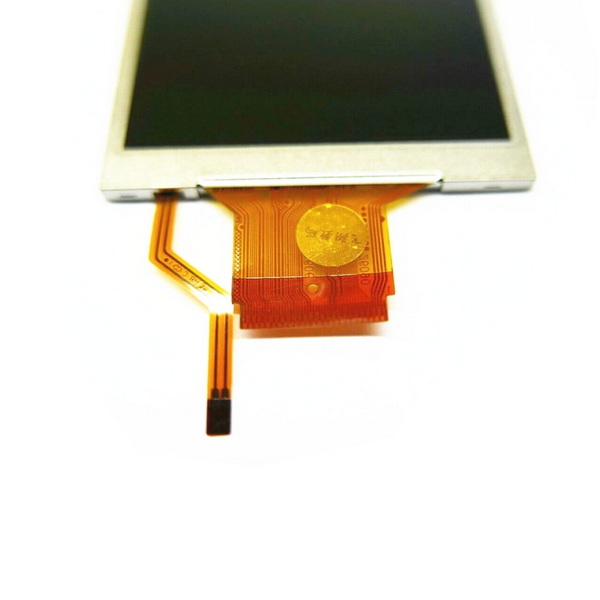

3. Soldering FPC Connections: For FPC (Flexible Printed Circuit) connections, use a soldering iron to heat up and press them back into place carefully.
If any components are found to be defective:
1. Order Replacement Parts: Identify part numbers for defective components and order replacements online.
2. Install New Parts: Follow disassembly steps in reverse to install new parts securely.
3. Reassemble Device: Once repairs are complete, carefully reassemble your device by aligning all components as they were originally.
After reassembly:
1. Power On the Device: Turn on your device to check if the issue has been resolved.
2. Run Diagnostic Tests: Use software tools to test for dead pixels or color accuracy.
While we've covered general steps for fixing an LCD display, certain problems may require more specialized approaches:
Dead pixels can be particularly frustrating as they disrupt visuals significantly. Here's how you might address this issue:
- Pixel-Fixing Software: Use programs designed specifically to cycle colors rapidly across your screen; this can sometimes "wake" stuck pixels.
- Gentle Pressure Method: Lightly press on the dead pixel with a soft cloth while turning on and off the display; this may help revive it without causing further damage[7].
Backlight problems can manifest as dim screens or complete darkness:
- Brightness Adjustment: First, ensure that brightness settings are correctly adjusted.
- Inspect Inverter and LED Strips: If brightness adjustments don't work, check if the inverter is functioning properly or if LED strips need replacement[9].
Color distortion can make images look inaccurate:
- Connection Checks: Loose cables often cause this issue; ensure all connections are secure.
- Calibration Settings: Adjust color settings in your device's display menu; sometimes recalibrating can resolve these problems[10].
Taking care of your LCD display can prolong its lifespan and reduce repair frequency:
- Avoid Direct Sunlight Exposure: Prolonged exposure can cause overheating and damage.
- Use Screen Protectors: These can prevent scratches and physical damage.
- Regular Cleaning: Use appropriate cleaning solutions designed for electronics; avoid harsh chemicals that could damage screens[6].
Repairing an LCD display can be a straightforward process if you follow these steps carefully. By diagnosing issues accurately and using proper techniques for repairs, many common problems can be resolved without needing professional help. Always remember that safety comes first; ensure your device is powered off before beginning any repairs.
You can try using pixel-fixing software or gently massage the area with a soft cloth. If these methods do not work, you may need to replace the screen.
Check brightness settings first; if that doesn't work, inspect internal components like the inverter for damage and replace them if necessary.
Image persistence is usually caused by displaying static images for too long at high brightness levels. To mitigate this issue, avoid leaving static images on display for extended periods.
Yes, many common issues can be repaired at home with basic tools and knowledge of disassembly processes; however, exercise caution while handling sensitive components.
If you encounter severe damage or complex issues that require specialized tools or skills beyond your comfort level, it's best to consult a professional technician.
