Displaying variable values on an LCD screen is a common task in electronics projects, especially when working with microcontrollers like Arduino or Raspberry Pi. This guide provides a comprehensive explanation of how to achieve this, along with detailed steps and answers to frequently asked questions.
LCD screens are widely used to display information such as text, numbers, or graphical data. They come in various types, including 16x2 character displays and touchscreen LCDs. In this tutorial, we focus on the process of displaying variable values effectively.
- Versatility: LCDs can display a wide range of data types.
- Low Power Consumption: Ideal for battery-powered devices.
- Compact Size: Suitable for projects with limited space.
- Character LCDs: These are simple displays like the 16x2 or 20x4 models. They are ideal for basic text and numerical output.
- Graphical LCDs: These allow for more complex visuals, including graphs and images.
- Touchscreen LCDs: These combine display and input functionalities.
1. Microcontroller: Arduino, Raspberry Pi, or similar devices.
2. LCD Module: The screen itself.
3. Connecting Wires: For interfacing the LCD with the microcontroller.
4. Power Supply: Typically 5V or 3.3V.
Before displaying any variable value, you need to initialize the LCD module:

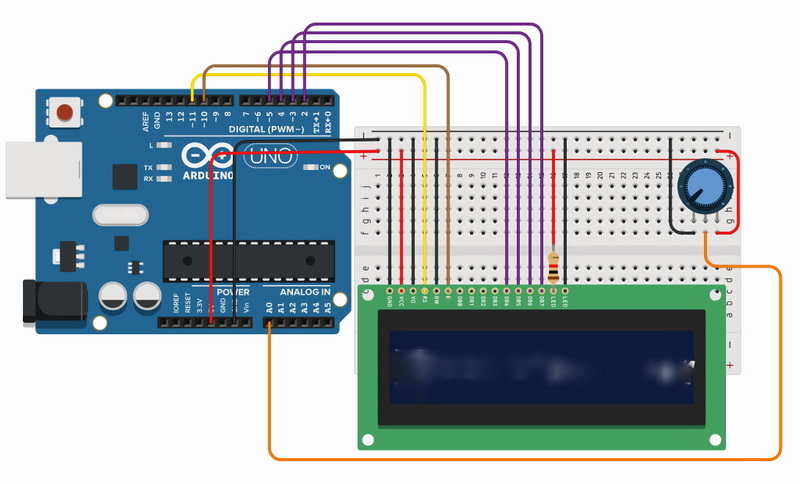

- Connect the pins correctly (e.g., RS, E, D4-D7 for a 16x2 LCD).
- Use libraries like `LiquidCrystal` for Arduino or equivalent for other platforms.
Variables can represent sensor readings, user inputs, or calculated values. Ensure the data is processed correctly before sending it to the LCD.
Formatting ensures that values are displayed cleanly:
- Convert floating-point numbers to strings if necessary.
- Use functions like `sprintf` for formatting.
Use commands like `lcd.print()` in Arduino to send data to the screen:
- Position the cursor using `lcd.setCursor()` for precise placement.
- Clear previous data using `lcd.clear()` or overwrite it with spaces.
When updating values on the screen, artifacts from previous data may remain visible.
- Solution: Clear the specific area before writing new data.
Floating-point numbers may not display correctly.
- Solution: Convert them into strings using formatting functions.
Text may appear in unintended positions.
- Solution: Use `lcd.setCursor()` to control placement accurately.
Text may be hard to read due to low contrast.
- Solution: Adjust the contrast potentiometer on the LCD module.
Using the wrong voltage can damage the LCD.
- Solution: Ensure the power supply matches the LCD's requirements.

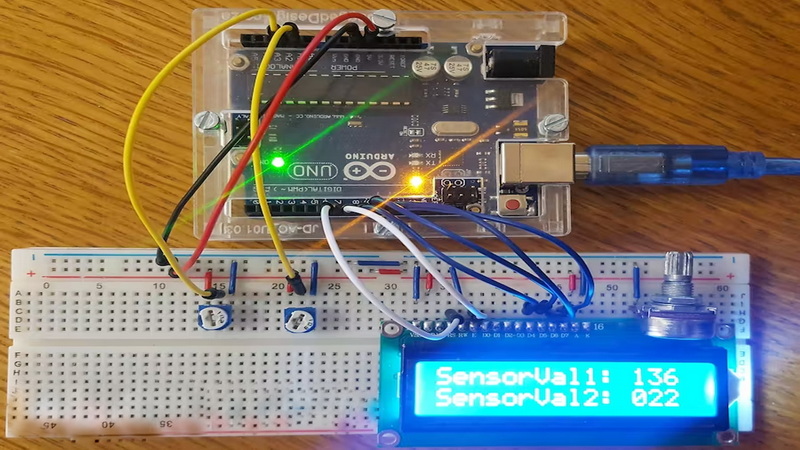

You can display multiple variables by organizing them into rows and columns:
- Use `lcd.setCursor()` to position each variable correctly.
- Ensure there is enough space on the LCD for all variables.
For real-time data, update the values at regular intervals:
- Use a loop to continuously read and display new data.
- Implement delays or timers to control the update rate.
Some LCDs allow creating custom characters:
- Use the LCD's built-in character generation capabilities.
- Define these characters before displaying them.
- Check wiring connections.
- Ensure proper initialization in code.
- Confirm that your power supply matches the required voltage.
- Verify that data formatting is correct.
- Check for cursor misalignment.
- Adjust contrast if necessary.
- Character LCDs are ideal for simple text displays.
- Graphical LCDs are better for complex visuals.
- Useful for projects requiring user input.
- Often more expensive than non-touch LCDs.
Displaying variable values on an LCD screen is an essential skill for electronics enthusiasts and professionals. By understanding the basics of LCD operation, addressing common challenges, and applying advanced techniques, you can create effective and visually appealing displays for your projects.
Use the `lcd.clear()` function or overwrite old data with spaces to prevent overlapping characters.
Most libraries require you to convert floating-point numbers into strings using functions like `dtostrf` (Arduino) or similar methods.
Ensure you use `lcd.setCursor()` correctly. Specify both row and column positions before printing text.
Character LCDs display predefined characters in rows and columns, while graphical LCDs can render images and custom shapes.
Check wiring connections, ensure proper initialization in code, and confirm that your power supply matches the required voltage.
