Displaying text on a 16x2 LCD using an 8051 microcontroller is a fundamental skill in embedded systems development. This process involves understanding both the hardware and software aspects of interfacing the LCD with the microcontroller. In this article, we will delve into the details of how to accomplish this task, including the necessary hardware setup, software programming, and troubleshooting tips.
The 8051 microcontroller is a widely used chip in embedded systems due to its simplicity and versatility. It belongs to the MCS-51 family and is known for its ease of programming and robust performance. The 16x2 LCD, on the other hand, is a common display device used in various applications to display alphanumeric characters. It consists of two rows, each capable of displaying 16 characters.
To interface the 16x2 LCD with the 8051 microcontroller, you need to connect the LCD pins to the microcontroller's ports. The LCD has 16 pins, which include data pins (D0-D7), control pins (RS, RW, EN), and power pins (VCC, GND). The RS pin is used to select whether the data is a command or data to be displayed. The RW pin determines whether the LCD is in read or write mode, and the EN pin is used to enable or disable the LCD.

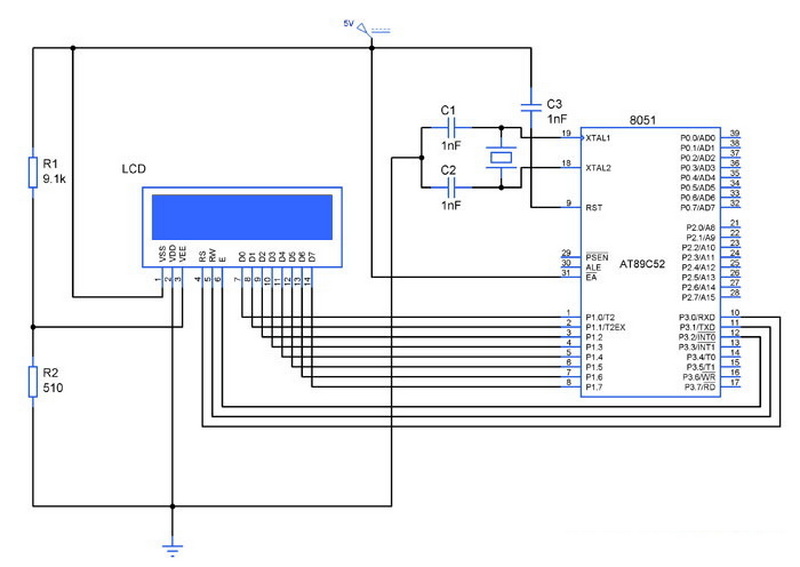

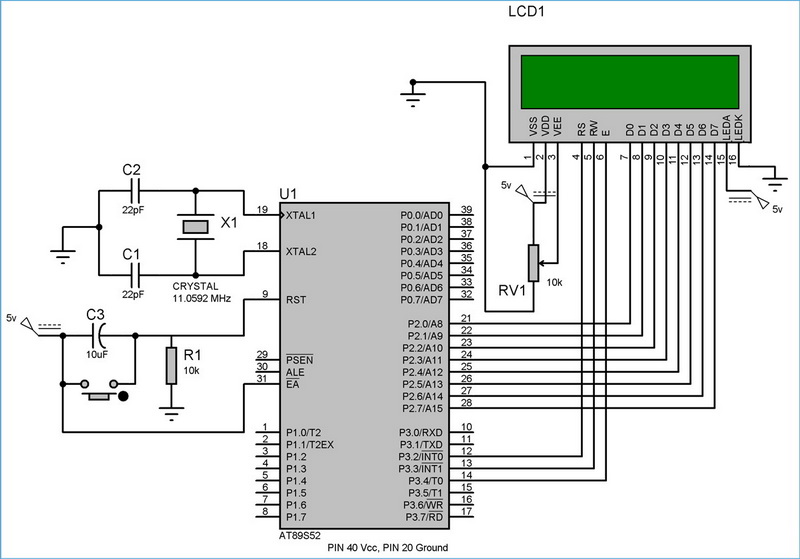

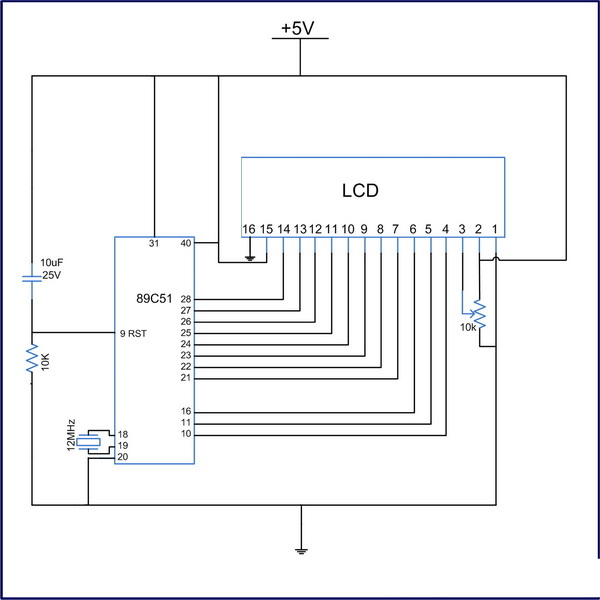

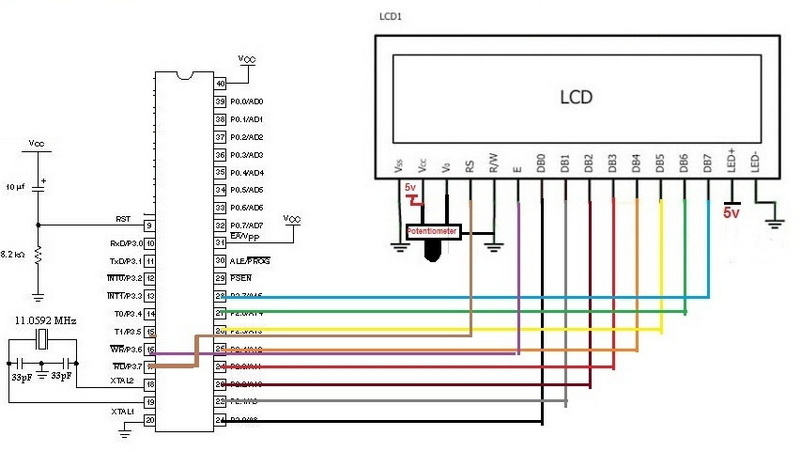

A typical circuit diagram involves connecting the data pins of the LCD to the data port of the microcontroller (e.g., Port 2), and the control pins to the control port (e.g., Port 3). The contrast adjustment is usually done using a potentiometer connected to the V0 pin of the LCD. This setup allows for efficient communication between the microcontroller and the LCD.
- Data Pins (D0-D7): These pins are used to send data to the LCD. In 4-bit mode, only D4-D7 are used, while in 8-bit mode, all eight pins are utilized.
Control Pins (RS, RW, EN):
- RS (Register Select): This pin selects whether the data is a command or character data. When RS is low, the data is considered a command, and when it is high, the data is treated as character data.
- RW (Read/Write): This pin determines whether the LCD is in read or write mode. When RW is low, the LCD is in write mode, and when it is high, it is in read mode.
- EN (Enable): This pin is used to enable or disable the LCD during data transfer. The data is latched into the LCD when EN goes from high to low.
- Power Pins (VCC, GND): These pins provide power to the LCD. VCC is connected to the positive supply voltage, and GND is connected to ground.
Programming the 8051 microcontroller to display text on the LCD involves several steps:
1. Initialization: The LCD needs to be initialized before it can display any text. This involves sending specific commands to set the display mode, clear the display, and set the cursor position.
2. Sending Commands: Commands are sent to the LCD to perform actions like clearing the display, setting the cursor position, or turning the display on/off.
3. Displaying Text: Once the LCD is initialized, you can display text by sending the ASCII values of the characters to the LCD.
Step 1: Initialize the LCD
- Send the command to set the display mode (e.g., 2-line mode).
- Clear the display.
- Set the cursor position to the beginning of the first line.
Step 2: Send Commands
- Use the RS pin to select whether the data is a command or character data.
- Use the EN pin to enable or disable the LCD during data transfer.
Step 3: Display Text
- Send the ASCII values of the characters you want to display.
- Custom Characters: To display custom characters, you need to store them in the Character Generator RAM (CGRAM) of the LCD. You can then display these characters by sending their corresponding character numbers.
- Display Modes: The LCD can operate in different display modes, such as 1-line or 2-line mode, depending on the application requirements.
- Cursor Control: You can control the cursor position and visibility using specific commands. This allows for dynamic text display and user interaction.
Sometimes, the LCD may not display text as expected. Here are some common issues and solutions:
Backlight On but No Display:
- Check the contrast adjustment.
- Ensure that the LCD is properly initialized.
- Verify that the data and control pins are correctly connected.
Black Squares Appear but Disappear on Reset:
- Check the power supply to the LCD.
- Ensure that the LCD is properly initialized and that the commands are sent correctly.
Incorrect Characters Displayed:
- Check the ASCII values being sent to the LCD.
- Ensure that the RS pin is correctly set for character data.
If the LCD does not display anything, check the power supply, contrast adjustment, and ensure that the LCD is properly initialized. Also, verify that the data and control pins are correctly connected.
To display custom characters, you need to store them in the Character Generator RAM (CGRAM) of the LCD. You can then display these characters by sending their corresponding character numbers.
The LCD can operate in either 4-bit or 8-bit mode. The choice depends on the application requirements and the number of available pins on the microcontroller.
To shift the display, you can use specific commands that move the cursor or the entire display left or right. This is useful for creating dynamic displays or scrolling text.
Yes, but you need to ensure that the operating conditions (temperature, humidity) are within the specifications provided by the manufacturer. Some LCDs are designed for use in harsh environments, so it's important to select the right type for your application.
Displaying text on a 16x2 LCD using an 8051 microcontroller is a straightforward process once you understand the hardware and software requirements. By following the steps outlined in this article and practicing with different projects, you can master this skill and apply it to various embedded systems applications.
- The typical resolution is 5x7 or 5x8 dot matrix for each character.
- It can display up to 32 characters at a time, divided into two rows of 16 characters each.
- The LCD can operate in either 4-bit or 8-bit mode.
- Check the power supply, contrast adjustment, and ensure proper initialization. Also, verify that the data and control pins are correctly connected.
- Yes, by storing them in the CGRAM and sending their character numbers.
