Displaying temperature and humidity on an LCD screen using Arduino is a popular project for beginners and experienced makers alike. This project involves connecting a DHT11 temperature and humidity sensor to an Arduino board and displaying the readings on an LCD display. Here's a comprehensive guide to help you get started.
Arduino is an open-source electronics platform that allows users to create interactive electronic projects. The DHT11 sensor is a low-cost, easy-to-use sensor for measuring temperature and humidity. Combining these components with an LCD display provides a simple way to visualize environmental data.
- Arduino Board (e.g., Arduino Uno or Arduino Nano)
- DHT11 Temperature and Humidity Sensor
- LCD Display (16x2 or similar)
- Breadboard
- Jumper Wires
- Power Supply
The DHT11 sensor has four pins: VCC, GND, DATA, and NC (not connected). Connect VCC to 5V on the Arduino, GND to GND, and the DATA pin to any digital pin on the Arduino (e.g., Pin 2). Ensure that the connections are secure and not loose, as this can lead to inaccurate readings.

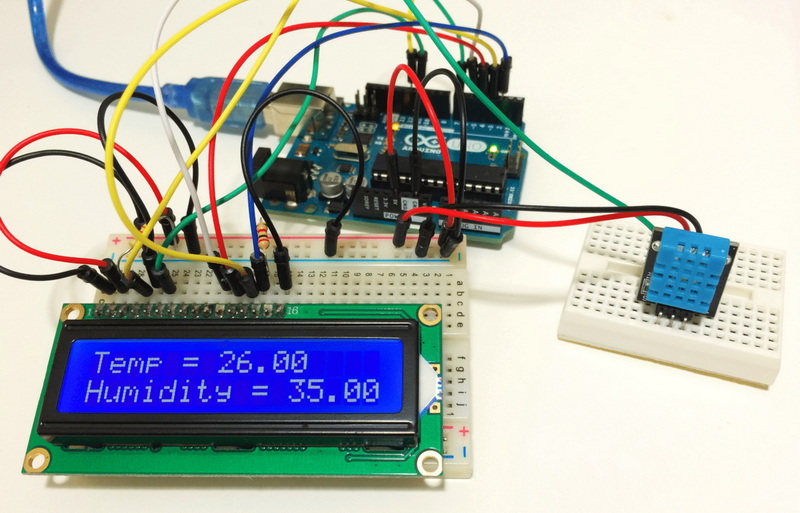

For a non-I2C LCD, connect the pins as follows:
- RS (Register Select) to Pin 7
- EN (Enable) to Pin 8
- D4 to Pin 9
- D5 to Pin 10
- D6 to Pin 11
- D7 to Pin 12
- VCC to 5V
- GND to GND

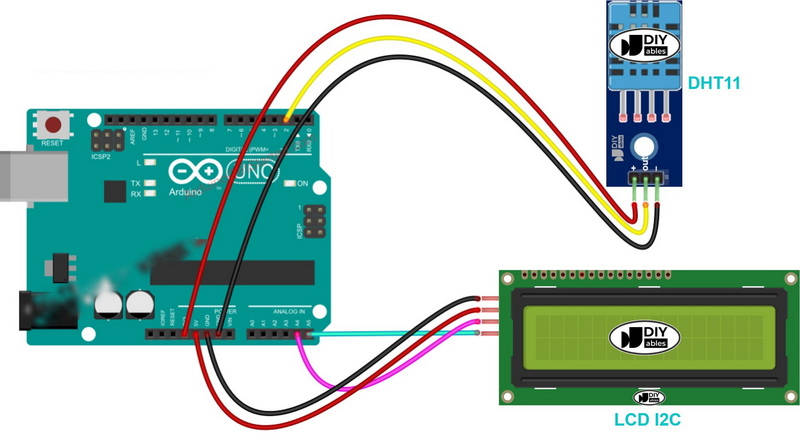

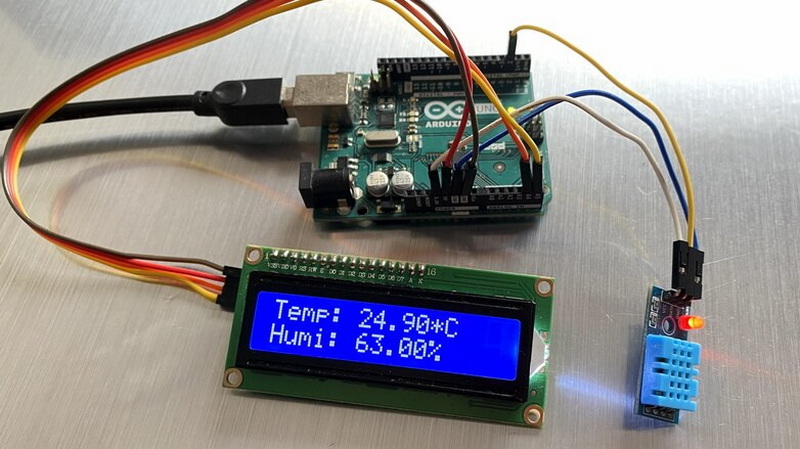

For an I2C LCD, you'll need only four wires: VCC, GND, SCL (Clock), and SDA (Data). I2C LCDs are more convenient as they require fewer pins, making the setup cleaner and easier to manage.
You'll need to install the DHT library and LiquidCrystal library for non-I2C LCDs or the LiquidCrystal_I2C library for I2C LCDs. The sketch will read temperature and humidity from the DHT11 and display it on the LCD. It's essential to include a delay between readings to avoid overwhelming the sensor and ensure accurate data.
1. Incorrect Connections: Double-check all connections to ensure they are secure and correct. Loose connections can lead to erratic behavior or no readings at all.
2. Library Installation: Make sure the necessary libraries are installed. If not, the sketch won't compile.
3. Sensor Accuracy: The DHT11 has limited accuracy; consider using a DHT22 for more precise readings. The DHT22 offers better temperature and humidity accuracy, making it suitable for applications requiring higher precision.
You can add LEDs to indicate temperature ranges. For example, a red LED for high temperatures and a blue LED for low temperatures. This feature enhances the project by providing visual alerts without needing to constantly monitor the LCD.
Using an ESP8266 or ESP32 board, you can create a web interface to monitor temperature and humidity remotely. This involves setting up a Wi-Fi connection and creating a simple web server that displays the sensor data. This feature is particularly useful for monitoring environmental conditions in different locations.
You can expand your project by integrating other sensors, such as light sensors or pressure sensors. This allows you to monitor a broader range of environmental conditions and create a more comprehensive monitoring system.
Adding an RTC module allows you to timestamp your readings, which is useful for logging data over time. This feature is essential for applications where historical data analysis is required.
Visual aids like diagrams and schematics can help in understanding the setup better. Here's a brief overview of what you might see in such visual aids:
- DHT11 Pinout: Shows how the sensor pins are connected to the Arduino.
- LCD Pinout: Illustrates how the LCD pins are connected to the Arduino.

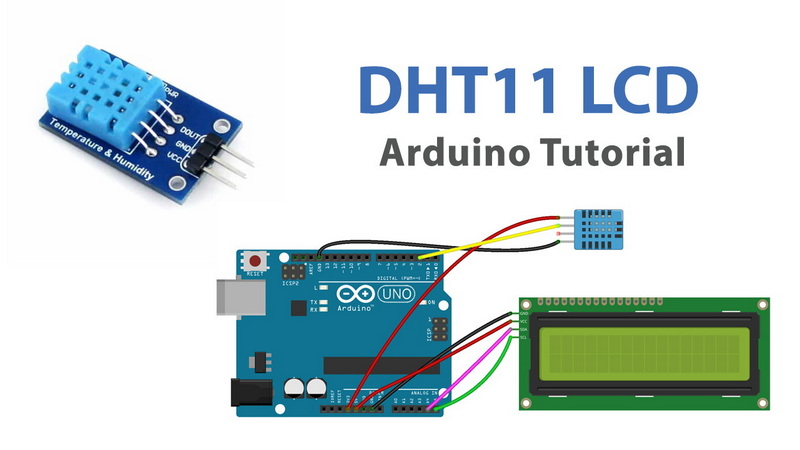

- Circuit Diagram: Provides a complete view of how all components are interconnected.
You can automate actions based on temperature and humidity levels. For example, you could turn on a fan when the temperature exceeds a certain threshold or activate a humidifier when the humidity drops too low. This automation can be achieved using relays connected to the Arduino.
Using an SD card module, you can log temperature and humidity data over time. This is useful for analyzing trends and patterns in environmental conditions. The data can be stored in a CSV file for easy import into spreadsheet software.
By integrating Bluetooth or Wi-Fi capabilities, you can remotely control the system. This allows you to adjust settings or retrieve data without physical access to the device.
Displaying temperature and humidity on an LCD with Arduino is a fun and educational project that introduces you to sensor integration and data visualization. By following the steps outlined here and experimenting with different components and features, you can create a robust environmental monitoring system. Whether you're a beginner or an experienced maker, this project offers a lot of room for expansion and customization.
The DHT11 sensor has a temperature accuracy of ±2°C and humidity accuracy of ±5% RH. This makes it suitable for general-purpose applications but not for precise measurements.
Reading sensor data too frequently can lead to inaccurate readings. A delay of 1-5 seconds is typical to ensure reliable data.
Yes, you can use I2C LCDs, which require fewer pins and are easier to connect. They simplify the setup and reduce the risk of wiring errors.
Using a more accurate sensor like the DHT22 or ensuring proper calibration can improve accuracy. Regularly checking the sensor's performance and adjusting it as needed also helps.
Yes, by using a Wi-Fi enabled board like the ESP32, you can create a web interface to monitor temperature and humidity remotely. This feature is particularly useful for monitoring conditions in different locations.
