Displaying strings on LCDs using microcontrollers is a fundamental skill in electronics and programming, allowing users to create interactive and informative projects. This article will guide you through the process of interfacing an LCD with a microcontroller and displaying strings, including practical examples and troubleshooting tips.
LCDs, or Liquid Crystal Displays, are widely used for displaying text and images due to their low power consumption and ease of use. Microcontrollers, such as Arduino or PIC, serve as the brain of the project, controlling the LCD and other components.
There are several types of LCDs, but the most common for beginners is the 16x2 LCD, which can display two lines of text with 16 characters each. Other types include graphics LCDs, which can display images and custom fonts. The choice of LCD depends on the complexity and requirements of your project.
Popular microcontrollers for beginners include Arduino boards like the Arduino Uno and PIC microcontrollers like the PIC16F877A. Each has its own set of libraries and programming environments that simplify the process of interfacing with LCDs. For example, Arduino's LiquidCrystal library makes it easy to initialize and control LCDs.

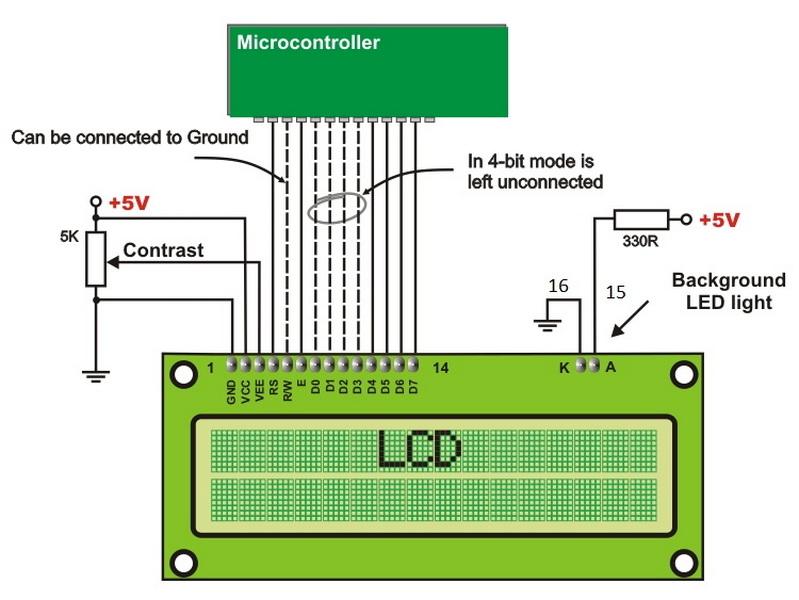

To interface an LCD with a microcontroller, you need to connect the LCD pins to the microcontroller's digital pins. The typical connections include:
- RS (Register Select): Determines whether the LCD is receiving a command or data.
- RW (Read/Write): Sets the mode to read from or write to the LCD.
- EN (Enable): Used to execute commands or display data.
- D4-D7 (Data Pins): Used for sending data or commands to the LCD.

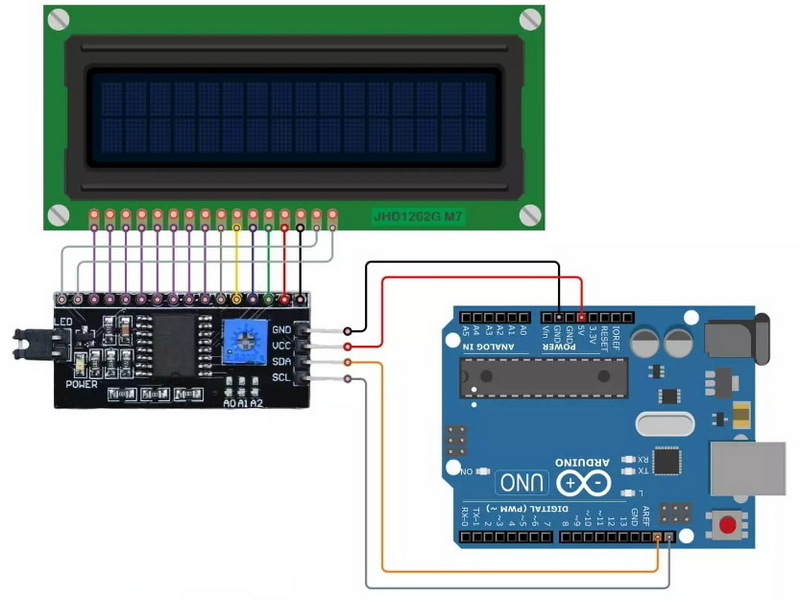

Here is a simplified explanation of how to connect an LCD to an Arduino Uno:
- Connect the RS pin to a digital pin on the Arduino (e.g., Pin 12).
- Connect the EN pin to another digital pin (e.g., Pin 11).
- Connect the D4-D7 pins to digital pins (e.g., Pins 5, 4, 3, and 2).
- Connect VCC to 5V and GND to ground.
To display a string on the LCD, you need to initialize the LCD, set the cursor position, and then print the string.
Before displaying any text, the LCD must be initialized with the correct number of columns and rows. For a 16x2 LCD, you would set it to 16 columns and 2 rows. This ensures that the text is displayed correctly and that the LCD is ready to receive commands.
You can move the cursor to any position on the LCD using commands like `lcd.setCursor(column, row)`. This allows you to display text at specific locations, making it easier to organize your display.

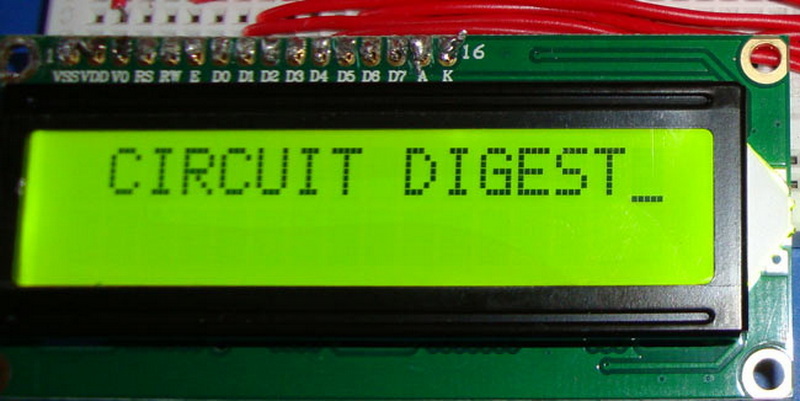

Once the cursor is positioned, you can print strings using the `lcd.print("Your String")` command. This command sends the string to the LCD, which then displays it.
If you want to display dynamic text, such as sensor readings, you need to convert the data into a string format before printing it to the LCD. This can be done using string manipulation functions available in most programming languages.

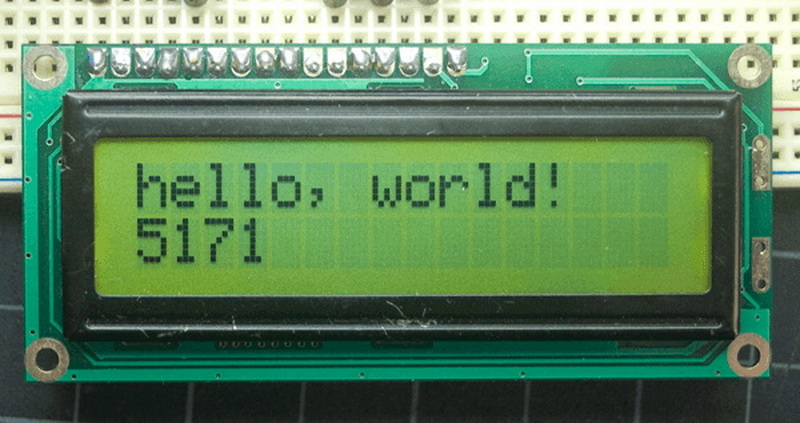

To display text on multiple lines, simply move the cursor to the next line using `lcd.setCursor(0, 1)` for the second line. This allows you to display more information on the LCD.
You can create interactive displays by combining the LCD with input devices like buttons or sensors. For example, pressing a button could change the text displayed on the LCD.
Some LCDs allow you to create custom characters, which can be useful for displaying icons or symbols. This involves defining the pixel pattern for each character and then using it in your display.
Many LCDs come with a backlight that can be controlled using a digital pin. Turning the backlight on and off can be useful for saving power or creating visual effects.
Common issues include incorrect pin connections, insufficient power supply, or incorrect initialization of the LCD. Here are some tips for troubleshooting:
- Check Connections: Ensure all pins are correctly connected to the microcontroller.
- Power Supply: Verify that the LCD is receiving sufficient power.
- Initialization: Double-check that the LCD is properly initialized with the correct number of rows and columns.
If the text is not displaying correctly, check the initialization settings and ensure that the cursor is set to the correct position.
If the backlight is not turning on, check the power supply to the backlight and ensure it is connected to a digital pin that can control it.
Garbled text often indicates incorrect data transmission. Check the data pins and ensure they are securely connected.
If the LCD does not turn on, check the power supply and ensure that the VCC and GND pins are correctly connected.
To display special characters, you may need to use escape sequences or define custom characters if they are not supported by the LCD.
Displaying strings on LCDs using microcontrollers is a versatile skill that can be applied to a wide range of projects, from simple displays to complex interactive systems. By understanding how to interface LCDs with microcontrollers and how to write strings to the display, you can create engaging and informative projects.
The most common type of LCD for beginners is the 16x2 LCD, which can display two lines of text with 16 characters each.
To initialize an LCD, you need to set the correct number of columns and rows using commands like `lcd.begin(16, 2)` for a 16x2 LCD.
To display dynamic data, convert the data into a string format before printing it to the LCD.
Common issues include incorrect pin connections, insufficient power supply, or incorrect initialization of the LCD.
Standard character LCDs cannot display images. For image display, you need a graphics LCD.
