Displaying serial monitor output on an LCD using Arduino is a common project for beginners and experienced makers alike. It involves setting up an Arduino board to receive data from the serial monitor and then displaying that data on an LCD screen. This article will guide you through the process, including the necessary hardware, software setup, and troubleshooting tips.
Arduino is a microcontroller platform that allows users to create interactive electronic projects. It is widely used in robotics, home automation, and educational projects due to its ease of use and versatility. LCD displays are commonly used in these projects to display information such as sensor readings or messages.
To display serial monitor output on an LCD, you will need the following hardware:
- Arduino Board: Any Arduino board like Arduino Uno or Arduino Nano can be used.
- LCD Display: A 16x2 LCD display is commonly used for these projects. It has a 16-pin interface and is compatible with the Hitachi HD44780 driver.
- Breadboard and Jumper Wires: For connecting the LCD to the Arduino.
- Potentiometer: To adjust the contrast of the LCD.
- Resistors: For backlight control if your LCD has a backlight.
The Arduino IDE is used to write and upload code to the Arduino board. You will need to include the LiquidCrystal library for LCD control. This library simplifies the process of writing to the LCD by providing functions to initialize the display, set the cursor position, and print text.

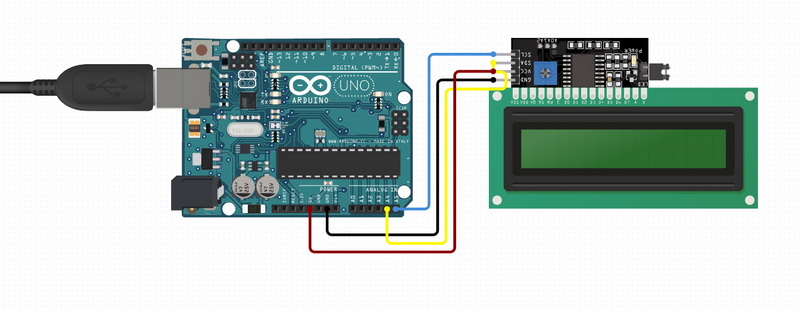

To connect the LCD to your Arduino, follow these steps:
1. Connect the LCD Pins:

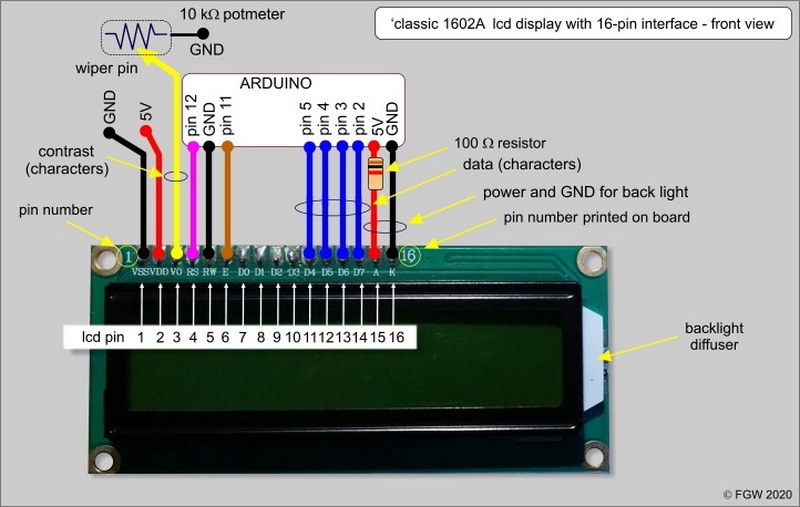

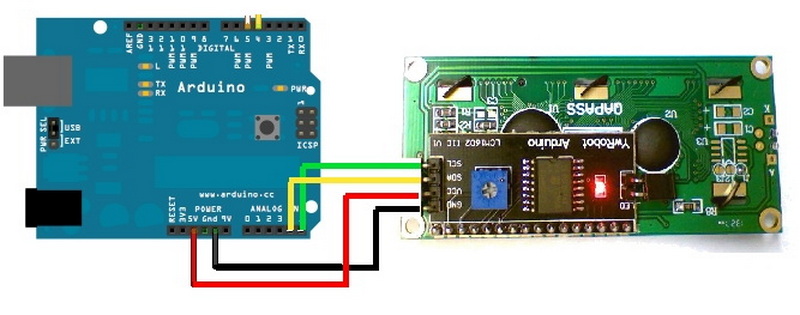

- RS (Register Select): Connect to a digital pin on your Arduino (e.g., pin 12).
- EN (Enable): Connect to another digital pin (e.g., pin 11).
- D4, D5, D6, D7: Connect these data pins to digital pins on your Arduino (e.g., pins 5, 4, 3, 2).
- VCC and GND: Connect to the power pins on your Arduino.
- K (Backlight): If your LCD has a backlight, connect it to a resistor and then to a digital pin or directly to VCC.
2. Adjust the Contrast:
- Use a potentiometer to adjust the contrast of the LCD for better visibility. This step is crucial as it ensures that the text displayed on the LCD is clear and readable.
3. Mounting the LCD:
- You can mount the LCD on a breadboard for temporary setups or solder it to a PCB for more permanent projects.
The serial monitor is a tool in the Arduino IDE that allows you to send and receive data from your Arduino board. To use it:
1. Open the Serial Monitor:
- After uploading your code, open the serial monitor from the Arduino IDE.
2. Set the Baud Rate:
- Ensure the baud rate in the serial monitor matches the baud rate set in your code (e.g., 9600).
3. Send Data:
- Type in the serial monitor to send data to the Arduino. This data can be displayed on the LCD.
Serial communication involves sending data one bit at a time over a single communication channel. In the context of Arduino, serial communication is used to send data between the Arduino board and the serial monitor or other serial devices.
To display serial monitor output on an LCD, you need to read the incoming serial data in your Arduino code and print it to the LCD. This involves using the `Serial.available()` function to check if data is available and then reading it using `Serial.read()`.
- Ensure Proper Connections: Double-check all connections between the LCD and Arduino.
- Match Baud Rates: Make sure the baud rate in the serial monitor matches the one in your code.
- Reset the Arduino: If the LCD displays garbage, try resetting the Arduino or closing and reopening the serial monitor.
- Adjust Contrast: If the text is not visible, adjust the contrast using the potentiometer.
Problem: The LCD shows random characters or garbage.
Solution: Check if the serial monitor is open while the Arduino is sending data to the LCD. Try closing and reopening the serial monitor or resetting the Arduino.
Problem: The serial monitor does not send data to the Arduino.
Solution: Ensure the baud rate in the serial monitor matches the baud rate set in your Arduino code.
Problem: The LCD does not turn on.
Solution: Check the power connections and adjust the contrast using the potentiometer.
Problem: The serial monitor output does not appear on the LCD.
Solution: Verify that the serial data is being read correctly in your code and printed to the LCD.
Problem: The Arduino reboots when opening the serial monitor.
Solution: This is normal behavior. Ensure that your code handles the reboot gracefully, especially if you are using external devices like sensors.

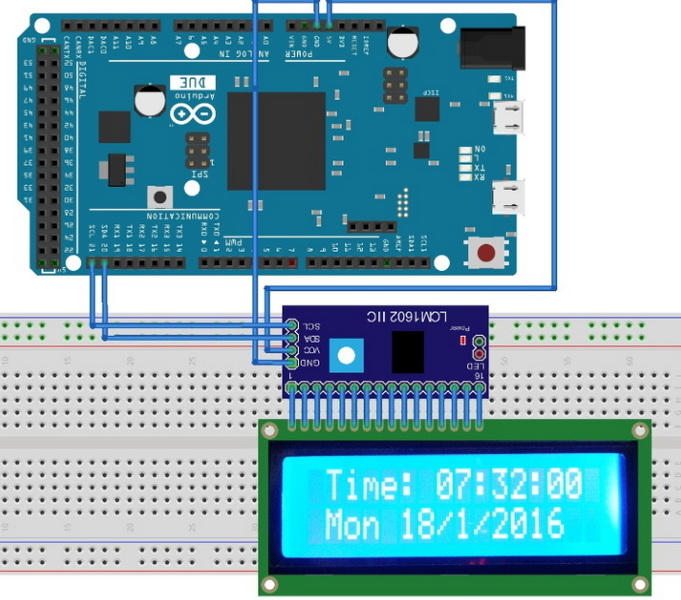

Beyond displaying serial monitor output, you can use the LCD to display sensor readings, control menus, or even create interactive interfaces. For example, you can connect a temperature sensor and display the temperature on the LCD. This can be useful in projects like weather stations or home automation systems.
Displaying serial monitor output on an LCD with Arduino is a straightforward project that can help beginners understand how to work with serial communication and LCD displays. By following the steps outlined in this article and troubleshooting common issues, you can successfully set up your project and expand it into more complex applications.
A: The serial monitor allows you to send and receive data from your Arduino board, useful for debugging and testing.
A: Connect the LCD pins (RS, EN, D4-D7) to digital pins on your Arduino and adjust the contrast using a potentiometer.
A: This could be due to improper connections or mismatched baud rates. Try resetting the Arduino or closing and reopening the serial monitor.
A: Most LCD displays compatible with the Hitachi HD44780 driver work well with Arduino.
A: Check connections, ensure proper power supply, and adjust the contrast. Also, verify that the serial monitor baud rate matches the code.
