Displaying information on an LCD (Liquid Crystal Display) using a microcontroller is a fundamental skill in embedded systems development. This process involves connecting the LCD to a microcontroller, writing software to control the LCD, and ensuring that the information is displayed correctly. In this article, we will explore the basics of LCDs, how they work, and the steps involved in interfacing them with microcontrollers.

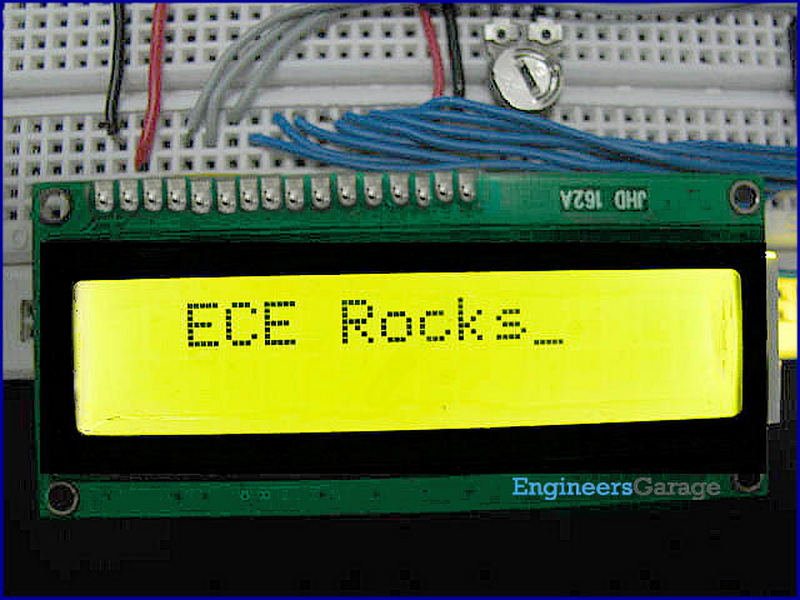

LCDs are widely used in electronic devices due to their low power consumption and ability to display alphanumeric characters. A common type of LCD used in microcontroller projects is the 16x2 LCD, which can display two lines of text with 16 characters on each line.
LCDs work by blocking or allowing light to pass through a matrix of liquid crystals. Each character or pixel on the LCD is made up of a matrix of these liquid crystals. When an electric current is applied to a pixel, the liquid crystals align to block light, creating the appearance of a dark spot. By controlling the alignment of these crystals, LCDs can display text and images.

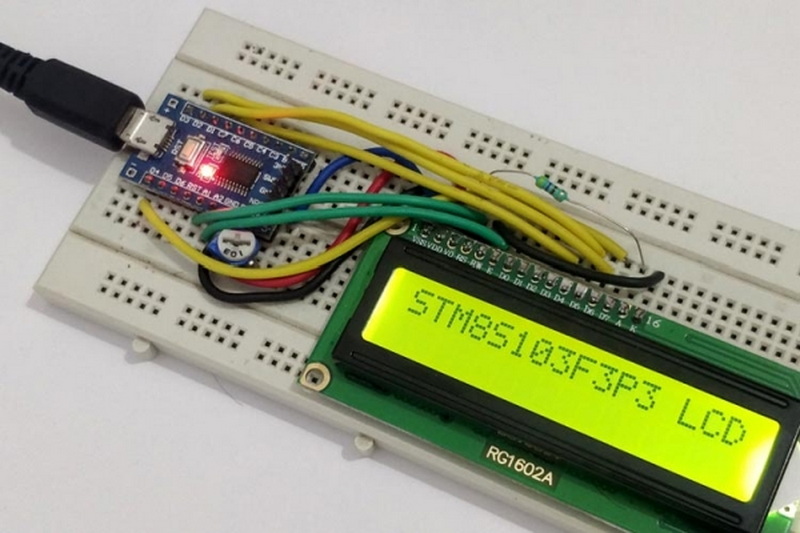

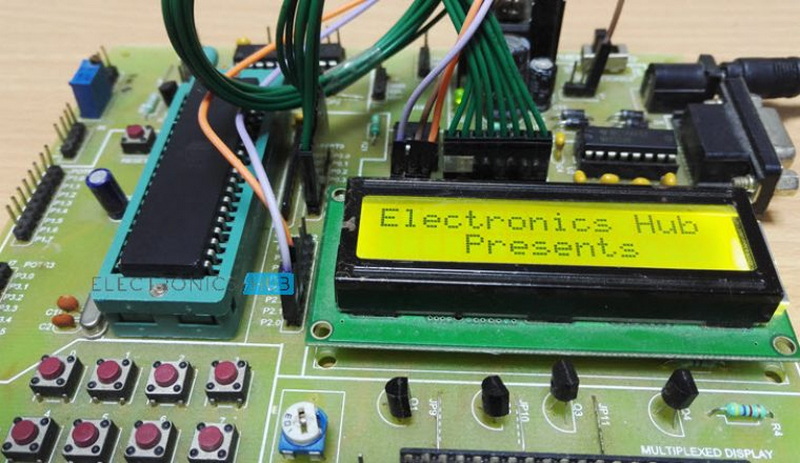

To interface an LCD with a microcontroller, you need to connect the LCD pins to the microcontroller's pins. The LCD typically has 14 pins, but most projects use a 4-bit interface to reduce the number of pins required from the microcontroller.
1. Connect the LCD to the Microcontroller: Connect the LCD pins to the microcontroller's pins. The LCD pins include:
- RS (Register Select): Determines whether the LCD is in command or data mode.
- EN (Enable): Used to clock data into the LCD.
- D4-D7: Data pins for the 4-bit interface.
- VCC and GND: Power supply pins.
2. Initialize the LCD: Send initialization commands to the LCD to set it up for use. Common commands include setting the display mode, clearing the screen, and turning the display on.
3. Write to the LCD: Send data to the LCD to display characters or strings.
To illustrate this process, consider a project using an Arduino board to display "Hello, World!" on an LCD. The Arduino LiquidCrystal library simplifies this process by providing functions to initialize the LCD and print text. This library abstracts away the low-level details of sending commands and data to the LCD, making it easier for beginners to get started with LCD projects.
The busy flag is a status bit that indicates whether the LCD is currently processing a command. It is crucial to check this flag before sending new commands to avoid data loss. If the busy flag is set, it means the LCD is busy executing a previous command, and you should wait until it clears before sending the next command.
If the display appears distorted or does not show text correctly, check the connections and ensure that the LCD is properly initialized. Common issues include incorrect pin connections, insufficient power supply, or incorrect initialization commands.
Adjusting the contrast of the LCD is important for optimal visibility. This is typically done by adjusting the voltage applied to the V0 pin of the LCD. The ideal voltage can vary depending on the specific LCD model and environmental conditions.
You can control the cursor's position and visibility on the LCD. This is useful for creating interactive interfaces where the user needs to input data or navigate through menus. By moving the cursor to different positions on the screen, you can highlight specific options or indicate where user input is expected.
The LCD can shift the display left or right, allowing for scrolling text effects. This feature is useful in applications where more text needs to be displayed than the LCD can show at once. By continuously shifting the display, you can create the illusion of scrolling text.
Some LCDs allow you to define custom characters. This is achieved by sending a series of bytes that describe the pattern of pixels for each custom character. Custom characters are useful for displaying icons or symbols that are not part of the standard character set.
- Connect the LCD pins to the microcontroller's pins, ensuring RS, EN, and data pins are correctly assigned. Use a breadboard to organize the connections and make them easier to manage.
- Common commands include setting the display mode (e.g., 0x38 for 8-bit mode), turning the display on (e.g., 0x0F), and clearing the screen (0x01). These commands are essential for setting up the LCD for use.
- Set the LCD to read mode, select the command register, and read the busy flag bit from the D7 pin. This ensures that you do not send commands while the LCD is still processing previous ones.
- The RS pin selects between command and data modes, while the EN pin clocks data into the LCD. Proper use of these pins is crucial for successful communication with the LCD.
- Adjust the contrast by changing the voltage applied to the LCD's V0 pin. Also, ensure that the LCD is properly powered and that the environment does not cause glare or reflections.
LCDs are used in a wide range of applications, from simple projects like digital clocks and calculators to complex systems like medical devices and industrial control panels. Their versatility and low power consumption make them ideal for battery-powered devices.
In home automation systems, LCDs can be used to display status information, such as temperature, humidity, and lighting conditions. They can also serve as interfaces for controlling various devices remotely.
In industrial settings, LCDs are used in control panels to display operational data and provide user interfaces for machine operators. They are often used in conjunction with other components like buttons and sensors to create interactive control systems.
LCDs are used in wearable devices like smartwatches and fitness trackers to display vital signs and other health metrics. Their low power consumption is particularly beneficial in these applications where battery life is critical.
Interfacing an LCD with a microcontroller is a straightforward process that requires understanding the basics of LCD operation and microcontroller programming. By following the steps outlined in this article, you can successfully display information on an LCD using a microcontroller. Whether you are working on a simple project or a complex embedded system, mastering LCD interfacing is an essential skill.
A: The 16x2 LCD is the most common type used due to its simplicity and versatility.
A: Adjust the contrast by changing the voltage applied to the V0 pin, and ensure proper initialization and data transmission.
A: Yes, but you need to ensure the microcontroller has enough pins to interface with the LCD.
A: The busy flag indicates whether the LCD is currently processing a command, preventing data loss by ensuring commands are sent only when the LCD is ready.
A: Check connections, ensure proper initialization, and verify that commands are being sent correctly.
