Displaying numbers on a 16x2 LCD using Arduino is a fundamental skill for many projects, from simple calculators to complex data monitoring systems. This guide will walk you through the process step by step, including setting up your hardware, understanding the LCD's pinout, and using the LiquidCrystal library to display numbers.
A 16x2 LCD is a type of display that can show up to 32 characters—16 characters per line across two lines. It is widely used in Arduino projects due to its simplicity and ease of use. These displays are particularly useful for projects where you need to provide feedback to the user, such as temperature readings, sensor data, or even simple messages.
The 16x2 LCD has 16 pins, which are used for power supply, data transmission, and control signals. Here's a brief overview of the key pins:
- VCC and GND: For power supply. Typically, VCC is connected to the Arduino's 5V pin, and GND is connected to the Arduino's GND.
- Vo/VEE: For contrast adjustment, typically connected to a potentiometer. Adjusting this pin allows you to optimize the visibility of the characters on the display.
- RS (Register Select): Determines whether the input is a command or data. When RS is low (0), the LCD expects a command. When RS is high (1), the LCD expects data.
- R/W (Read/Write): Controls whether the LCD is in read or write mode. For most applications, this pin is connected to GND to keep the LCD in write mode.
- E (Enable): Used to execute commands or write data. This pin acts as a clock signal, enabling the LCD to process commands or data when it goes high.
- D0-D7: Data pins for sending information to the LCD. These pins are used to transmit both commands and data.

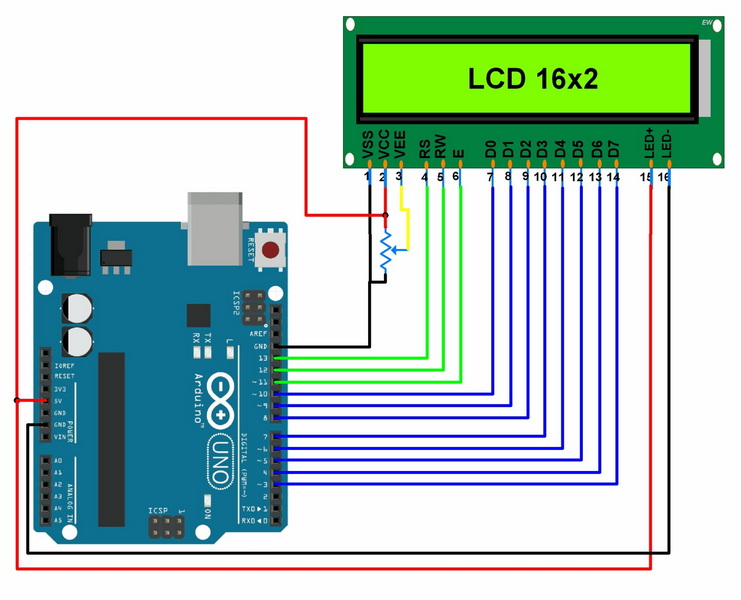

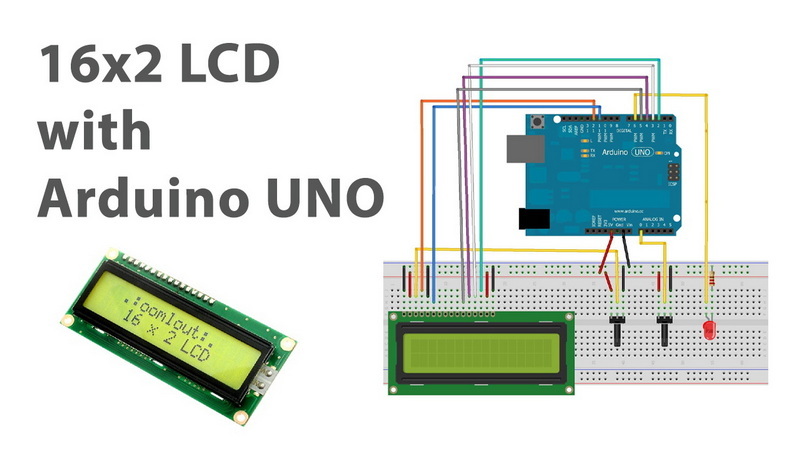

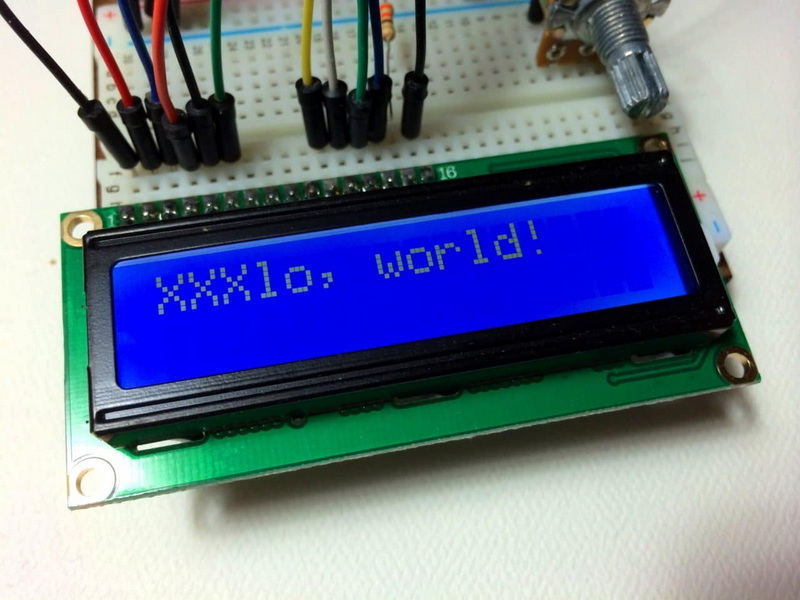

To connect your 16x2 LCD to an Arduino, you will need:
- Arduino Board (e.g., Arduino Uno)
- 16x2 LCD Display
- Breadboard and Jumper Wires
- Potentiometer (for contrast adjustment)
- Resistor (optional, for backlight current limiting)

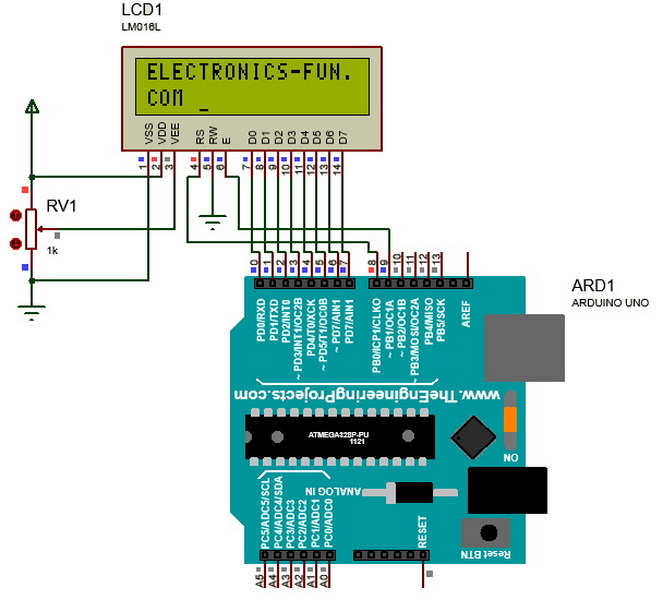

1. Connect VCC to Arduino's 5V and GND to Arduino's GND. This provides the necessary power for the LCD.
2. Connect Vo to the middle pin of a potentiometer for contrast adjustment. This allows you to adjust the visibility of the characters.
3. Connect RS to an Arduino digital pin (e.g., pin 12). This pin controls whether the LCD receives commands or data.
4. Connect R/W to GND for write mode. This ensures that the LCD is always ready to receive data.
5. Connect E to an Arduino digital pin (e.g., pin 11). This pin acts as a clock signal for executing commands or writing data.
6. Connect D4-D7 to Arduino digital pins (e.g., pins 4-7). These pins transmit data to the LCD.
For a more efficient setup, you can use a 4-bit mode, which requires only four data pins (D4-D7), reducing the number of Arduino pins needed.
The LiquidCrystal library simplifies the process of interacting with the LCD. It allows you to initialize the LCD, set the cursor position, print text, and more. This library is included with the Arduino IDE, making it easy to get started.
- `lcd.begin(columns, rows)`: Initializes the LCD with the specified number of columns and rows. For a 16x2 LCD, you would use `lcd.begin(16, 2)`.
- `lcd.setCursor(column, row)`: Sets the cursor to the specified position. For example, `lcd.setCursor(0, 0)` sets the cursor to the first character of the first line.
- `lcd.print("text")`: Prints text to the LCD. You can use this function to display any string or number.
To display numbers, you can use the `lcd.print()` function. For example, to display the number 123, you would simply use `lcd.print(123)`. This function automatically converts the number into a string that can be displayed on the LCD.
Imagine you're building a simple temperature monitor. You can use the LCD to display the current temperature by reading it from a sensor and then printing it to the LCD. This provides a clear and user-friendly way to display data.
One of the advanced features of the 16x2 LCD is the ability to create custom characters. You can define up to eight custom characters using the CGRAM (Character Generator RAM) area of the LCD. This is useful for displaying icons or symbols that are not part of the standard character set.
Many modern LCDs come with a backlight, which can be controlled using an additional pin. By connecting this pin to a digital output on the Arduino, you can turn the backlight on or off programmatically. This can be useful for saving power or creating visual effects.
If your LCD is not displaying numbers correctly, check the following:
- Ensure all connections are secure and correct.
- Adjust the contrast using the potentiometer.
- Verify that the backlight is enabled if your LCD has one.
- Check that the LiquidCrystal library is properly installed and included in your sketch.
Displaying numbers on a 16x2 LCD using Arduino is straightforward once you understand the hardware setup and how to use the LiquidCrystal library. With practice, you can integrate LCD displays into a variety of projects, enhancing user interaction and feedback.
You can adjust the contrast by connecting the Vo pin to a potentiometer and rotating the knob until the display is clear.
Check that all connections are correct, the power is supplied properly, and the contrast is adjusted correctly.
Yes, you can create and display custom characters using the CGRAM area of the LCD.
The backlight typically requires connecting the A (anode) and K (cathode) pins to a power source with a current-limiting resistor.
In 4-bit mode, only four data pins are used, while in 8-bit mode, all eight data pins are used for faster data transfer.
