Displaying numbers on a 16x2 LCD using an 8051 microcontroller is a fundamental task in embedded systems. This process involves understanding the LCD module, setting up the hardware connections, and writing the appropriate software to control the display. In this article, we will explore the steps and techniques required to achieve this functionality.

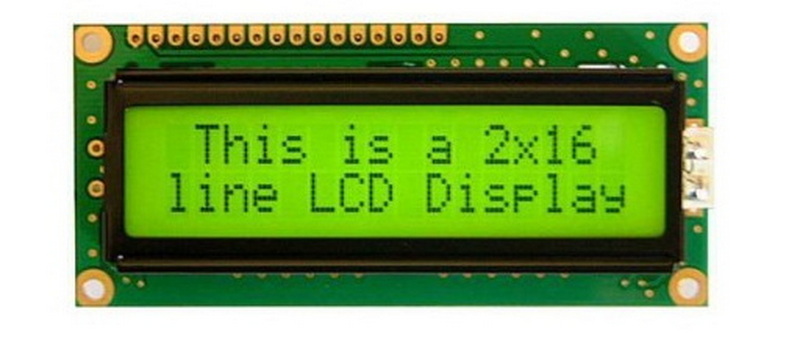

The 16x2 LCD is a widely used display module in embedded systems, capable of showing two lines of text with 16 characters each. It is commonly used in applications such as digital meters, signboards, and interactive systems. The 8051 microcontroller, part of the MCS-51 family, is a popular choice for these applications due to its ease of use and versatility.
The 16x2 LCD module typically consists of 16 pins, including eight data pins (D0-D7) and three control pins (RS, RW, EN). The remaining pins are used for power supply and backlight control. The module can operate in both 8-bit and 4-bit modes, with the latter being more common due to its efficiency in using fewer microcontroller pins.
The 8051 microcontroller features 40 pins, including four 8-bit input/output ports. These ports are crucial for interfacing with external devices like the LCD module. The microcontroller also includes 4KB of ROM storage and 128 bytes of RAM, making it suitable for a variety of embedded projects.

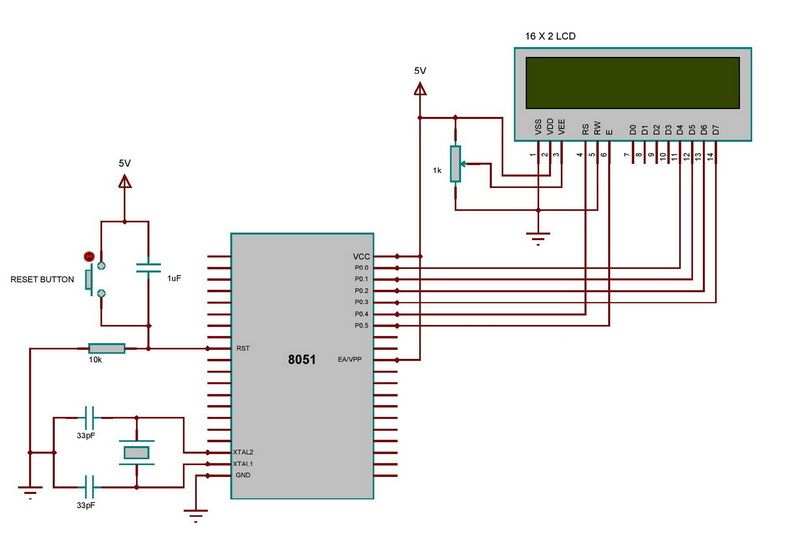

To display numbers on the LCD, you need to establish the correct connections between the LCD module and the 8051 microcontroller.
| LCD Pins | 8051 Pins |
|---|---|
| D0-D7 | PORT1 |
| RS | PORT2.0 |
| RW | PORT2.1 |
| EN | PORT2.2 |
In 8-bit mode, all eight data pins of the LCD are connected to PORT1 of the microcontroller. The RS (Register Select), RW (Read/Write), and EN (Enable) pins are connected to PORT2.
For a more efficient setup, you can use the 4-bit mode, where only the upper four data pins (D4-D7) are used.
In 4-bit mode, only D4-D7 are connected to PORT1, reducing the number of pins required from the microcontroller.
The software part involves initializing the LCD and sending commands to display numbers. This can be achieved using assembly language or C programming.
1. Power-On Initialization: Wait for about 15 milliseconds after power-on.
2. Mode Selection: Send the command to select either 8-bit or 4-bit mode.
3. Display Configuration: Configure the display for two lines and set the font size (5x8 dots).
4. Display On: Turn on the display with or without the cursor.

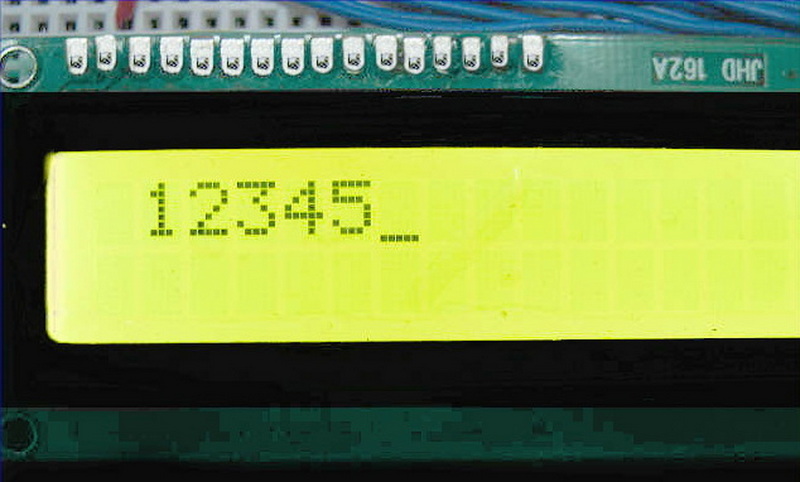

To display numbers, you need to convert the numerical value into ASCII format and send it to the LCD using the appropriate commands.
Displaying numbers on a 16x2 LCD is essential for various applications, including:
- Digital Meters: For displaying voltage, current, or other measurements.
- Interactive Systems: For showing user input or system status.
- Signboards: For displaying dynamic information.
When encountering issues with displaying numbers, check the following:
- Connections: Ensure all connections are secure and correct.
- Power Supply: Verify that the LCD and microcontroller are receiving the correct voltage.
- Software: Review the code for any syntax errors or incorrect commands.
Displaying numbers on a 16x2 LCD using an 8051 microcontroller is a straightforward process once you understand the hardware connections and software requirements. By following the steps outlined in this article, you can successfully integrate this functionality into your embedded projects.
To initialize the LCD in 4-bit mode, send the command 0x02 to set the mode, followed by 0x28 to configure it for two lines and 5x8 dots.
In 8-bit mode, all eight data pins are used, while in 4-bit mode, only the upper four data pins are utilized, conserving microcontroller pins.
Convert the number to ASCII format and send it to the LCD using the appropriate commands.
Common issues include incorrect connections, insufficient power supply, or software errors.
Yes, both assembly language and C programming can be used to control the LCD.
