LCD (Liquid Crystal Display) screens are versatile and widely used components in electronics projects. They provide a simple yet effective way to display information, making them popular among hobbyists and professionals alike. In this comprehensive guide, we'll explore everything you need to know about controlling an LCD display, from basic setup to advanced techniques.
LCD displays come in various sizes and configurations, but the most common type used in DIY projects is the 16x2 character LCD. This display has 16 columns and 2 rows, allowing you to show up to 32 characters at once.
LCDs operate by manipulating liquid crystals with electric current. When voltage is applied, the crystals align to block light, creating visible patterns on the screen. This technology allows for low power consumption and clear visibility in various lighting conditions.
To control an LCD display, you'll need the following components:
- An LCD display (compatible with the Hitachi HD44780 driver)
- A microcontroller (such as Arduino)
- Jumper wires
- A breadboard
- A potentiometer (for contrast adjustment)
- Resistors (as needed)
The process of connecting an LCD to your microcontroller involves several steps:
1. Identify the LCD pins
2. Connect power and ground
3. Wire the data and control pins
4. Set up the contrast adjustment

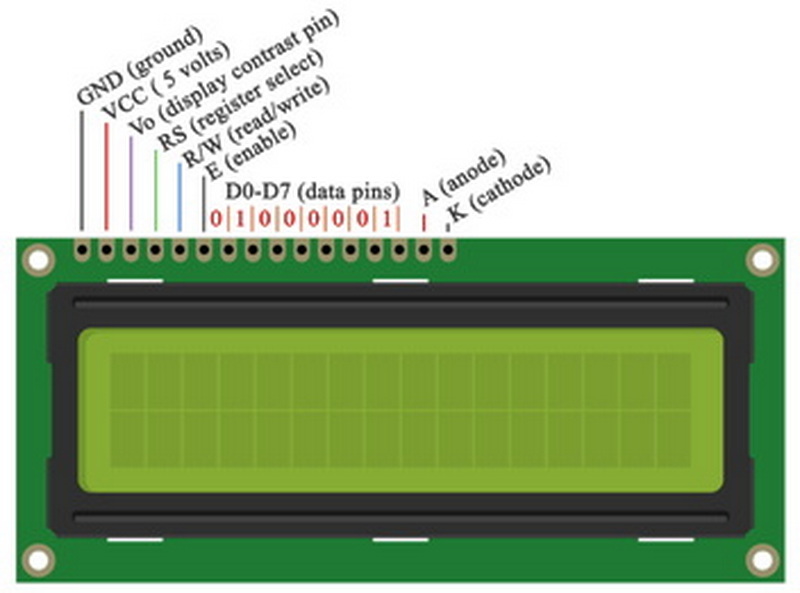

Most 16x2 LCDs have 16 pins, each with a specific function:
- VSS: Ground
- VDD: 5V power supply
- V0: Contrast adjustment
- RS: Register Select
- R/W: Read/Write
- E: Enable
- D0-D7: Data pins
- A and K: Backlight anode and cathode
Connect the LCD to your microcontroller as follows:
1. VSS to GND
2. VDD to 5V
3. V0 to the middle pin of a potentiometer (outer pins to 5V and GND)
4. RS to a digital pin (e.g., pin 12)
5. R/W to GND
6. E to a digital pin (e.g., pin 11)
7. D4-D7 to digital pins (e.g., pins 5, 4, 3, 2)
8. A to 5V through a current-limiting resistor
9. K to GND

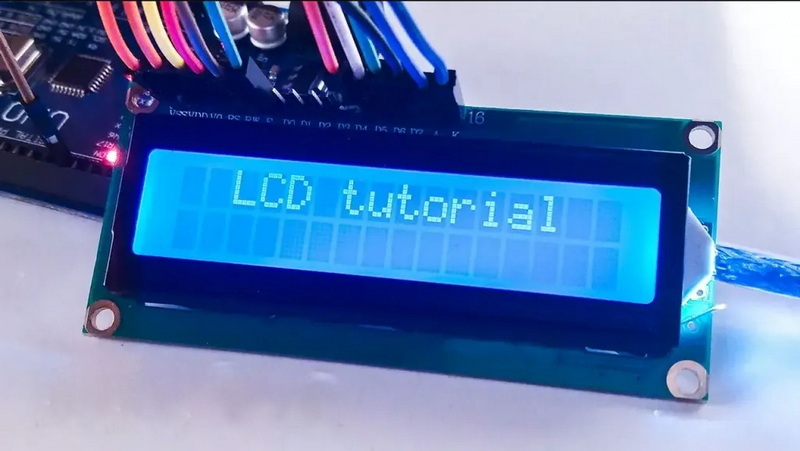

Once your LCD is properly connected, you can start programming it to display information. Most microcontroller platforms have libraries that simplify LCD control.
For Arduino users, the LiquidCrystal library makes it easy to control LCD displays. Here's a basic setup:
1. Include the library
2. Create an LCD object
3. Initialize the LCD in the setup function
4. Use various functions to control the display in the loop function
- `lcd.begin(columns, rows)`: Initialize the LCD
- `lcd.print("text")`: Display text on the LCD
- `lcd.setCursor(column, row)`: Set the cursor position
- `lcd.clear()`: Clear the display
- `lcd.home()`: Move the cursor to the home position (0,0)
Once you've mastered the basics, you can explore more advanced techniques for controlling your LCD display.
LCDs allow you to create and display custom characters. This feature is useful for creating unique icons or symbols that aren't part of the standard character set.
For messages longer than the LCD's width, you can implement text scrolling. This technique involves shifting the text across the screen, creating a dynamic display.
By rapidly changing the displayed content, you can create simple animations on your LCD. This can be used for progress bars, loading indicators, or even simple games.
When working with LCDs, you might encounter some common problems. Here are a few issues and their potential solutions:
1. No display: Check power connections and contrast adjustment
2. Garbled text: Verify correct wiring and library initialization
3. Faint display: Adjust the contrast potentiometer
4. Flickering: Ensure stable power supply and proper grounding
To take your LCD projects to the next level, consider these enhancements:
Incorporate buttons or sensors to make your LCD display interactive. For example, you could create a menu system navigated by pushbuttons.
Use your LCD to display real-time data from sensors. This is particularly useful for environmental monitoring or IoT projects.
Many LCD libraries support multiple languages. Explore how to display different character sets and create multilingual interfaces.
While character LCDs are popular, it's worth considering other display options:
- OLED displays: Higher contrast and lower power consumption
- TFT LCD screens: Full-color displays with graphics capabilities
- E-paper displays: Low power consumption with high readability in sunlight
LCD technology continues to evolve. Keep an eye on emerging trends such as:
- Flexible LCDs
- Transparent displays
- Higher resolution and color depth in small form factors
Controlling an LCD display opens up a world of possibilities for your electronics projects. From simple text displays to interactive interfaces, LCDs provide a versatile and user-friendly output method. By mastering the techniques outlined in this guide, you'll be well-equipped to incorporate LCDs into your future projects, enhancing their functionality and user experience.
4-bit mode uses fewer pins but requires more complex programming, while 8-bit mode is simpler but uses more pins. 4-bit mode is often preferred for projects with limited I/O pins.
Yes, LCDs can be used with Raspberry Pi. You'll need to use the appropriate GPIO pins and install the necessary libraries. The process is similar to using an LCD with Arduino, but the code will be in Python.
Most LCDs have a backlight that can be controlled. You can adjust the brightness by using PWM on the backlight pin or by using a transistor to control the backlight current.
LCDs can be challenging to read in direct sunlight. For outdoor projects, consider using a display with higher contrast or adding a protective enclosure with a shade.
To conserve power, you can turn off the LCD backlight when not in use, use sleep modes, and minimize the frequency of updates to the display.
