Liquid Crystal Displays (LCDs) are essential components in many electronics projects, providing a visual interface for users to interact with their devices. Among the various types of LCDs available, the I2C LCD display has gained popularity due to its simplicity and ease of use with Arduino boards. This guide will walk you through the process of connecting an I2C LCD display to an Arduino, exploring the benefits, step-by-step instructions, and troubleshooting tips.
I2C (Inter-Integrated Circuit) is a serial communication protocol that allows multiple devices to communicate with a microcontroller using just two wires. An I2C LCD display combines the versatility of a standard LCD with the simplicity of I2C communication, making it an ideal choice for Arduino projects.
Benefits of using an I2C LCD display include:
- Reduced pin usage on the Arduino board
- Simplified wiring
- Compatibility with various Arduino models
- Built-in contrast control
To connect an I2C LCD display to your Arduino, you'll need the following components:
- Arduino board (Uno, Nano, Mega, or similar)
- I2C LCD display (16x2 or 20x4 are common sizes)
- Jumper wires
- Breadboard (optional)
- USB cable for Arduino programming
1. Identify the pins on your I2C LCD display:
- VCC (Power supply)
- GND (Ground)
- SDA (Serial Data)
- SCL (Serial Clock)
2. Connect the I2C LCD display to the Arduino:
- VCC to 5V on Arduino
- GND to GND on Arduino
- SDA to A4 on Arduino (or dedicated SDA pin on some models)
- SCL to A5 on Arduino (or dedicated SCL pin on some models)
3. Double-check your connections to ensure everything is correctly wired.
To communicate with the I2C LCD display, you'll need to install the necessary libraries in the Arduino IDE:
1. Open the Arduino IDE
2. Go to Sketch > Include Library > Manage Libraries
3. Search for "LiquidCrystal I2C"
4. Install the library by Frank de Brabander
Now that you have connected the hardware and installed the required library, it's time to write your first sketch to test the I2C LCD display.
If you encounter any problems while setting up your I2C LCD display, consider the following troubleshooting steps:
1. Check your wiring connections
2. Verify the I2C address of your display
3. Ensure the correct library is installed

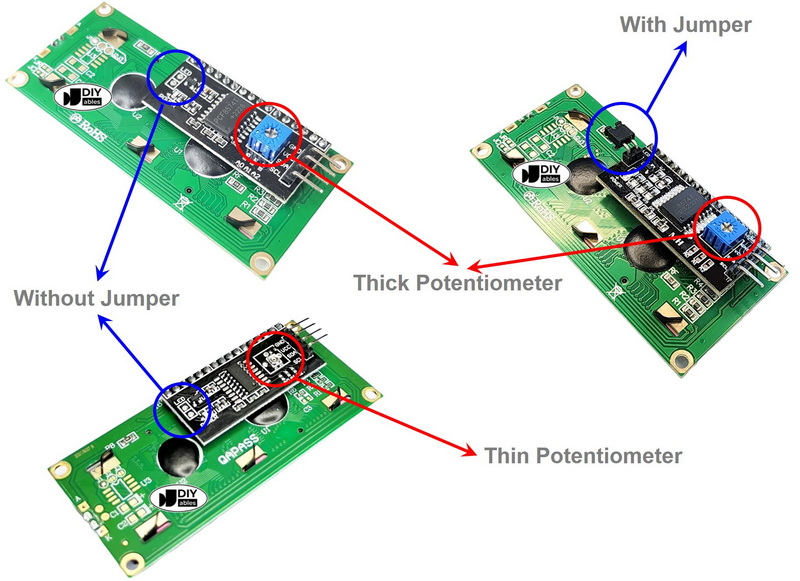

4. Adjust the contrast using the built-in potentiometer
Once you've mastered the basics, you can explore more advanced features of the I2C LCD display:
1. Creating custom characters
2. Implementing scrolling text
3. Displaying sensor data in real-time
4. Using multiple displays with different I2C addresses
Now that you know how to connect and use an I2C LCD display with Arduino, here are some project ideas to inspire you:
1. Digital clock with temperature and humidity display
2. Arduino-based game console with LCD screen
3. Smart home control panel
4. Personal fitness tracker with LCD readout
Connecting an I2C LCD display to Arduino opens up a world of possibilities for creating interactive and informative projects. With its simple wiring and versatile functionality, the I2C LCD display is an excellent addition to any Arduino enthusiast's toolkit. By following this guide, you should now have a solid understanding of how to connect, program, and utilize an I2C LCD display in your Arduino projects.
A standard LCD typically requires 6-7 pins for communication with Arduino, while an I2C LCD display only needs 4 pins (including power and ground). The I2C version uses a special controller chip that handles the communication protocol, simplifying the wiring and reducing the number of pins needed on the Arduino board.
Yes, I2C LCD displays can be used with various microcontrollers that support I2C communication, such as Raspberry Pi, ESP8266, and ESP32. However, you may need to adjust the code and libraries depending on the platform you're using.
You can use an I2C scanner sketch to determine the address of your LCD display. Many Arduino IDE installations include an example sketch for this purpose. Alternatively, you can find I2C scanner sketches online that will help you identify the correct address for your display.
Some I2C LCD displays come with RGB backlights that allow you to change the color. However, this feature is not universal, and you'll need to check the specifications of your particular display. If your display supports color changing, you'll typically need to use additional pins or a separate controller to manage the backlight colors.
To improve readability in bright light, you can try adjusting the contrast using the built-in potentiometer on the I2C module. Additionally, you can consider using a display with a higher contrast ratio or adding a physical shade or enclosure to reduce glare on the screen.
