Liquid Crystal Displays (LCDs) are essential components in many Arduino projects, providing a visual interface for users. This article will guide you through the process of connecting an LCD display to an Arduino, detailing both standard and I2C configurations, along with practical tips, troubleshooting advice, and potential applications.
LCDs are widely used due to their low power consumption and ability to display a variety of information. The most common type is the 16x2 LCD, which can display 16 characters across 2 lines. These displays typically use the HD44780 driver, which allows for easy interfacing with microcontrollers like the Arduino.
- Character LCDs: These displays are designed to show characters and symbols. The 16x2 is a popular model, but there are also 20x4 models that can display more text.
- Graphic LCDs: These can display images and more complex graphics. They require more complex programming and are often used in advanced projects.
- I2C LCDs: These displays use the I2C communication protocol, allowing multiple devices to communicate using only two wires (SDA and SCL). This simplifies wiring significantly.
Before starting, ensure you have the following components:
- Arduino Board (e.g., Arduino Uno)
- LCD Display (16x2 or similar)
- Breadboard
- Jumper Wires
- 10k Ohm Potentiometer (for contrast adjustment)
- 220 Ohm Resistor (for backlight control)

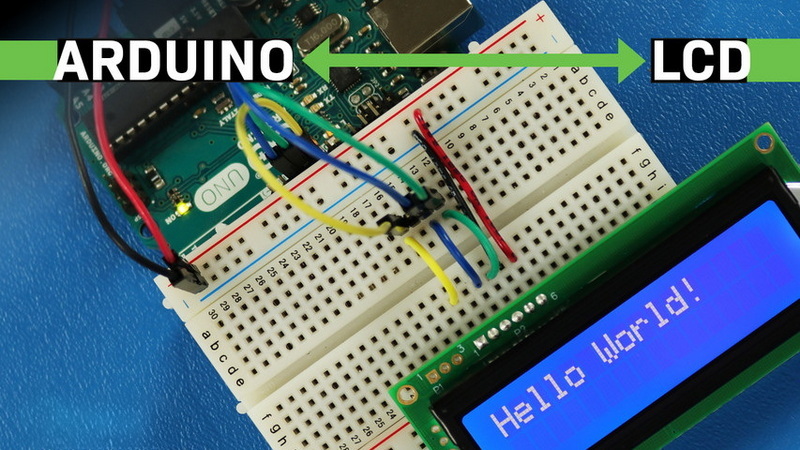

To connect a standard 16x2 LCD to an Arduino, follow these steps:
1. Pin Configuration: Understand the pin layout of your LCD. A typical 16x2 LCD has 16 pins:
- Pin 1: Ground (VSS)
- Pin 2: Power (VDD)
- Pin 3: Contrast (VO)
- Pin 4: Register Select (RS)
- Pin 5: Read/Write (R/W)
- Pin 6: Enable (E)
- Pins 7-14: Data pins (D0-D7)
- Pin 15: Backlight Anode (+)
- Pin 16: Backlight Cathode (-)
2. Connections:
- Connect Pin 1 to GND on Arduino.
- Connect Pin 2 to +5V on Arduino.
- Connect Pin 3 to the middle pin of the potentiometer; connect the other two pins of the potentiometer to GND and +5V.
- Connect Pin 4 to digital pin 12 on Arduino.
- Connect Pin 5 to GND.
- Connect Pin 6 to digital pin 11 on Arduino.
- Connect data pins D4-D7 (Pins 11-14) to digital pins on Arduino (e.g., D5, D4, D3, D2).
- Connect Pin 15 through a 220 Ohm resistor to +5V.
- Connect Pin 16 to GND.

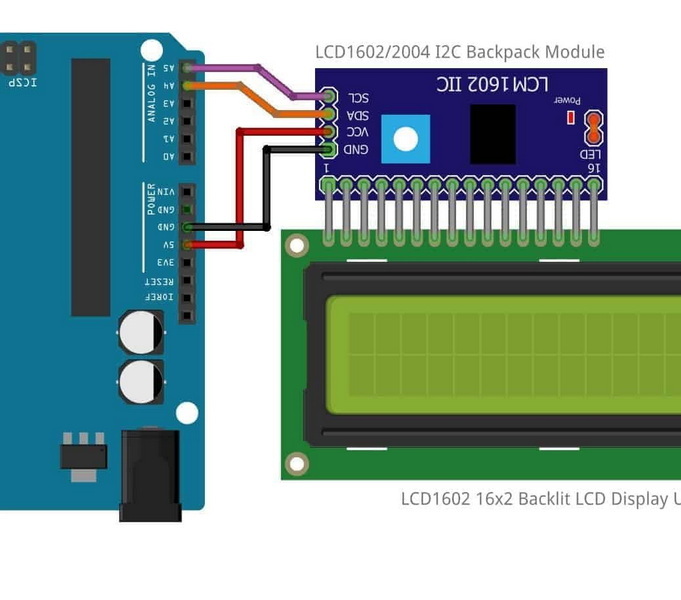

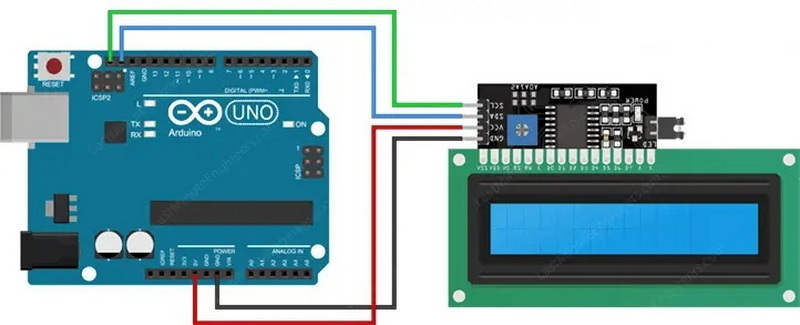

I2C displays simplify wiring by using only four pins:
1. Pin Configuration:
- GND
- VCC
- SDA (Data Line)
- SCL (Clock Line)
2. Connections:
- Connect GND to GND on Arduino.
- Connect VCC to +5V on Arduino.
- Connect SDA to A4 on Arduino.
- Connect SCL to A5 on Arduino.
To display text on your connected LCD, you need to use the LiquidCrystal library for standard displays or the LiquidCrystal_I2C library for I2C displays.
The process of controlling the display involves sending data and commands through specific registers:
- The *Data Register* holds the data that you want displayed on the screen.
- The *Instruction Register* receives commands that control various functions of the display, such as clearing the screen or setting cursor positions.
Using libraries like LiquidCrystal simplifies this process significantly by abstracting low-level instructions into easy-to-use functions.
1. No Display Output:
- Check all connections for correctness.
- Ensure the potentiometer is adjusted correctly for contrast.
2. Incorrect Characters Displayed:
- Verify that you are using the correct library and that it is properly installed.
3. Flickering or Dim Display:
- Check the backlight connections and ensure a suitable resistor is used.
4. Unresponsive Display:
- Ensure that you have initialized your display correctly in your code.
LCD displays can be employed in various applications, making them versatile tools in electronics projects:
- Data Monitoring Systems: Use an LCD to display sensor readings in real-time, such as temperature or humidity levels.
- User Interfaces for Projects: Create interactive systems where users can input commands or receive feedback through an LCD interface.
- Timers and Counters: Implement countdown timers or counters that visually represent time or counts directly on an LCD.
- Games and Simulations: Develop simple games that utilize text-based interfaces displayed on an LCD screen.
One exciting feature of many character-based LCDs is their ability to display custom characters. You can create symbols or icons that are not included in the standard character set by defining them in memory. This capability allows for more engaging user interfaces tailored specifically for your project needs.
In this project example, we will create a basic temperature monitoring system using an LM35 temperature sensor alongside a 16x2 LCD display. The sensor will measure ambient temperature values which will then be displayed in real-time on the screen.
1. Components Needed:
- LM35 Temperature Sensor
- Arduino Board
- Breadboard
- Jumper Wires
- 16x2 LCD Display
- Potentiometer (for adjusting contrast)
This project not only demonstrates how easily you can interface sensors with an LCD but also provides practical insights into data visualization in electronics projects.
Another engaging project is creating a digital clock using an RTC (Real-Time Clock) module along with your LCD display. This project allows users to view current time continuously updated every second:
1. Components Needed:
- DS3231 RTC Module
- Arduino Board
- Breadboard
- Jumper Wires
- 16x2 or I2C LCD Display
By utilizing libraries specifically designed for RTC modules alongside LiquidCrystal libraries, you can effectively manage timekeeping while displaying it neatly on your screen.
Once comfortable with basic operations involving standard text output on your LCDs, consider exploring advanced features such as:
- Scrolling Text Displays: Implement scrolling text functionality where long messages can move across your screen horizontally rather than being cut off due to size limitations.
- Custom Character Creation: As mentioned earlier, creating custom characters enables unique symbols tailored for specific applications within your projects.
- Backlight Control via PWM: If you have a backlight-enabled display, consider implementing pulse-width modulation (PWM) techniques through your Arduino's analog pins for dynamic brightness control based on environmental conditions or user input.
Utilizing community resources can greatly enhance learning experiences when working with Arduino and LCDs:
- Arduino Forum: A great place for troubleshooting issues or seeking advice from experienced users who have tackled similar problems.
- Instructables & Hackster.io: Both platforms offer numerous project ideas along with step-by-step guides that include wiring diagrams and code snippets which can be invaluable when starting new projects involving displays.
- YouTube Tutorials: Video tutorials provide visual guidance which can be particularly helpful when learning how to wire components together effectively or understand complex concepts quickly.
In conclusion, connecting an LCD display with an Arduino provides endless opportunities for creativity in electronics projects. From simple text outputs to complex interactive systems featuring real-time data visualization capabilities—LCDs serve as versatile tools that enhance user engagement significantly.
Connecting an LCD display to an Arduino opens up many possibilities for interactive projects. Whether using a standard or I2C display, understanding the wiring and coding processes is crucial for successful implementation. With practice and experimentation, you can create informative displays that enhance your projects significantly.
To adjust the contrast of your LCD, use a potentiometer connected between GND and +5V with its wiper connected to pin VO of the LCD.
Yes, you can connect multiple I2C devices as long as they have different addresses. Each device must be properly configured in your code.
Check all wiring connections and ensure that your code initializes the display correctly. Adjusting the contrast may also help.
Yes, OLEDs can be used as alternatives and often provide better contrast and color options but require different libraries and connections.
For standard displays, use the LiquidCrystal library; for I2C displays, use LiquidCrystal_I2C.
