Connecting an LCD display to an ESP8266 microcontroller is a popular project among electronics enthusiasts and makers. This guide will walk you through the process of connecting various types of LCD displays to the ESP8266, providing detailed instructions, wiring diagrams, and code examples. Whether you're a beginner or an experienced developer, this article will help you understand the intricacies of interfacing LCD displays with the ESP8266.
There are several types of LCD displays that can be used with the ESP8266. The most common ones are:
1. Character LCD displays (16x2, 20x4)
2. I2C LCD displays
3. SPI TFT displays
Each type has its own advantages and connection methods. Let's explore them in detail.
Character LCD displays are the most basic and widely used type. They typically come in 16x2 or 20x4 configurations, meaning they can display 16 characters in 2 rows or 20 characters in 4 rows, respectively.

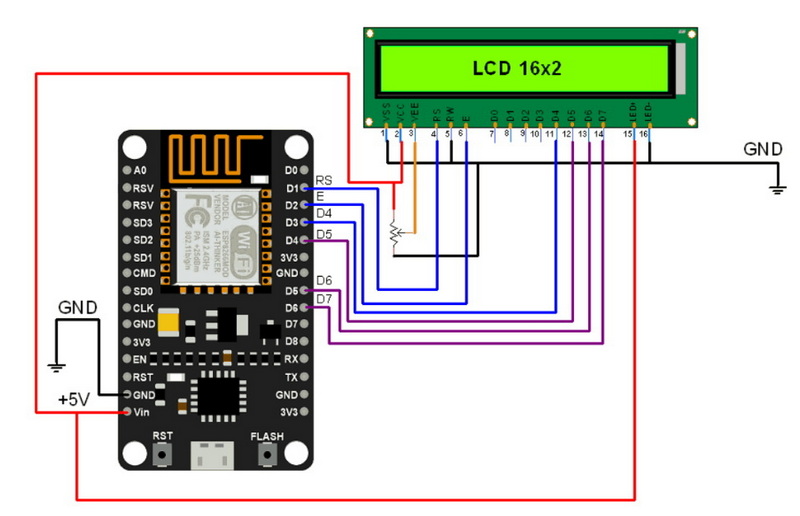

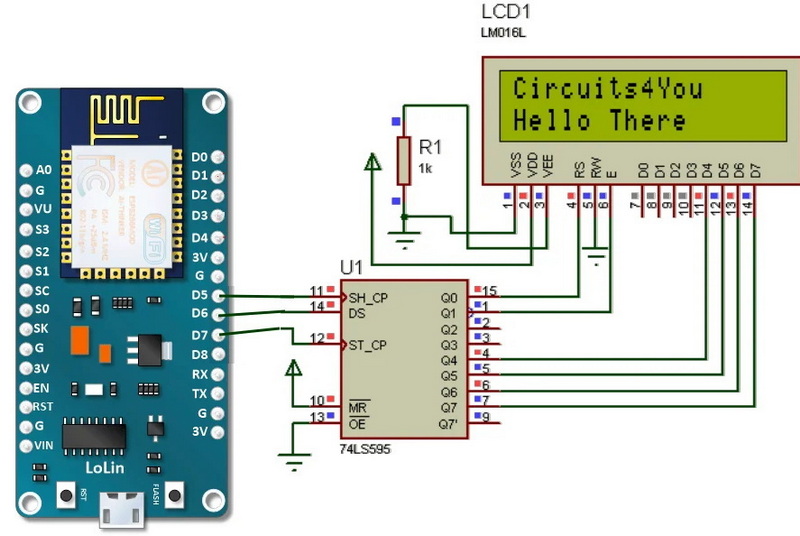

To connect a character LCD to the ESP8266, you'll need to use several GPIO pins. The wiring process involves connecting the LCD's pins to specific GPIO pins on the ESP8266. It's important to follow the wiring diagram carefully to ensure proper functionality.
When working with character LCDs, you'll typically use the LiquidCrystal library in Arduino IDE. This library provides an easy-to-use interface for controlling the display, allowing you to print text, move the cursor, and create custom characters.

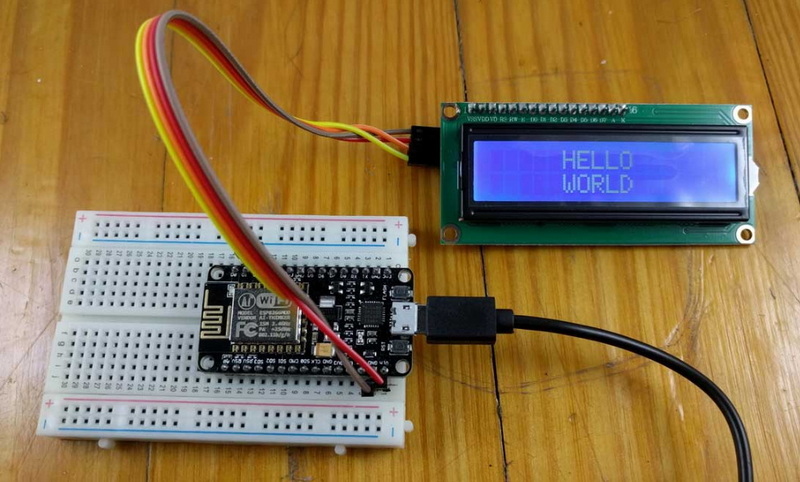

I2C LCD displays are more convenient to use as they require only two data pins for communication, in addition to power and ground. This makes wiring much simpler, especially when working with the ESP8266, which has limited GPIO pins.

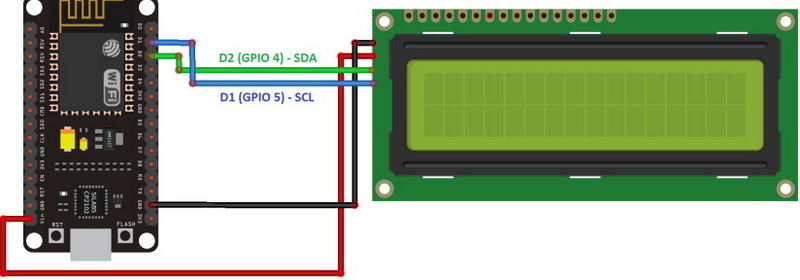

The wiring for an I2C LCD is straightforward, typically requiring only four connections: SDA, SCL, VCC, and GND. This simplicity makes I2C LCDs a popular choice for projects where minimizing wire clutter is important.
To use an I2C LCD, you'll need to install the LiquidCrystal_I2C library. This library handles the I2C communication protocol, making it easy to send commands and data to the display.
SPI TFT displays offer color and graphics capabilities, making them suitable for more advanced projects. A popular choice is the ILI9341 controlled display, which provides a high-resolution color screen.
The wiring for an SPI TFT display is more complex than the previous types, typically requiring connections for power, ground, chip select, reset, data/command, MOSI, SCK, and sometimes MISO for touch functionality.
To use an SPI TFT display, you'll need to install a library such as TFT_eSPI. These libraries provide functions for drawing shapes, text, and even bitmap images on the display.
For longer messages that don't fit on the screen, you can implement scrolling text. This technique involves shifting the text across the display, creating a marquee effect. It's particularly useful for displaying long messages or creating dynamic content on smaller displays.
Custom characters allow you to display unique symbols or icons on character LCDs. By defining pixel patterns, you can create arrows, logos, or any other small graphic that fits within the character grid. This feature is especially useful for creating user interfaces or displaying specialized information.
When working with LCD displays and the ESP8266, you may encounter some common issues. These can include no display output, garbled characters, or flickering displays. Understanding how to troubleshoot these problems is crucial for successful project development.
Once you've successfully connected your LCD display to the ESP8266, you can enhance your projects in various ways. Let's explore some advanced applications and techniques.
One of the most common applications for LCD displays in ESP8266 projects is showing sensor data. You can connect various sensors to your ESP8266 and display their readings in real-time on the LCD. For example, you could create a weather station that shows temperature, humidity, and barometric pressure.
To implement this, you would typically:
1. Connect the sensors to your ESP8266
2. Read the sensor data at regular intervals
3. Format the data for display
4. Update the LCD with the new information
This type of project is not only practical but also serves as an excellent learning experience in working with multiple components and managing data flow.
For more complex projects, implementing a menu system on your LCD display can greatly enhance user interaction. A menu system allows users to navigate through different options, change settings, or view various pieces of information.
To create a menu system, you would typically:
1. Define your menu structure (items, submenus, etc.)
2. Implement button or touch input for navigation
3. Create functions to display menu items and handle selection
4. Update the display based on user input
A well-designed menu system can make your project more user-friendly and professional-looking.
The ESP8266's Wi-Fi capabilities open up possibilities for integrating your LCD projects with web services. You can fetch data from online APIs and display it on your LCD. Some ideas include:
- Displaying current weather conditions from a weather API
- Showing stock prices or cryptocurrency rates
- Presenting social media updates or news headlines
To implement this, you would:
1. Connect your ESP8266 to Wi-Fi
2. Make HTTP requests to the desired web service
3. Parse the received data (often in JSON format)
4. Display the relevant information on the LCD
This integration of online data with a physical display can create powerful and informative projects.
When working with LCD displays and the ESP8266, it's important to follow best practices to ensure your projects are reliable and efficient. Here are some key points to consider:
Proper power management is crucial when working with LCDs and the ESP8266. Some tips include:
- Use a power supply that can handle the combined current draw of the ESP8266 and the LCD backlight.
- Consider using a separate power source for the LCD if it requires a different voltage than the ESP8266.
- Implement power-saving features, such as dimming the LCD backlight when not in use.
Efficient code can improve the performance and responsiveness of your LCD projects:
- Minimize unnecessary screen updates to reduce flickering and improve performance.
- Use appropriate data types to conserve memory.
- Implement debouncing for button inputs to prevent false triggers.
Robust error handling can make your projects more reliable:
- Implement proper error checking and handling, especially for I2C and SPI communication.
- Display error messages on the LCD when issues occur, helping with debugging and user feedback.
- Use watchdog timers to recover from potential crashes or hangs.
Leveraging existing libraries can simplify your code and improve reliability:
- Choose well-maintained libraries specific to your LCD type.
- Familiarize yourself with the library documentation to take full advantage of its features.
- Consider contributing to open-source libraries if you develop improvements or new features.
While LCD displays are versatile, it's worth considering other display technologies for specific use cases:
- OLED displays offer high contrast and wide viewing angles, suitable for projects where readability is crucial.
- E-paper displays are excellent for low-power applications that don't require frequent updates.
- For more advanced graphics, consider using small TFT screens with higher resolutions.
As technology advances, new display options for microcontrollers like the ESP8266 are emerging. Staying informed about these trends can help you choose the best display for future projects:
E-paper displays, also known as electronic paper or e-ink displays, are becoming increasingly popular in maker projects. They offer several advantages:
- Ultra-low power consumption, ideal for battery-operated devices
- Excellent readability in bright light conditions
- Ability to retain an image without power
These displays are perfect for projects that don't require frequent updates, such as weather stations or information boards.
OLED (Organic Light-Emitting Diode) displays are gaining traction due to their superior visual qualities:
- High contrast ratios and deep blacks
- Wide viewing angles
- Fast response times
OLED displays are great for projects that require vibrant visuals or need to be viewed from various angles.
Integrating touch functionality with displays allows for more interactive projects:
- Eliminates the need for separate buttons or controls
- Enables intuitive user interfaces
- Allows for more complex interactions, such as gestures
As touch-enabled displays become more affordable, we can expect to see them used more frequently in DIY projects.
Flexible display technology is an exciting area of development:
- Allows for curved or bendable displays
- Opens up new form factors for projects
- Potential for wearable technology applications
While currently more expensive, flexible displays may become more accessible to makers in the future.
As manufacturing processes improve, we're seeing higher resolution displays become available for microcontroller projects:
- Allows for more detailed information display
- Enables more complex graphics and user interfaces
- Improves overall visual quality of projects
Higher resolution displays can enhance projects that require detailed visualizations or crisp text rendering.
Connecting an LCD display to an ESP8266 opens up a world of possibilities for your projects. Whether you're creating a simple information display or a complex interactive system, the combination of the ESP8266's processing power and Wi-Fi capabilities with an LCD's visual output can lead to exciting and innovative creations.
By following the guidelines and examples provided in this article, you should now have a solid foundation for integrating LCD displays with your ESP8266 projects. Remember to experiment, explore different display types, and continue learning about new techniques and technologies in this ever-evolving field.
As you progress in your journey with ESP8266 and LCD displays, don't be afraid to push the boundaries of what's possible. The maker community is constantly innovating, and your next project could be the one that inspires others or solves a unique problem.
Whether you're building a smart home device, a wearable gadget, or an interactive art installation, the skills you've learned here will serve as a strong foundation. Keep exploring, keep learning, and most importantly, keep creating!
I2C (Inter-Integrated Circuit) and SPI (Serial Peripheral Interface) are both communication protocols used to connect LCD displays to microcontrollers like the ESP8266. The main differences are:
- I2C uses only two data lines (SDA and SCL) for communication, while SPI typically uses four (MOSI, MISO, SCK, and CS).
- I2C is generally easier to wire and requires fewer pins, making it ideal for projects with limited GPIO availability.
- SPI can achieve higher data transfer rates, which is beneficial for displays with higher resolutions or faster refresh rates.
- I2C allows for multiple devices on the same bus with unique addresses, while SPI requires a separate chip select line for each device.
Choose the type that best fits your project requirements and available GPIO pins.
Adjusting the contrast on an LCD display depends on the type of display you're using:
- For character LCDs without I2C backpacks, you typically need to connect a potentiometer to the V0 pin. Adjusting this potentiometer will change the contrast.
- I2C LCD modules often have a built-in potentiometer. Look for a small screw or dial on the back of the module to adjust the contrast.
- For SPI TFT displays, contrast is usually controlled through software. Consult your display's datasheet and library documentation for specific instructions on adjusting contrast programmatically.
If you're having trouble seeing characters on your display, try adjusting the contrast before assuming there's a wiring or code issue.
While the ESP8266 operates at 3.3V, many LCD displays are designed for 5V logic levels. Here's how to handle this:
- For I2C LCDs: Many I2C LCD modules have built-in level shifters, allowing them to work directly with 3.3V logic. Check your module's specifications.
- For character LCDs: You may need to use a level shifter for the data lines. Alternatively, some LCDs work fine with 3.3V logic, but you might need to adjust the contrast.
- For SPI TFT displays: Many of these are designed to work with 3.3V logic and can be connected directly to the ESP8266.
Always check your display's datasheet and, when in doubt, use appropriate level shifters to prevent damage to your ESP8266 or display.
Creating animations on LCD displays depends on the type of display you're using:
- For character LCDs: You can create simple animations by defining custom characters and updating them rapidly. This allows for basic animations within the constraints of the character grid.
- For graphic LCDs (like SPI TFT displays): You have more flexibility. You can use library functions to draw shapes, lines, and bitmaps. By updating these elements in sequence, you can create more complex animations.
To create smooth animations, consider using techniques like double buffering and optimizing your drawing code for speed.
To extend battery life in portable LCD projects, consider these power-saving techniques:
- Implement sleep modes: Put the ESP8266 and LCD into low-power states when not in use.
- Use the LCD's backlight control: Dim or turn off the backlight when the display doesn't need to be visible.
- Optimize refresh rates: Update the display only when necessary, rather than continuously.
- Choose low-power display technologies: Consider using e-paper displays for projects that don't require frequent updates.
- Efficient code: Optimize your code to reduce processing time and power consumption.
By implementing these techniques, you can significantly extend the battery life of your ESP8266 and LCD projects.
